Features:
Measure AC/DC current (minimum 1mA by jaws)
Measure AC/DC voltage, frequency, resistance and continuity
Measure temperature, capacitance, diode and duty cycle

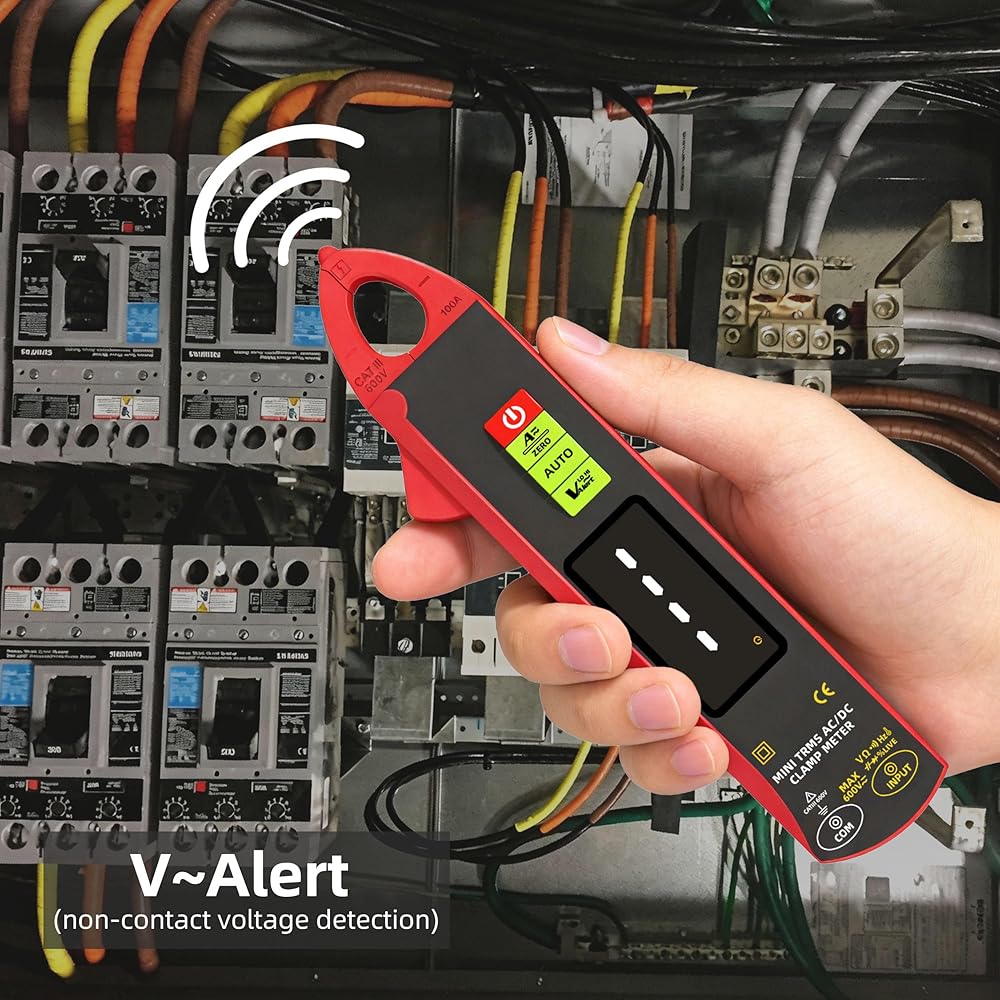

V-alert measurement, live-wire check

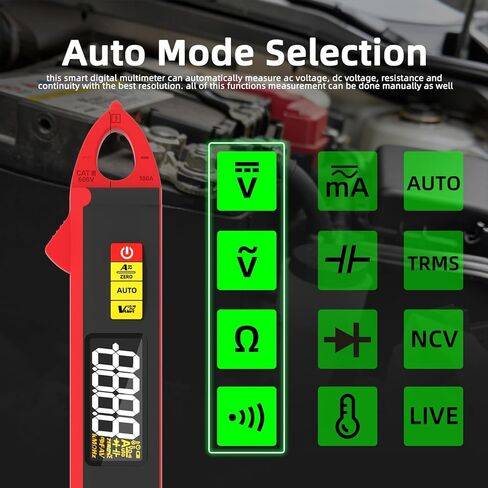

Auto range, Auto power off, data hold, low battery indication.
Specifications:

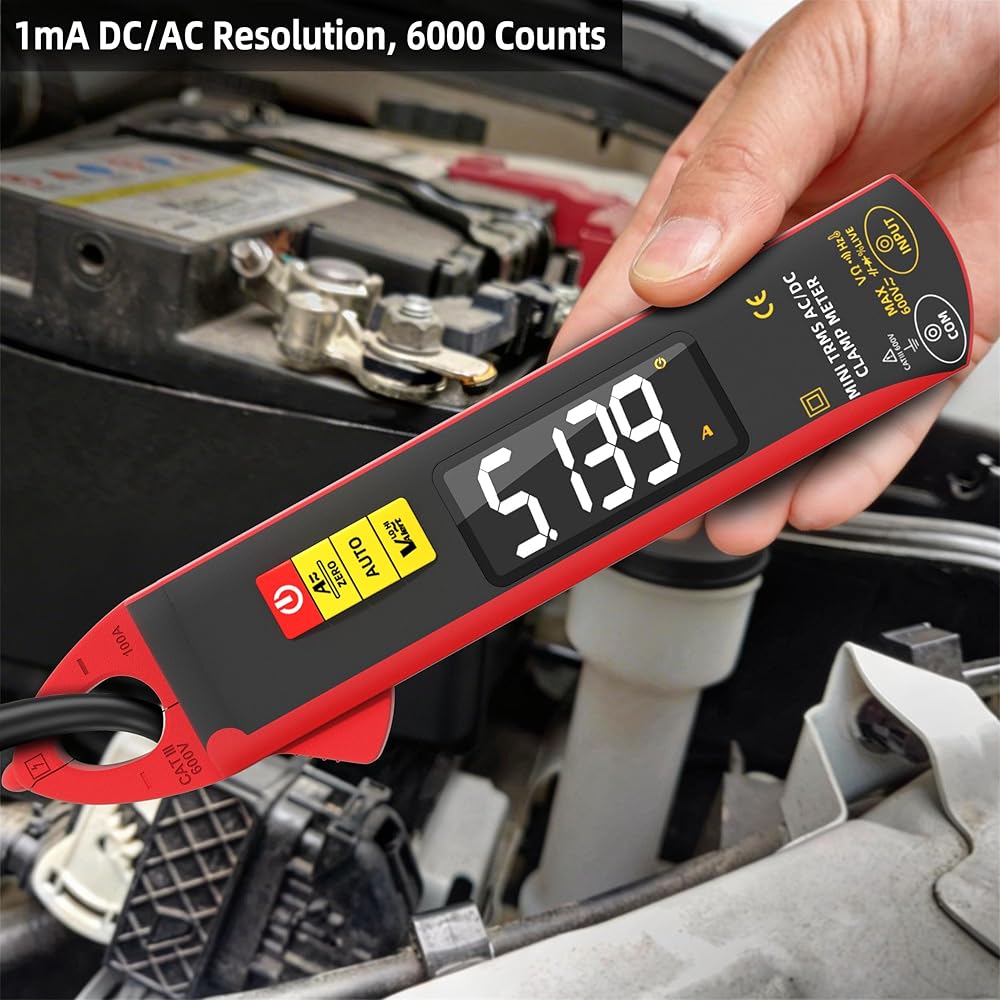

Display: 6000 counts
DC current:
0.001-5.999A 0.001A ±(3.0%+5); 6-59.99A 0.01A ±(3.0%+6); 60-100.0A 0.1A ±(3.0%+8);
AC current:
0.001-5.999A 0.001A ±(3.0%+5); 6-59.99A 0.01A ±(3.0%+6); 60-100.0A 0.1A ±(3.0%+8);
DC voltage:
0.001-5.999V 0.001V ±(0.8%+3);
6-59.99V 0.01V ±(0.8%+3); 60-599.9A 0.1V ±(1.0%+5); 600-610V 1V ±(1%+5)
AC voltage:
0.05-5.999V 0.001V ±(1%+3);
6-59.99V 0.01V ±(1%+3); 60-599.9A 0.1V ±(1.2%+5); 600-610V 1V ±(1.2%+5)
Resistance:
0.1-599.9Ω 0.1Ω ±(1.2%+3);
0.6K-5.999KΩ 0.001KΩ ±(1.2%+3); 6K-59.99KΩ 0.01KΩ ±(1.2%+3); 60K-599.9KΩ 0.1KΩ ±(1.2%+3);
0.6M-5.999MΩ 0.001MΩ ±(2%+10); 6M-60MΩ 0.01MΩ ±(2%+10)
Capacitance:
0.01µF-5.999µF 0.001µF ±(3.5%+8); 6µF-59.99µF 0.01µF ±(3.5%+8); 60µF-599.9µF 0.1µF ±(3.5%+8);
0.6mF-5.999mF 0.001mF ±(4.5%+10); 6mF-60mF 0.01mF ±(4.5%+10)
Frequency:(900mVrms-20Vrms)
1-9.999Hz 0.001Hz ±(2%+10); 10-99.99Hz 0.01Hz ±(2%+10); 100-999.9Hz 0.1Hz ±(2%+10);
1K-9.9KHz 0.001KHz ±(2.5%+12); 10K-99.99KHz 0.01KHz ±(2.5%+12); 100K-999.9KHz 0.1KHz ±(2.5%+12);
1M-9.999MHz 0.001MHz ±(3%+15);
Duty Cycle: 10.0%-95.0% 0.1% ±3.0%
Buzzer: If the resistance is less than 50Ω, the continuity beeper sounds

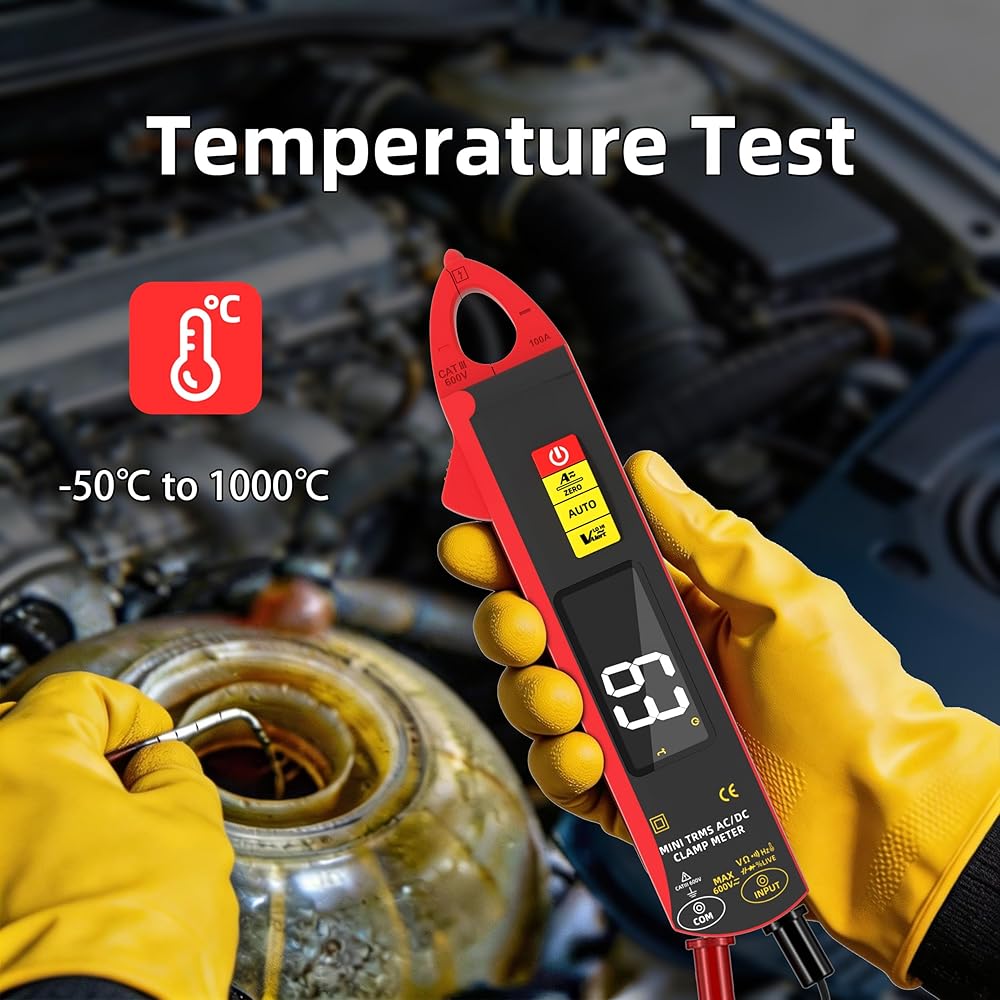

Temperature:
-50℃-0℃ 1℃ ±(2.0%+3); 0℃-50℃ 1℃ ±(1.5%+2); 50℃-1000℃ 1℃ ±(2.0%+3);
Diode: Measure diodes within 3V
V-Alert: Yes

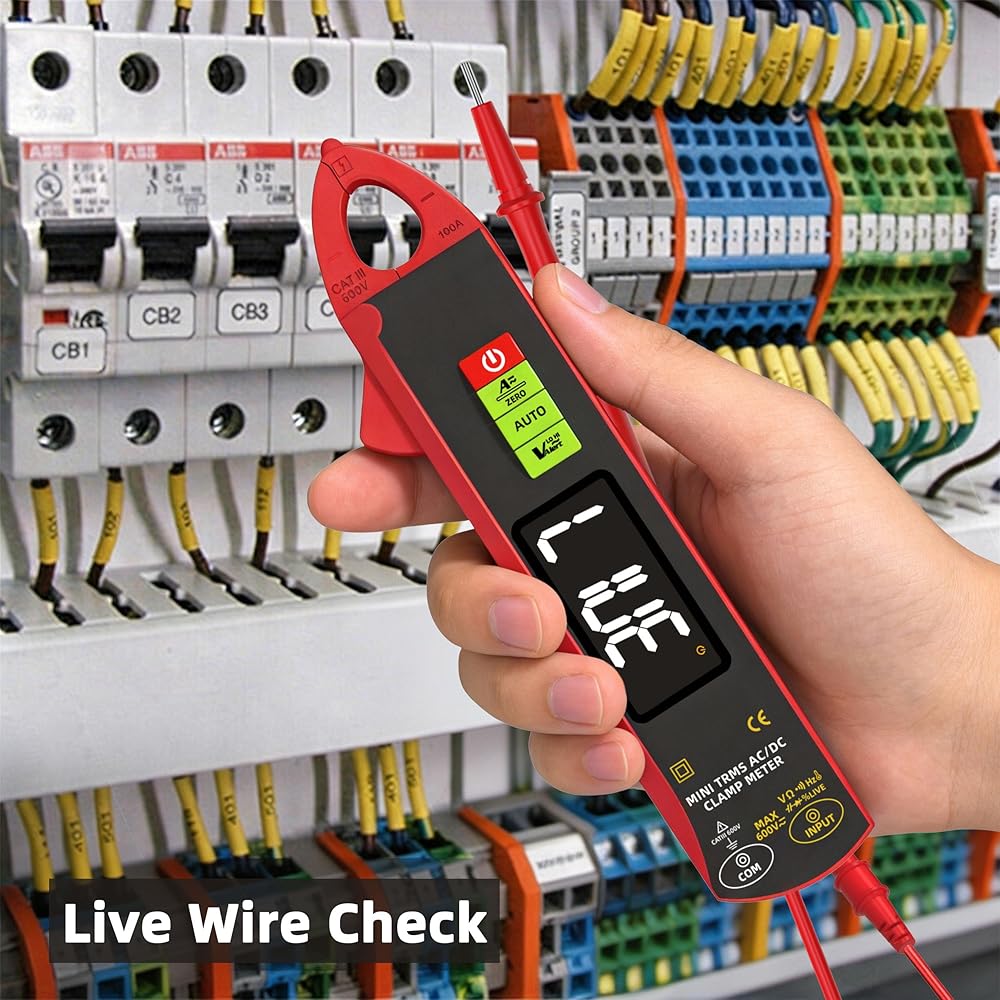

Live Wire Check: Yes
Jaw Capacity: 12.7mm

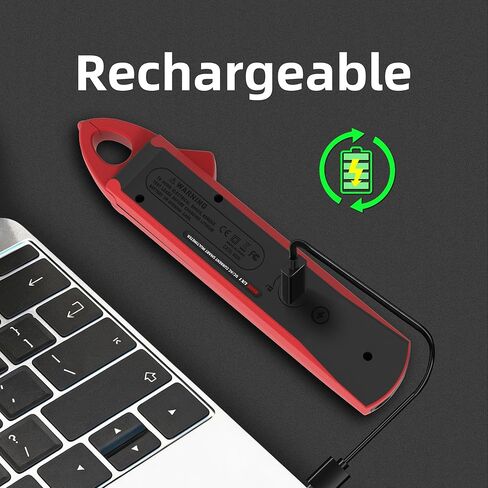

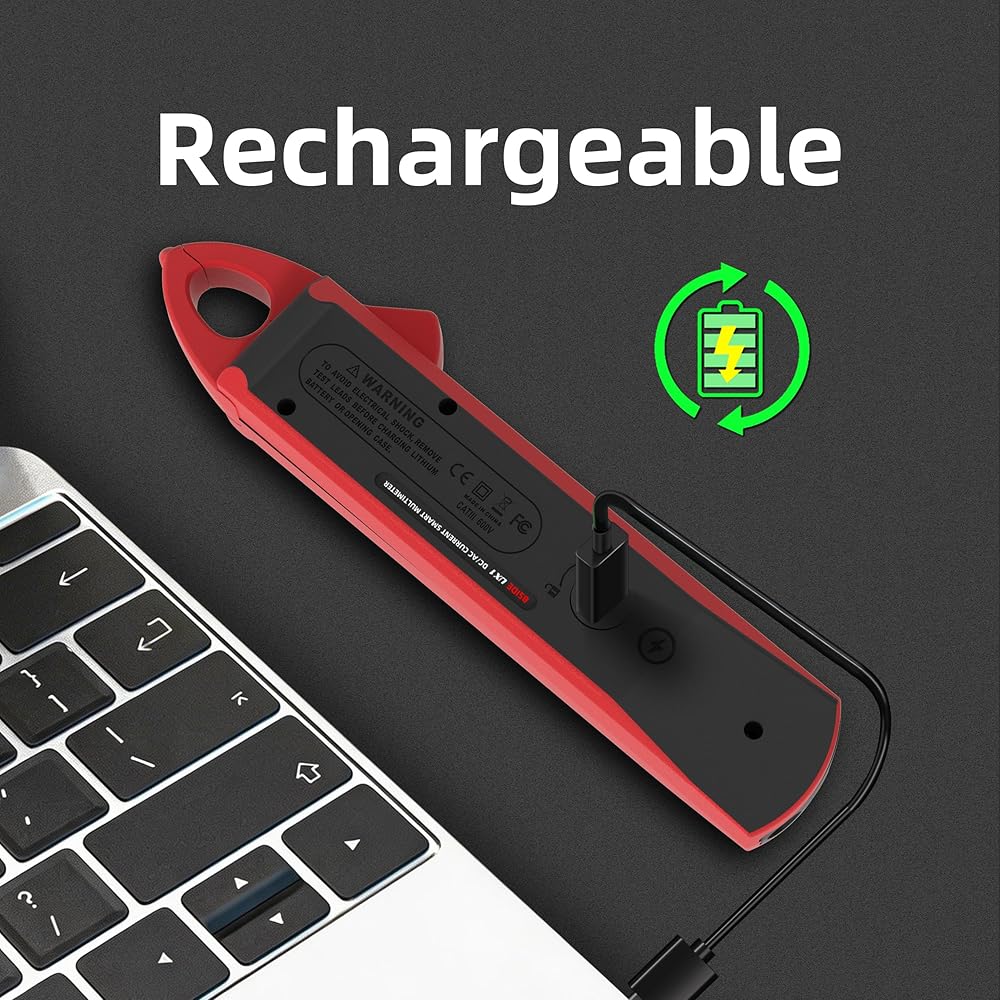

Power: 3.7V 400mA (built-in, rechargeable)

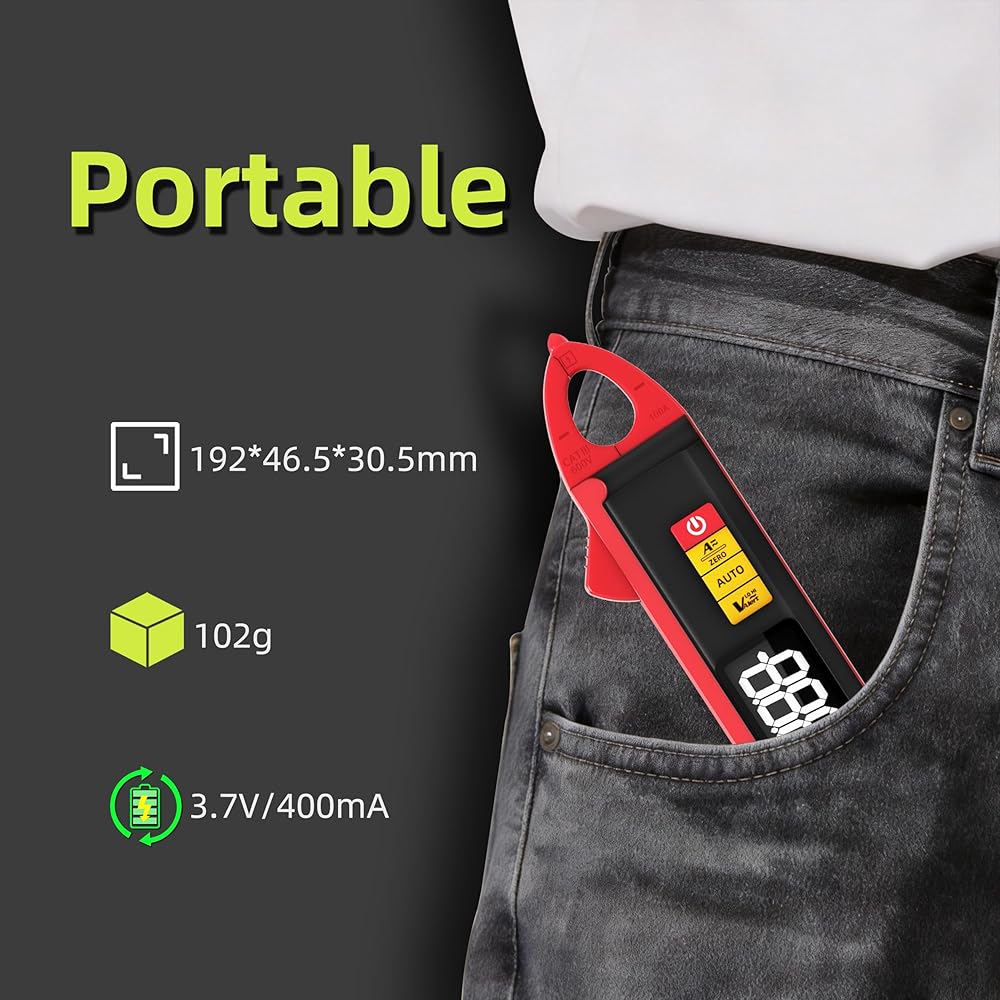

Size: 192*46.5*30.5mm
Weight: 102g

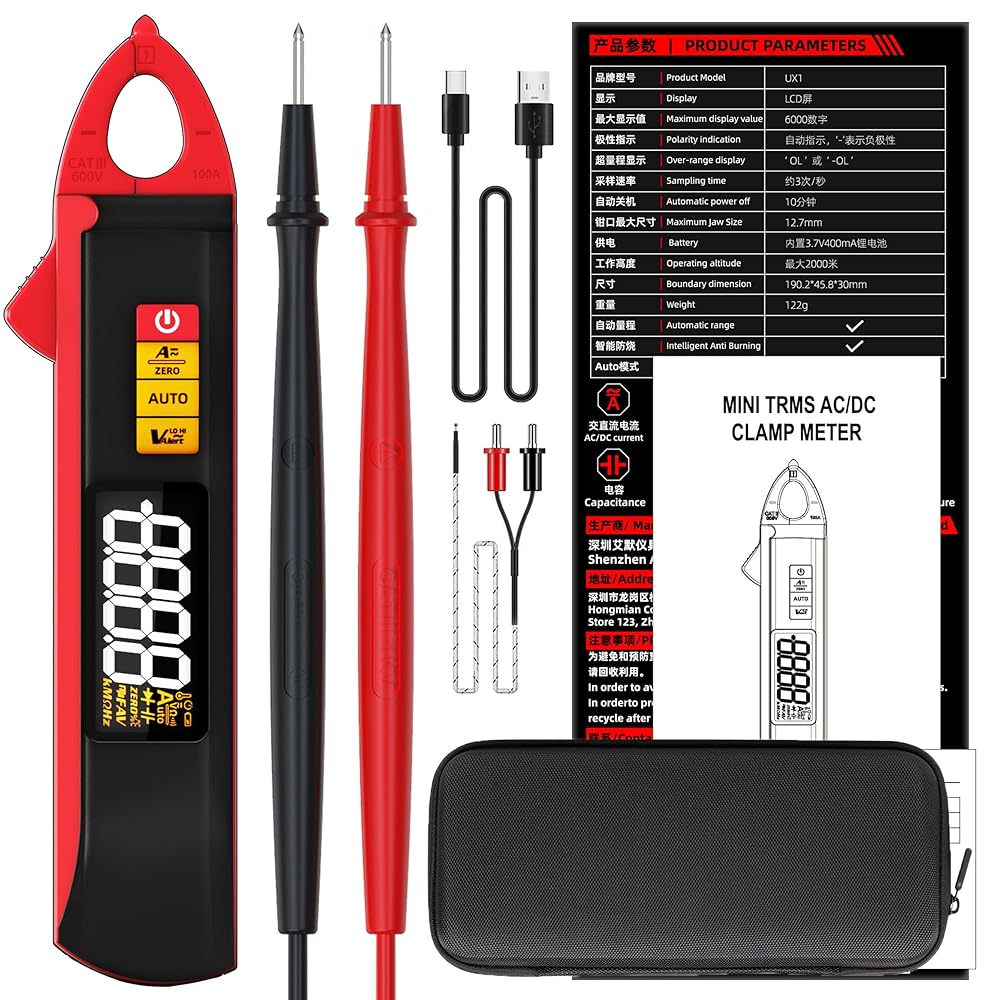

Package Includes:
1 x Digital Clamp Meter
1 x Test Leads
1 x Thermocouple
1 x Charging Cable
1 x Carrying Case
1 x User Manual

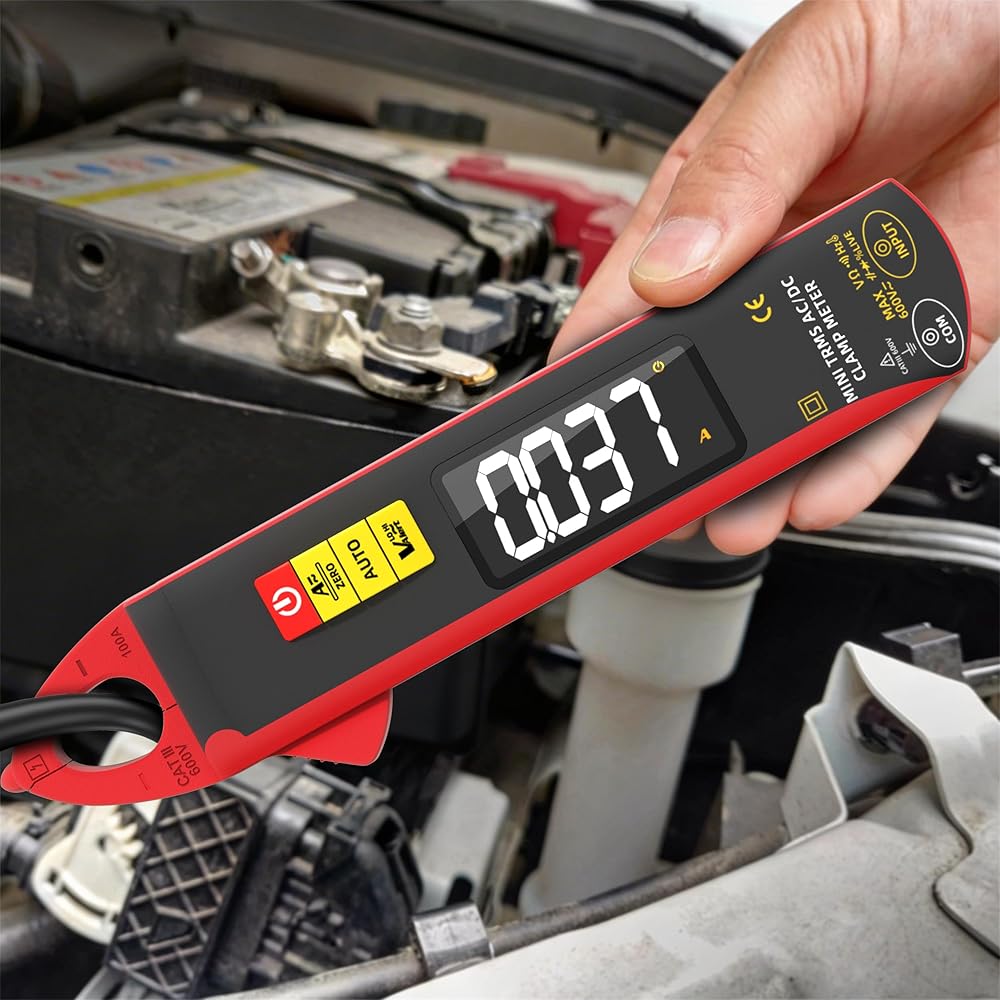

Tips when Test DC Current with Jaw:
The readings will be influenced by earth's magnetic field because the clamp meter is use the Hall effect sensor to detect dc currents. We suggest you measure dc current as the follow suggestions.
1) Zero out the readings before each measurement.
2)Once you zero out the meter, hold the meter in the same orientation when taking readings. Don't tilt it, twist it, or rotate it. Otherwise, changing the orientation of the meter can give false readings due to different magnetic field strengths of the earth when the meter is oriented differently after it's been zeroed.
3) Measures the dc current within 3 seconds, and you will get a accurate results.
