مميزات خاصة

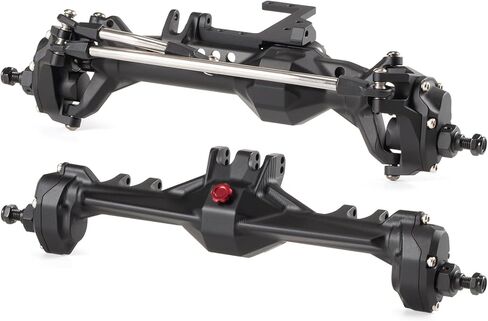

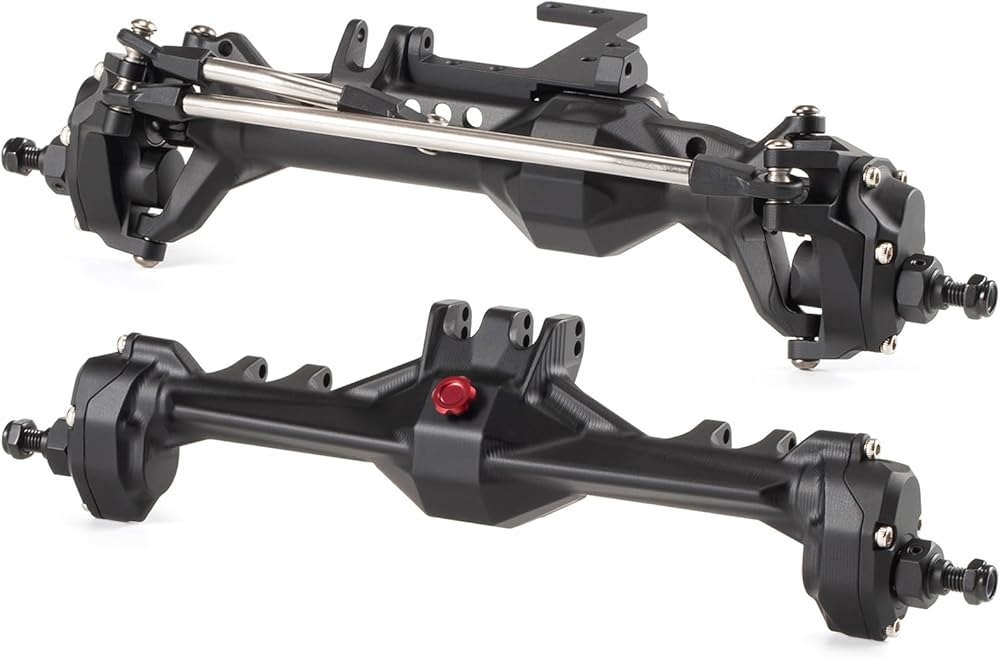

This complete aluminum portal axle set is designed as a direct, high-performance replacement for Vanquish VS4-10 Phoenix and other 1/10 scale crawler chassis. Experience a perfect fit and superior performance with this robust axle assembly
Machined from quality aluminum with black and silver anodizing, this axle set is built to last. It features heat-treated 40CR steel axle shafts, hardened AR44-style gears (30/8 ratio), and sealed bearings, ensuring maximum strength and reliability on the toughest terrain
The innovative one-piece housing with a "Tucked C" design moves the lower hub inside the knuckle, providing class-leading clearance around the steering knuckle. Conquer obstacles with ease and reduce hang-ups on rocks and debris
This is a full axle set that includes everything you need: front and rear axle , BTA (Behind The Axle) servo mount, steering links, gear sets, and bearings. The full-width truss integrates upper link and panhard mounts for a strong, unified structure
Engineered with a 20-degree caster angle and a total gear reduction of 5.25:1 for massive torque and control. With a pin-to-pin width of 188mm, this axle set delivers a low center of gravity and exceptional stability, giving you a competitive edge

وصف

Features:
One piece axle housing construction
CNC Machined from quality aluminum
Anodized in Black and Silver
High quality heat treated 40CR steel universal and rear axle shafts
High quality sealed bearing kit
Fully machined hardened AR44 style gear set, 30/8 standard ratio
Direct replacement for F10 Portal Axle
20 Degree caster angle
Full axle truss tied into upper link and panhard mount spanning the full axle width
Tucked "C" design for added clearance at steering knuckle. Moving the lower portion of the C-hub up inside of the knuckle provides class leading clearance
Comes with BTA servo mount and steering links
Come with all parts needed to assemble a full axle
Fits VS4-10 or others 1/10 rc crawler chassis

Dimension:
Total Width: 215mm/8.46in
Pin to Pin Width: 188mm/7.40in
6mm Stub Shafts, M5 thread
12mm Standard Hex
Links Mount Width: 7.2mm
Bevel Gear Set: 8T/30T
Portal Gear Set: 20T/28T
Total Gear Ratio=5.25:1

Weight:
Front Axle: 315g
Rear Axle: 246g

*Not compatible with brass tubes used in molded housings
*The front axle needs to use the shocks with smaller rod end at the top
