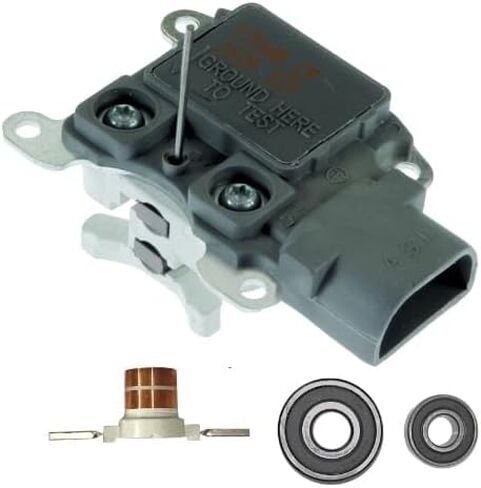

Specifications and Features:
TYPE Regulator
CIRCUIT A-CIRCUIT
LRC WO /LRC
PLUG CODE 330
SYSTEM VOLTAGE 12
TERMINALS I, S, A
VOLT SET 14.6
MFR:FOR.D
FEATURE 1:100% New Transpo
FEATURE 2:Very low standby drain
FEATURE 3:Very low saturation voltage
FEATURE 4:Superior loading performance
NOTE 1:For heavy duty version use F794HD.
SPECS FOR:For.d 3G Series IR/IF Alternators
SPECS:12 Volt, A-Circuit, I-S-A Terminals, 14.6 Vset, w/o LRC, Gray
TYPE Brushes
CONTACT SURFACE FLAT
INSULATED LEAD NO
LEAD ATTACH LOCATION TOP
LENGTH 22
LENGTH LEAD 73
THICK 5
WIDTH 8
TYPE Bearing
ID 10
IND REF NUM B10-50D
OD 27
SIDE-1 FEATURE RUBBER SEAL
SIDE-2 FEATURE RUBBER SEAL
WIDTH 11
TYPE Slip Ring
ID 13.4
LENGTH LEADS 30
LENGTH RING 1 7.8
LENGTH RING 2 9.9
LENGTH RINGS 18.9
OD SLIP RING 27
Interchange #
Regulator
F794B
Brushes
38-217-1
Bearing, Ball
10-1051-4, 10-1051-4E, 10-1051-4W
Slip Ring, Rotor
28-2859, 28-2859-10
Lester
7749-11, 7749-3, 7749-3, 7749-3, 7749-3, 7749-3, 7750, 7750, 7751, 7751, 7752, 7753, 7753, 7755-11, 7755-11, 7755-11, 7755-3, 7756-3, 7756-3, 7756-3, 7756-7, 7760, 7764, 7764, 7764, 7764, 7764, 7764, 7765, 7768, 7768, 7768, 7769, 7771, 7771, 7776, 7776, 7778-11, 7778-3, 7785-3, 7785-3, 7790, 7791, 8258, 8267
Replaces
For.d F1DU-10C359-AA, F1DZ-10C359-A
USED ON
For.d (1989-2008) ** Linc. (1990-1997) ** Maz. (1991-2005) ** Merc. (1990-1998)
UNIT NUMBERS
For.d 1L5U-10300-BA, 1L5U-10300-BB, 1L5Z-10346-BA, 1L5Z-10346-BARM, 1L5Z-10346-DA, 1U2U-10346-AA, 1U2Z-10346-AA, 1U2Z-10346-AARM, 2C2U-10300-BB, 5C2T-10300-BC, 5C2Z-10346-AA, 5C2Z-10346-BA, 6C2T-10300-BA, 6C2Z-10346-BA, 6C2Z-10346-BARM, 6C2Z-10V346-BBRM1, 6L2Z-10346-BARM1, DU2Z-10V346-BBRM1, DU2Z10V346BBRM1, E9DF-10300-CA, E9DF-10346-AA, E9DZ-10346-B, E9PU-10346-AA, F07F-10300-AA, F07U-10300-AA, F07U-10300-AB, F07U-10300-AC, F07U-10346-AC, F0CF-10300-AA, F0CO-10300-AD, F0CU-10300-AA, F0CU-10300-AB, F0CU-10300-AC, F0CU-10300-AD, F0CU-10346-A, F0CU-10346-AC, F0CZ-10346-A, F0CZ-10346-C, F0CZ-10346-CRM, F0CZ-10346-CRM, F0DF-10300-AA, F0DF-10300-BA, F0DU-10300-AA, F0DU-10300-AB, F0DU-10300-AC, F0DU-10300-BA, F0DU-10300-BB, F0DU-10300-BC, F0DU-10346-BC, F0DU-10346-BC, F0DZ-10346-A, F0DZ-10346-B, F0DZ-10346-C, F0DZ-10346-D, F0DZ-10346-D, F0DZ-10346-DRM, F0DZ-10346-DRM, F0DZ-10346-E, F0DZ-10346-ERM, F0PU-10346-AD, F0PU-10346-BD, F0PU-10346-CA, F0PU-10346-DA, F0PU-10346-DD, F0PU-10346-MC, F0PU-10346-NC, F0VF-10300-AA, F0VU-10300-AA, F0VU-10300-AB, F0VU-10300-AC, F0VY-10346-A, F0VY-10346-B, F0VY-10346-BRM, F13U-10300-AC, F13U-10300-AD, F13Z-10346-A, F17U-10300-AA, F1DU-10300-AD, F1DU-10300-AE, F1DU-10346-AE, F1DZ-10346-A, F1DZ-10346-B, F1DZ-10346-BRM, F1DZ-10346-BRM2, F1HT-10300-AA, F1HT-10300-AB, F1HT-10300-AC, F1PU-10346-AC, F1PU-10346-BE, F1PU-10346-CA, F1PU-10346-DA, F1SU-10300-AC, F1SU-10300-AD, F1SU-10300-BA, F1SZ-10346-A, F1TZ-10346-B, F1TZ-10346-C, F1TZ-10346-CRM, F1TZ-10346-CRM1, F1TZ-10346-CRM2, F1VU-10300-BB, F1VU-10300-BC, F1VU-10346-AD, F1VY-10346-A, F1VY-10346-B, F1VY-10346-BRM, F1VY-10346-BRM2, F23U-10300-CA, F23U-10300-DA, F23U-10346-AD, F23Z-10346-A, F23Z-10346-ARM, F23Z-10346-ARM2, F29U-10300-AB, F2HZ-10346-B, F2HZ-10346-BRM, F2HZ-10346-BRM1, F2HZ-10346-BRM2, F2PU-10346-AF, F2PU-10346-DE, F2PU-10346-ED, F2PU-10346-FC, F2PU-10346-GA, F2TU-10300-AF, F2TU-10346-AE, F2UU-10300-BE, F2UU-10300-CD, F2UU-10300-DC, F2UU-10300-EA, F2UU-10300-FA, F2UU-10346-BE, F2UU-10346-CD, F2UU-10346-DA, F2UZ-10346-B, F2UZ-10346-BRM, F2UZ-10346-BRM, F2UZ-10346-C, F2UZ-10346-CRM1, F2UZ-10346-CRM2, F37U-10300-AA, F3AU-10300-AC, F3AU-10300-BA, F3AU-10346-AC, F3AZ-10346-A, F3AZ-10346-A, F3AZ-10346-ARM, F3AZ-10346-ARM1, F3CU-10300-AD, F3DU-10300-BB, F3HT-10300-GB, F3HT-10300-LA, F3HZ-10346-B, F3PU-10346-AC, F3PU-10346-BA, F3UU-10300-AE, F3UU-10300-AF, F3UZ-10346-A, F3UZ-10346-ARM, F3UZ-10346-ARM1, F3UZ-10346-ARM2, F3VU-10300-AA, F4DU-10300-AA, F4OU-10300-CA, F4PU-10300-CA, F4PU-10346-BA, F4PU-10346-CA, F4PZ-10346-B, F4PZ-10346-BRM, F4PZ-10346-BRM1, F4PZ-10346-BRM2, F4PZ-10346-C, F4PZ-10346-CRM, F4SU-10300-AB, F4ZU-10300-DA, F57U-10300-AA, F57U-10300-BA, F58U-10300-AA, F58Z-10346-AARM1, F5HT-10300-AA, F5HT-10300-BA, F5HT-10300-CA, F5HT-10300-DA, F5HZ-10346-D, F5HZ-10346-E, F5PU-10300-GA, F5PU-10346-EA, F5PZ-10346-GA, F5UU-10300-BA, F65U-10300-BB, F65U-10300-EA, F67U-10300-AA, F67U-10300-BA, F69U-10300-AA, F6AU-10300-AA, F6AU-10300-AB, F6AZ-10346-AA, F6AZ-10346-AARM, F6AZ-10346-AARM1, F6AZ-10346-AARM2, F6HT-10300-KA, F6HT-10300-LA, F6HT-10300-MA, F6HU-10300-AA, F6PU-10300-BA, F6PU-10300-TA, F6PU-10346-AA, F6PU-10346-AF, F6PU-10346-BA, F6PU-10346-EB, F6PU-10346-KA, F6PU-10346-SA, F6PU-10346-TA, F6PU-10346-VA, F6PU-10346-XA, F6PU-AF, F6PU-SA, F6PZ-10346-AF, F6PZ-10346-AFRM, F6PZ-10346-AFRM2, F6PZ-10346-AFRM4, F6PZ-10346-B, F6PZ-10346-BRM, F6PZ-10346-EA, F6PZ-10346-EARM, F6PZ-10346-EARM1, F6PZ-10346-EARM2, F6PZ-10346-HA, F6PZ-10346-HARM, F6PZ-10346-HARM1, F6PZ-10346-HARM2, F6PZ-10346-KA, F6PZ-10346-KARM, F6PZ-10346-KARM1, F6PZ-10346-KARM3, F6PZ-10346-KBRM, F6PZ-10346-LA, F6PZ-10346-LARM, F6PZ-10346-LARM1, F6PZ-10346-LARM2, F6PZ-10346-PA, F6PZ-10346-RA, F6PZ-10346-RARM, F6PZ-10346-RARM1, F6PZ-10346-RARM2, F6PZ-10346-RARM2, F6PZ-10346-TA, F6PZ-10346-TARM, F6PZ-10346-TARM2, F6PZ-10346-UBRM, F6PZ-10346-XA, F6PZ-10346-XARM, F6PZ-10346-XARM1, F6PZ-10346-XARM2, F6PZ-10346-XARM2, F6UU-10300-AA, F6UU-10300-BA, F6UU-10300-CA, F6UU-10300-DA, F6UU-10300-EA, F6UU-1
