Features:
* The XHQ-PT diesel generator flameout controller switch measures only 22*8*5 cm, easy installation and seamless integration into small spaces.
* Can operate reliably in a variety of environments, with an operating temperature range of -40°C to 150°C, making it for ideal for harsh environments.
* This product is used for diesel engine shutdown control, with different product specifications such as 12V/24V, and can be applied to different types of diesel engines. The throttle lever of the diesel engine is forced by the wire rope to shut down the engine and automatically return to its position. It has the advantages of small working current, no heat, stable operation, and long service life. .
* Low power consumption and high efficiency, with current consumption less than 1A (control line
* Long-lasting and for , with a tensile strength of up to 90-110N, and 40mm smooth wiring, durability and continuous operation under pressure.

Specifications:

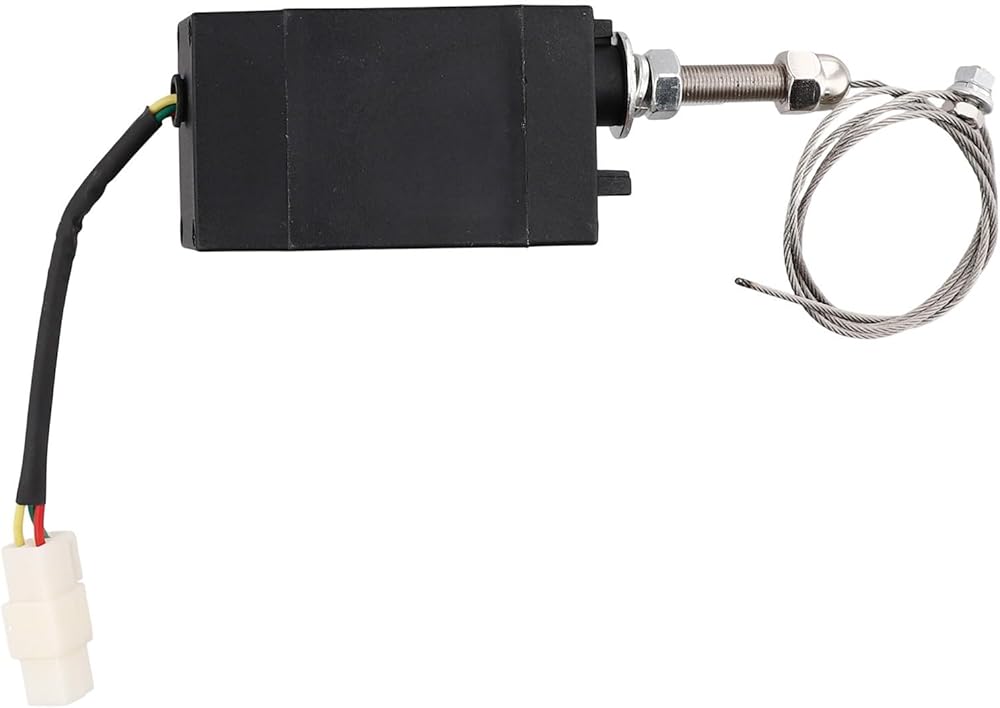

Part name: Power-off solenoid valve
Model: XHQ-PT
Type (optional): Normal open 12V, Normal open 24V, Normal closed 12V, Normal closed 24V
Color: as shown in the figure
Material: Plastic shell
Size: 220*80*50 mm
Working temperature: -40~150℃
Voltage: 12V/24V
Current:
Pulling force: 90-110N
Route: 40 mm
Working temperature range: -40°C to 150°C
Working mode: (as follows)
1. Normally open type: The flameout action is activated when the control line is powered on, and it stops automatically after the action is in place. The flameout is released after the control line is powered off. (That is, it is tightened after power is on and released after power is off)
2. Normally closed type: The flameout action is activated when the control line is powered off, and it stops automatically after the action is in place. The flameout is released after the control line is powered on. (i.e. tighten after power off, release after power on)

Package Contents:
1 x power off solenoid valve

no
