Your Smart Digital Life Hub: High-Speed Connectivity, Outstanding Scalability, Hassle-Free Usage.
Thank you for your trust! I am always at your service 24 hours a day, whether it's answering questions, providing advice, or assisting with affairs, I will fully support you here
Chipset
B560
Form Factor
microATX
244cm x 23.4cm
Expansion Slots
PCI
Intel 11th &10th Gen Processors
1 x PCIe 4030 x16 slot
Intel 11th Gen processors support PCIe 40 x16
- Intel10th Gen processors support PCIe 3.0 x16
Intel B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
1 x PCIe 3.0 x1 slots
M.2 Socket
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes
Slots
4 x DIMM DDR4
Supported Memory
5000OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory
Max. 128GB
Graphics
Graphics
1 x DP1.4**
HDMI
1 x HDMI port
Display Port s
1 x DisplayPort
USB (s)

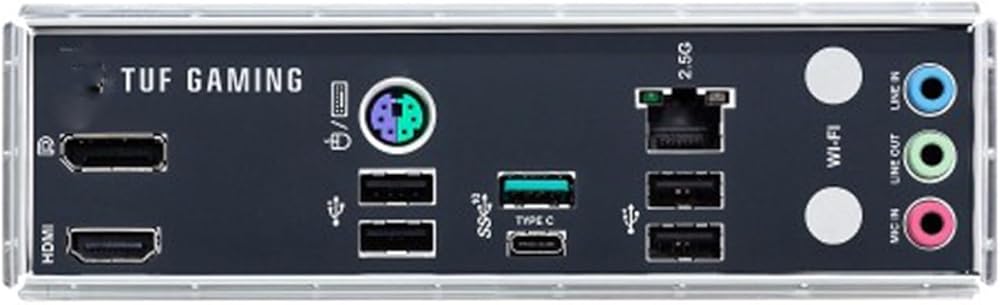

Rear USB:Total 6 ports
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
V-M.2 slot only (Key E, CNVi & PCIe
Supported Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes
6 x SATA 6Gbs ports
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
==========
RAID Supported : Yes
Processor compatibility : 10th Intel Core i3,11th Intel Core i9
Usage Scenario : Enthusiast & Overclocking,Audio & Video,Office,Video Production,3-D Modeling
Back I/O Ports : Disply Port,HDMI 2.0
Onboard LAN : 1x RJ45
Number of M.2 : 1
Number of SATA Ports : 6
Storage Interface Type : SATA 3,M.2 (NVMe)
Number of PCI : 2
Number of PCIe x 8 : 2
PCI - E standards : PCI-E 3.0
Number Of Memory Slots : 4
Support Memory Type : DDR4
Memory channel : Double
Maximum Ram Capacity : 128 GB
Form Factor : Micro-ATX
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Intel B560
Application : Desktop
Socket Type : LGA1200
