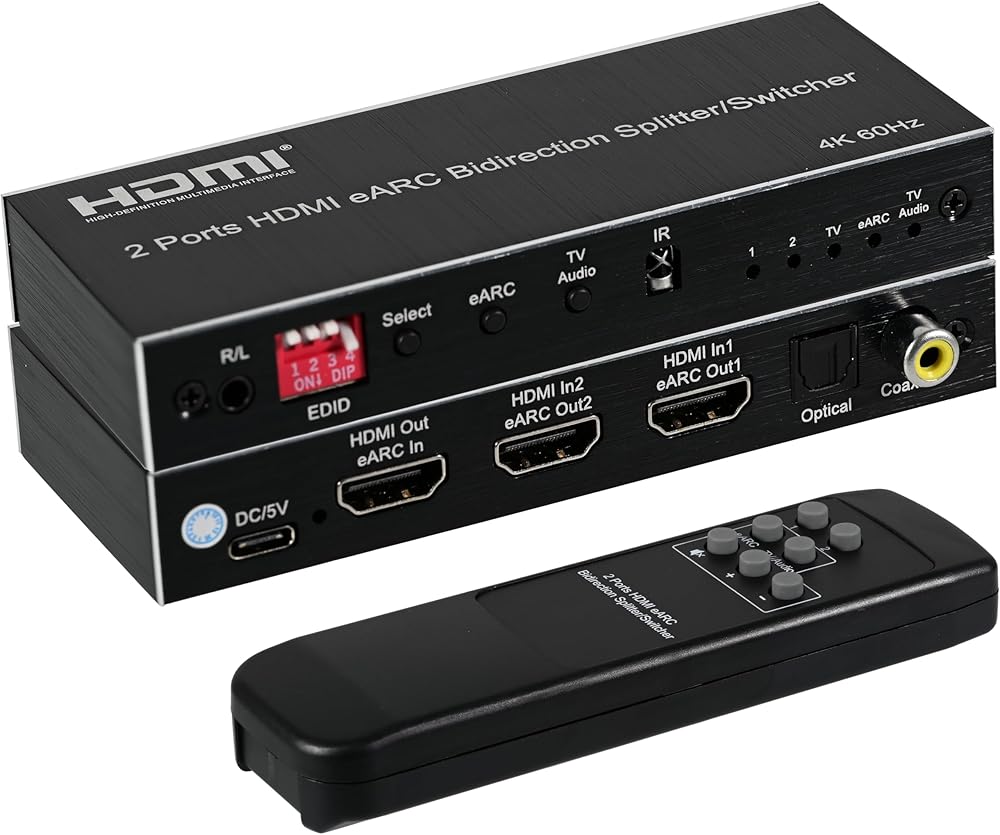

This HDMI eARC Splitter, HDMI Switcher supports eARC splitter 1x2, eARC switcher 2x1, and HDMI switcher 2x1 three application scenarios.

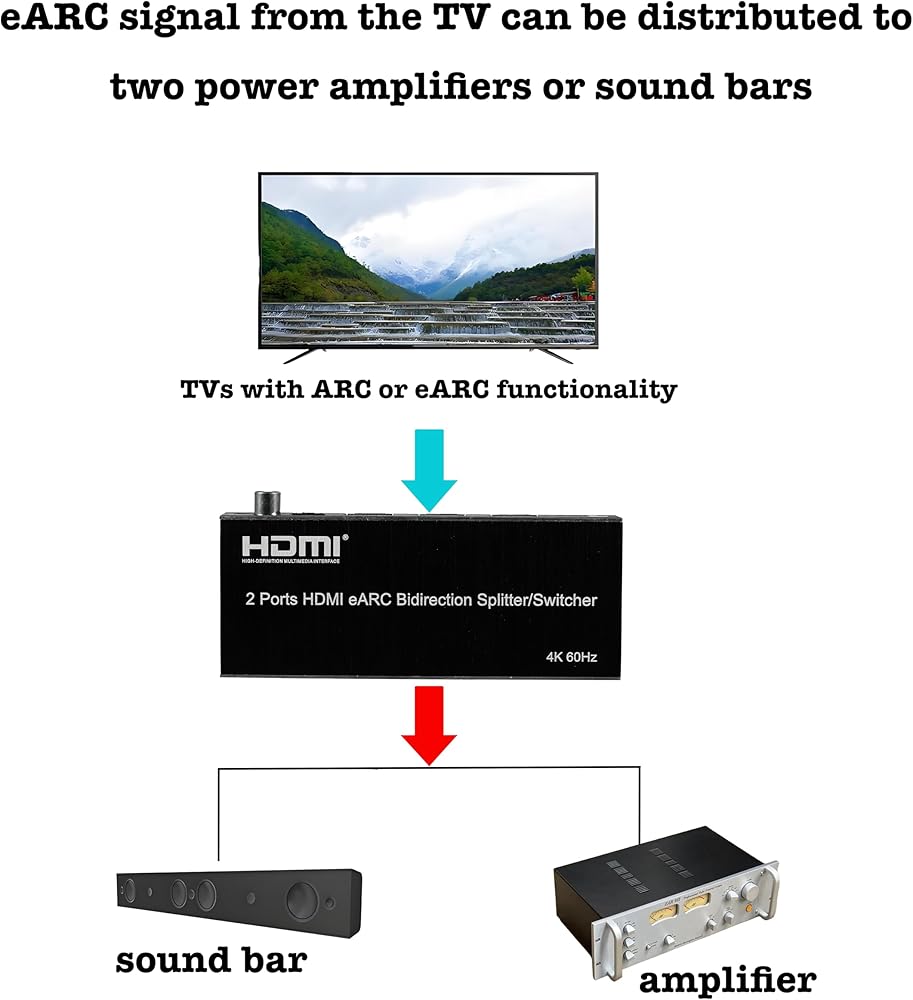

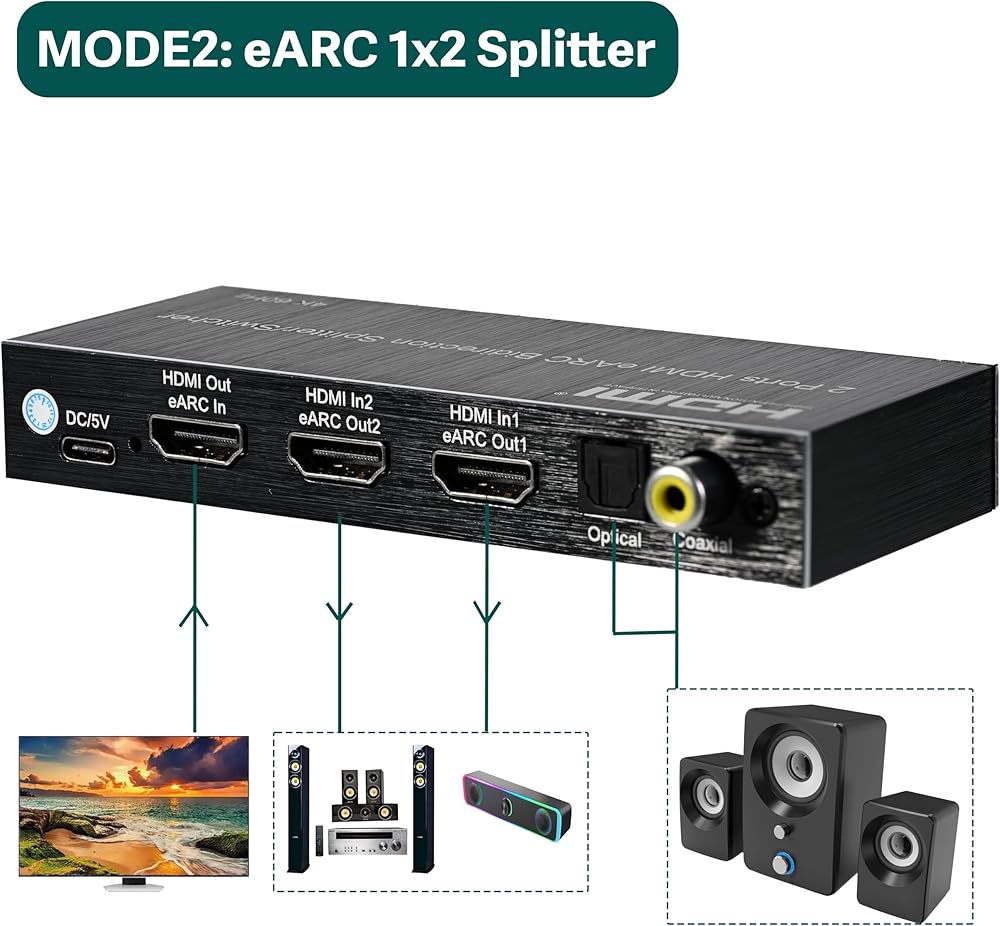

1. When used as an eARC splitter 1x2, the eARC signal of the TV can be assigned to 2 amplifiers or sound bars through this splitter, which can support 4 amplifiers or sound bars to sound at the same time.
2. When used as an eARC switcher 2x1, the eARC signal of the TV can be assigned to 2 amplifiers or sound bars through this switcher, which can support 4 amplifiers or sound bars to sound separately (2 chose 1).

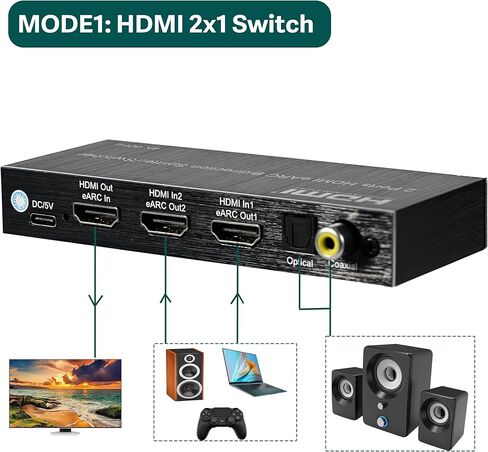

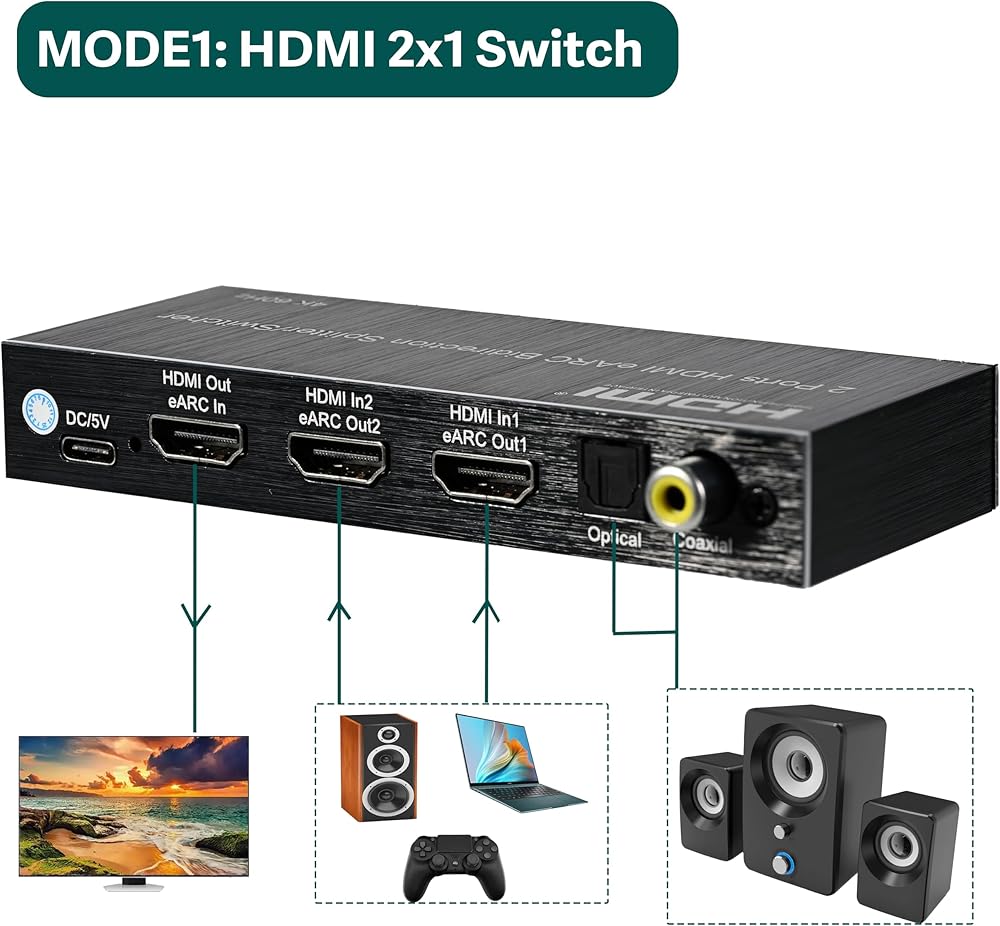

3. When used as a HDMI switcher 2 x1, it can send any of the 2 HDMI signals to the display terminal, and the eARC signal can be assigned to the amplifier or sound bar through the HDMI input port, sounds through the amplifier or sound bar, it supports HD formats including 4K/60Hz, 4K/30Hz, 1080p, 1080i, 720p.

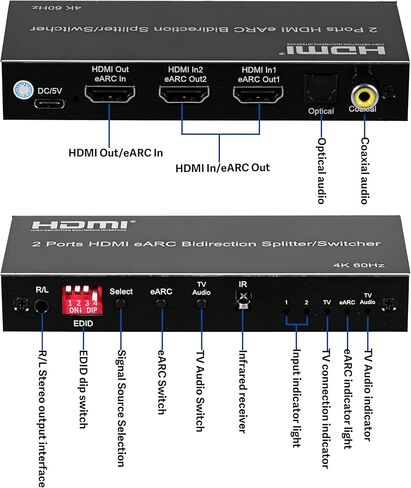

4. eARC switcher and eARC splitter can be chosen by the fourth DIP EDID. In the downward direction was splitter, in the upward direction was switcher.
Features:
*Support HDCP2.2,HDR10;
*Support 4K@60Hz;
*Support signal switching, audio return signal distribution;
*Support 3D video format (Only when copy TV EDID has);
*Support ARC/eARC function(power amplifier, sound bar etc.);
* Support eARC splitter function, can return eARC/ARC signal to 2 amplifiers or Sound bar;
*Support audio return only through HDMI signal source not through the display device;

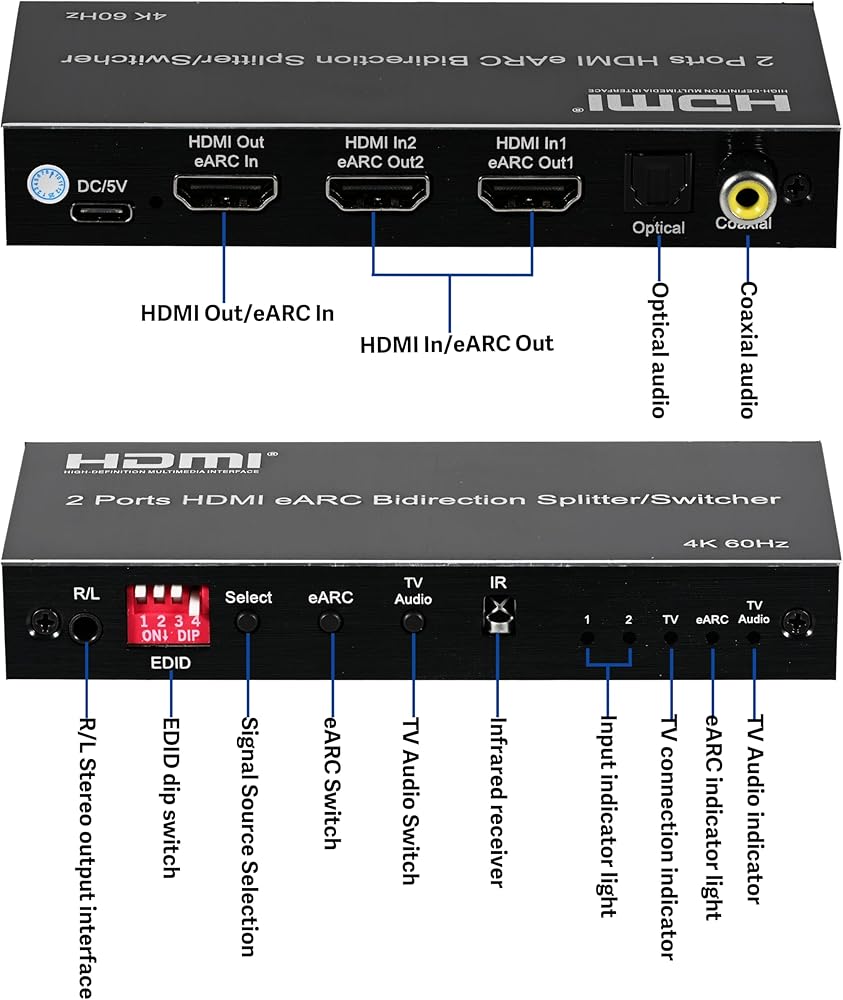

*Support 3.5 stereo, coaxial, fiber audio output.
*Support for devices such as Blu-ray DVD input, HDMI audio conversion to ARC/eARC output, HDMI video output through HDMI OUT output;

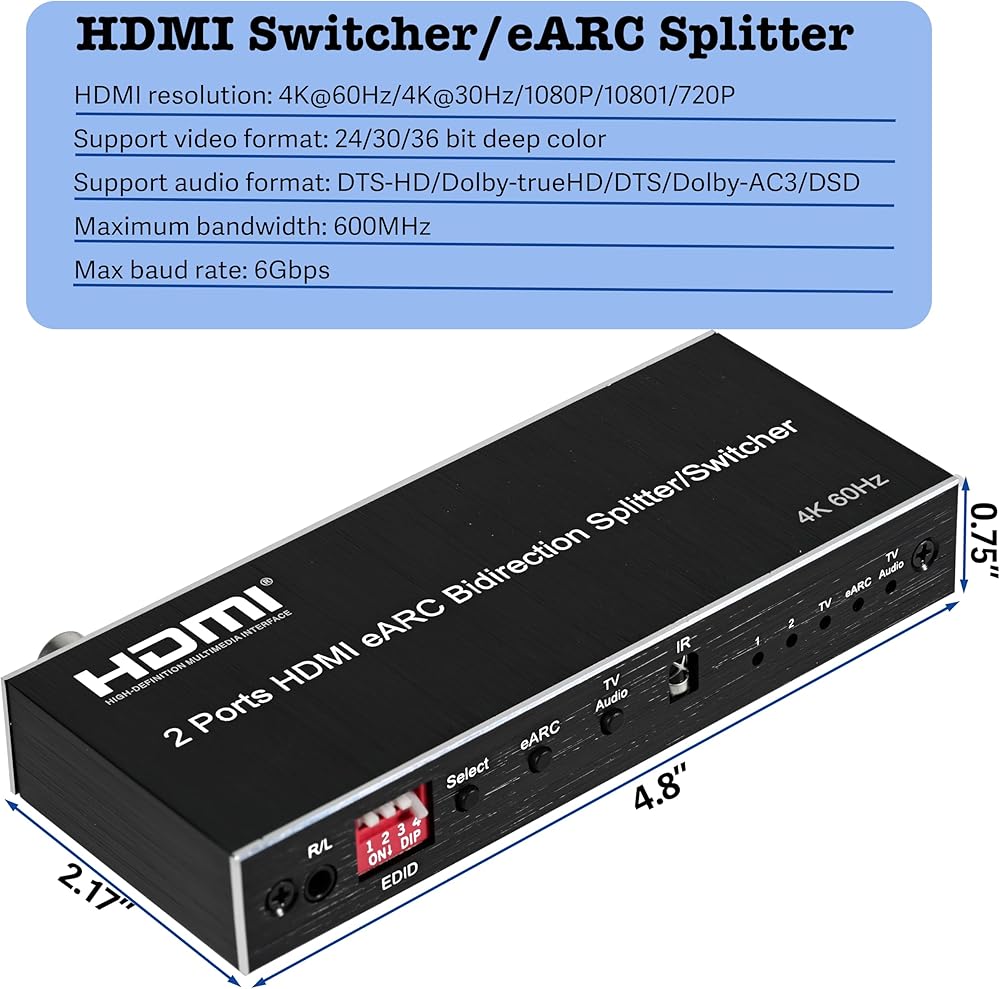

Specifications:
HDMI resolution———4K@60Hz/4K@30Hz/1080P/10801/720P
Support video format———24/30/36 bit deep color
Support audio format———DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Maximum bandwidth———600MHz
Max baud rate———6Gbps
Input cable distance———≤8m AWG26 HDMI standard cable(4K/30Hz); ≤3m 2.0 HDMI Standard cable(4K/60Hz)
Output cable distance———≤8m AWG26 HDMI standard cable(4K/30Hz); ≤5m 2.0 HDMI Standard cable(4K/60Hz)
Max working current———0.6A
Power adapter format———Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range———(-15 to +55℃)
Operating Humidity range———5 to 90%RH (No Condensation)
Dimension(L x WxH)———122x55×19(mm)
Package Included:
1 x hdmi earc splitter/Switch
1 x manual

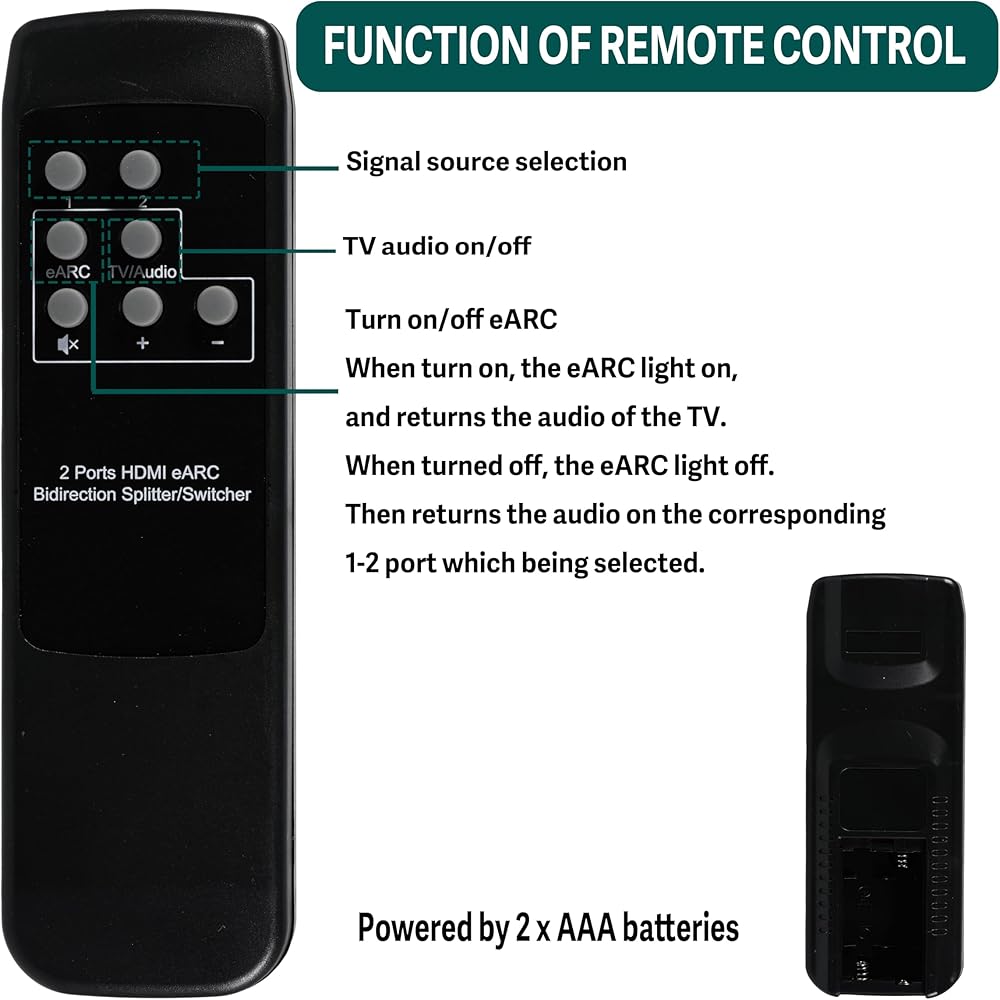

1 x remote controller powered by AAA batteries which is not included
1 x 5v 1a adapter
