مميزات خاصة

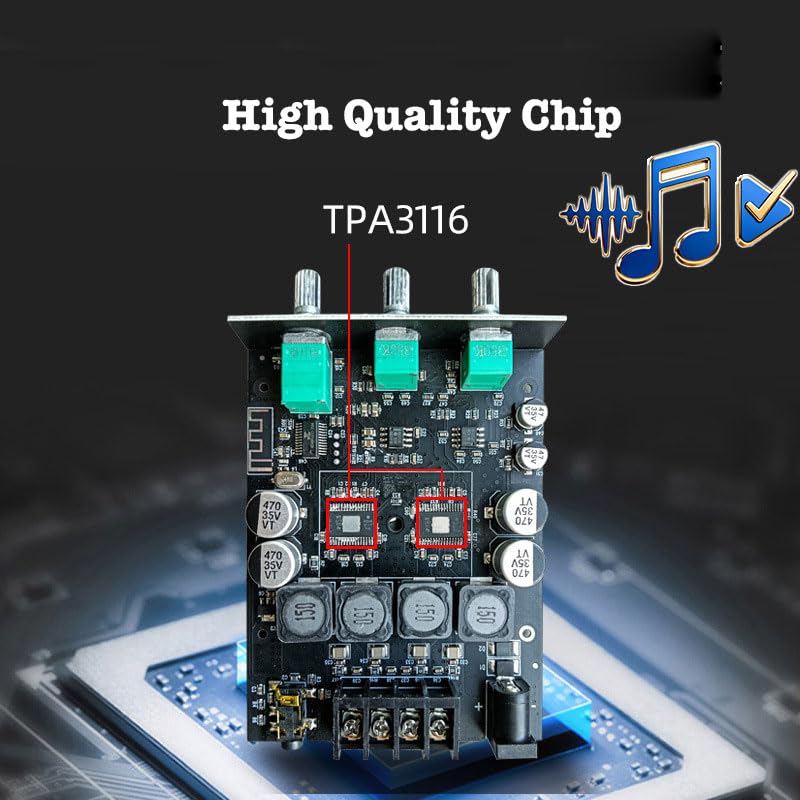

Dual Premium HiFi Chipset: Built in original TPA3116D2 HiFi amplifier chips with PurePath technology. These chips offer ultra-high resolution, ultra-low distortion, and high-fidelity sound. This 1002T bluetooth amp supports a 2.0 - channel setup with separate left and right channel outputs, each delivering 100W of power for an immersive audio encounter

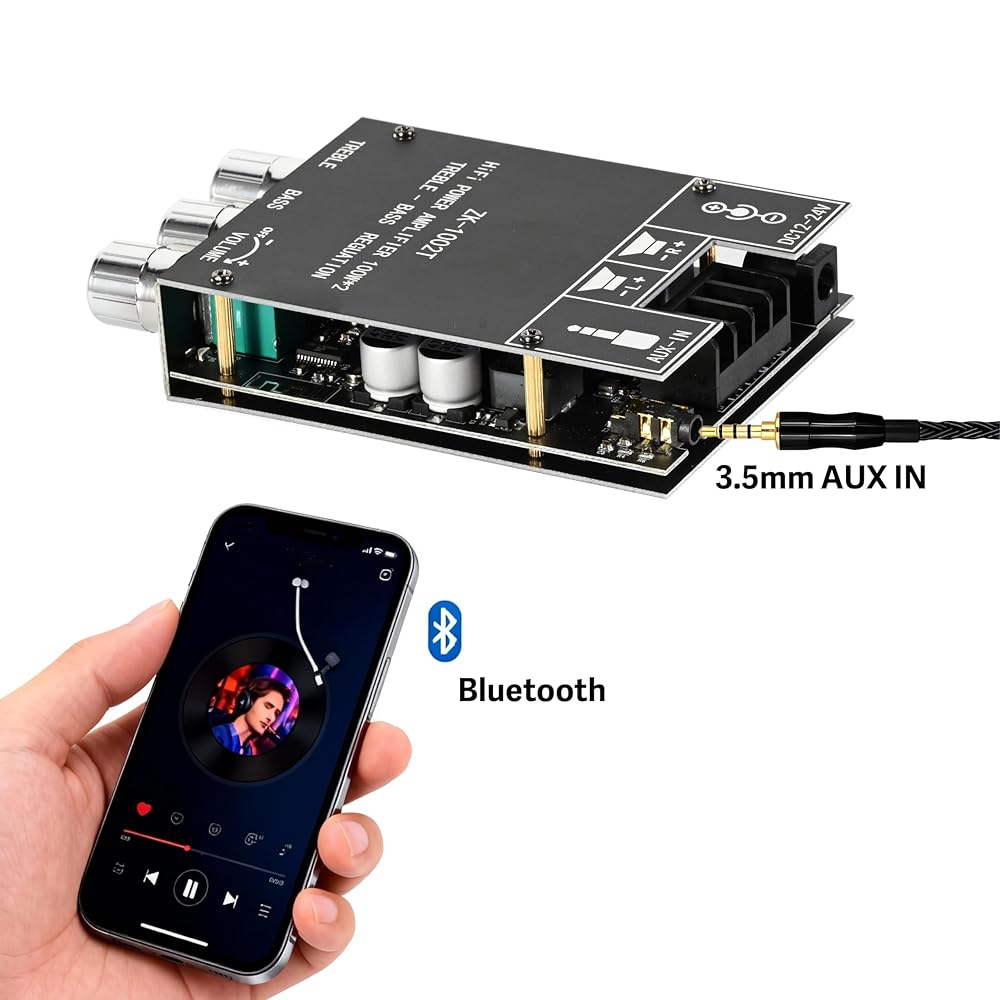

Diverse Input Methods: This amplifier board combines both AUX and Bluetooth 5.0 input options. You can either connect wirelessly using the latest Bluetooth 5.0 tech for hassle - free use or opt for the traditional AUX input to link to your audio source. It's compatible with most devices like mobile phones, TVs, and laptops, making audio connection a breeze
Broad Application Scope: The 1002T bluetooth amplifier board has a wide DC input voltage range from 12V to 24V and can be powered by 12V, 19V, or 24V. It's suitable for speakers ranging from 20 - 200W with 4 - 8Ω impedance, working well with various speaker sizes. You can select the appropriate power supply and speakers based on your actual requirements
Protection: Over voltage, under voltage, over temperature, short circuit, and reverse connection protection
Optimal Power Configuration: Note that achieving the best audio output demands the right combination of sufficient audio input, proper supply voltage, and current. Different speaker impedances impact the relative sound power. With enough voltage and current, higher - impedance speakers will generate less relative sound power

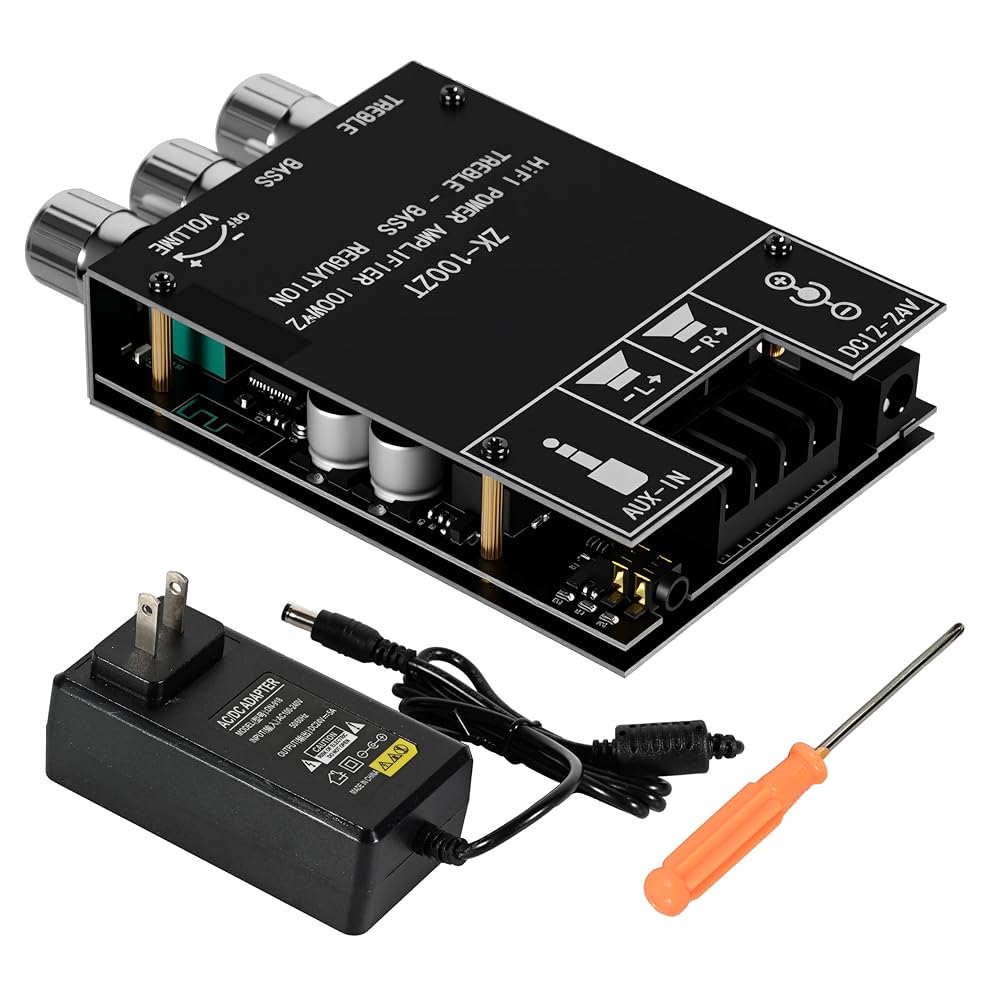

Package Included: 1 x ZK-1002T Audio Amplifier Board; 1 x Manual; 1 x DC 24V 5A Adapter

وصف

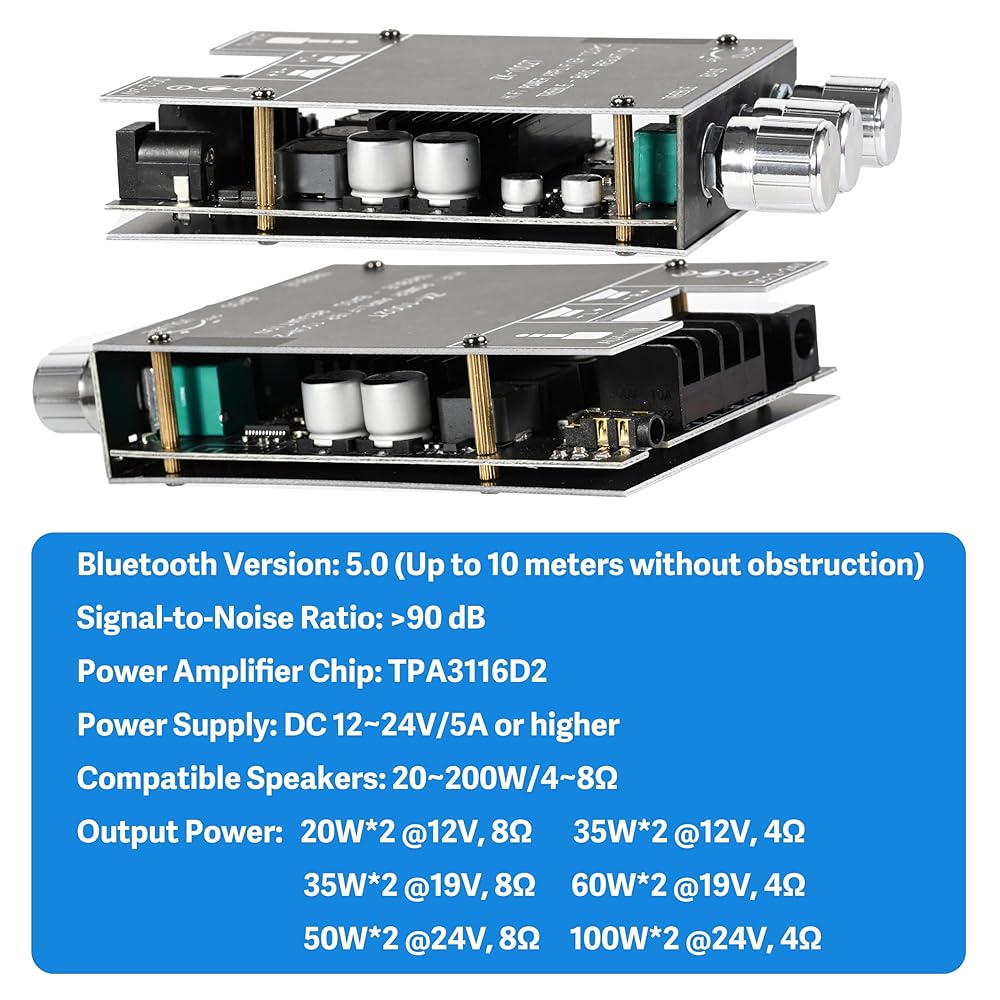

Bluetooth Version：Bluetooth 5.0 (Effective range: 10 meters without obstruction)
Signal -to -Noise Ratio：C: > 90 dB
Input Modes：AUX + Bluetooth
Number of Channels：Dual - channel (Left and right channels, Stereo)
Amplifier Chip：TPA3116 (With AM interference suppression function)
Power Supply：DC 12-24V / 5A or higher (Higher voltage results in greater output power)
Note：It is recommended to use a power supply of 18V, 19V, or 24V with a current above 5A. If you use 12v 1A power supply, it can only drive a 3-4 inch speaker. If you use 19V 5A or higher, it can easily handle an 8-10 inch speaker without any issues.
Compatible Speakers：20 - 200W / 4 - 8Ω
Output Power
20W*2 @ 12V, 8Ω
35W*2 @ 12V, 4Ω
35W*2 @ 19V, 8Ω
60W*2 @ 19V, 4Ω
50W*2 @ 24V, 8Ω
100W*2 @ 24V, 4Ω
Protection：Over voltage protection, Under voltage protection, Over temperature protection, DC detection, Short circuit protection
