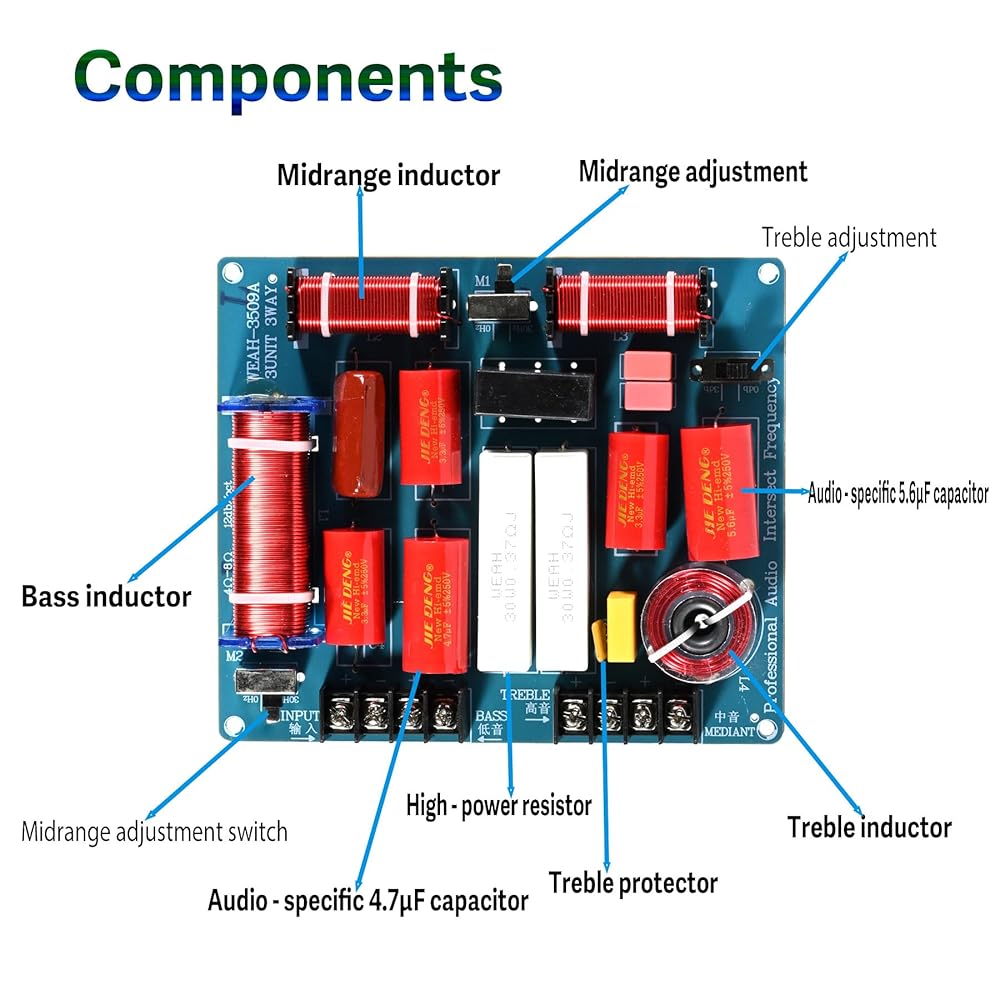

Premium Components: Equipped with 66mm bass inductor, dual alto and treble inductors, CBB, dual non - inductive and HiFi capacitors, ceramic and high power resistors, dual mediant and tweeter adjustable switches, and a tweeter protector for optimal performance.
Ideal Electrical Specs: Boasts 350 watt peak power, suitable for 4 - 8 ohm impedance. Frequency range is 40Hz - 22kHz, with adjustable division points: Bass - Mediant (780Hz / 850Hz / 900Hz) - Tweeter (5500Hz / 5800Hz).
Superior Advantages: With 350 watt peak power and two extra mediant adjustable switches, it's nearly compatible with all speakers and offers excellent sound performance.
Wide Compatibility: Replacing or installing this crossover can significantly enhance the sound quality of car or home audio systems, enabling high - quality music enjoyment.

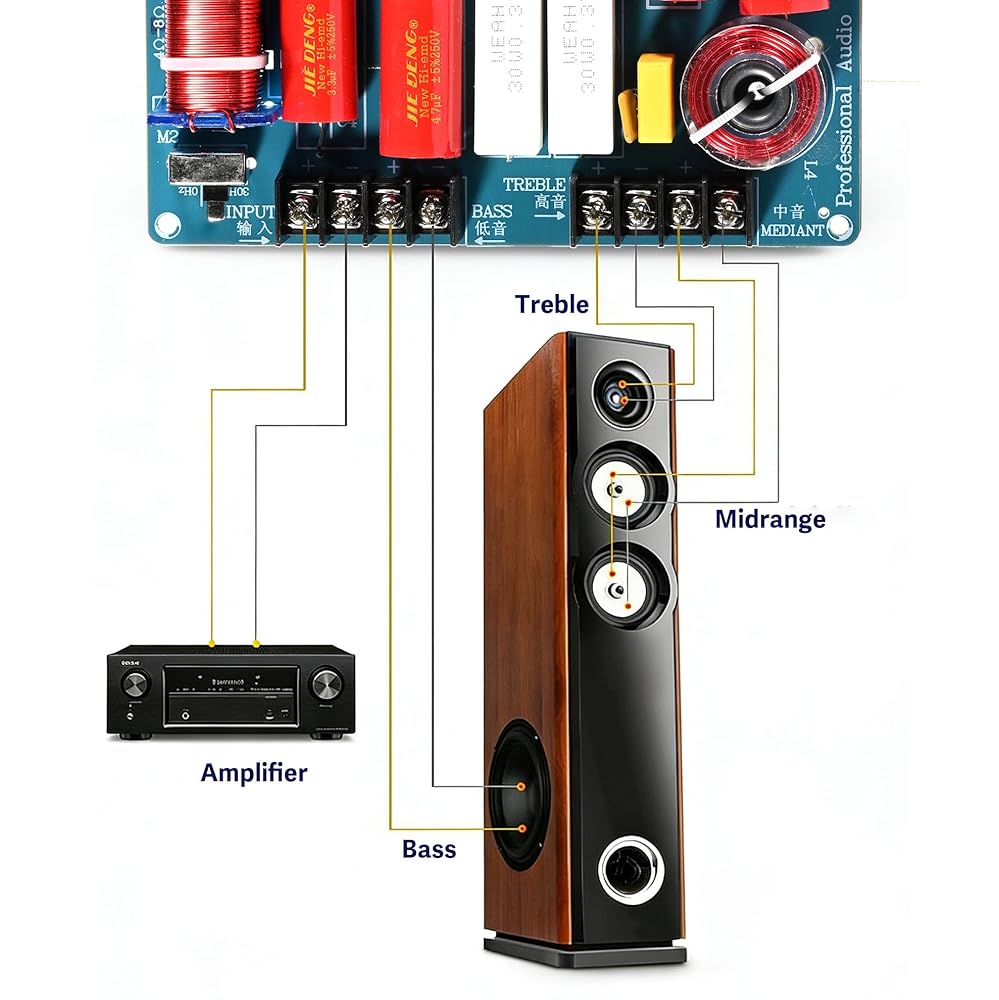

Easy Installation with Quality Terminals: Comes with high quality screw terminals that are durable and reliable. No need for welding, making it a breeze to install in your car or home audio system
وصف

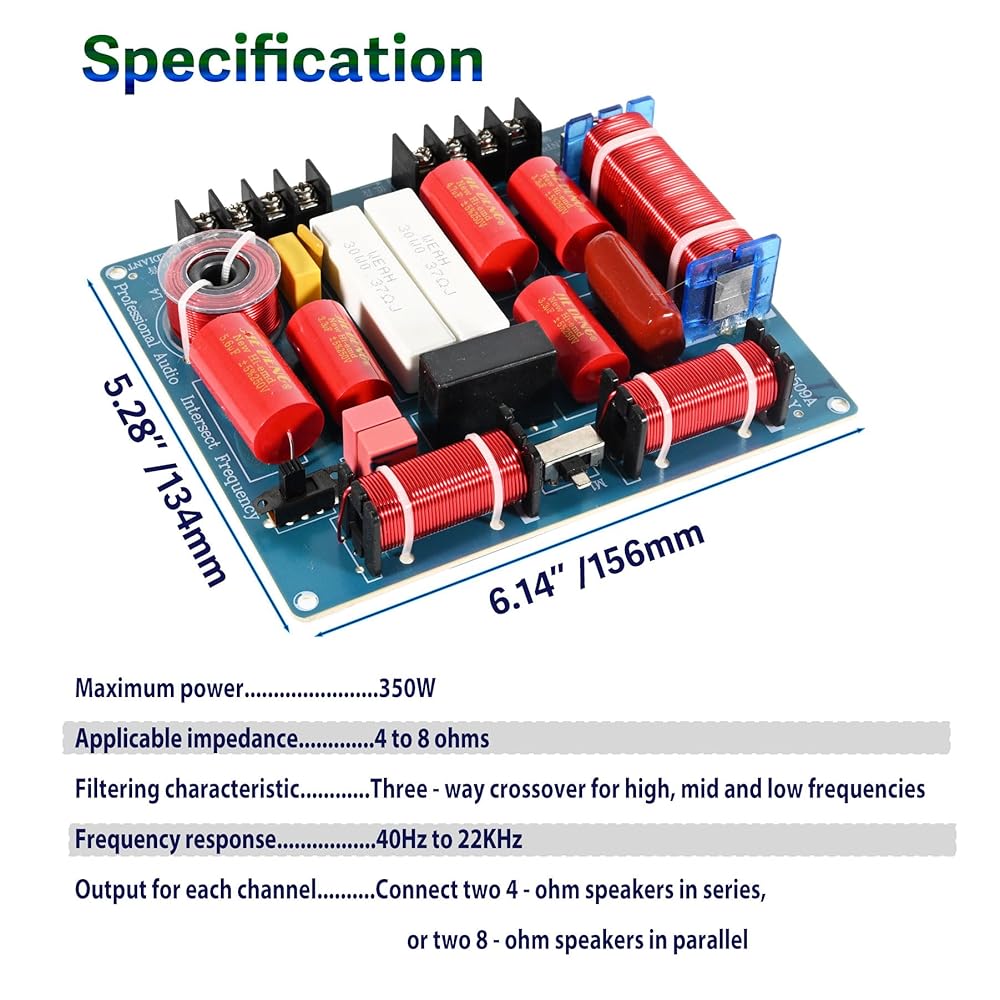

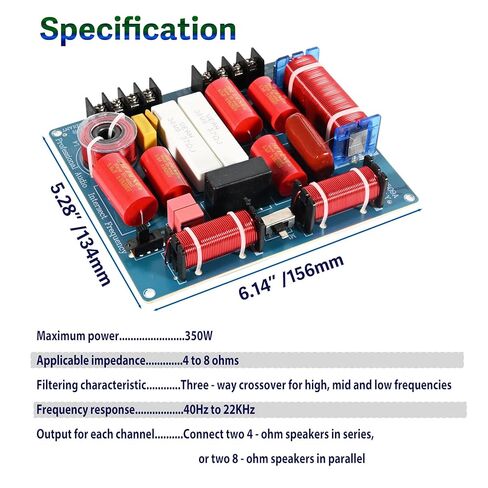

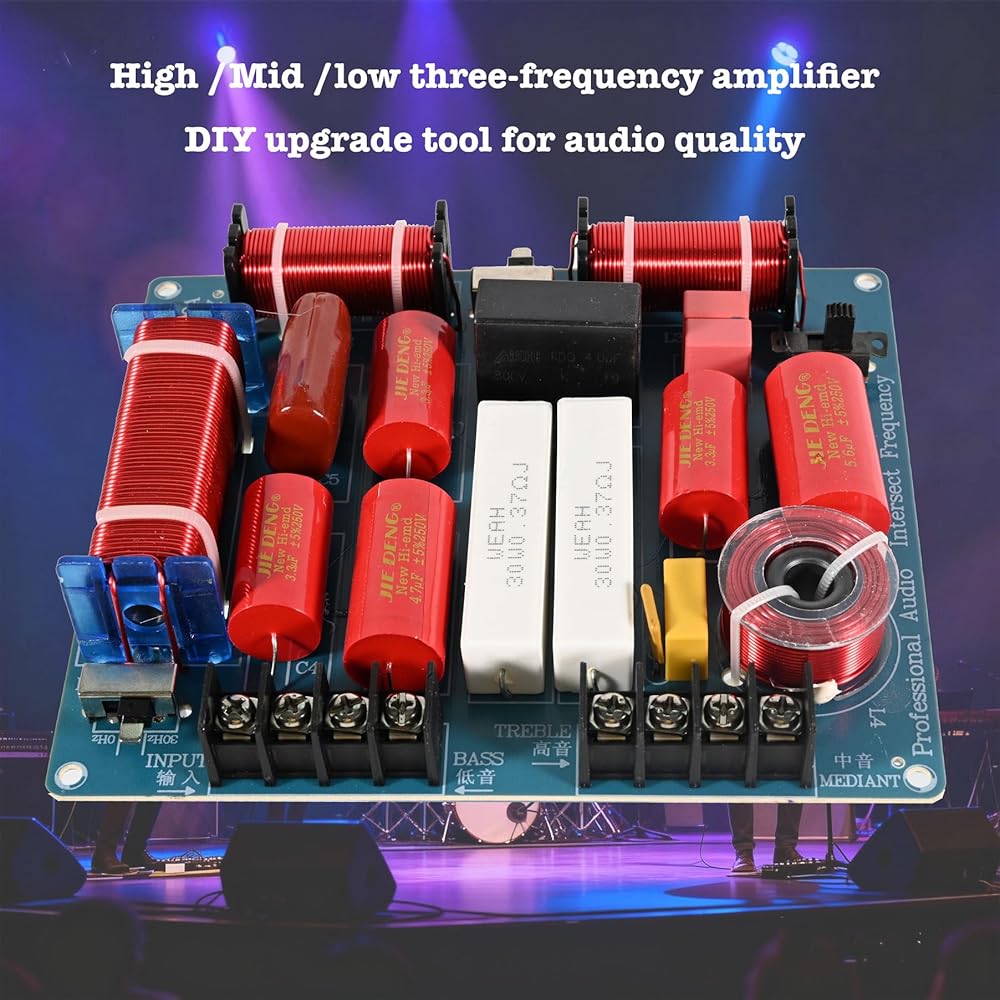

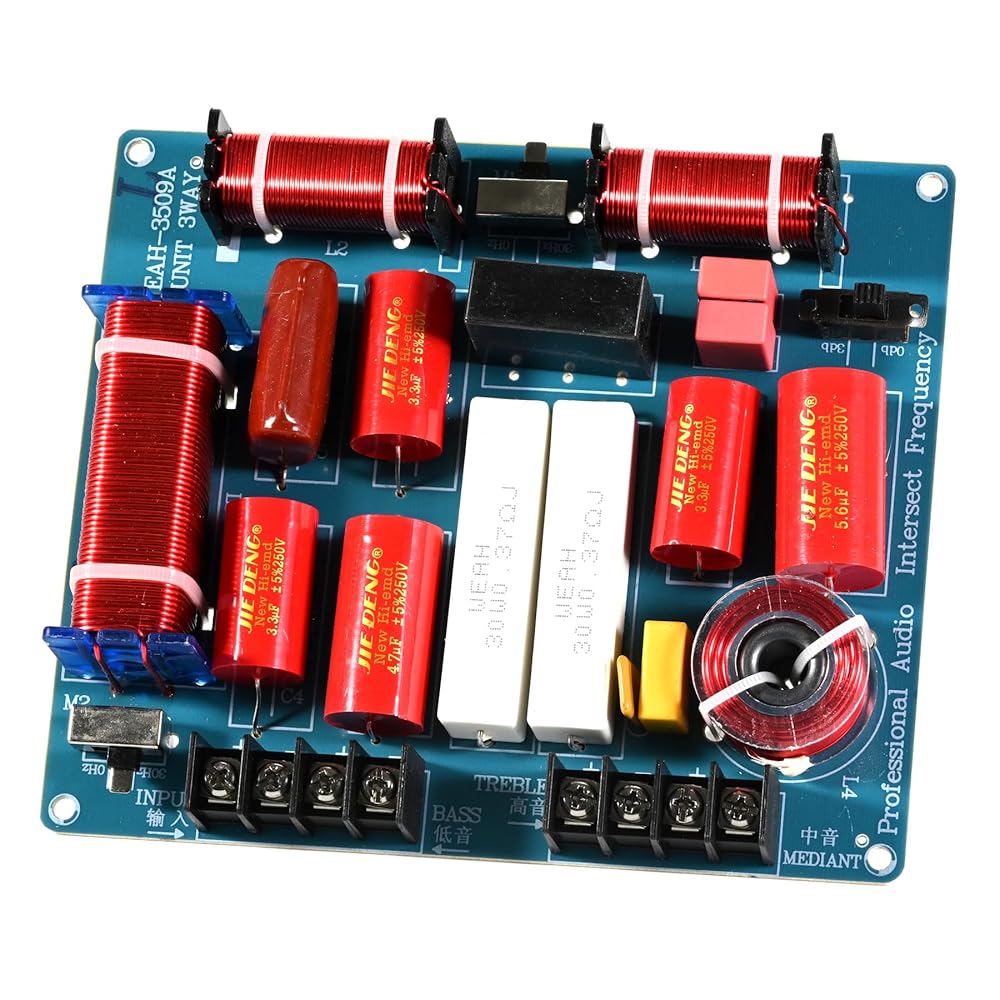

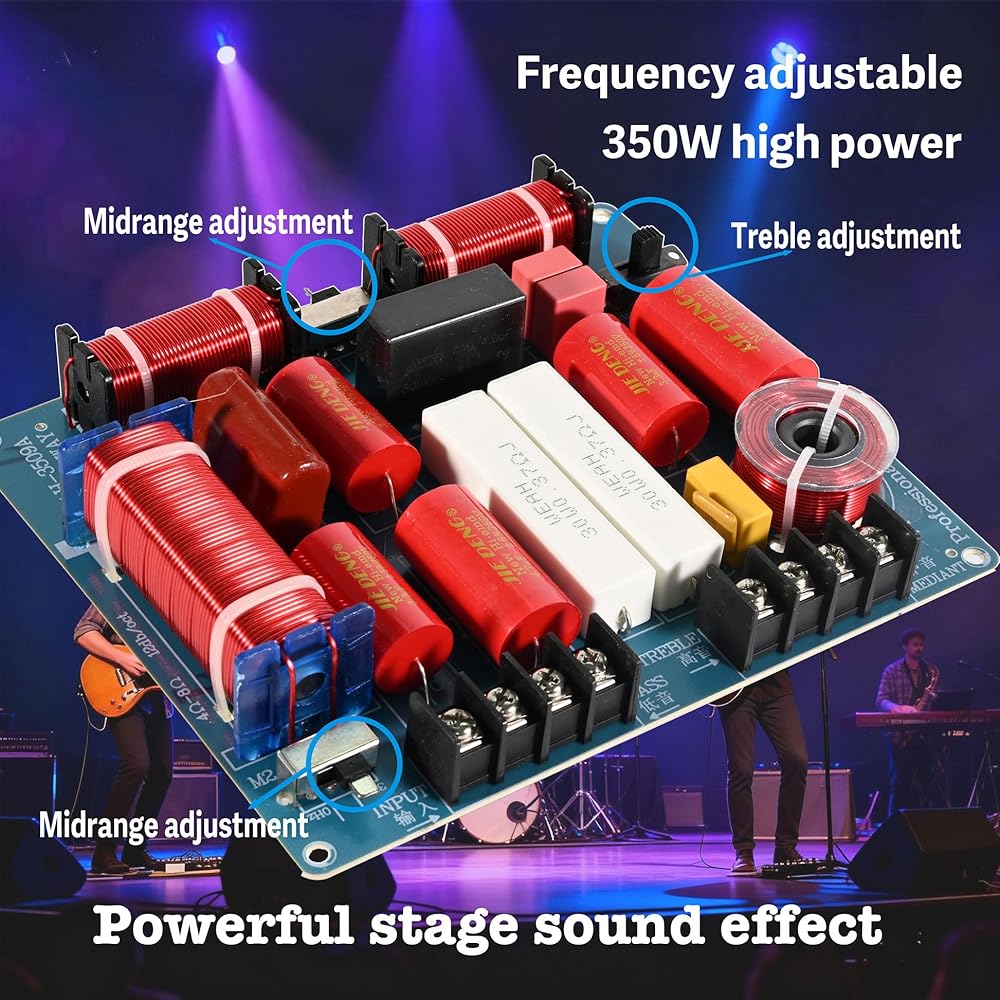

350W 3 Way Crossover Board for Speaker
Model:3509A
Frequency division: 1 high frequency,1 mid frequency, 1 low frequency (three way crossover)
Power: 350w

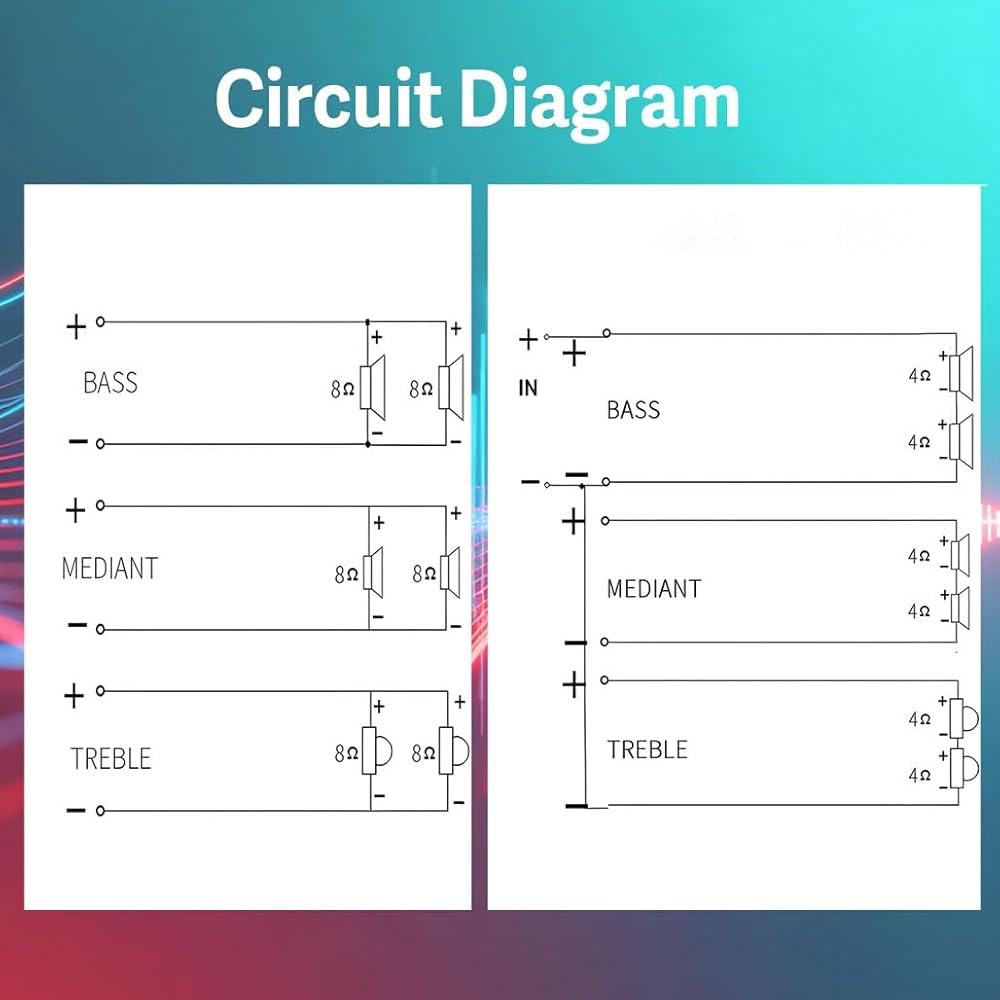

Impedance: 4-8 ohms

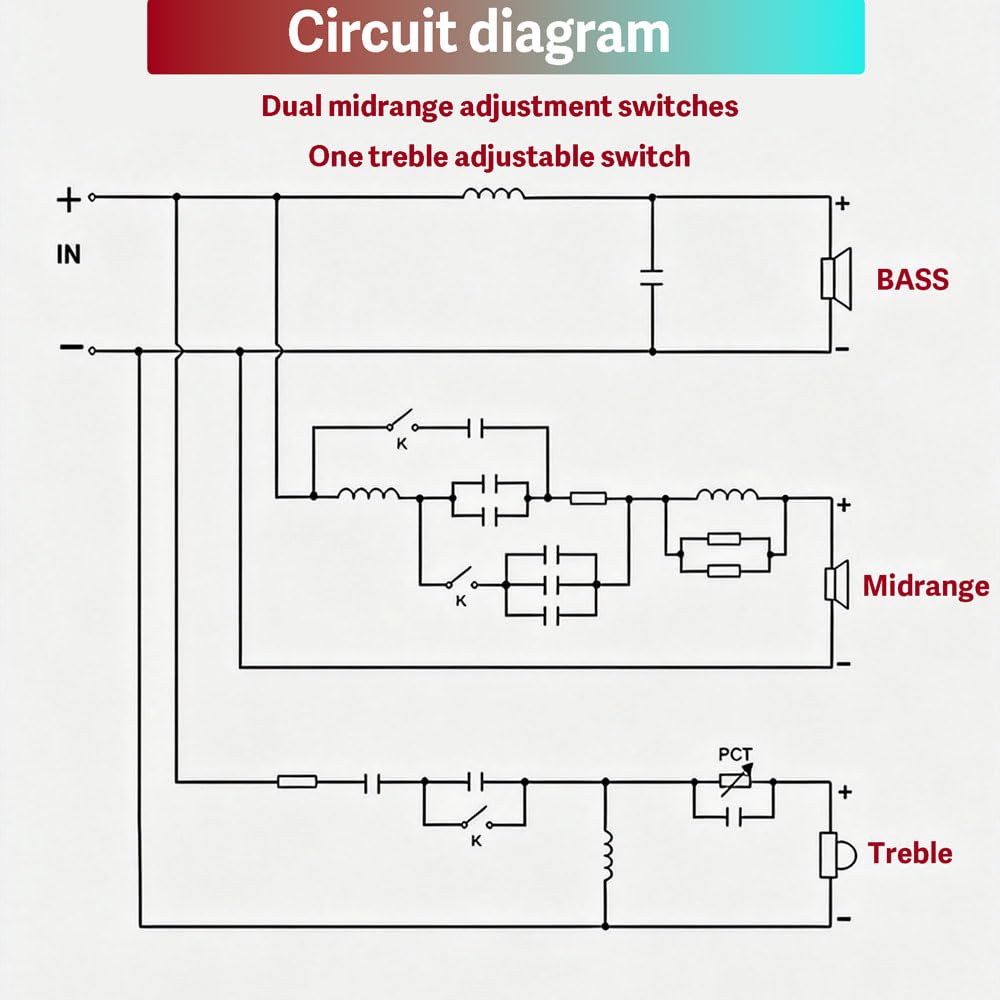

Crossover points::For the bass/mid-range, it can be adjusted via a switch with three options: 900 Hz (when the mid-range volume is low), 850 Hz, and 780 Hz (when the mid-range volume is high). For the treble/mid-range, there are 2 adjustment modes available via a switch: 5500 Hz and 5800 Hz.
Adjustability: High frequency adjustable
Protection: High frequency protection
