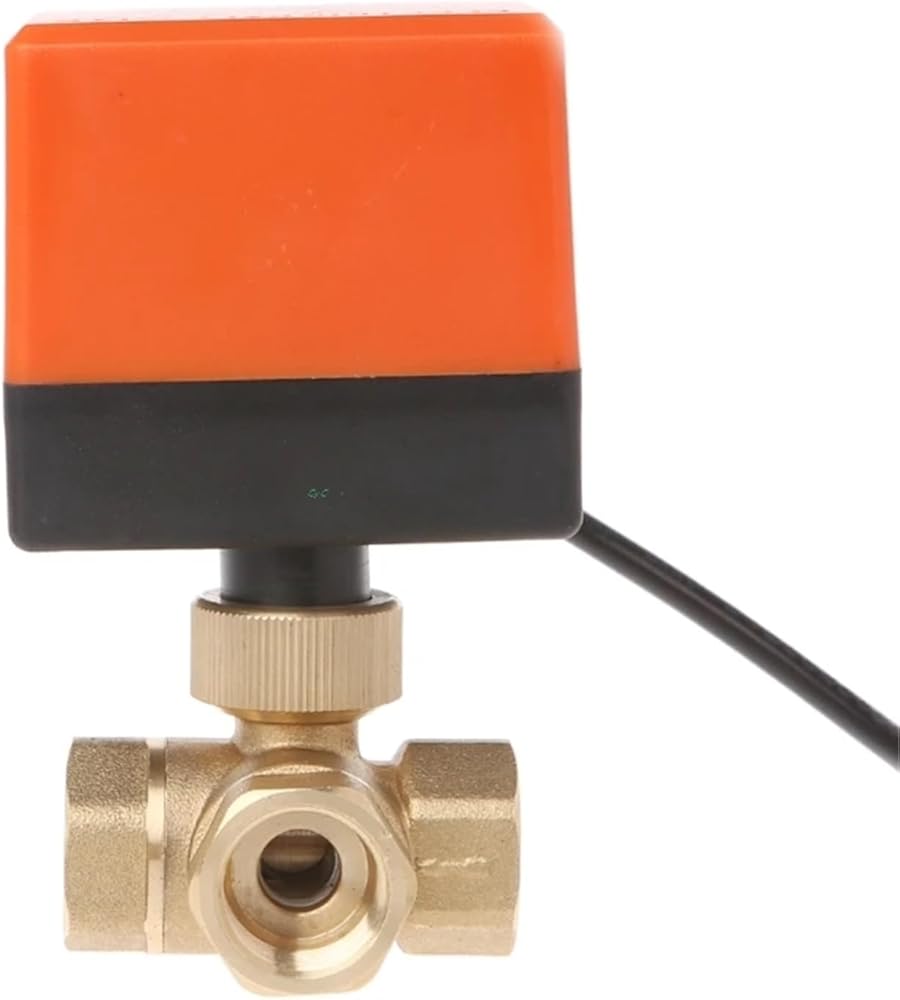

1/2 3/4 1 1-1/4 1-1/2 2 صمام كروي مزود بمحرك 3 أسلاك تحكم نحاس كهربائي 3 اتجاهات 1 قطعة (DN50، L TYPE_24VAC_CR02) in Kuwait

1/2 3/4 1 1-1/4 1-1/2 2 صمام كروي مزود بمحرك 3 أسلاك تحكم نحاس كهربائي 3 اتجاهات 1 قطعة (DN15، L TYPE_12VDC_CR02)

KWD 74
ماركة
UJCTARKE
اللونDN15
مقاسL نوع_12VDC_CR02
– 1 +

مميزات خاصة

  • Filter Valves

وصف

Filter Valves
Specification
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V/AC24V
Structure Forms: Three Ways,
Operation Mode: Three Wire Two Ways Control
Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Torque:220V 8 N.M, DC12/24V 6 N.M
NC or NO : Normally Closed
Actuator Mode : With Manual And Instruction
Structure : Ball
Port Size : DN15
Media : GAS
Material : Stainless Steel
Temperature of Media : Normal Temperature
Pressure : Low Pressure
Power Source : AC
