Specs & cross-refs — 2 Form C (DPDT) plug-in relay with 10A resistive contacts (250VAC/30VDC). 24VDC coil (code D24) ≈44.7 mA, 605 Ω. Non-polarized green LED and mechanical indicator, plus manual latching lever for test. UL Recognized (E66043) and EN/CSA compliant. Approx. size 27.5 × 21 × 35 mm. Cross-reference numbers on the same platform: Compatible with RU2S-D24, RU2S-D-D24 (with diode), RU2S-CD-D24 (no lever, diode), RU2S-C-D24 (no lever). Verify coil and socket before ordering.
Install & location — Designed for control panels and electrical enclosures; mates with SU series push-in sockets—e.g., Compatible with SU2S-21L. Insert fully into the socket; terminal numbers are clearly marked and the socket's release lever aids removal. Use the manual latching lever only for functional checks with the coil de-energized, then return it to normal. Choose diode versions (RU2S-D-D24 / RU2S-CD-D24) when your control output requires coil surge suppression; standard RU2S-D24 has no internal diode
Electrical ratings that matter — DPDT contacts rated up to 10A resistive (AC 2500 VA / DC 300 W) and 6A-class for certain inductive loads; DC coil D24 operable at rated voltage with typical pickup and dropout per catalog. Use within specified limits and derate for inductive loads.
Indicators & serviceability — Non-polarized green LED shows coil status (plug-in types), mechanical flag shows contact position through view windows, and a replaceable marking plate supports clear labeling—use color options as needed. Compatible with RU9Z-P* marking plates (color-coded)
Complements & replacements — Pairs with SU push-in sockets (e.g., Compatible with SU2S-21L). Choose the same pinout and coil code for drop-in replacement of existing DPDT plug-in control relays in interposing, isolation, alarm, and pilot-duty circuits, restoring stable operation when contacts are worn or indicators fail. Marking plate accessories: Compatible with RU9Z-P* (A/G/S/W/Y).

وصف

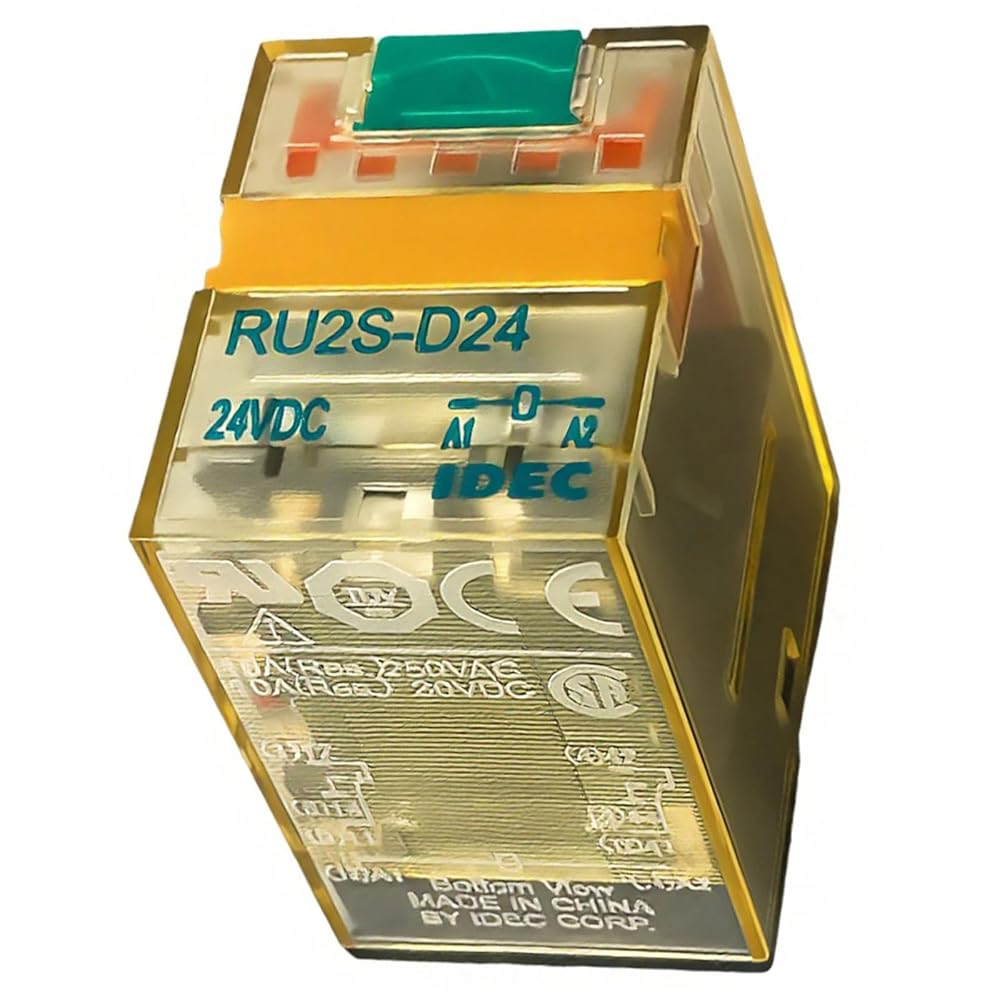

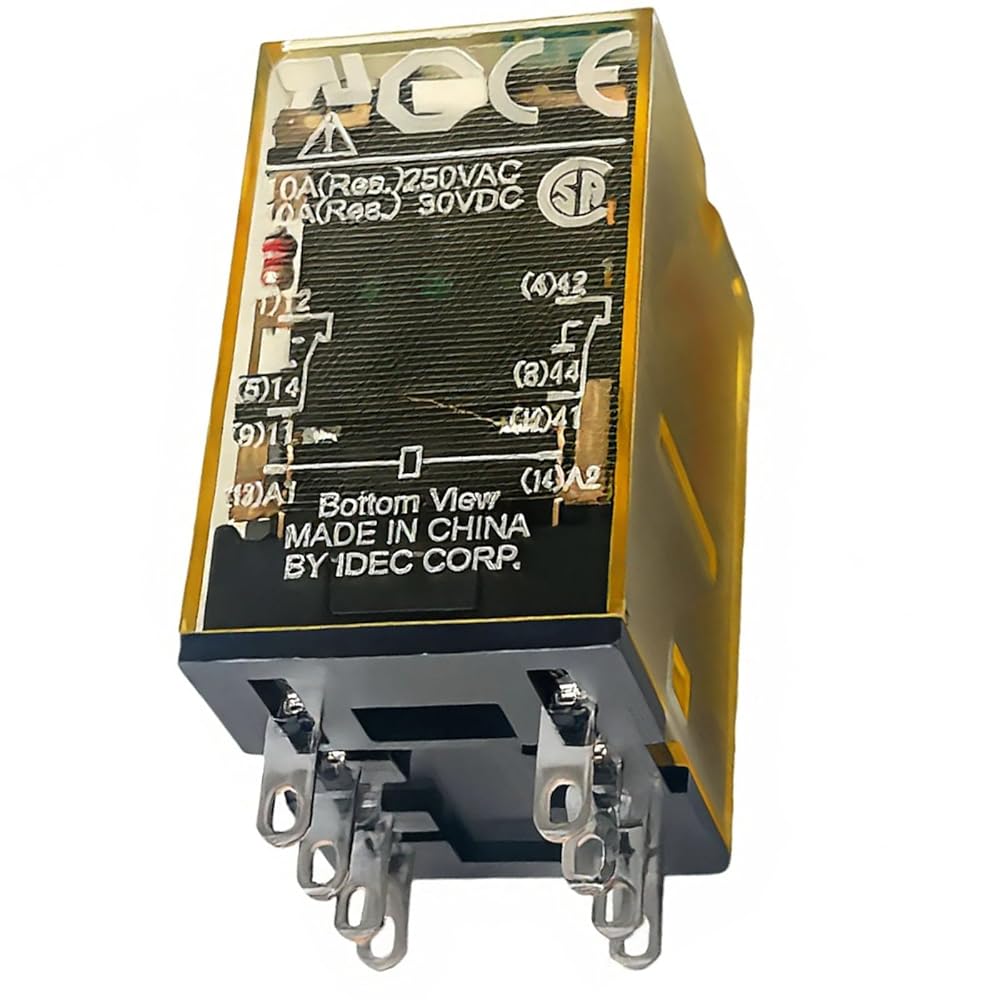

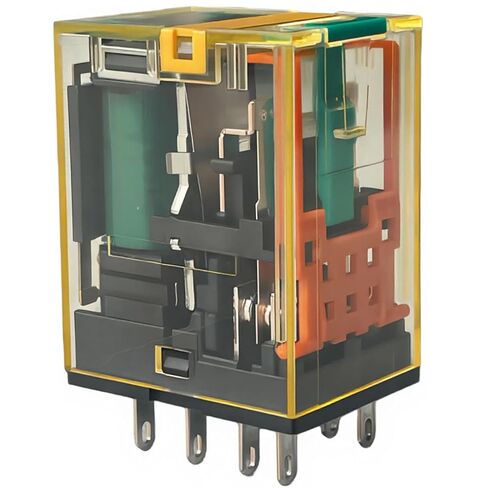

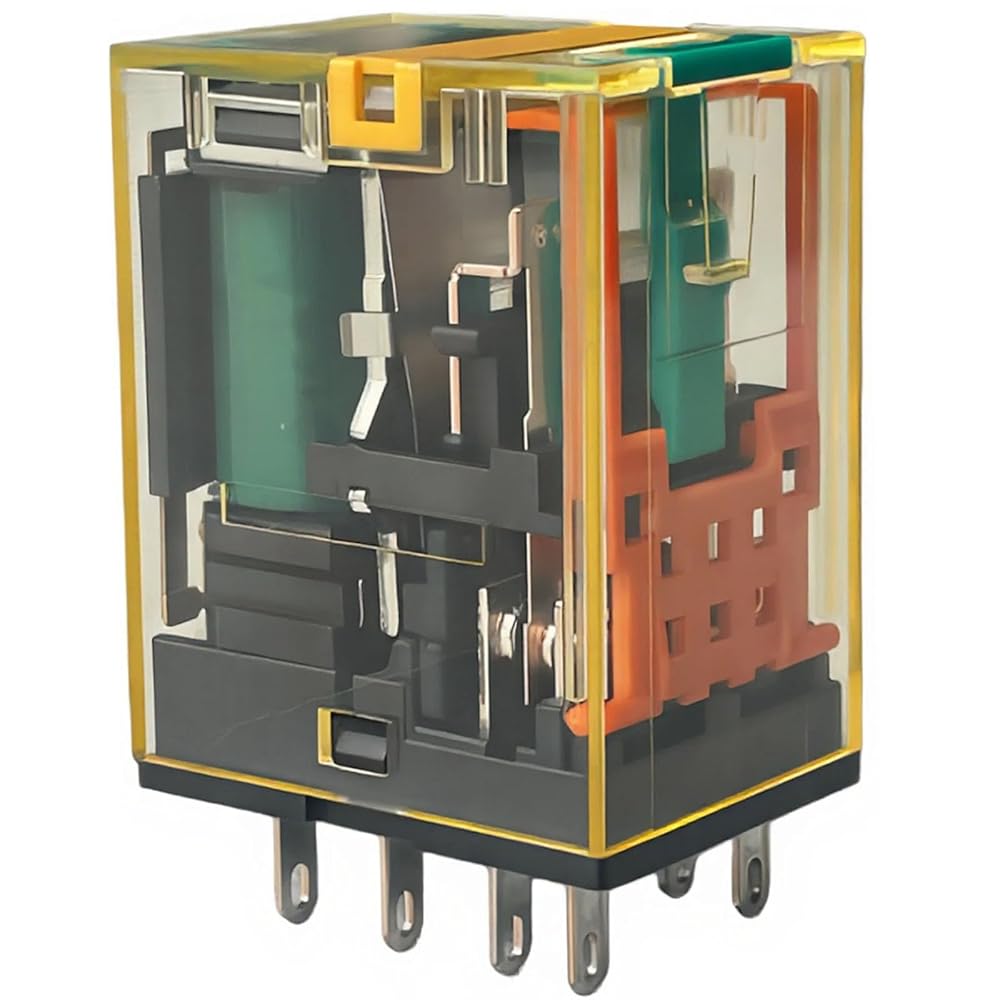

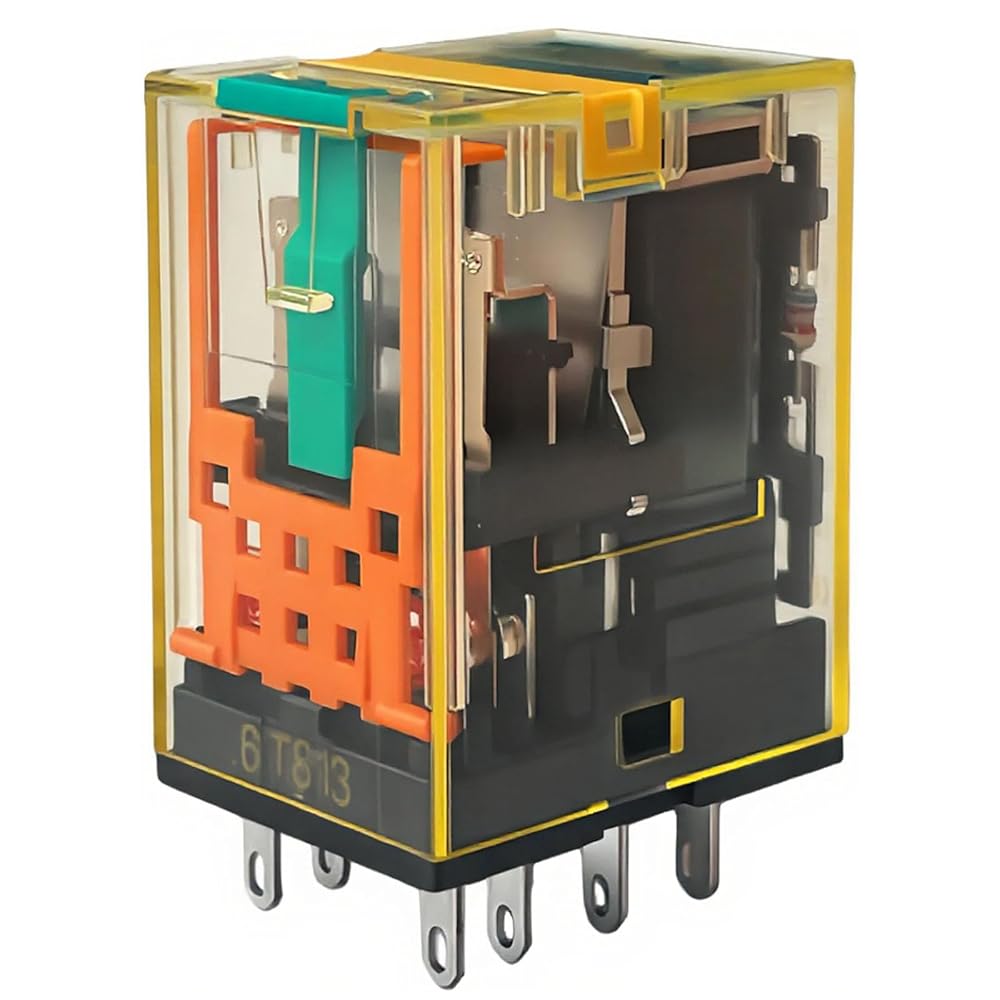

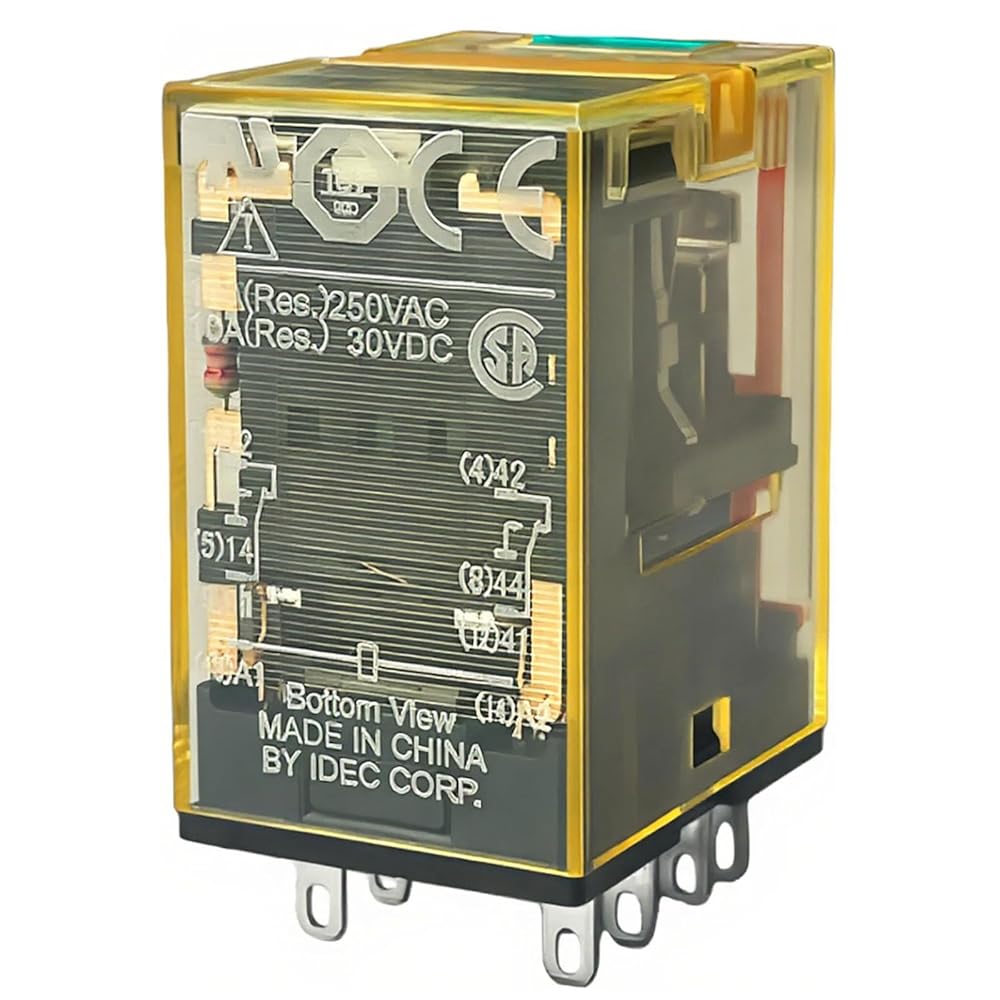

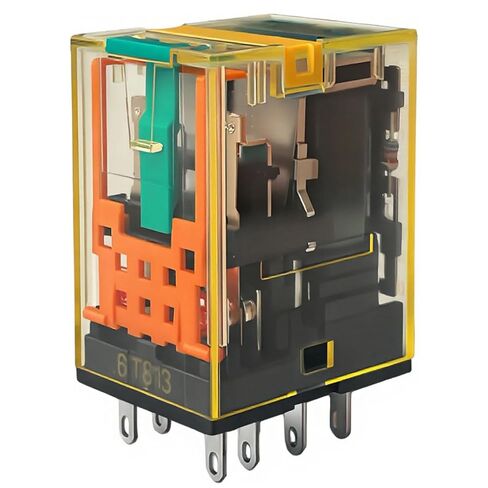

This is a DPDT (2 Form C) plug-in relay for industrial control panels and automation cabinets. It features a 24VDC coil, 10A resistive contacts, a non-polarized LED indicator, a mechanical status flag, and a manual latching lever for test.
Key SpecificationsContact form: DPDT (2 Form C), plug-in style
Contact rating: 10A resistive (up to 250VAC / 30VDC); see catalog for inductive loads
Coil: 24VDC (code D24), approx. 44.7 mA, 605 Ω
Indicators: Green LED (coil status) + mechanical flag (contact position)
Test feature: Manual latching lever (use with coil de-energized only)
Approx. dimensions: 27.5 × 21 × 35 mm
Approvals: UL Recognized, CSA/EN compliant
Compatibility & AccessoriesSocket interface: Compatible with SU series push-in sockets (e.g., SU2S-21L); check pinout before wiring
Variant cross-references (same platform): Compatible with RU2S-D24, RU2S-D-D24 (with diode), RU2S-CD-D24 (no lever, diode), RU2S-C-D24 (no lever)
Marking: Compatible with RU9Z-P* marking plates (color options)
Use CasesInterposing relay for PLC outputs, signal isolation, pilot-duty control of contactors/valves/alarms, and general maintenance replacements in control cabinets.
What's in the Box1 × DPDT plug-in relay, 24VDC coil (RU2S-D24 compatible)
