Description

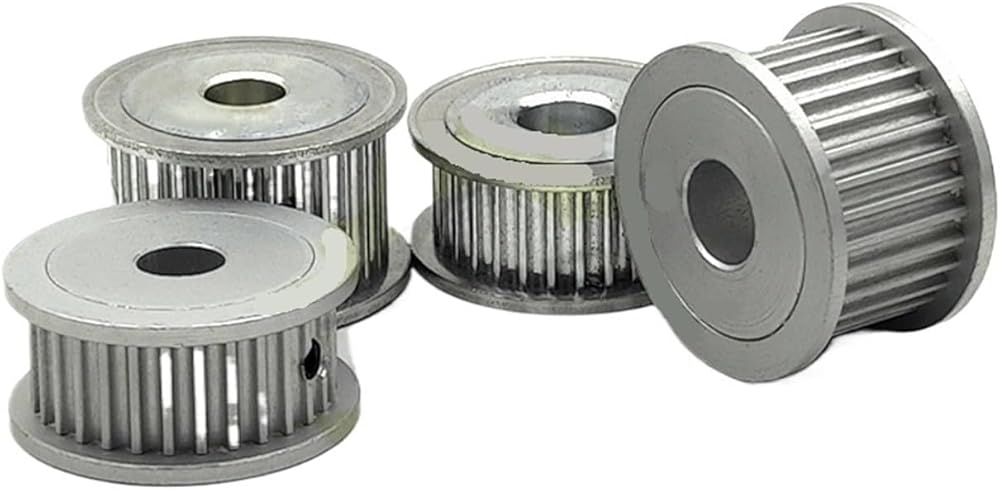

Aluminum alloy High torgue arc Teeth 42T 44 teeth HTD 3M Synchronous Timing pulley pitch 3mm
Bore:5/6/6.35/8/10/12/12.7/14/15/16/17/18/19/20/22/24/25/28mm
for belt width 10mm/15mm/20mm
3M Synchronous Belt Pitch 3mm Laser Engraving CNC Machine 44Teeth 42T 44T 3M pulley
3M Timing Pulley
Type: AF Type
Pitch:3mm
Teeth Number : 42T 44 teeth
Outside Diameter (OD): 39.34mm(42T) 41.25mm(44T)
Bore:5/6/6.35/8/10/12/12.7/14/15/16/17/18/19/20/22/24/25/28mm
Flange:double
Material:Aluminium Alloy
Fixed mode: 2* M4/M5
Keyway Size:3x1.4mm / 4x1.8mm / 5x2.3mm / 6x2.8mm / 8X3.3mm
Width :11/16/21mm

High-concerned chemical : None
is_customized : Yes
Number of Teeth : 44
Model Number : 3M Pulley 42T 44Teeth Bore 5-20mm Keyway for belt width 10/15/20mm
Material : Alloy
Type : Timing
Outside Diameter (OD) : 39.34mm(42T) 41.25mm(44T)
Bore : 5/6/6.35/8/10/12/12.7/14/15/16/17/18/19/20/22/24/25/28mm
HTD 3M belt width : 10mm/15mm/20mm
Picth : 3mm
Teeth Number : 42T/44T
Material : Aluminium Alloy
Type : AF Type
Keyway size : 3x1.4mm / 4x1.8mm / 5x2.3mm / 6x2.8mm / 8x3.3mm
