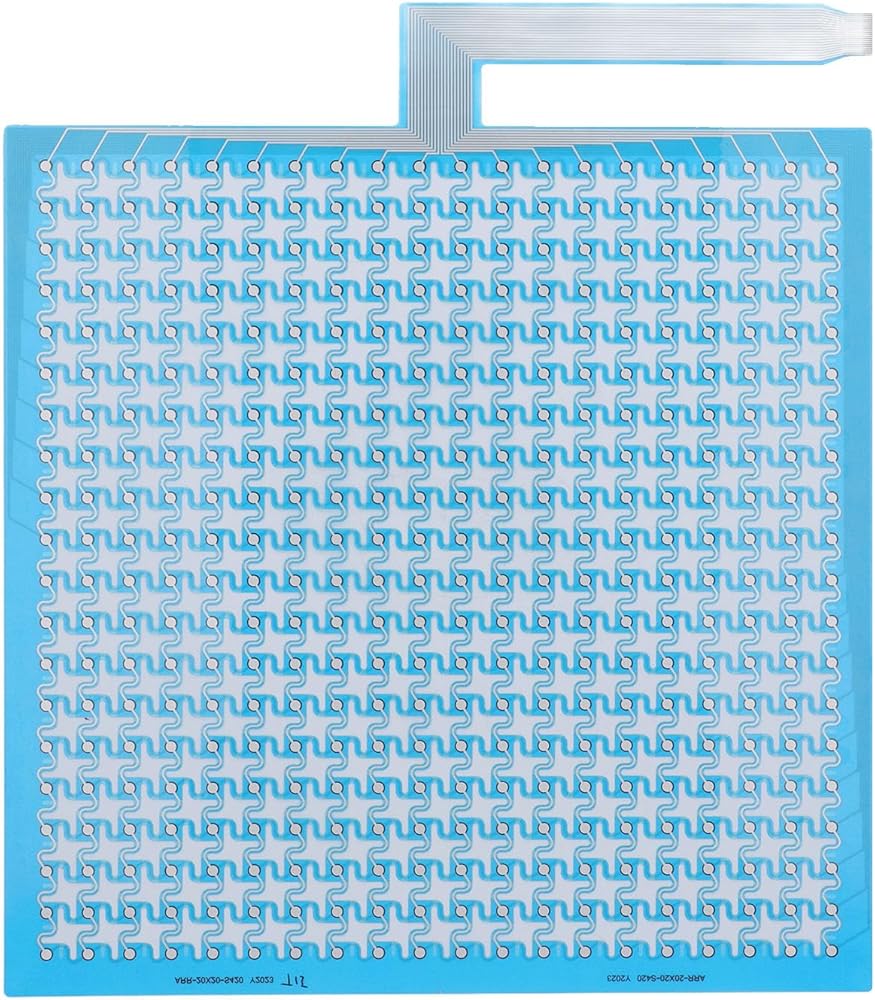

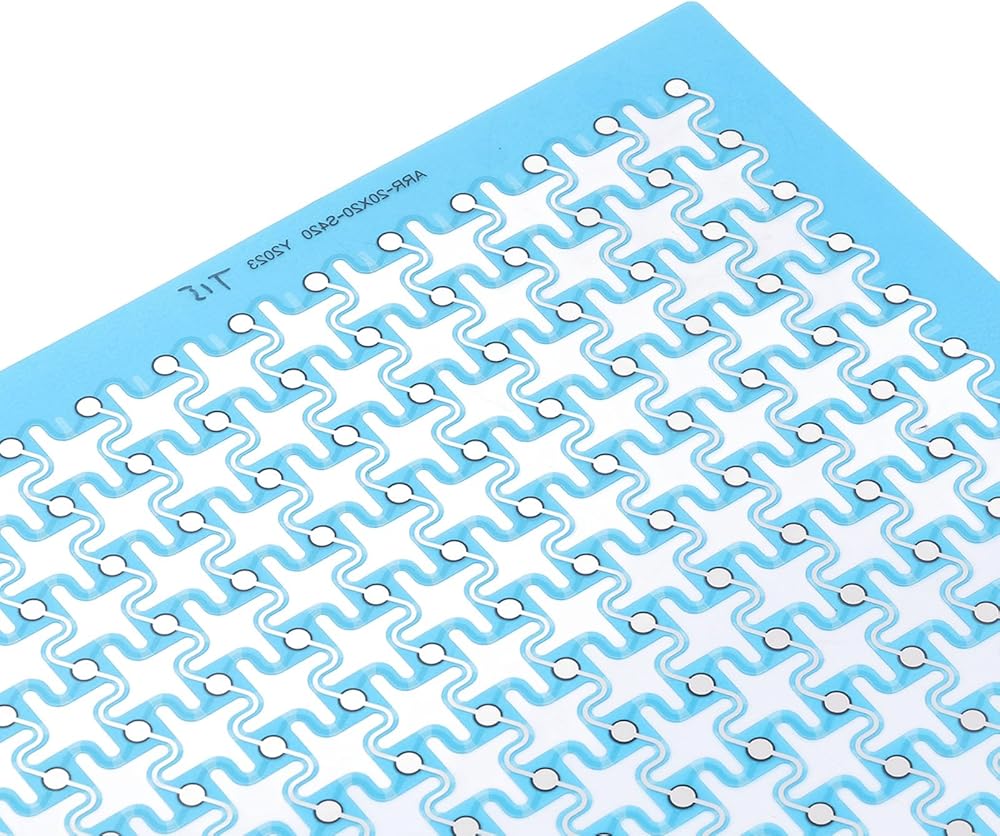

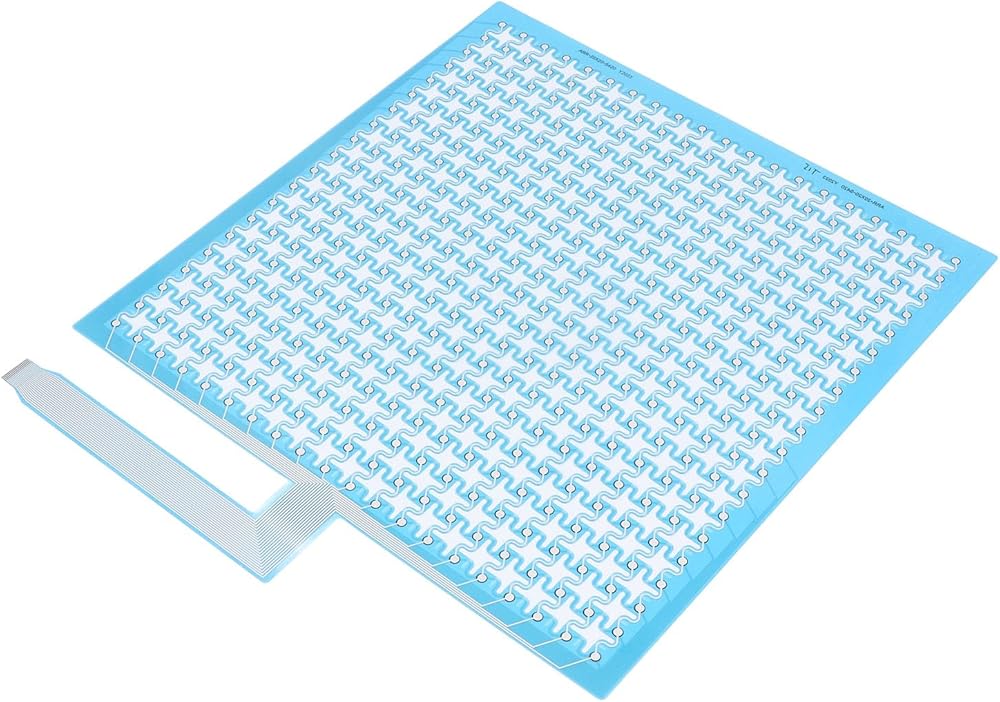

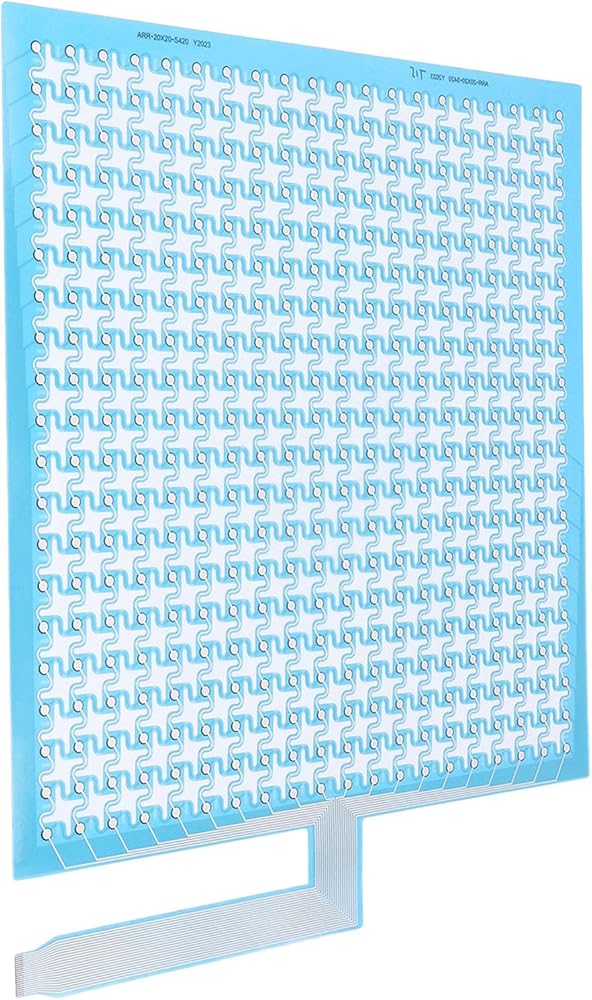

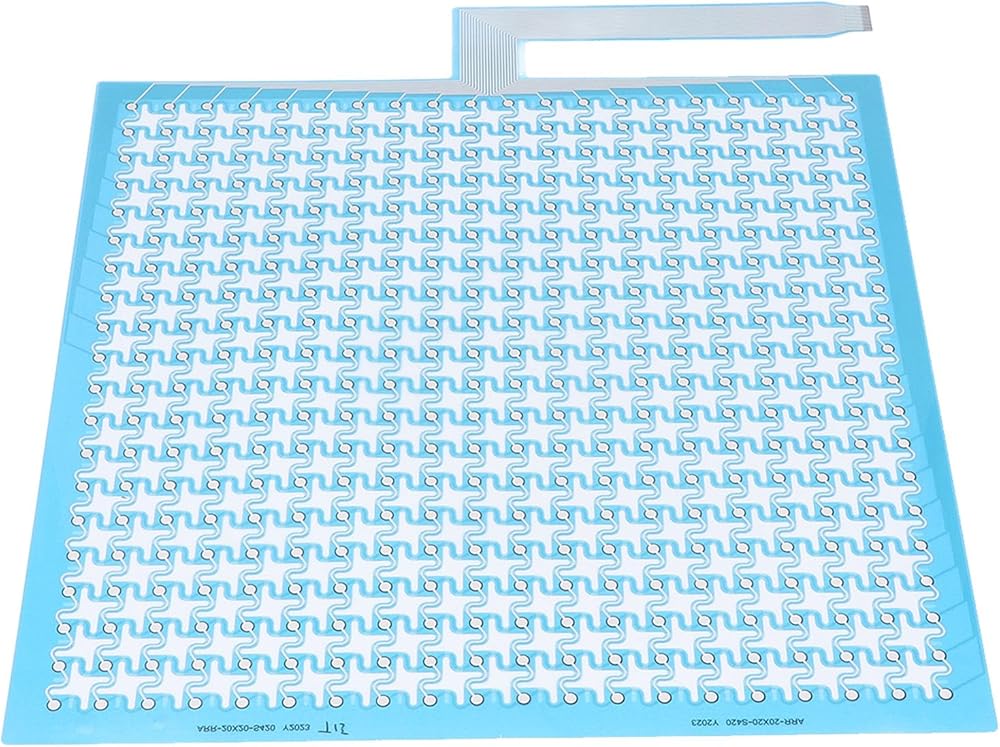

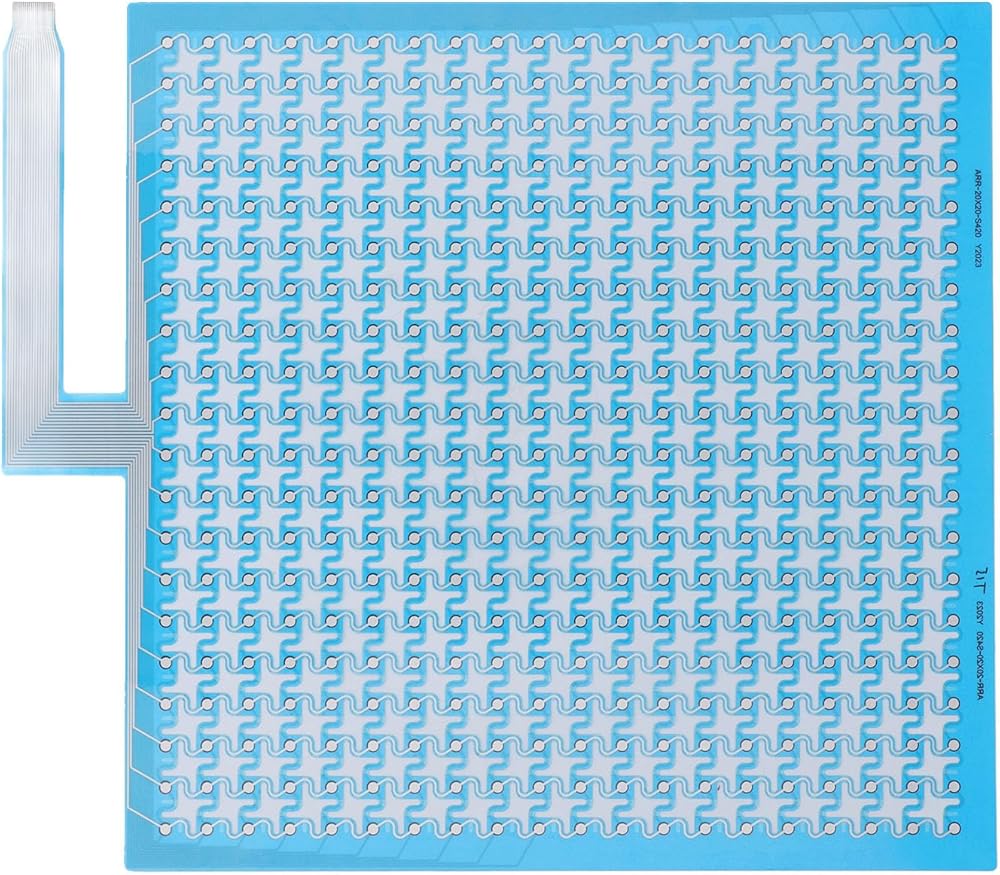

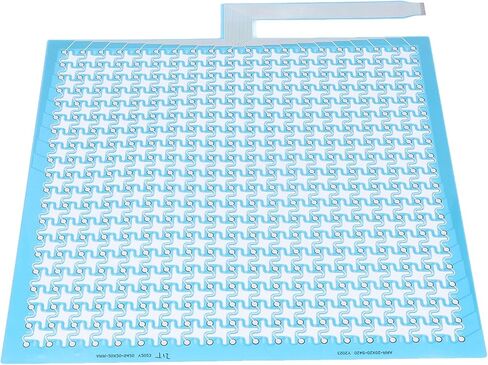

Item Type: Flexible Film Pressure Sensor
Material: Polyester film, highly conductive material, nanometer varistor

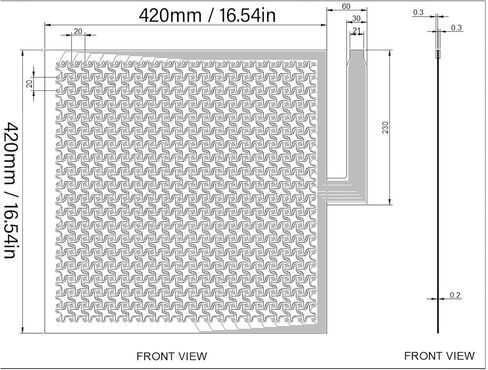

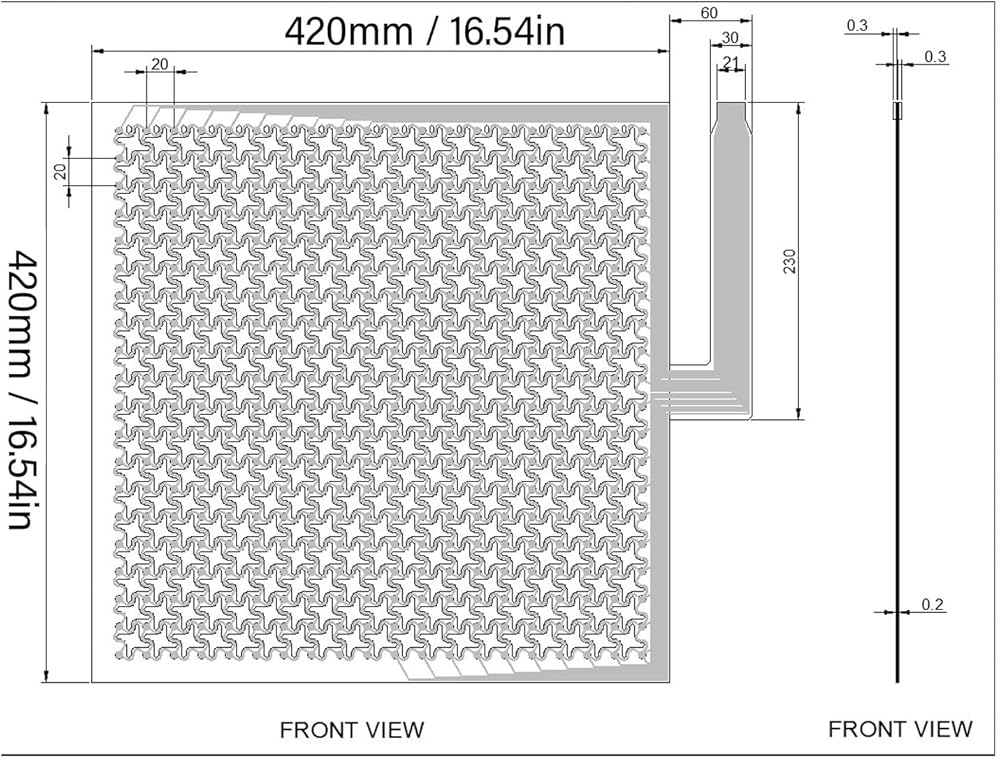

Product Size: Approx. 420 x 480mm / 16.54 x 18.9in
Thickness: 0.2mm
Style: Thin sheet
Trigger Force: 10g
Resistance After Triggering: Less than 500KΩ

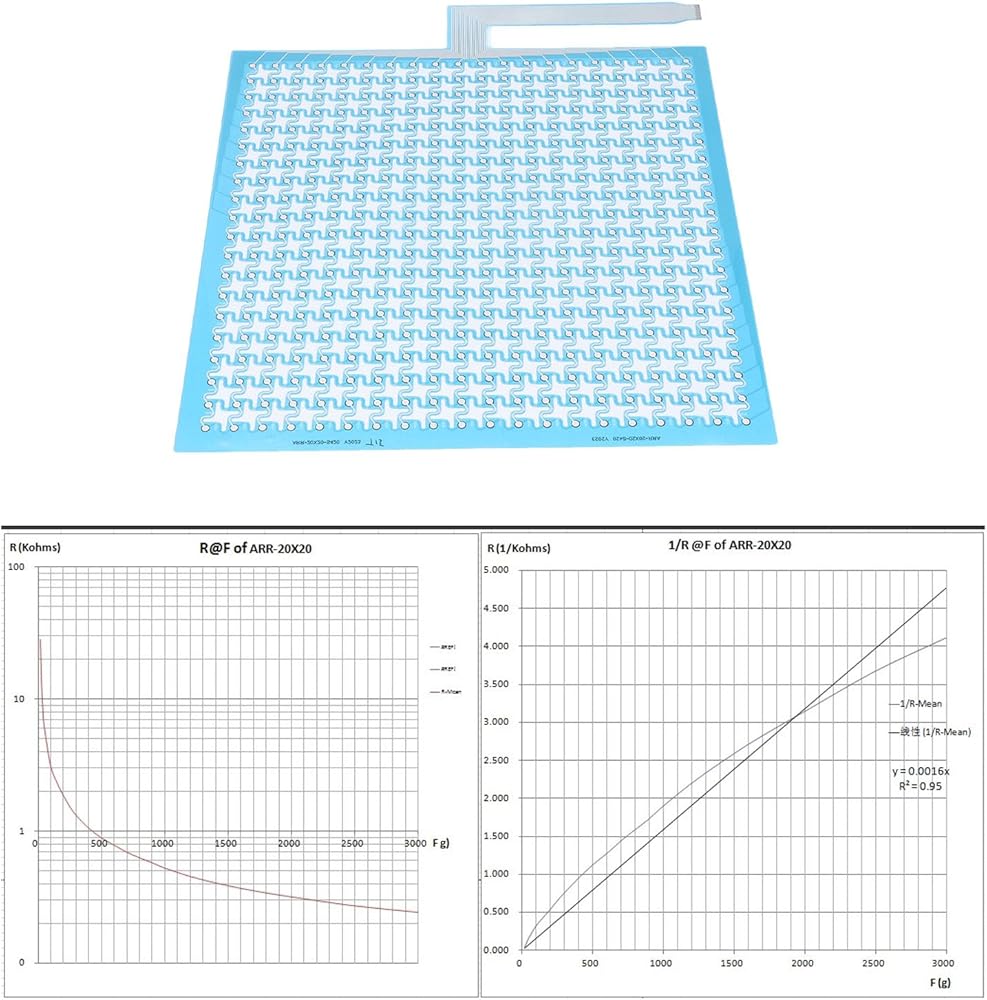

Pressure Range: 10g~3000g above, single induction point
Resistance Application Range: 0.1KΩ~200KΩ
Pressure Mode of Action: Press
Resistance When Not Triggered: Greater than 1MΩ
Operating Temperature: -20℃~+65℃
Repetition Accuracy: +/-5% at 1Kg, single
Drift: -10%, 24H at 1Kg
Lag: 10%, 24H at 1Kg
Durability: More than a million times, 1Kg flexible force
Response Time: Electromagnetic Interference(EMI): Not generated
Electrostatic discharge EDS: Insensitive

Package List：
1 x Flexible Film Pressure Sensor
Note:
1. Please install the sensor on a sturdy, flat, and smooth surface as much as possible.
2. Please protect the sensor from incisive objects. Use a cover layer, such as polycarbonate film or elastic material for protection.
3. It is not recommended for the sensor material to come into direct contact with liquids. The sensor needs to be waterproofed.
4. Overrange will not damage the sensor. After the range is restored to normal, the sensor can continue to function normally.
5. For designs that require some motion, use soft rubber or springs as part of the triggering mechanism.
