Product Description
Perfect for professionals in the telecommunications industry, this fusion splicer is a must-have for seamless fiber optic connections.

Product parameters
Applicable optical fiber: SM (G.652&G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom optical fiber types
Splicing loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
Return loss: better than 60dB
Typical splicing time: 7 seconds

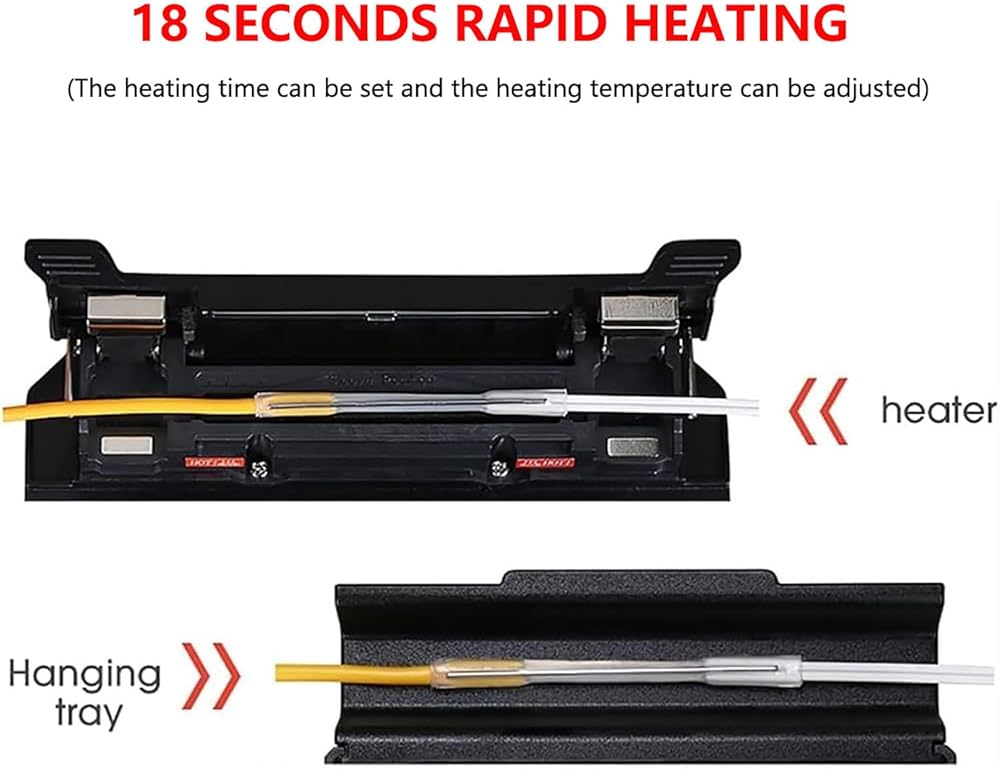

Typical heating time: 18 seconds (heating time can be set, heating temperature can be adjusted)
Fiber alignment: fine alignment, core alignment, cladding alignment
Fiber diameter: cladding directly 80~150μm, coating directly 100~1000μm
Cutting length: coating below 250μm: 8~16mm; coating 250~1000μm: 16mm
Tension test: standard 2N
Fiber fixture: multi-function fixture, suitable for bare fiber, pigtail, jumper, skin line replacement fixture can be used for SC and other connectors for various FTTX optical fiber cables
Magnification: 300 times
Heat shrink sleeve: 60mm, 40mm and a series of miniature sleeves

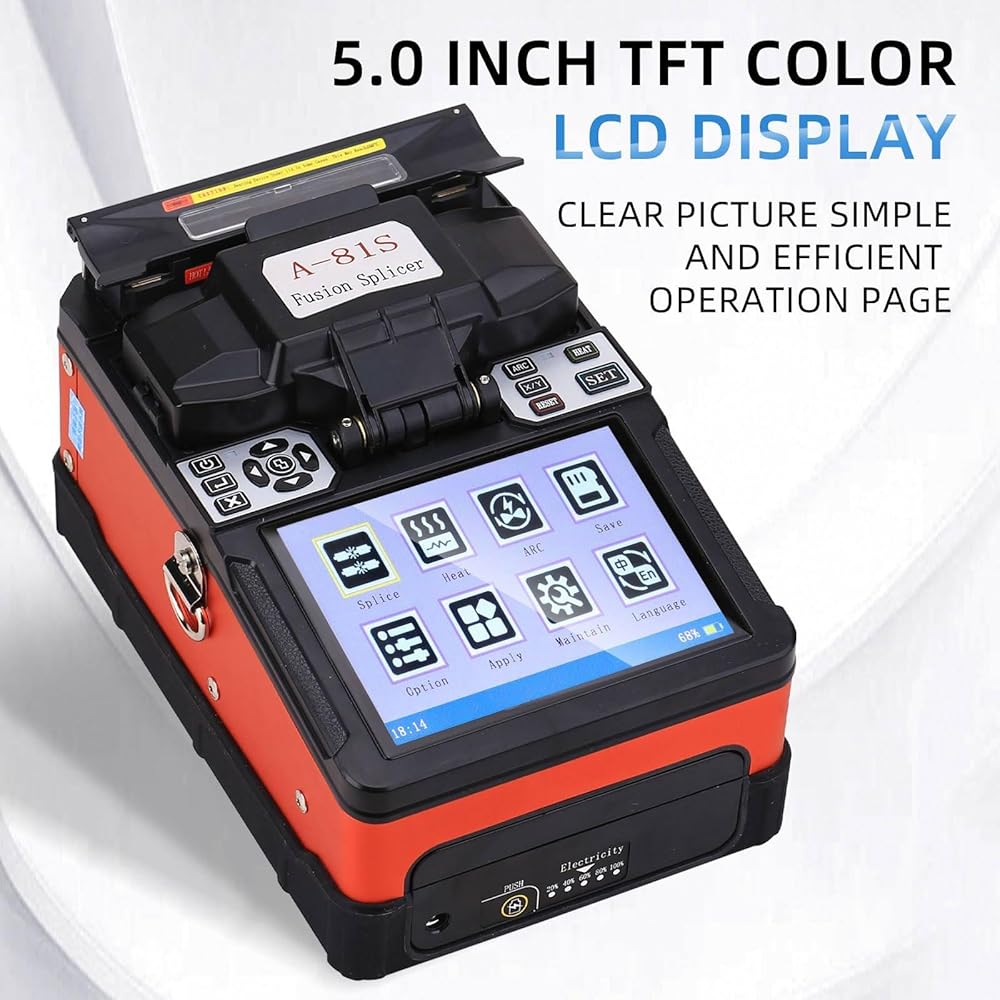

Display: 5.0-inch TFT color LCD display
External interface: convenient data download and software update
Fusing mode: 17 groups of use modes
Heating mode: 9 groups of use modes
Connection loss storage: built-in memory, can save 5000 latest results
Built-in battery: can continuously weld and heat for no less than 200 times

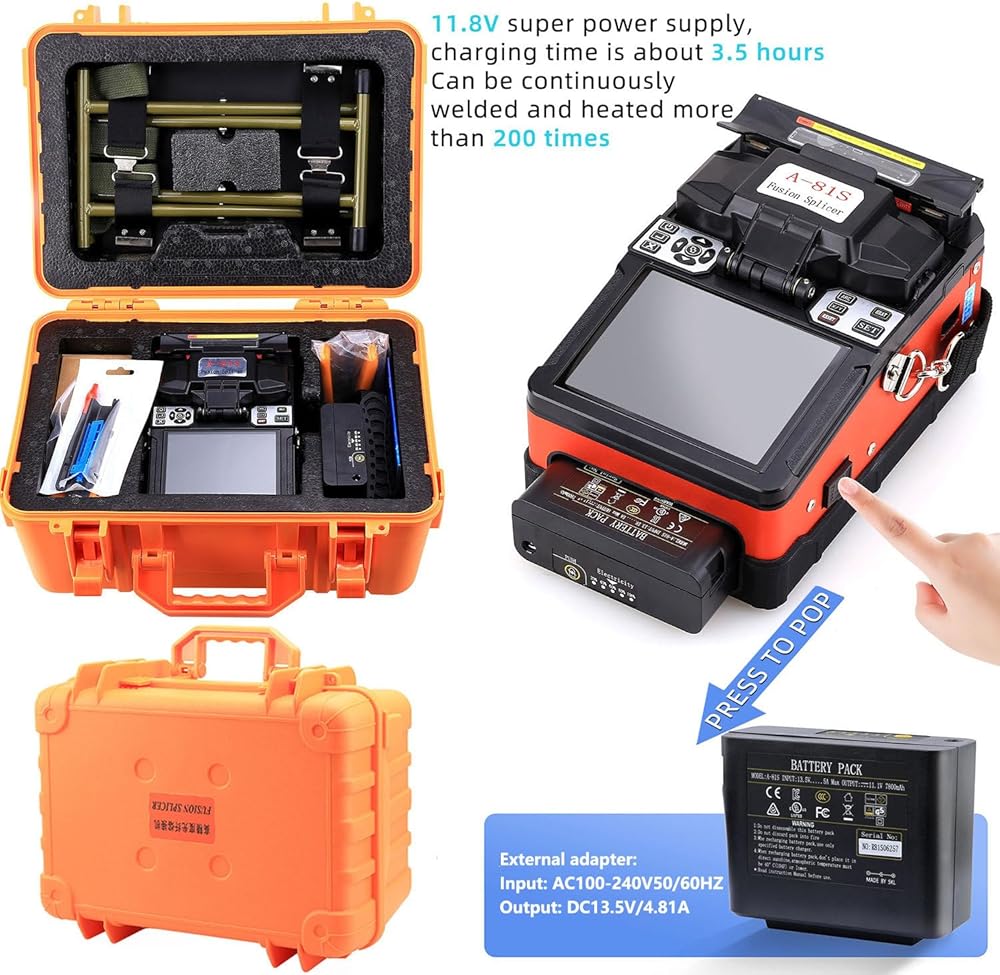

Power supply: built-in battery 11.8V power supply, charging time s3.5 hours;
Power saving function: can save 15% of battery power under typical conditions
Dimensions: 205mm (length) × 140mm (width) × 120mm (height)
Lighting: convenient for placing optical fiber at night
Weight: 1906g

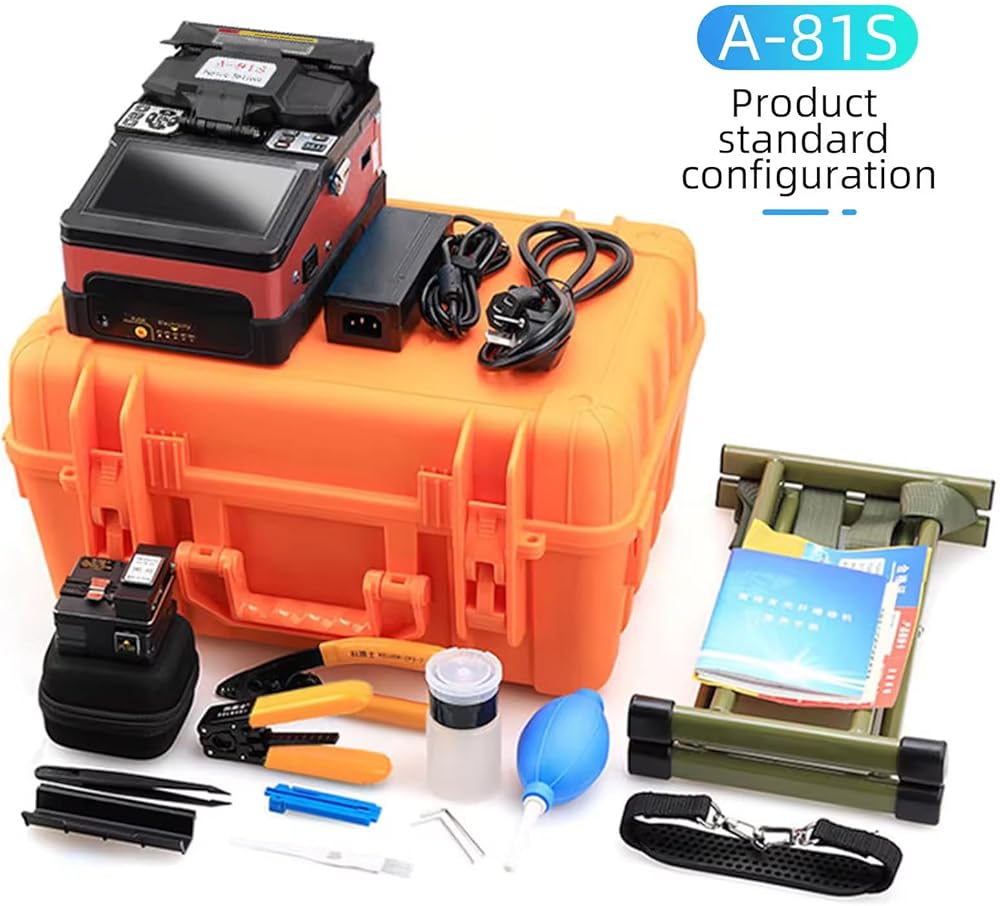

Packing List:
- Fusion Splicer Fiber Optic Kit
- User manual
