bearing
These bearings are made of high-quality bearing steel long life with low noise.
WHAT IS A THIN SECTION BEARING AND HOW DOES IT REDUCE COST?
Thin Section Ball Bearings were developed for applications where space limitations are of the utmost importance. As the name implies the difference between the inside and outside diameters of the rings has been minimized or thinned out. Of course this comes at a price by compromising load capacities. However these bearings can still accommodate a relatively light radial thrust or combined loads.

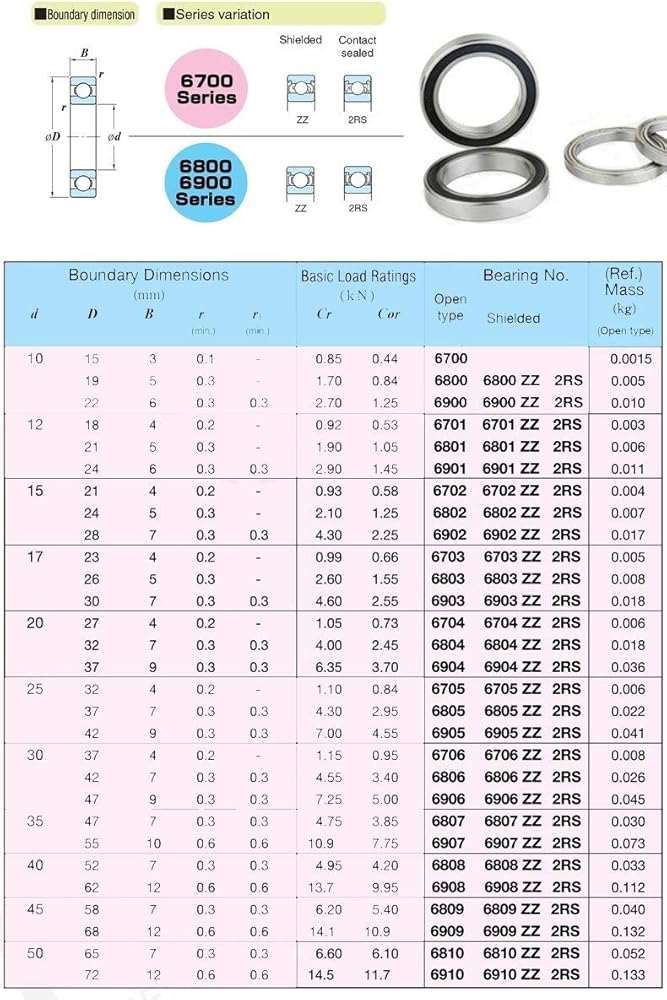

6700 Series - Metric dimensional series for very limited space applications and very light loads
6800 Series - Metric dimensional series for limited space applications and light loads
63800 Series - A hybrid between the 6800 and 6900 Series with the load capacities of the 6800 series but the width of the 6900 series.
6900 Series - Metric dimensional series for limited space applications and heavier loads
Model Number: 6704ZZ

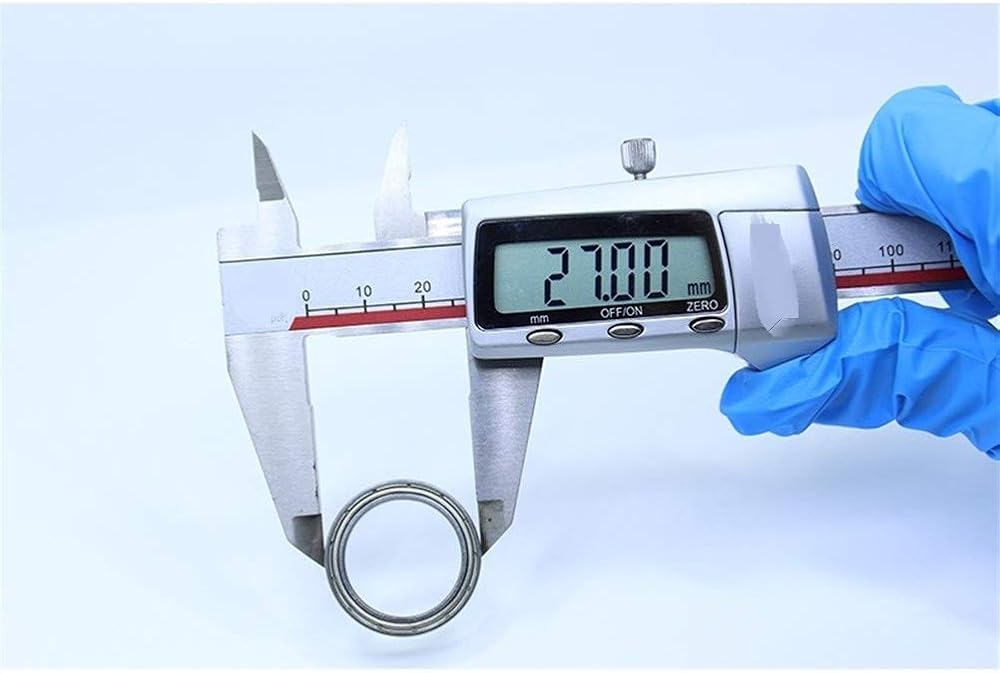

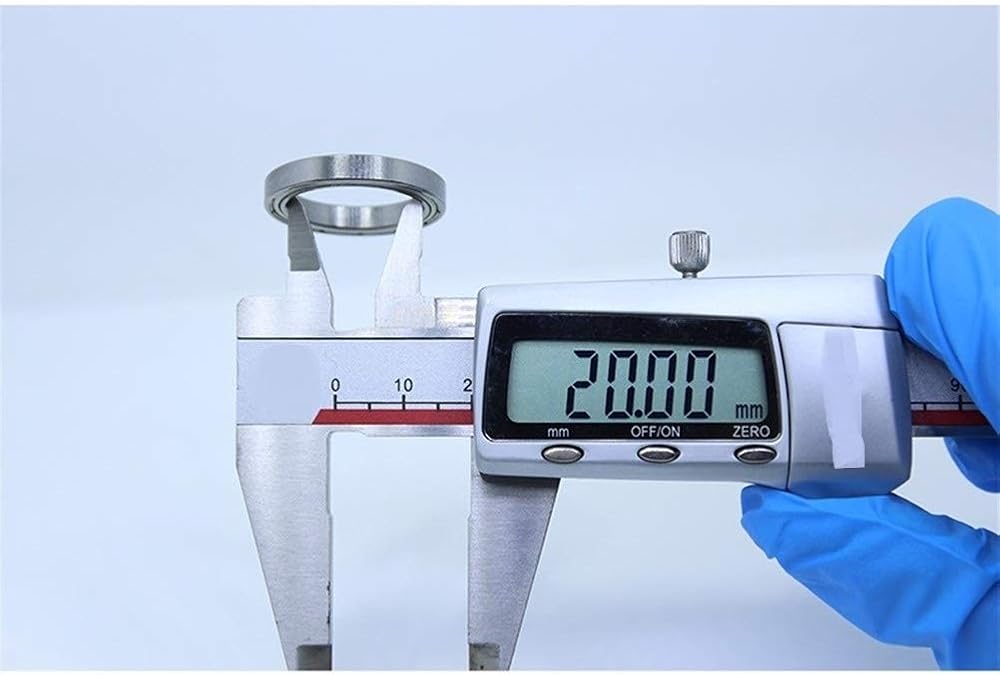

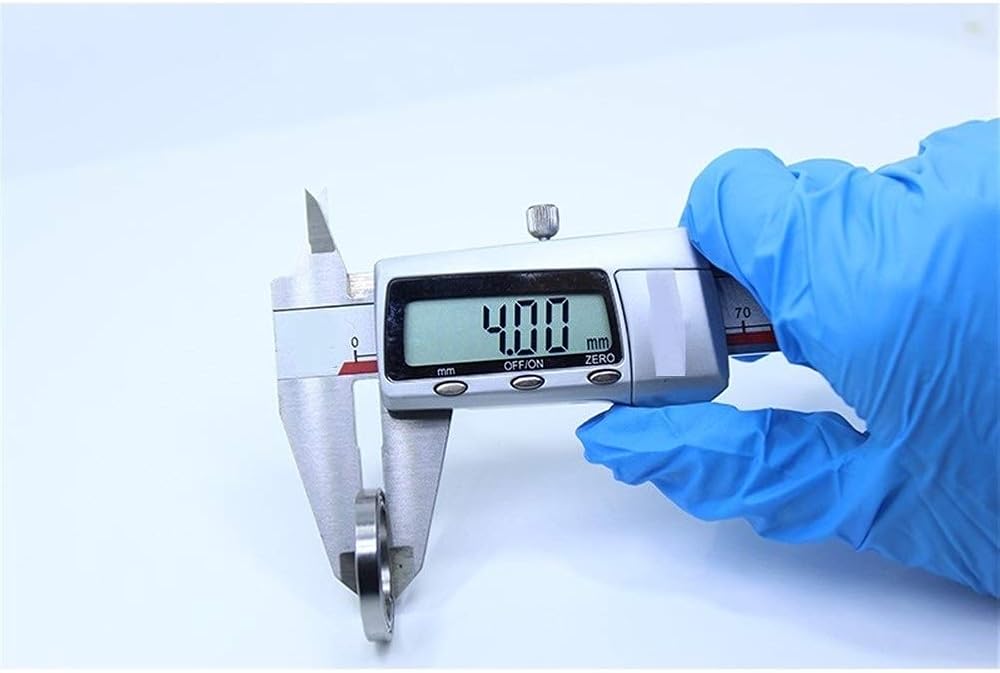

Torque Capacity: 20x27x4 mm
Surface Roughness: Ra 0.05
Structure: Deep Groove Ball
Material: STEEL
Coatings: Antirust Oil

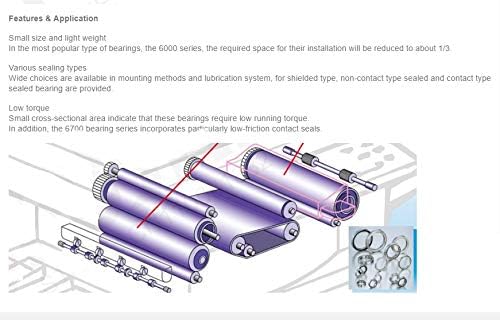

Features & Application
Small size and light weight
In the most popular type of bearings the 6000 series the required space for their installation will be reduced to about 13
Various sealing types
Wide choices are available in mounting methods and lubrication system for shielded type non-contact type sealed and contact type sealed bearing are provided.
Low torque
Small cross-sectional area indicate that these bearings require low running torque.
In addition the 6700 bearing series incorporates particularly low-friction contact seals.
