Pneumatic
Part numbers for actuators with mounting brackets, rod end brackets,
and auto switches are now available.
As it is no longer necessary to order the bracket and the applicable cylinder
separately, ordering time can be reduced.
Easy fine adjustment of auto switch position
Transparent switch bracket improves visibility of indicator LED.
With auto switch

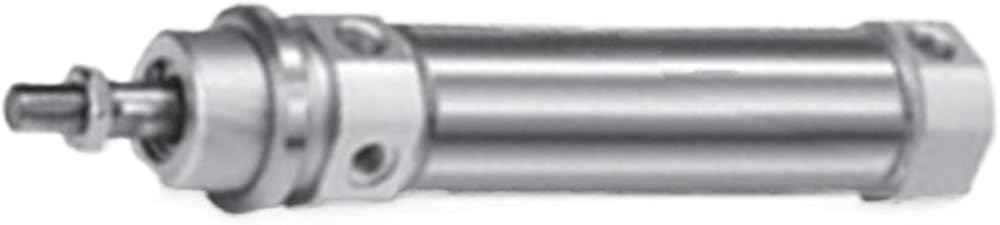

C85 Series: CD85, CD85W, CD85K, CD85R
C75 Series: CD75, CD75W, CD75K, CD75R
Type
Series
Action
Bore size (mm)
Standard
C85
Double acting, Single rod
8,10,12,16,20,25
Standard
C85
Double acting, Double rod
8,10,12,16,20,25
Standard
C85
Single acting, Single rod
8,10,12,16,20,25
Non-rotating rod
C85
Double acting, Single rod
8,10,12,16,20,25
Non-rotating rod
C85
Single acting
8,10,12,16,20,25
Direct mount
C85
Double acting, Single rod
8,10,12,16,20,25
Standard
C75
Double acting, Single rod
32,40
Standard
C75
Double acting, Double rod
32,40
Standard
C75
Single acting
32,40
Non-rotating rod
C75
Double acting, Single rod
32,40
Non-rotating rod
C75
Single acting
32,40
Direct mount
C75
Double acting, Single rod
32,40
