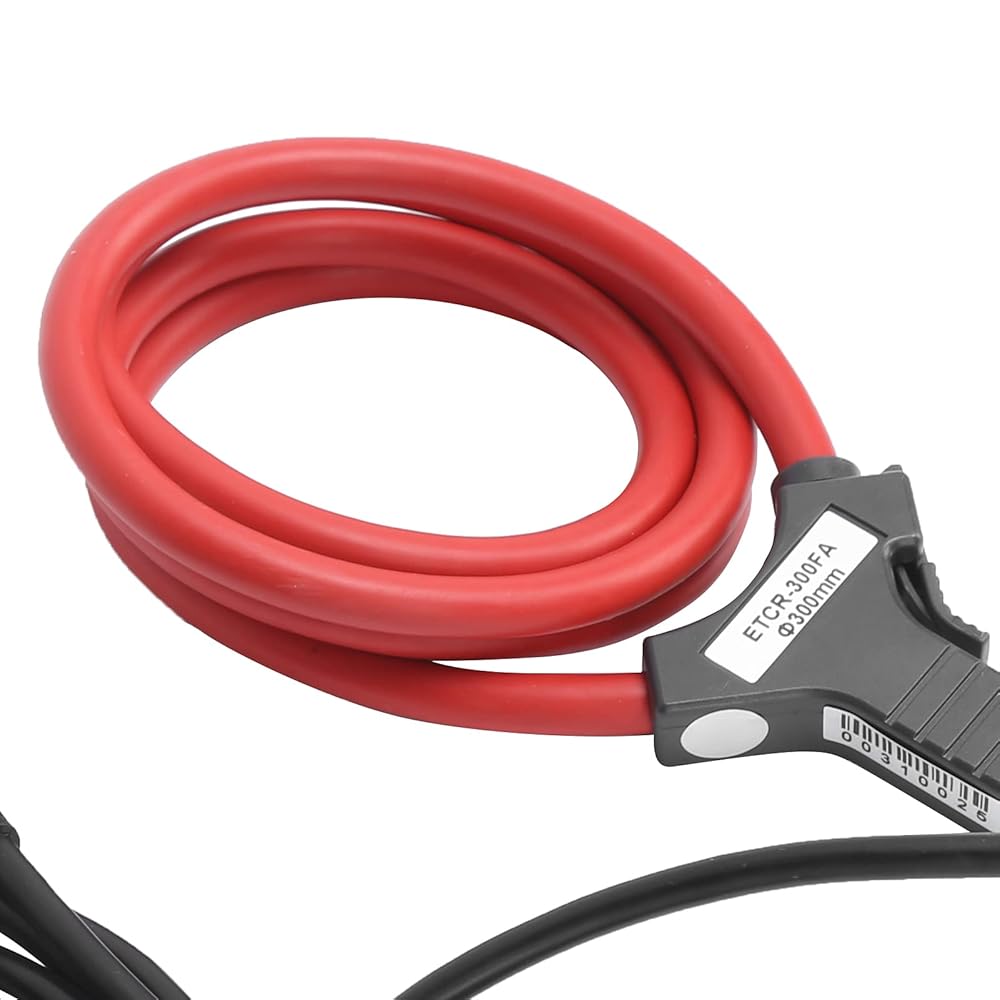

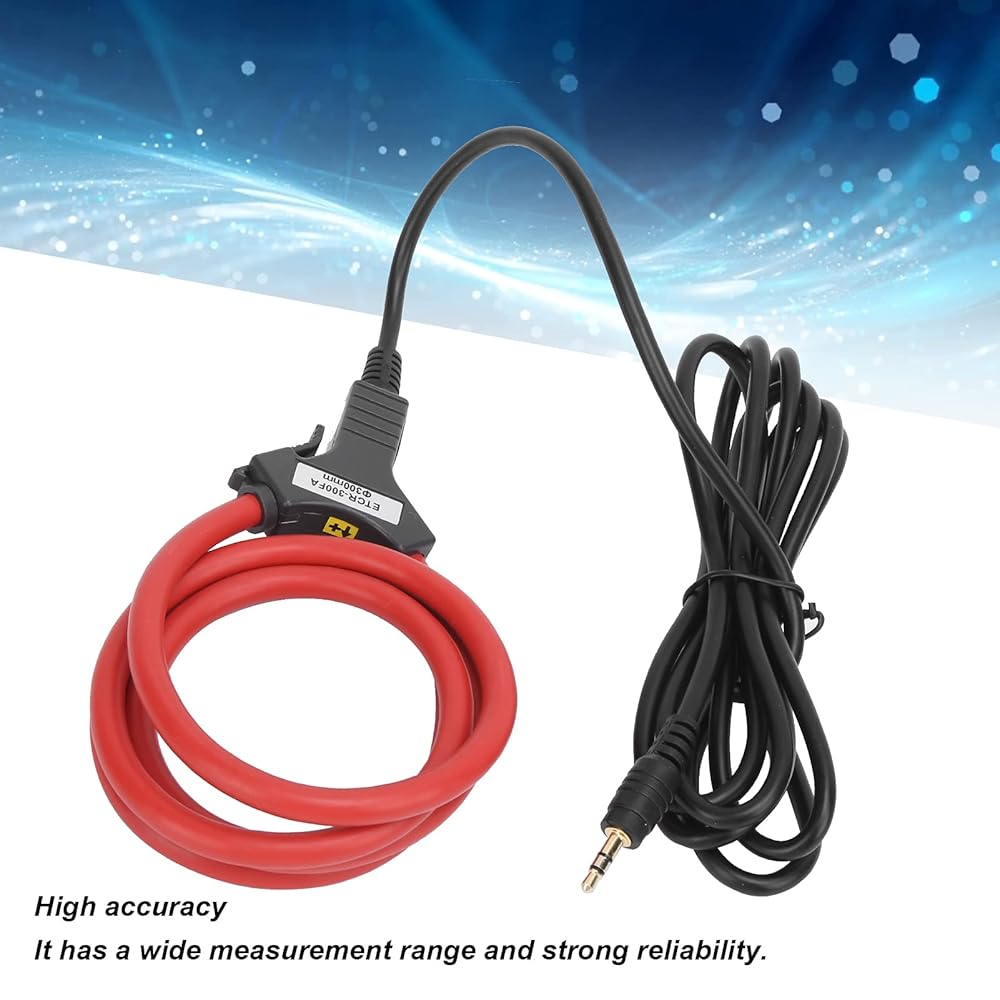

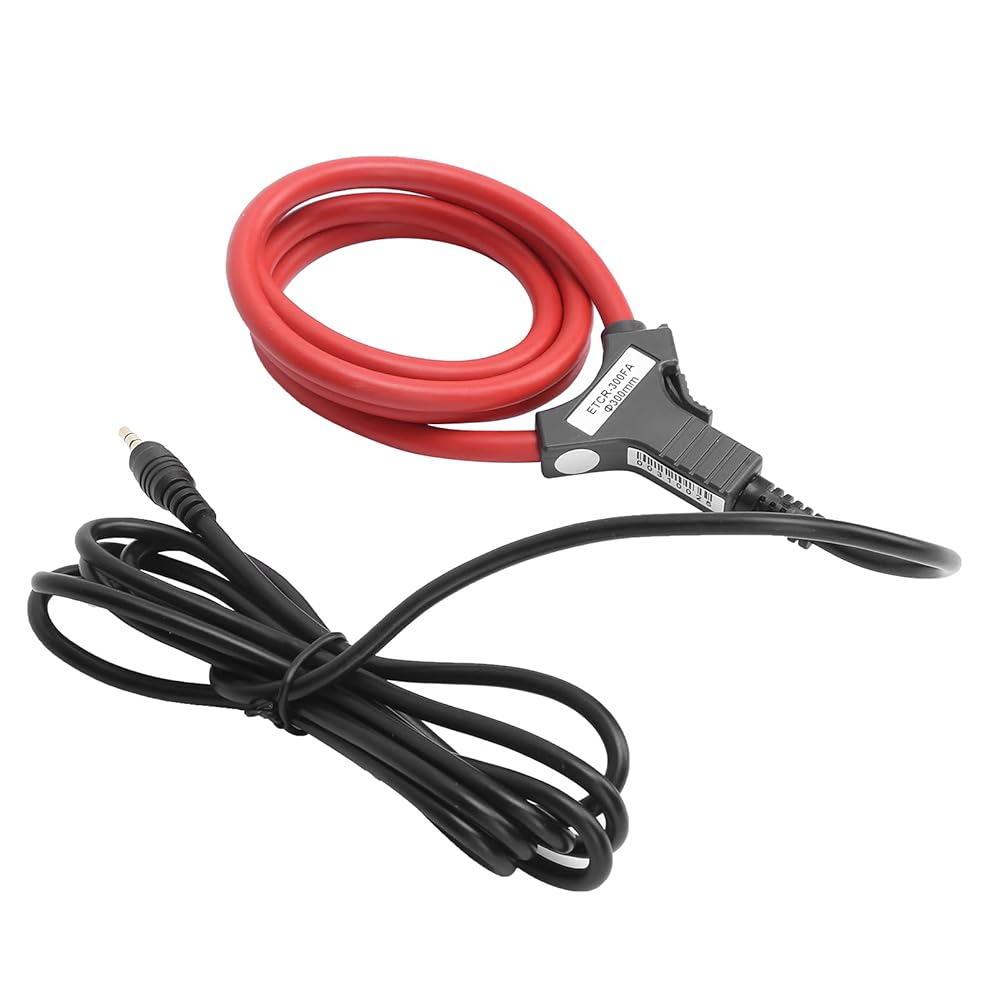

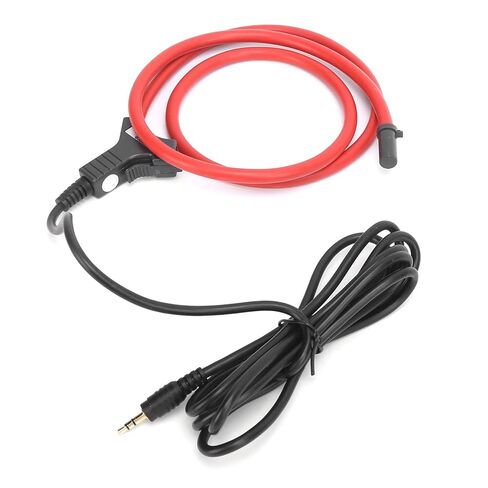

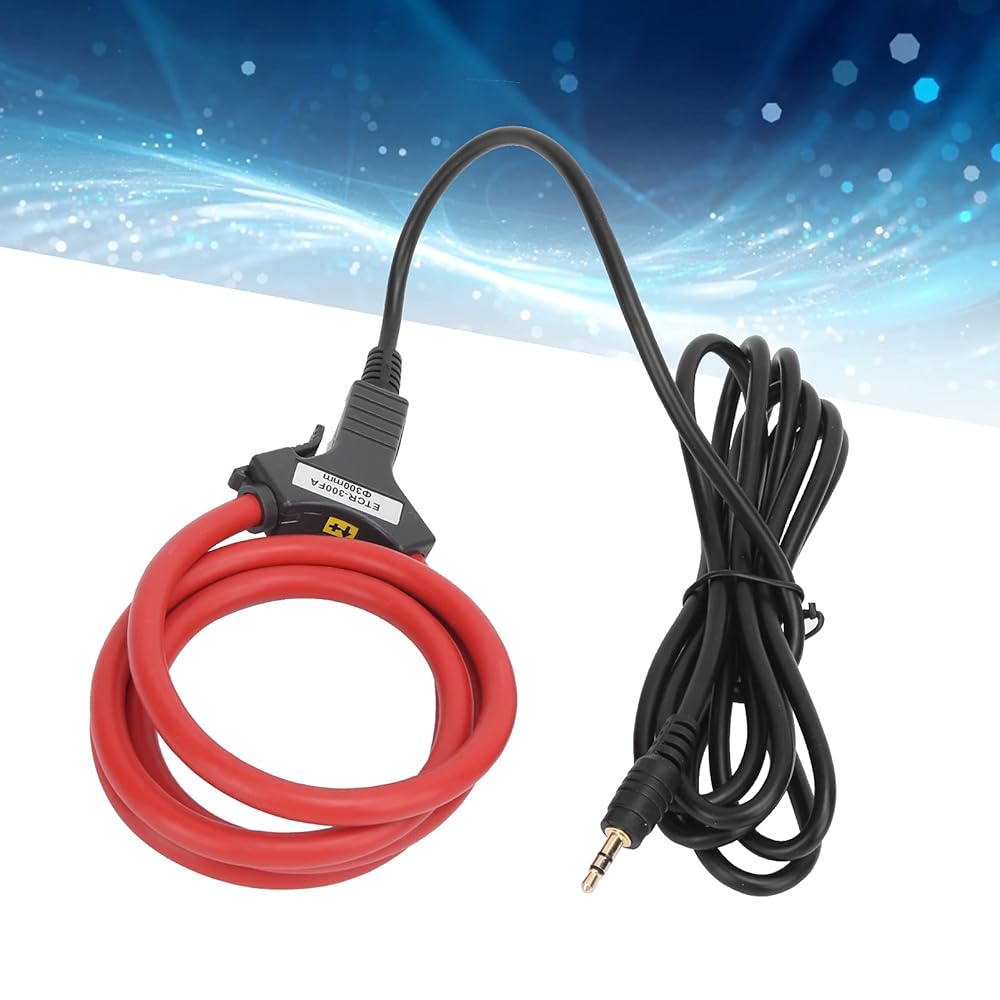

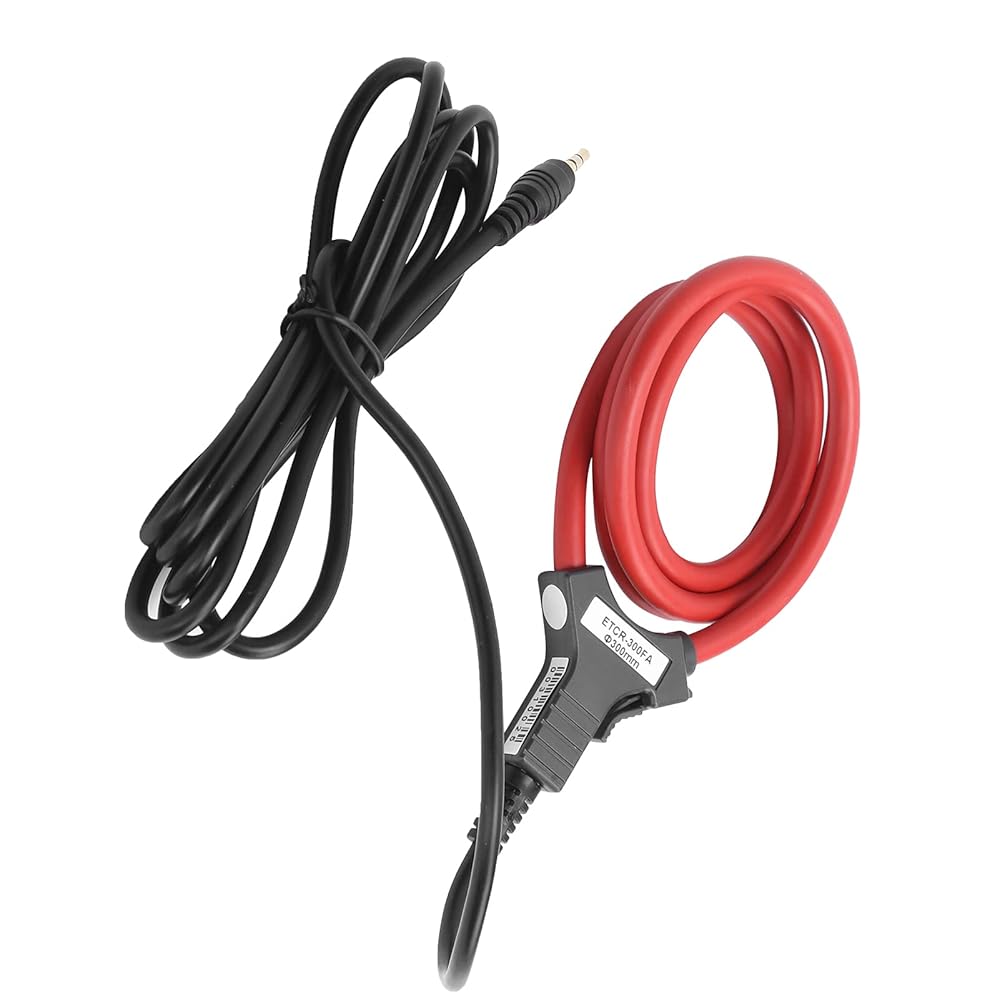

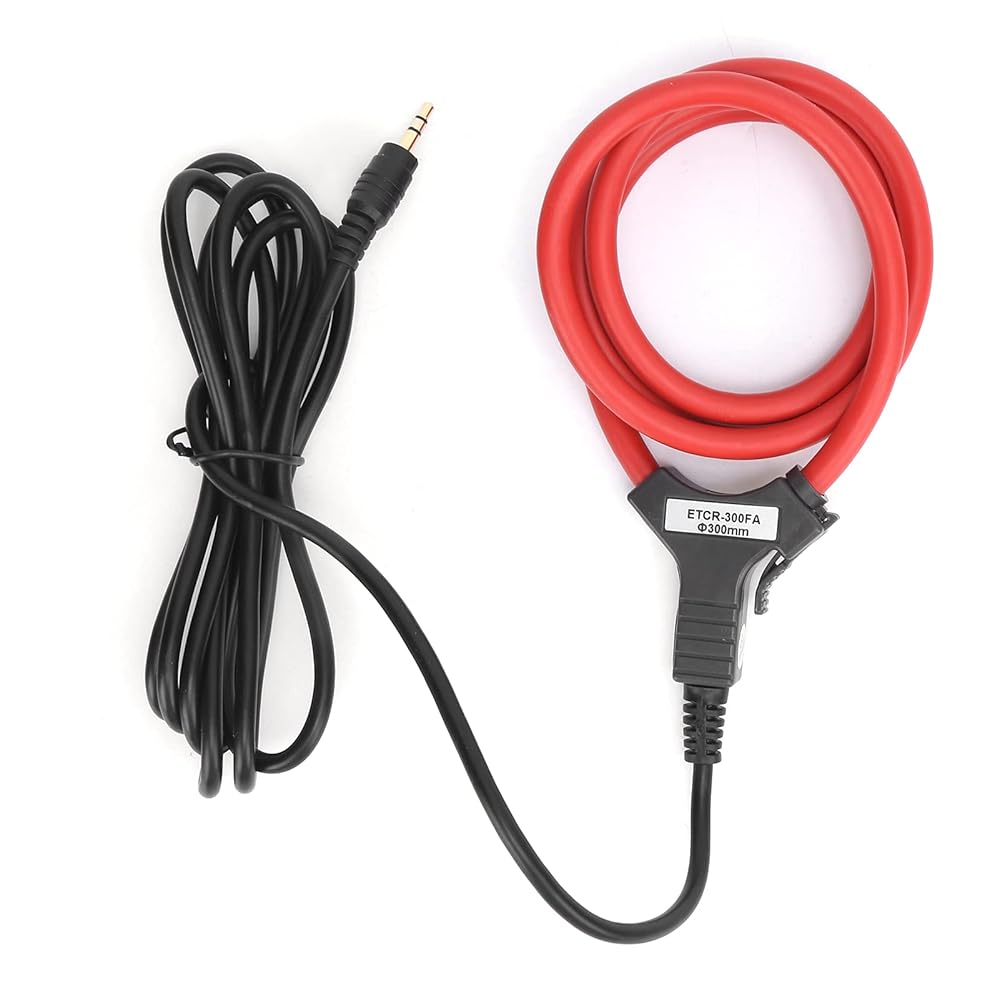

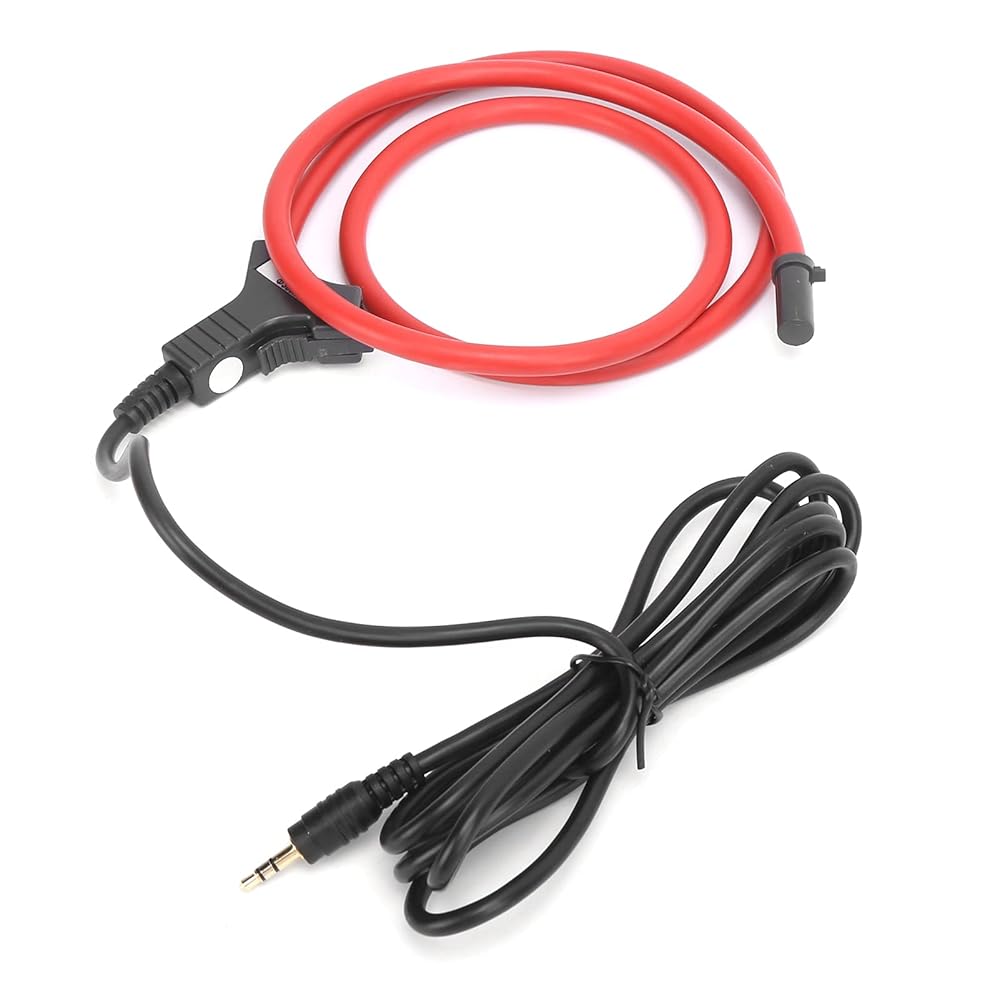

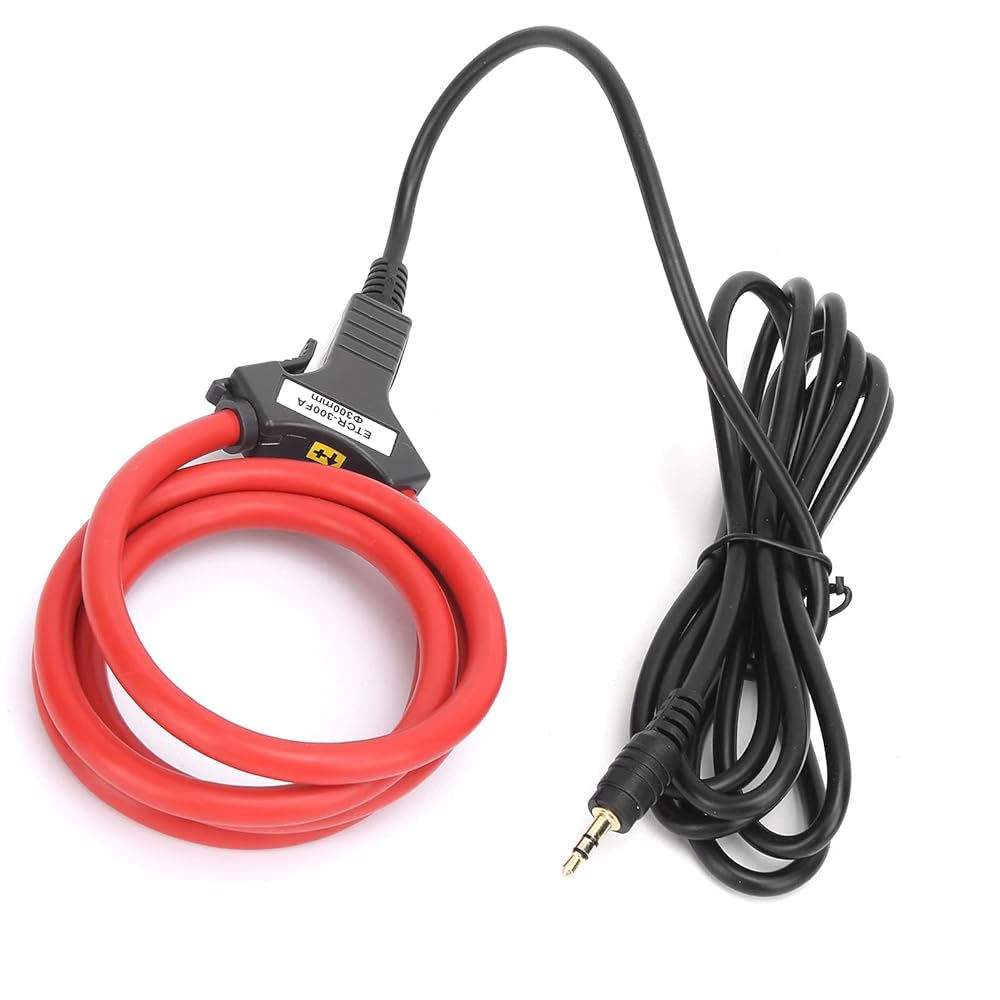

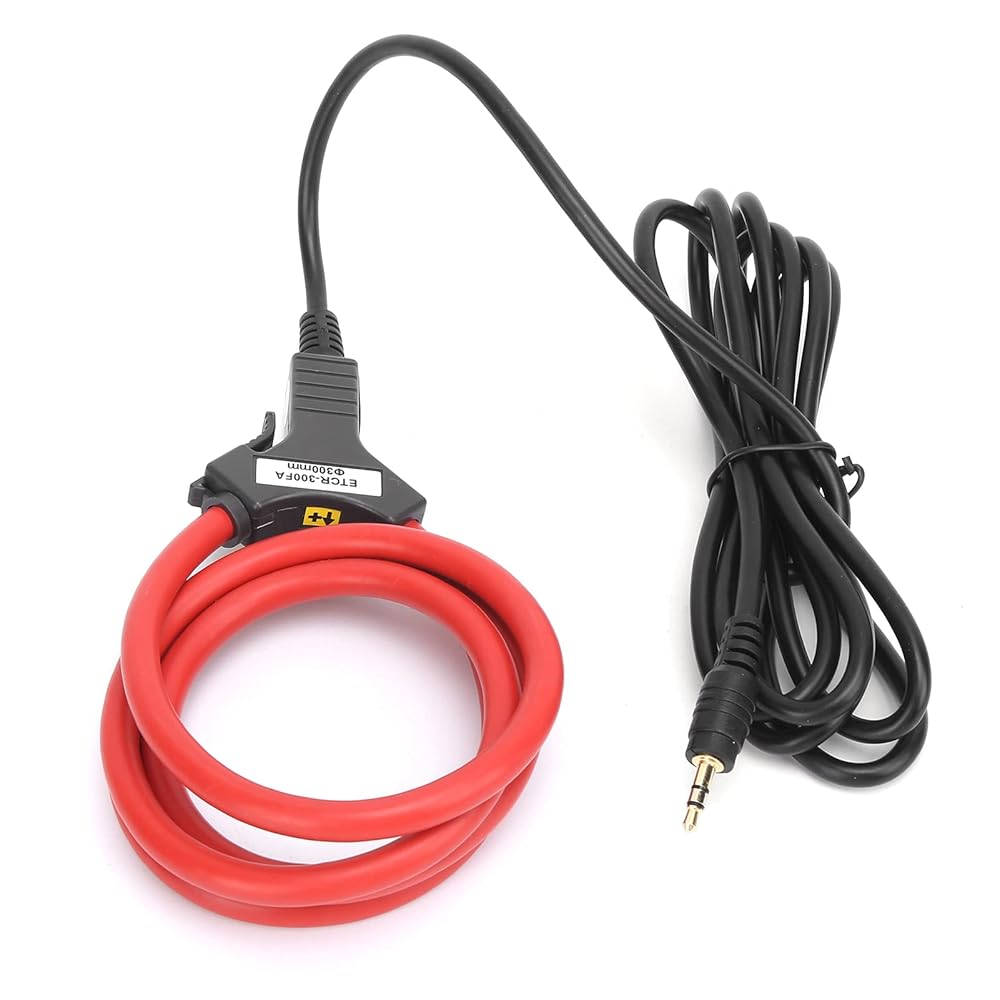

Item Type: Transformer
Model: ETCR300FA
Material: ABS
Purpose: It can be equipped with an integrator and is easy to integrate into other equipment, such as phase detection analyzers, industrial control devices, data loggers, oscilloscopes, harmonic analyzers, power quality analyzers, accuracy digital multimeters, transient shocks Recorders, distributed measurement systems, guard systems, etc.

Function AC leakage current, high current, high order harmonic current, complex waveform current, transient inrush current, phase, electric energy, power, power factor, etc. detection.
Detection Method Flexible coil CT: The output signal is the differentiation of current with to time. By integrating the output voltage signal, the input current can be truly restored.
Coil Diameter ΦApprox.7.5mm / 0.3in
Quantity Process 0A～10000A～Higher
Resolution 10mA
Accuracy Class ±1.0%FS (50Hz/60Hz; 23℃±2℃, Below 70%RH, the wire is at the center of the coil)
Phase Error 0.1°(50Hz/60Hz; 23℃±2℃)
Output Interface 3.5mm Audio Frequency Plug/BNC Plug/Tap (Optional), Cable Length Approx.2m / 6.6ft
Electric Field Interference No hysteresis effect, no interference from external electric field
Wire Position The tested wire is at the center of the coil, and the position error affects ±0.3%FS
Current Frequency 45Hz～70Hz (Frequency of Measured Current)
Response Frequency 0.1Hz～1MHz
Line Voltage Line Test Below AC 1000V
Working Temperature and Humidity -20℃～50℃; Below 80%Rh
Storage Temperature and Humidity -10℃～60℃; Below 70%Rh
Dielectric Strength AC 2000V/Rms (Both Ends of The Coil Unlocked and Expanded)
Suitable For Safety Regulations CAT IV 600V, CAT III 1000V

Package List：
1 x Transformer
