Wide voltage checker: the car battery analyzer can measure from DC7V to 100V, accuracy ±0.1%(or you can calibrate by the potentiometer at the back)
Support different types of battery: the battery gauge indicator fits lead-acid battery(12V/24V/36V/48V/60V/72V/84V), ternary lithium battery, lithium-iron battery and more
Multiple functions: the 2 in 1 battery meter can show real time data of voltage and battery percentage, press the front buttom to switch easily, data brights in red; power-off memory function to keep the current setting; low voltage alarm
Two connection methods: reverse polarity protection, universal for 2-wire and 3-wire connection; 2-wire(the red and yellow wires are connected together to the positive terminal) to test from 7-100V; 3-wire is designed for testing voltages 0.3-100V
Portable size: small in size round battery meter, relatively small requirements on placement location. Overall size 1.32"x 0.748"/ 3.35x 1.9cm; could be used for golf cart, motorcycles, RVs, e-bikes, marine, boats, scooter, trucks, tractors

Round Digital Battery Meter, Wide Voltage Tester, Showing Battery Capacity

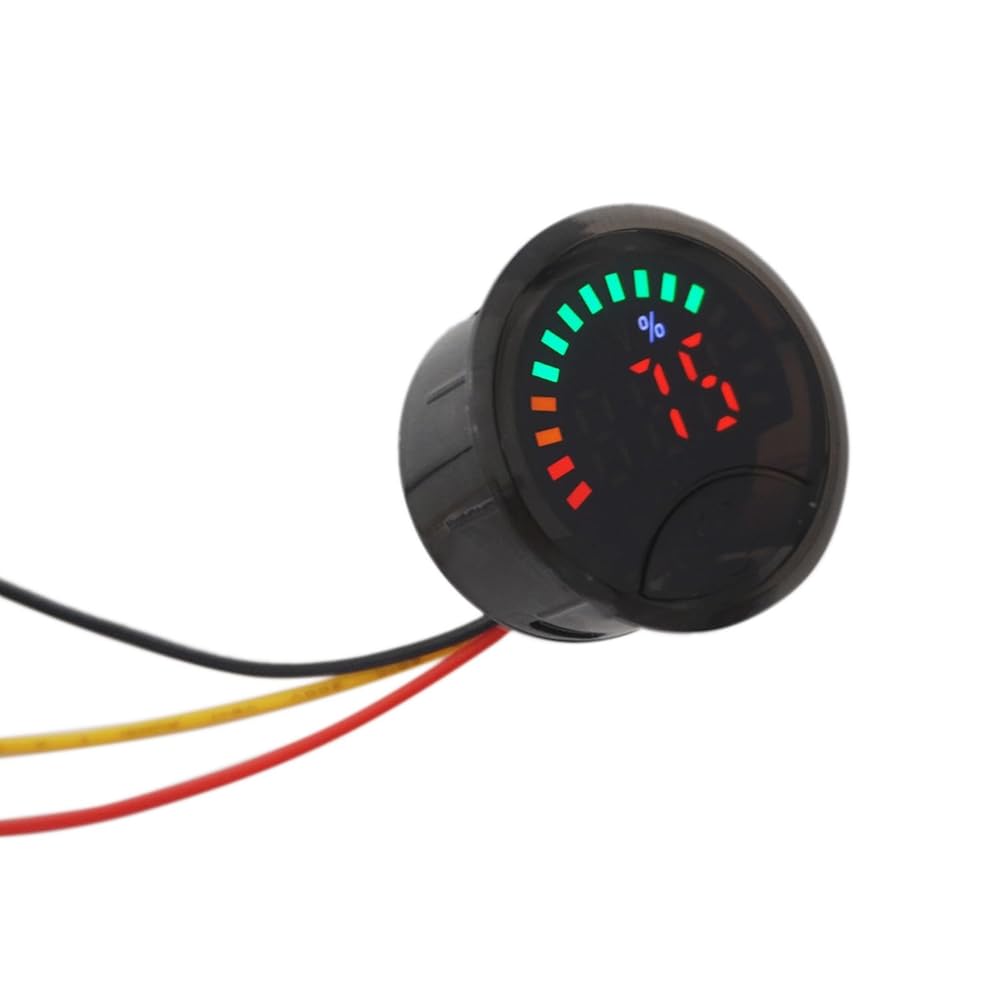

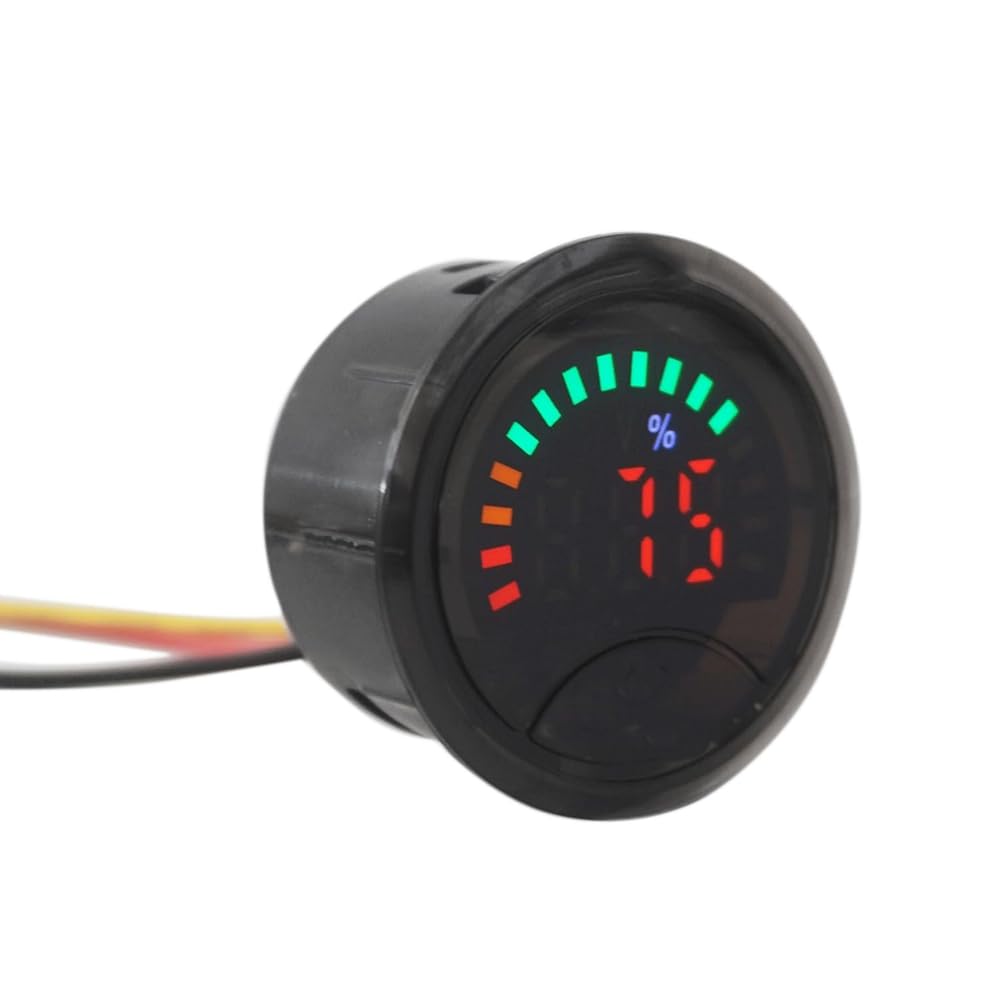

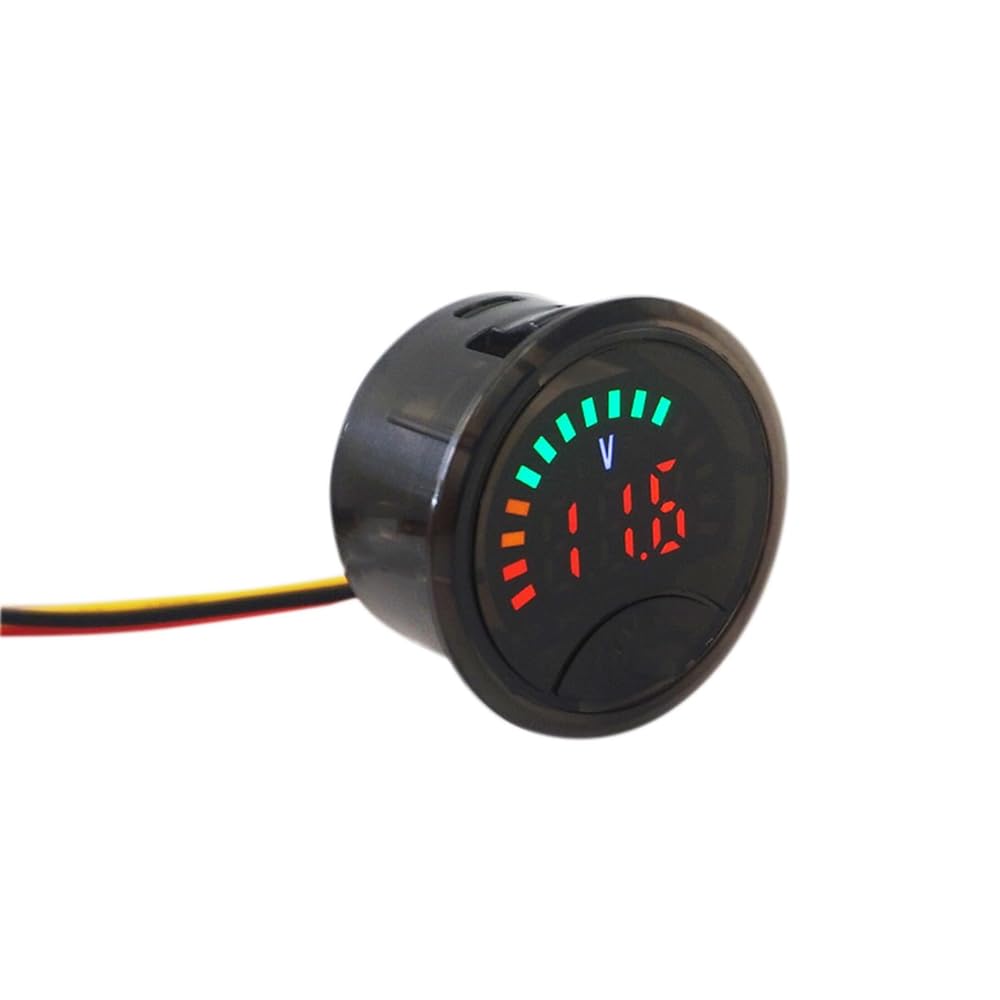

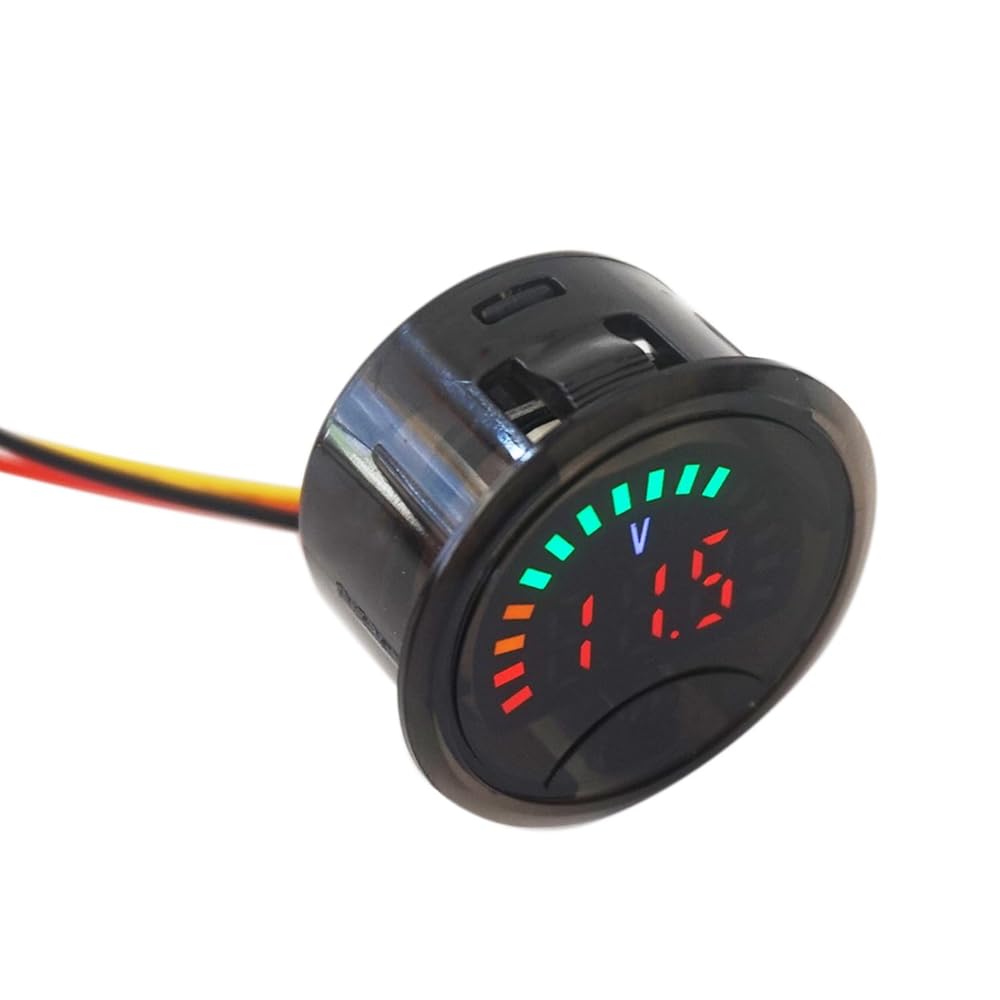

The small battery monitor can test voltage and show the remaining capacity of battery, press the key to switch the data.

The testing range is 7-100V and used for most of batteries, ternary lithium battery, lead-acid battery, lithium-iron battery...

The battery analyzer with power-off memory function, it can retain settings even when power is removed.

It would flash to alarm if the capacity is or lower 10%.

Monitoring the battery status, you can make the decision in time according to the data.

Measuring range: DC7-100V

Working current:≤20mA

Display mode: digital tube screen

Voltage measurement accuracy: ±1%

Operation temp:14°F - 122°F

Material: ABS casing, black

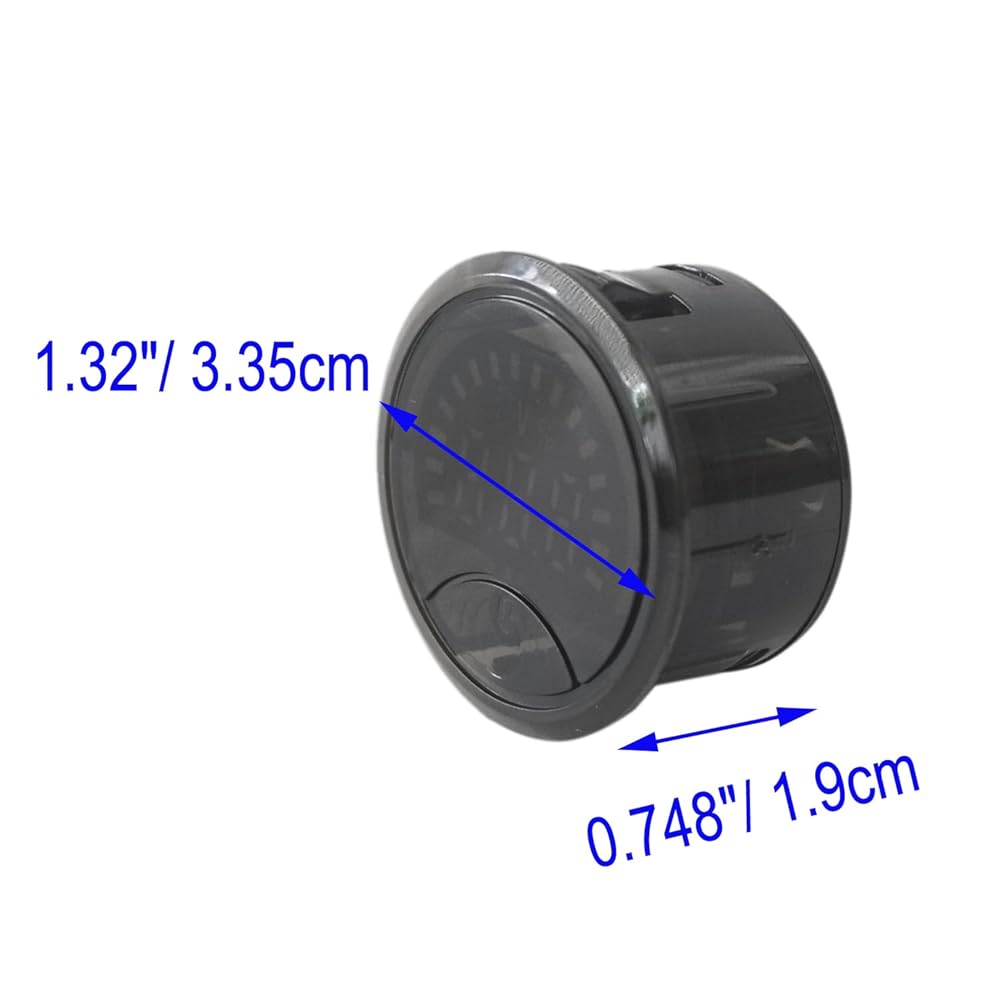

Overall size: 1.32"x 0.748"/ 3.35x 1.9cm

Package included:

1 x battery meter

1 x wire

1 x manual

Color: data brights in red

Net weight:

0.41OZ/ 11.5g per piece

Note for the battery monitor

1.Ensure proper configuration based on the actual battery specifications and voltage parameters before use.

2.Check the size if that's suitable for you.
