Miniature Circuit Breakers
Circuit Breaker
Introductions and Scenarios:

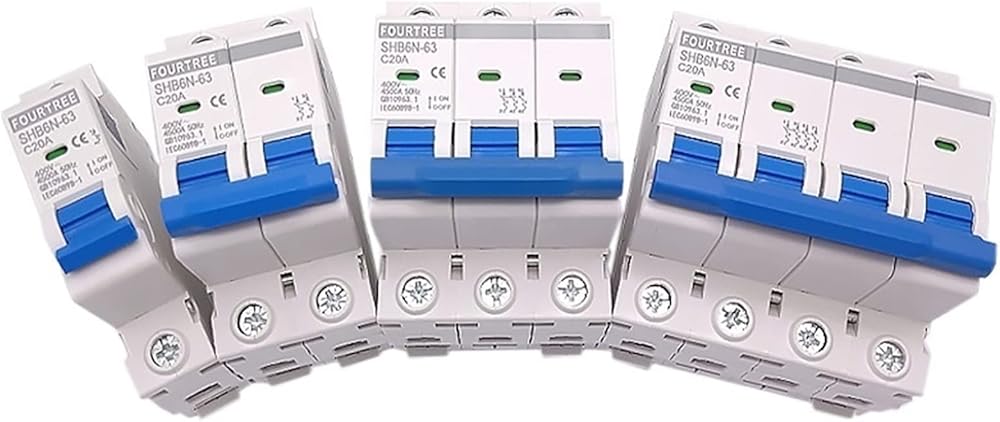

SHB6N-63 miniature circuit breaker is mainly used in AC 50/60Hz, rated working voltage is 230V/400V and below, rated current to 63A, the circuit breaker is mainly used for electrical wiring and equipment of buildings. The overload and short circuit protection is also applicable to the infrequent operation and isolation of the line.
This product meets the requirements of standards such as IEC60898 and GB10963.1
Parameters and Description
Conform to standard: GB10963.1/IEC 60898-1
rated voltage: 230/400 V AC
Rated current: 6-63 A
Breaking capacity: 6000A
trip characteristics: C In, D In
Polar Number: 1P-4P
Current limit level: 3
Quick closing
maximum working voltage: 440 V AC
Impulse withstand voltage: 6 kV
Electrical life: 10,000 times
Mechanical life: 20,000 times
Operating ambient temperature:-30°C to+70 °C
Storage ambient temperature:-40 C to+85 C
Damp-heat resistance: Class 2
