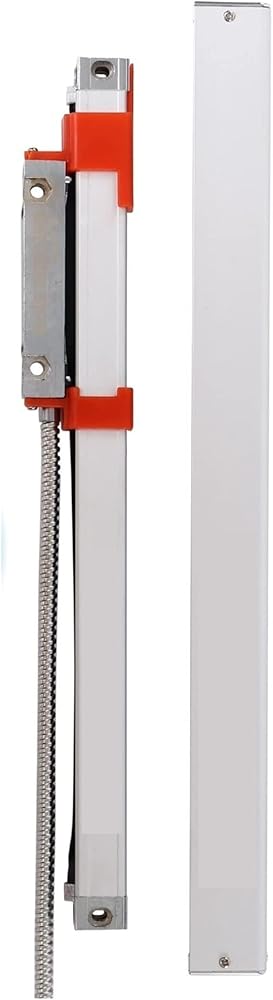

KA200 210 220 230 240 250 260 270 280 290mm Thin Slim Optica Encoder Sensor KA-200 TTL 0.005mm Small Linear Scale For Mill

Description
KA-200 is a super-miniature thin ruler,it facilitates the use in somenarrow placesand the installation of special purpose measuring instrument.For the KA Series of linear encoder,every ruler has passed through the strict quality measure technology dynamic control is used to ensure that the precision of every ruler has met the required standard before being deliveried from the factory.
KA-200 Parameter
Available Measrus Length: 30mm-360mm
Cross Section: 16mm X 16mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Reference Point: one unit per 50mm
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL
Cable standard: 2 meters
Bar Pitch: 0.02mm
Power: +±5%, 80mA
Operating temperature:0-45 egree centigrade
Connetor: 9 Pins
1. A, 2. 0V, 3. B, 4. Empty, 5. Z, 6. A, 7. +, 8. B, 9 .Z
Package content
-1 piece KA-200 scale,
-1 piece scale cover
-1 bag screws
