مميزات خاصة

Displacement Sensor: Machine electronic ruler can reduce transmission loss, support high-definition sound quality, and are highly compatible with various devices.
Plug-Type Design: Pull pod displacement sensor adopts a plug in design, which is convenient and practical, with no noise output, and has an IP67 protection level.
Compatibility: Adopting the principle of potentiometers, it changes with displacement at a given input voltage of 0-100%, with fast response, resolution: infinite uninterrupted analysis, repeatability: 0.01mm.
Antioxidant Material: The Linear sensors is made of stainless steel material, with an antioxidant plug that is not easy to rust. The maximum load of the rod can reach 50KG.
Scope of Application: Linear position sensor is widely used in fields such as automobiles, plastic machinery, transmission equipment, measurement systems, and cabinets.

وصف

Specification:
Item Type: Displacement Sensor
Product Material: Stainless steel
Optional : KTC-75, KTC-100, KTC-125, KTC-150, KTC-170, KTC-200
Electrical Stroke: Range + 3mm
Resolution: Infinite uninterrupted analysis
Repeatability: 0.01mm
Normal Working Current of Sliding Brush: ≤10μA
The Maximum Current of Sliding Brush When Causing Fault: 10mA
Maximum Allowable Working Voltage: 42V
Effective Temperature Coefficient Ratio of Output Voltage to Input Voltage: Usually 5ppm / K
Insulation Resistance (500VDC, 50Hz): ≥10MΩ
Insulation Strength (500VAC, 50Hz): ≤100μA
Shell Length (A): Range + 78.5mm
Mechanical Stroke (B): Range + 8mm
Maximum Load of Pull Rod: 50KG
Work Force:
Horizontal Direction: Vertical Direction: ≤10N
Vibration Resistance Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g
Damper Resistance Standard: 50g, 11ms
Operating Temperature Range: -60 ... + 150 ℃
Life:> 100 × 10 ^ 6 times
Maximum Operating Rate: 10m / S, maximum operating acceleration 10m / s²
Level: The highest IP67 (DIN40500 / IEC529)

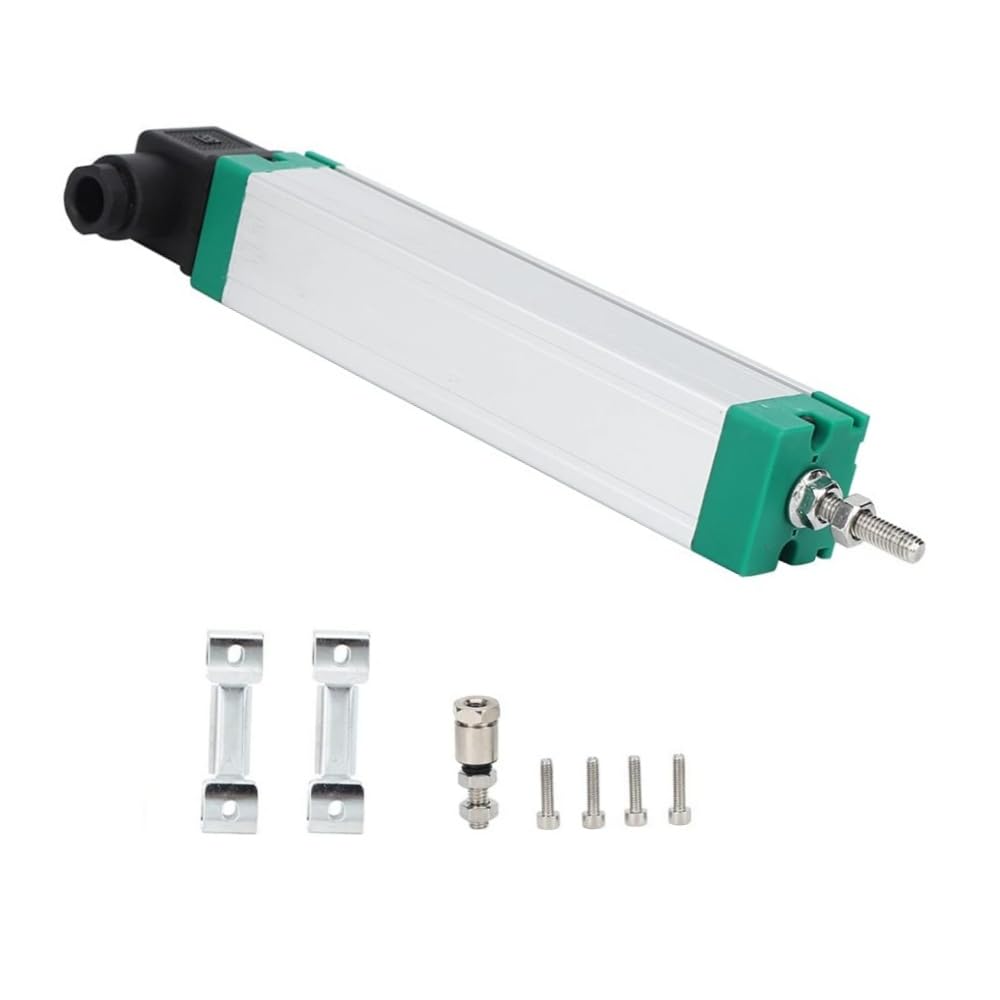

Package List:
1 x Displacement Sensor
1 x Plug
3 x Accessory
4 x Screw
