Clutch

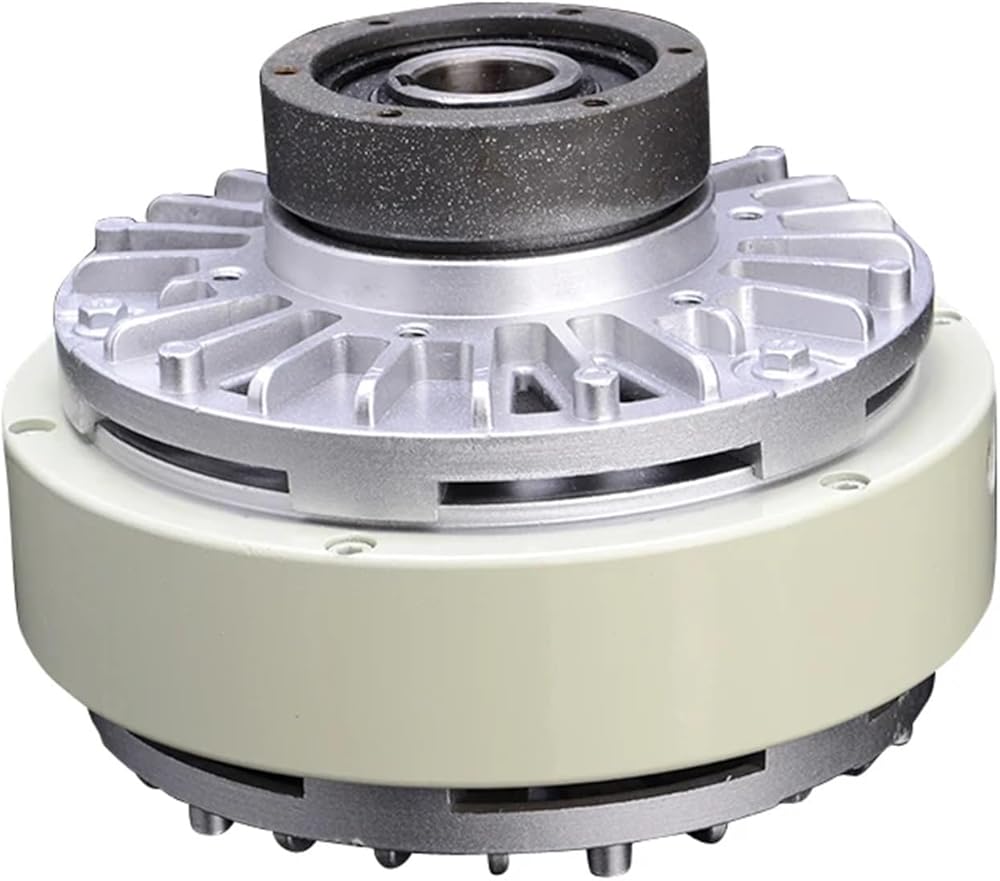

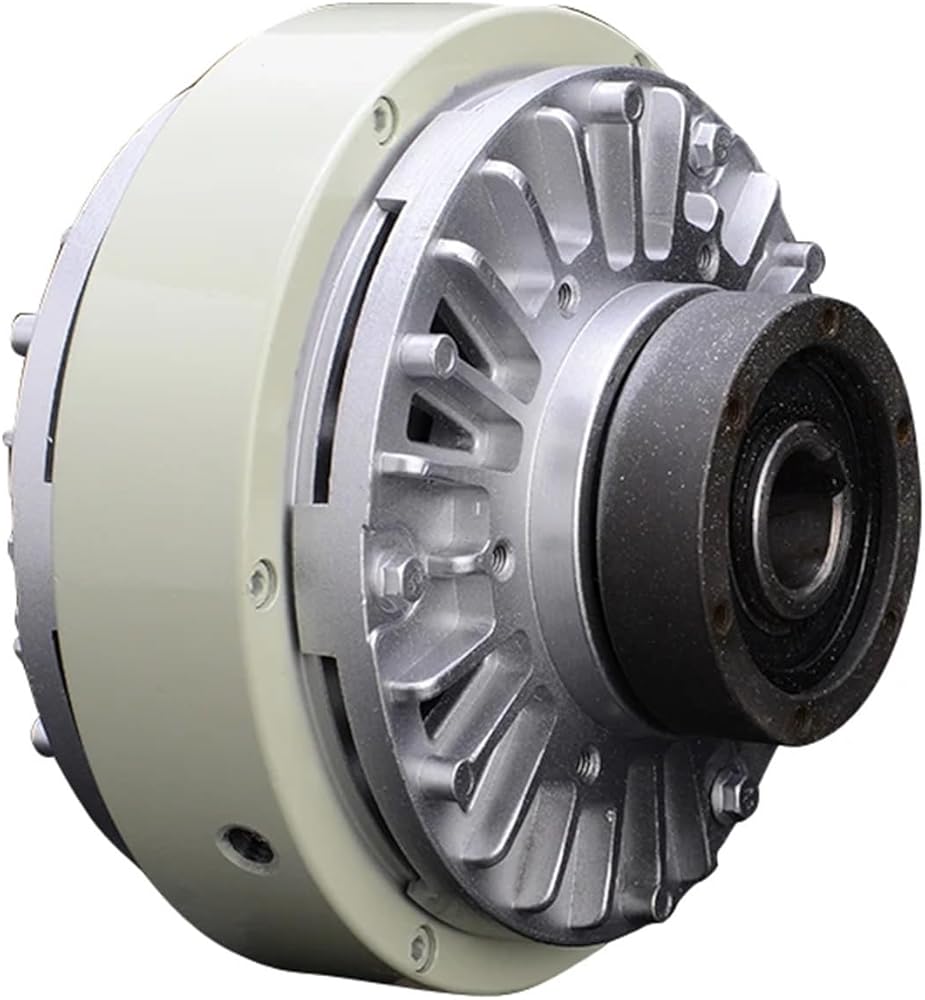

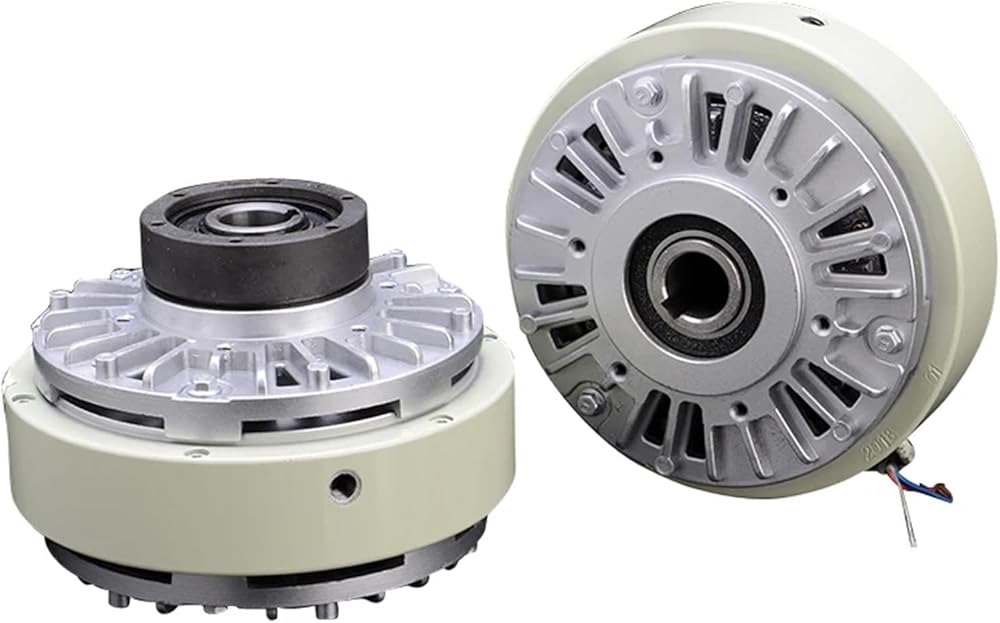

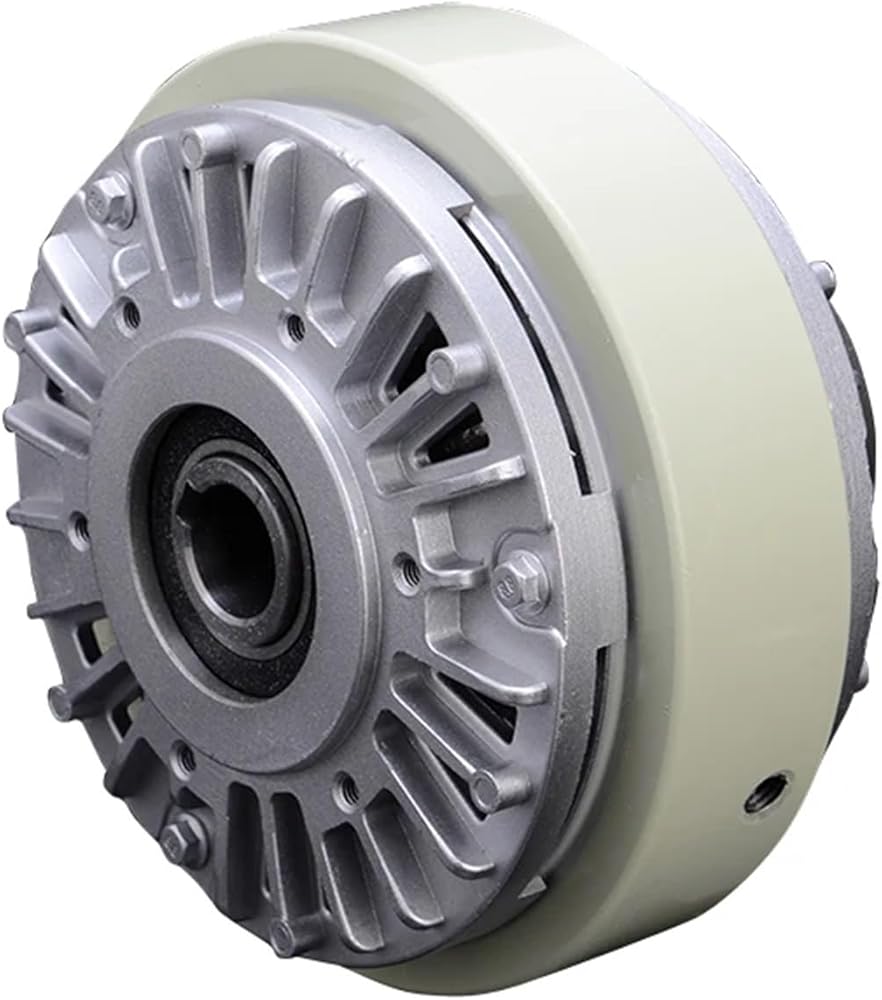

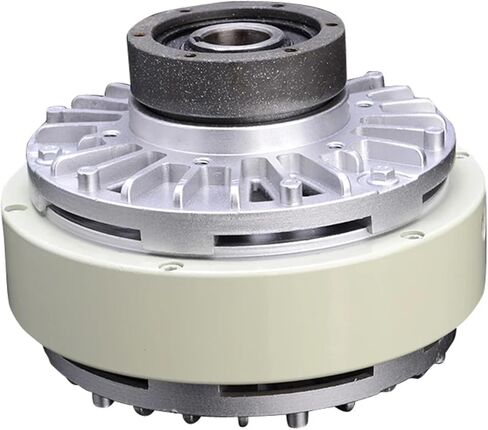

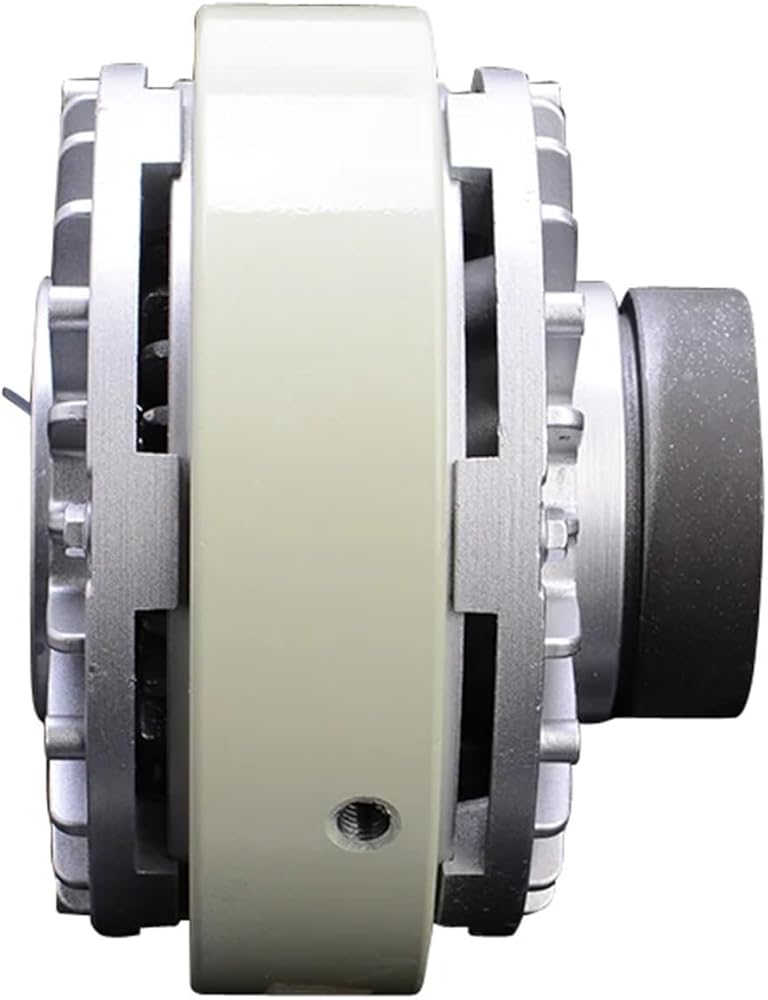

25N.M /2.5KG Hollow shaftmagnetic powder clutch for Printing machine, Windingmachine
model
Technical parameters
dimension
Net weight
(kg)
Torque (N.m)
voltage
Rotate
speed
Max
current
D0
D1
D2*L1
D3*L2
D4
L3
L4
L5
d t 6-S
6-S1
FL-B-6
6 24V
1400
0.8A
130
50
60*16
62*16
70
64
91
3 16
5 M4
M5
4
FL-B-12
12
1.0A
157
63
70*18
72*7
80
77
107
3 20
6 M4
M5
6.5
FL-B-25
25
1.5A
182
71
80*20
82*10
97
88
129
4 25
8 M5
M6
9.5
FL-B-50
50
1000
1.8A
219
85
95*22
97*11
110
105
147
4 30
8 M6
M6
15
FL-B-100
100
2.0A
290
105
125*24
128*14
145
134
182
5 35
10
M8
M8
32
FL-B-200
200
2.5A
335
125
140*28
145*17
165
145
200
5 45
14
M8
M10
50
Product introduction
The magnetic powder clutch is a combination of a transmission unit (input shaft) and a driven unit (output shaft). The space between the two sets of cells is filled with granular magnetic powder (recessed about 40 microns). When the magnetic coil is not conductive, the torque will not be transmitted from the transmission shaft to the driven shaft. However, if the coil is electromagnetically energized, the magnetic powder will attract hardening due to the action of the magnetic force, and the torque will be transmitted between successive slidings.
Scope of application
Printing machinery, paper machinery, bag making machinery, papermaking machinery, wire and cable machinery, winding machinery, wire machinery, bale bag machinery, textile machinery, weaving machinery, woodworking machinery, test equipment, simulation load, various Mechanical precision tension control, general industrial equipment, and other general industrial machinery.
==========
High-concerned chemical : None
Voltage : 24V
Material : Cast Iron
Model Number : FL-B-25
Origin : Mainland China
Certification : None
