مميزات خاصة

1. The TUF-2000M Digital Ultrasonic Flowmeter boasts a remarkable accuracy with a linearity better than 0.5%, repeatability exceeding 0.2%, and overall accuracy within 1%
2. Designed to accommodate various pipe sizes, the Digital Ultrasonic Flowmeter supports transducers for DN15mm to DN6000mm
3. Featuring an RS-485 interface, the TUF-2000M enables seamless connectivity between the flowmeter module and secondary meters, with a transmission distance of up to 1000m
4. This Digital Ultrasonic Flowmeter offers multiple output options including 4-20mA current output for flow/heat transmitters
5. With its features and functionalities, the TUF-2000M Digital Ultrasonic Flowmeter is for industrial automation, processing control, and flow meter networking

وصف

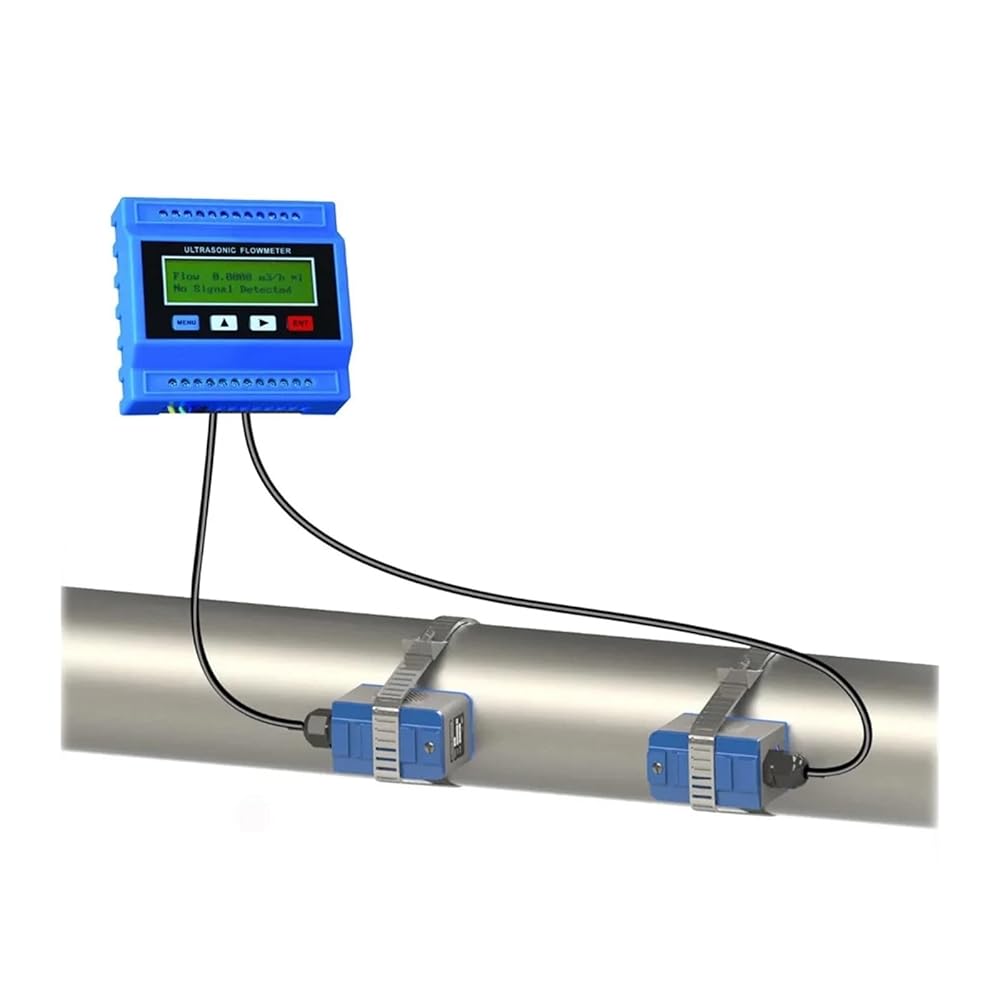

TUF-2000M DN15-100 DN50-700mm DN80-6000 DN300-6000 Digital Ultrasonic Flowmeter Flow Meter Module Sensor Indicator

Main Features:
1.High accuracy
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than 1%
2.Wide measuring range
Several types transducer for selection, pipe size from DN15mm to DN6000mm
3.Far transmission distance
Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m
4.Powerful Functions
Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
OCT output: two channels, can be used for flow /heat switch;
Current input: 4-20mA, three channels, can be used for data collector;
Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.

TS-2 sensor : DN15~DN100mm,-30~90
TM-1 sensor : DN50~DN700mm,-30~90
TL-1 sensor : DN300~DN6000mm,-30~90
TS-2-HT sensor(High-tem) : DN15~DN100mm,-30~160
TM-1-HT sensor(High-tem) : DN50~DN700mm,-30~160
TL-1-HT sensor(High-tem) : DN300~DN6000mm,-30~160
TC-1 sensor(Insertion) : DN80~DN6000mm,-40~160
