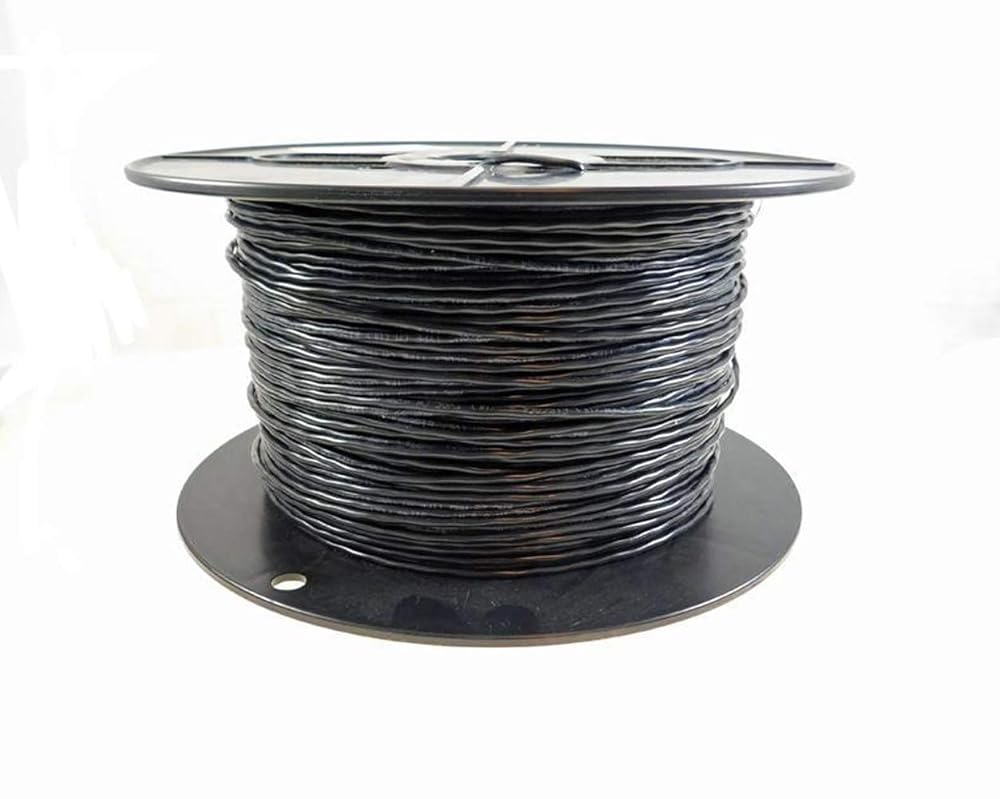

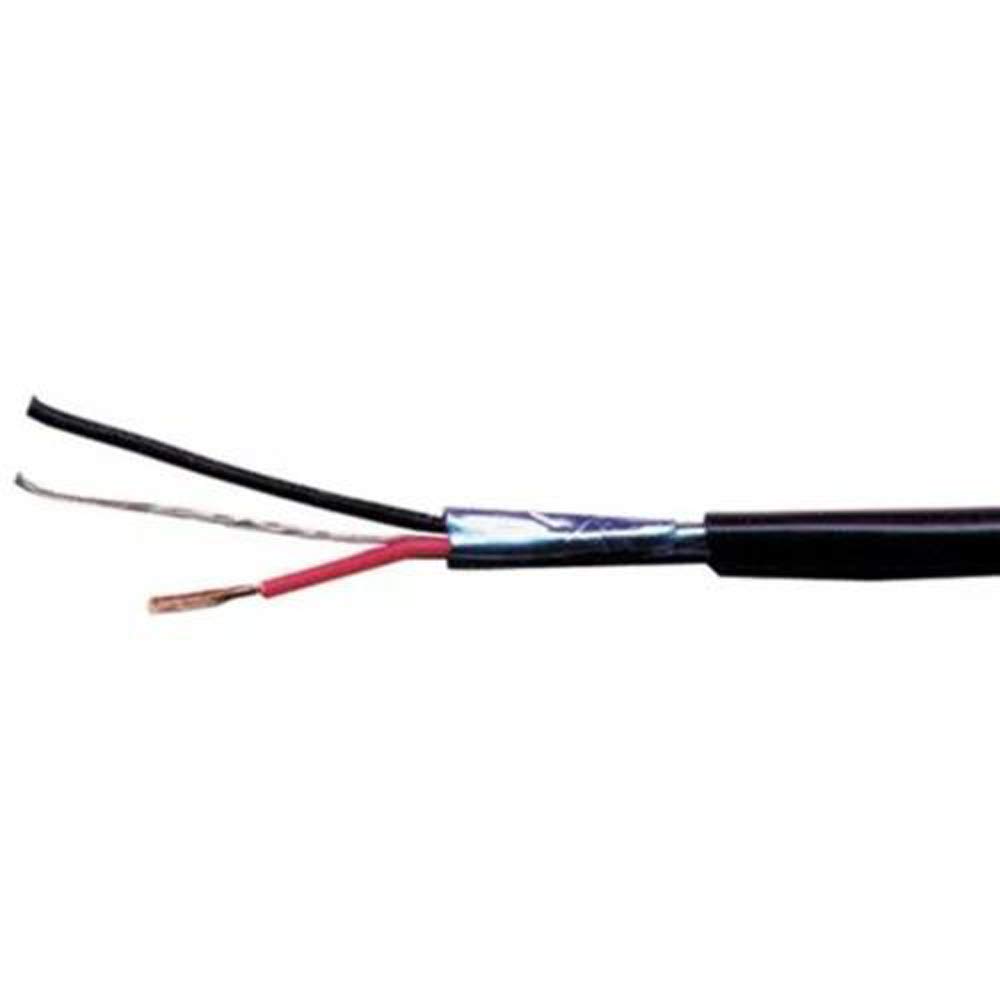

(One) Brand New Genuine Rapco Horizon ProCo 1000' Spool of American Made 22 Gauge Balanced Installation Grade Microphone Cable. 2 conductor 22 AWG stranded bare copper, polypropylene insulated, shielded, PVC jacketed installation microphone cable VTG Part Number: MIC2. 1. Conductor 1.1 AWG Size and Stranding: 22 AWG 7 strands 30 AWG 1.2 Material: Bare annealed copper 2. Insulation 2.1 Material: Polpropylene 2.2 Wall Thickness: .008" nominal 2.3 Diameter: .046" nominal 3. Color Code 3.1 Code: Black and red 4. Assembly 4.1 Assembly: Conductors cabled left hand lay 4.2 Drain Wire: 24 AWG 7/32 tinned copper 4.3 Shield: .001” aluminum/polyester tape 5. Jacket 5.1 Material: Polyvinyl chloride 5.2 Colors: Black, gray, green, pink, brown, orange, purple, red, white and yellow 5.3 Wall Thickness: .023" nominal 5.4 Diameter: .140" 6. Markings 6.1 Type: Surface printing in white ink on black jacket, black in on all colors. Black print has sequential footage marks 6.2 Legend: VTG AUDIO 22 AWG TYPE CL3 (UL) E156866 – MADE IN U.S.A. XXXXX FEET 7 Electrical Specifications 7.1 Capacitance Between Conductors: 32 pF/ft @ 1 kHz 7.2 Capacitance Conductor to Shield: 58 pF/ft @ 1 kHz 7.3 Characteristic Impedance: 45 ohms @ 1 MHz 7.4 Resistance at 20C: 15.3 ohms/1000 ft. When You Think of Cables usbargainsound We Are The Sound People!
