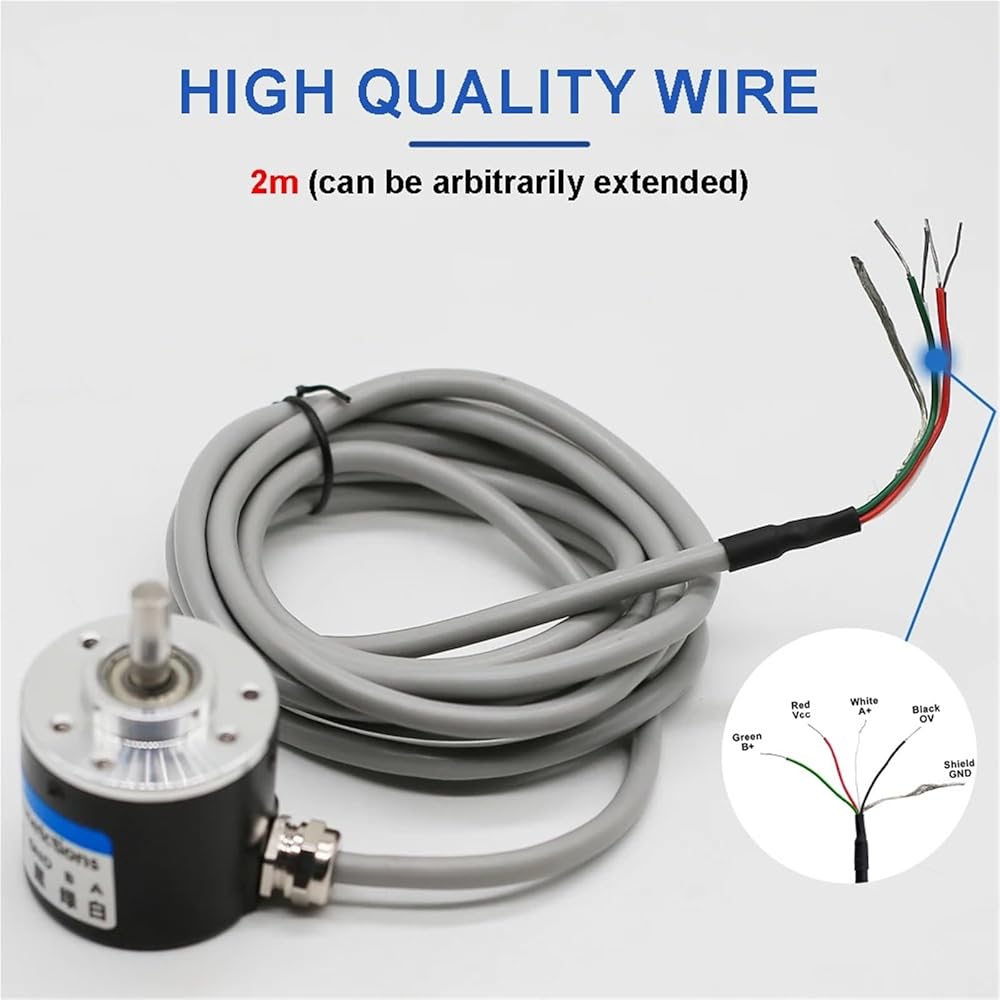

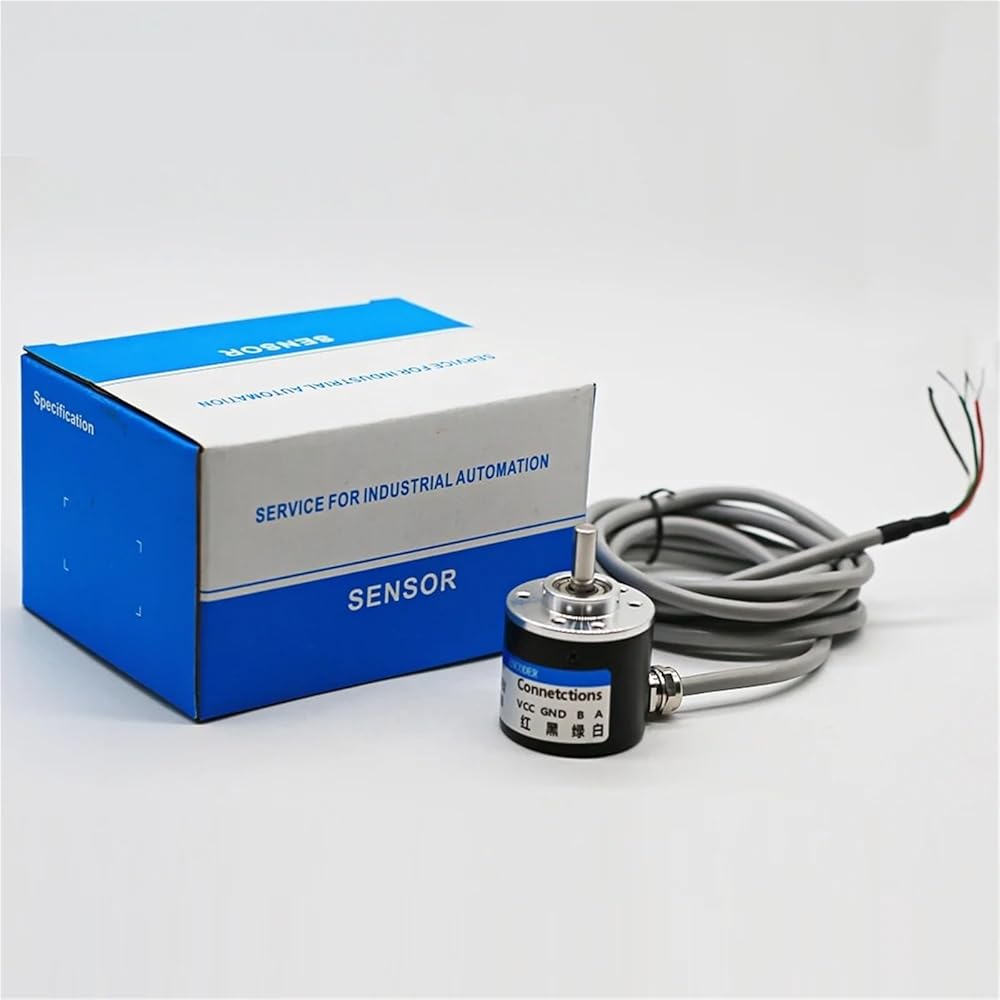

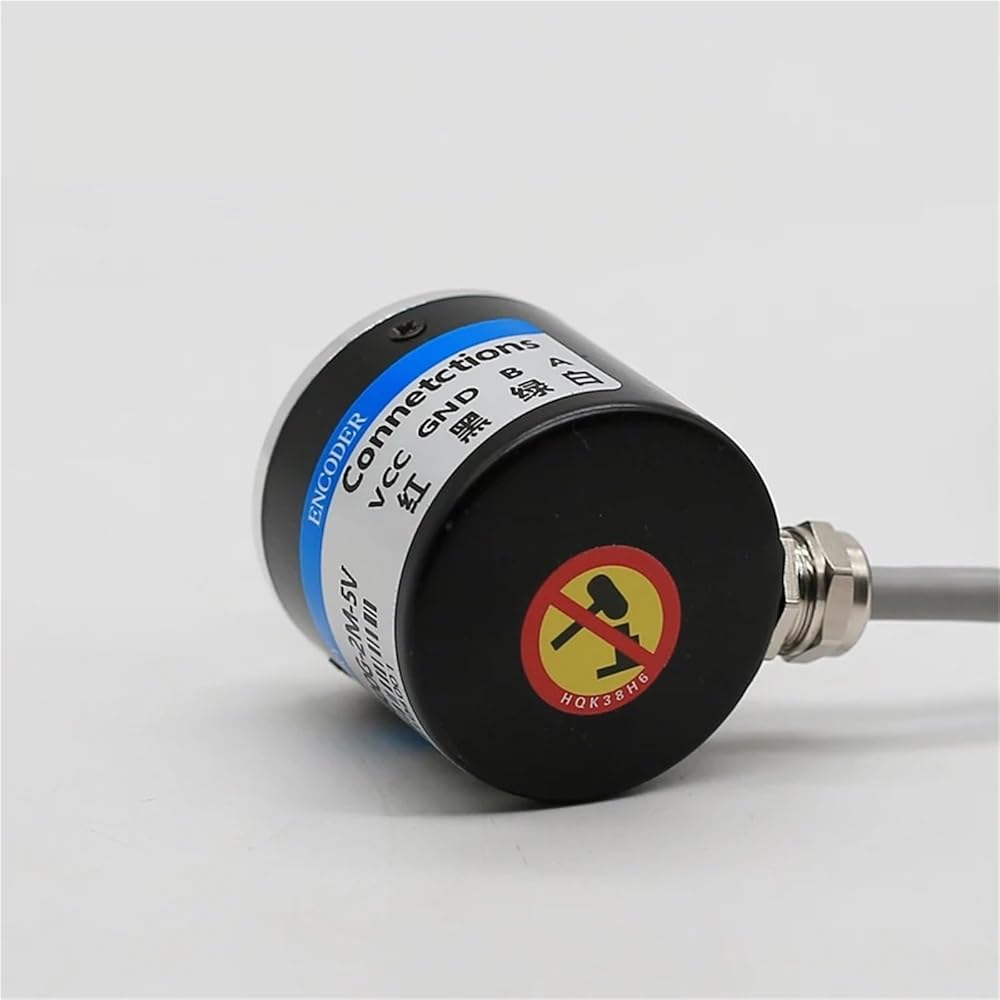

Wiring Instructions
Wire color
White
Green
Red
Black
Reminder:
1.As the wiring standards of each factory are different, please strictly follow the wiring diagram
2.If you are not a professional, please do not connect the wires randomly If you have any questions, please contact our customer service
3.The outer core (shield) of the shielded wire shall not be linked with the inside and the shell
Model: (Z: incremental S: solid shaft C: Magnetic type)

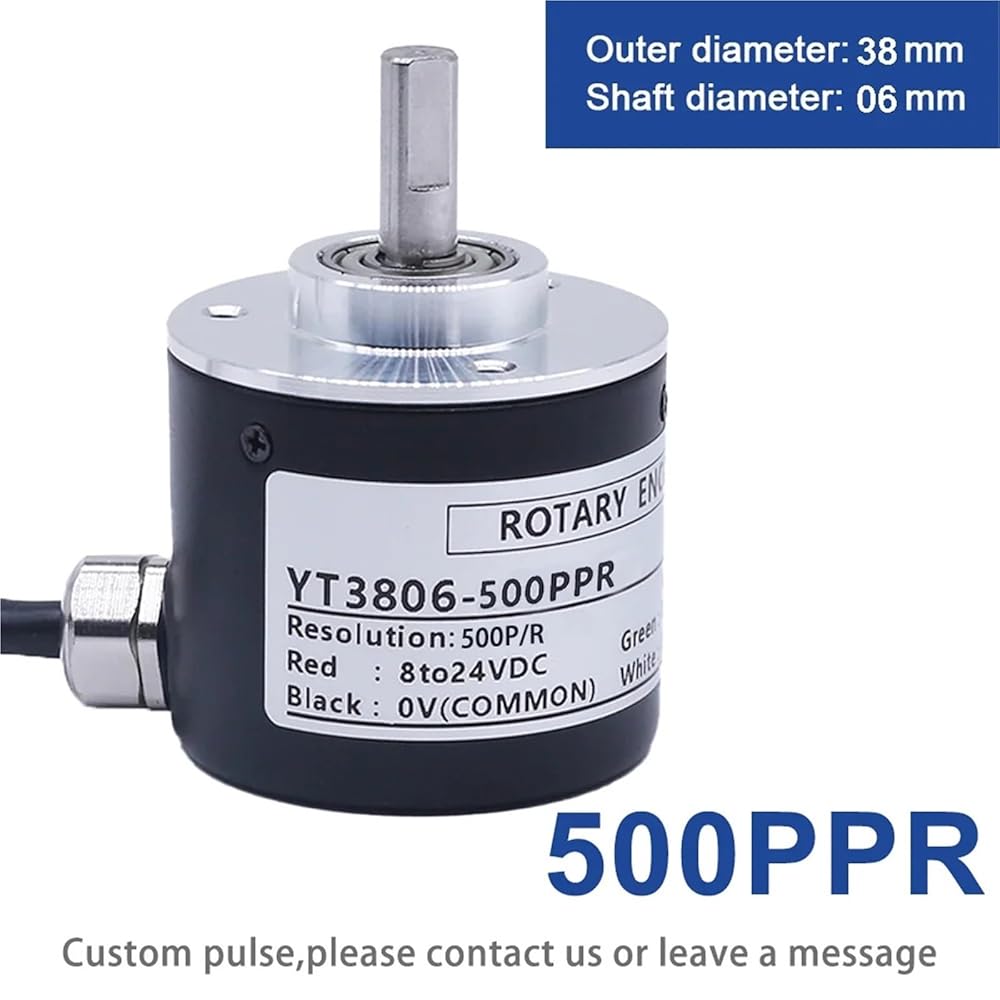

Outer diameter: 38mm
Shaft diameter: 06mm
Outgoing mode: ( E: Cable rear outgoing)
Model output mode:
(C: open collector output E: voltage output )
Pulse number: 50,100,200,360,400,500,600,800,1000
(special specifications can be customized)
Working phase number:Z: ABZ three phase
Working voltage:8-24V
Positive and negative zero position: (blank: positive zero position F: negative zero position)
Cable length: Standard 2m (other sizes can be customized)

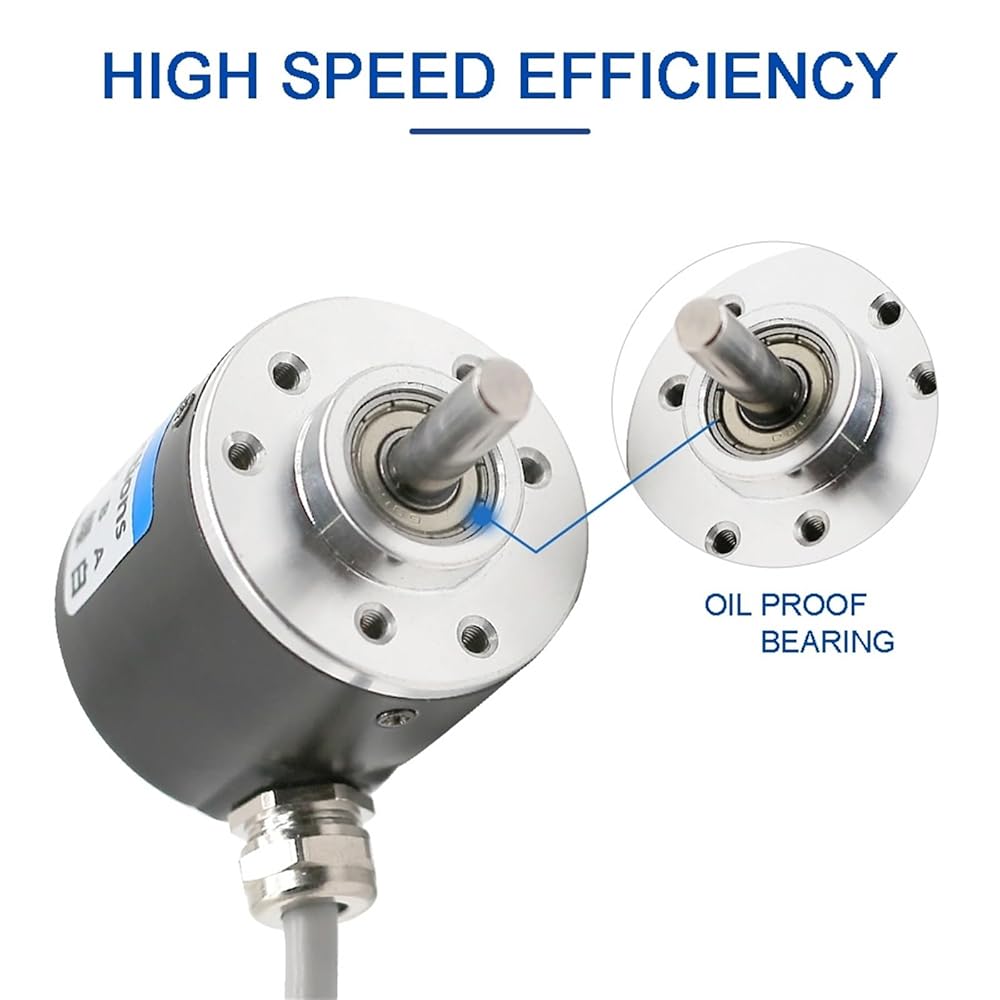

Electrical parameters
Mechanical parameters
Number of pulses
Maximum 1000P/R
Starting force cabinet
2x10-³N.m
Current consumption
150MA
60MA
150MA
Allowable load of shaft
Axial 9.8N, radial 9.8N
Response frequency
50~150KHZ
Moment of inertia
20g/cm²
Working temperature
-10~+70
Maximum revolutions
5000r/min
Storage temperature
-20~+80
Protection level
IP50
Relative temperature
RH85% No frost
Anti vibration
1000m/S.10~200Hz
Signal high
2.5V
Weight
160g
VCC*70%
==========

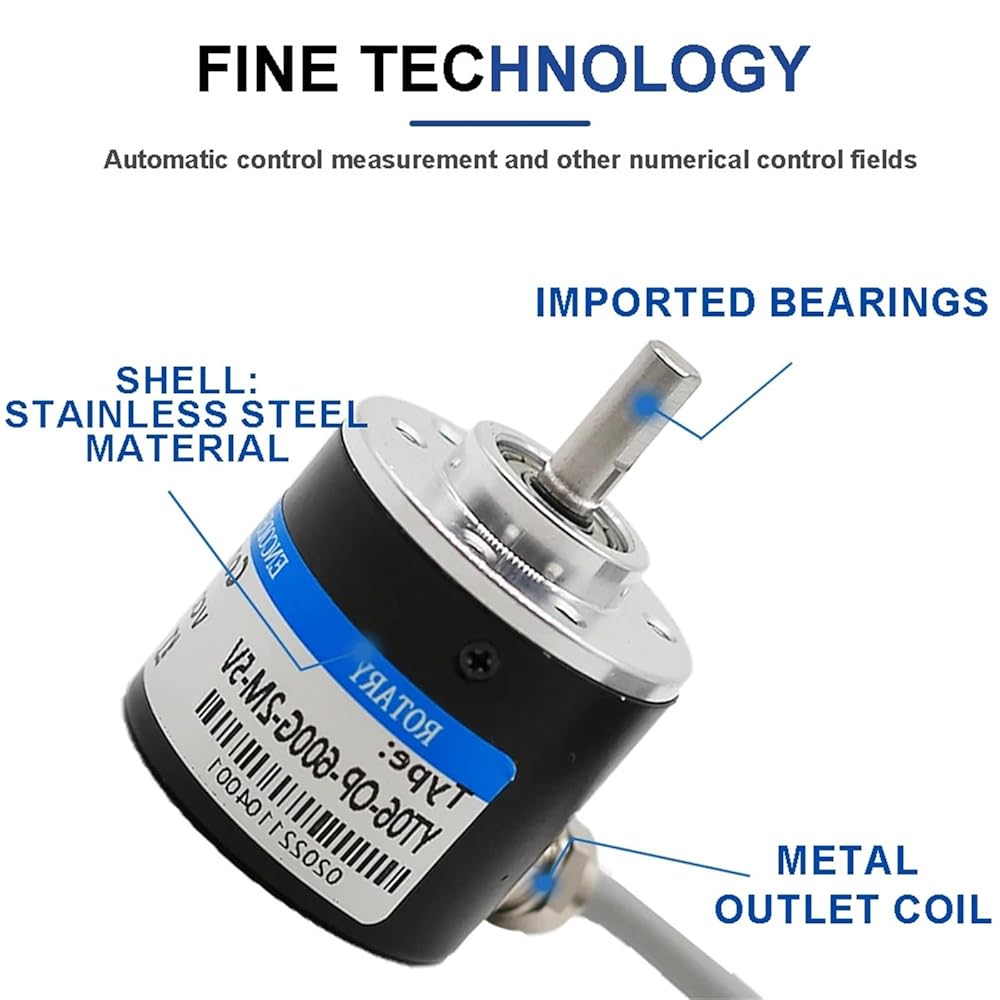

Material : Stainless Steel
Switch Type : Knob switch

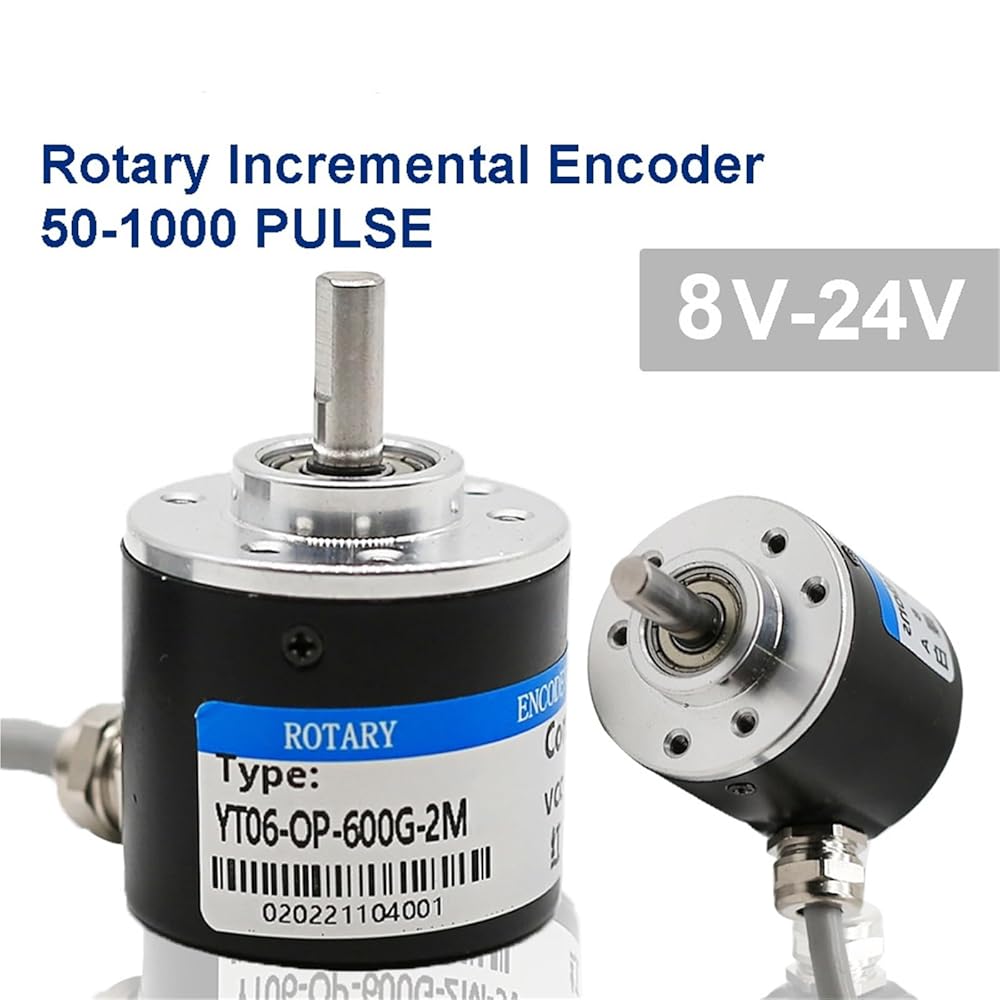

Features : Rotary Incremental Encoder
Item Type : SWITCHES
Is Smart Device : No
Origin : Mainland China
Protection class : IP50
Starting torque : 2x10-3N.m
Impact resistance : 1000m/s².6ms
Line length : 2m
