Mounting form

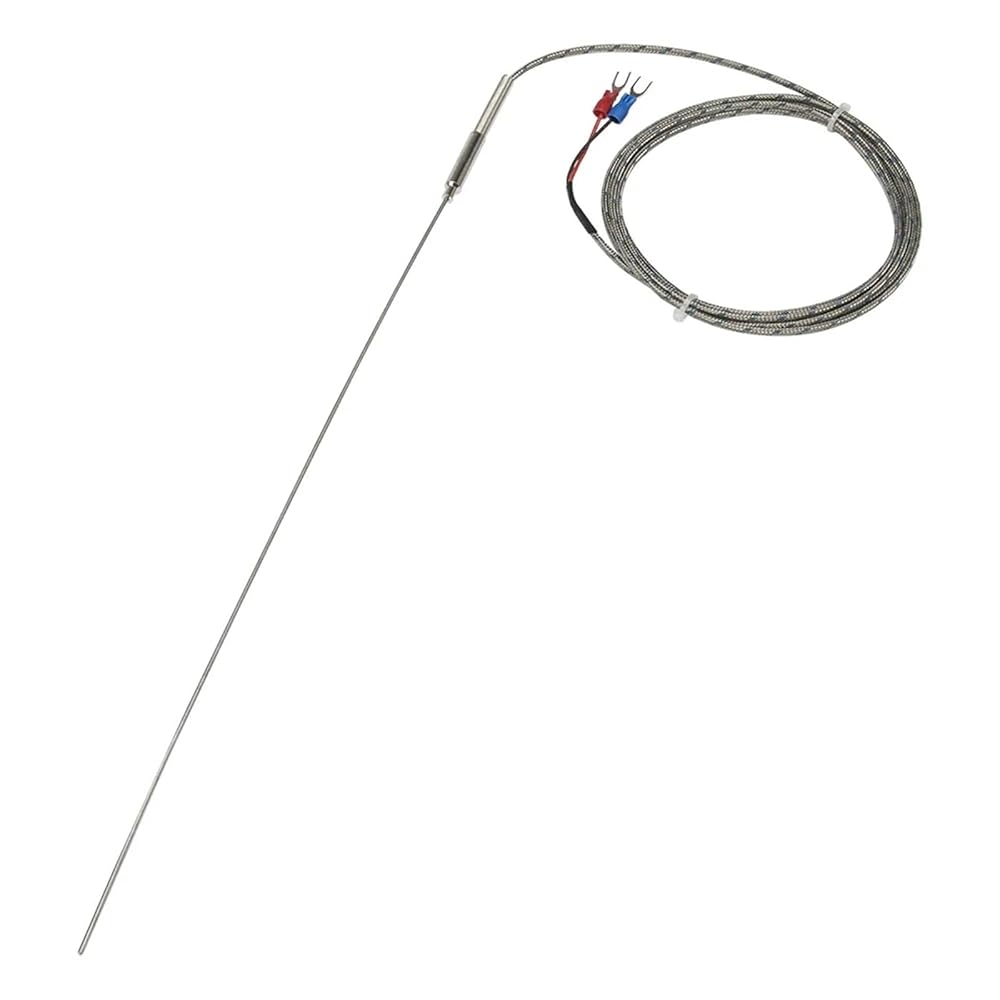

Flexible probe (Can be straight or bent, sheathed solid tube)
Accuracy
K, E, J: ±0.4%|t|; PT100 A grade: ±(0.15°C+0.2%|t|); PT100 B grade: ±(0.3°C+0.5%|t|)
Work type
Thermocouple: Ungrounded excpet 0.5mm diameter, can't assure 0.5mm diameter ungrounded
Probe material
Standard is 321 stainless steel, can make to the following:
High temperature resistant: 2520, 3030, 3039
Anti-corrosion: 316L
High temperature resistant and anti-corrosion: GH3039
Probe diameter
0.5, 1, 1.5, 2, 3, 4, 5, 6, 8, 10mm, more bigger diameter more higher temperature resistant moreresponse time and moreoperation life
Current: 1.5mm
Probe length
10-30000mm.Temperature measurement point: thermocouple:about 5mm from tip. RTD: about 5-20mm from tip
Current: 300mm
Cable material
Metal screening;PTFE silver plated copper, Silica gel; 2*4*0.6mm blue compensated fibreglass braided
Cable length
Standard is K 1.5m, PT100 1m, can make 0.1-100m
Current: 2m
Matched accessory
M12 mounting nut,M16 mounting nut
Insulating resistance
20M min
==========
Theory : Temperature Sensor
Display Type : Analog
Power Type : Charger
Origin : Mainland China
Max Measuring Temperature : 120°C & Above
Style : Standing Station
Use : Industrial
Display Size : 2.0 - 3.9 Inches
