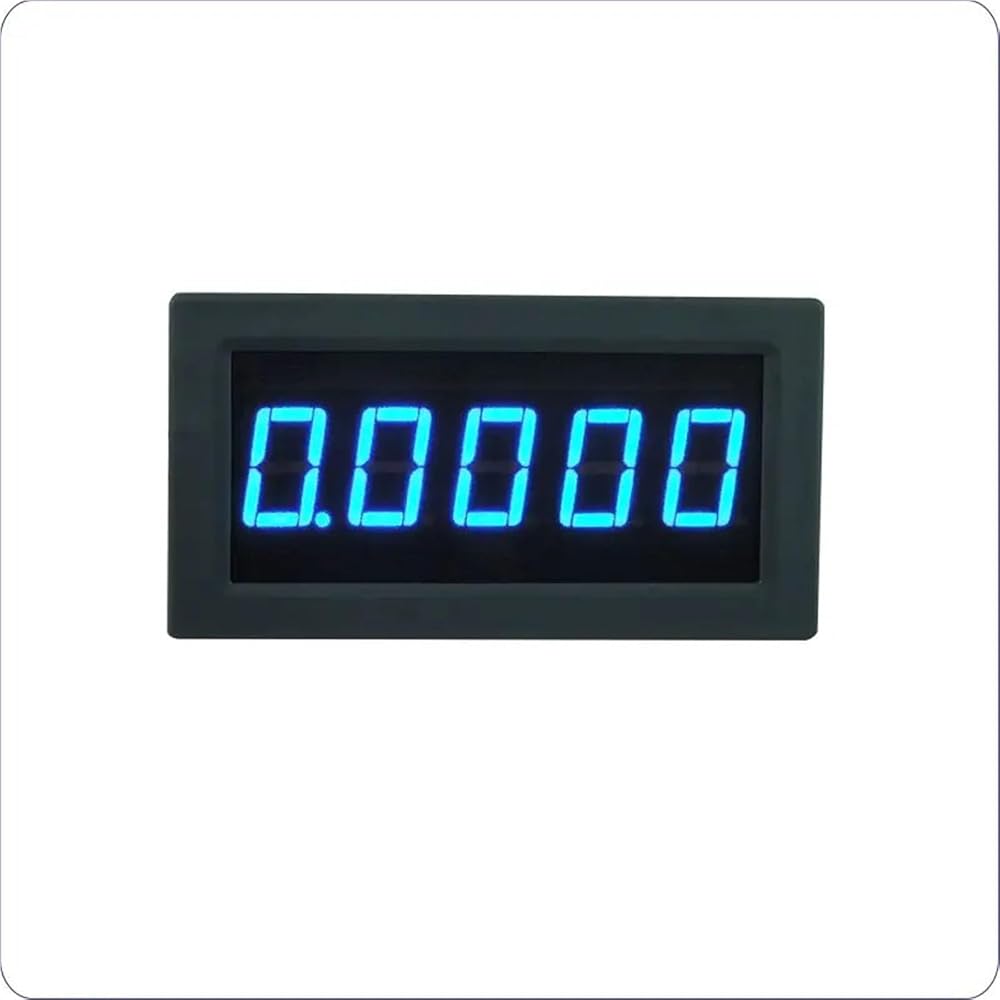

YB5145B LED Digital Voltmeter 4 1/2 Voltage Meter Display Tester DC200mV/2V/20V/100V/200V/300V/500V/600V 4.5 Volt Panel Meter
Attention:
1.The negative of power supply and the testing side areconnected,so it is recommended to use a separate power supply(ie: independent power supply).
2.If you select "Power supply DC5V",the working voltage is "5V±0.5V",or it will be burnt.
Technical Parameters:
Power supply:DC5V(5V ± 0.5V) /12V/24V selectable
Test voltage:DC200mV/2V/20V/200V/600V
Dimension:79*43*15mm
Mounting hole:76*39.5mm
Display mode: 0.56 "LED with red/blue digits
Measurement accuracy: 0.1% (± 2 digits)
Measurement rate: 2 times/S
Specification:
Features:
Thismeter can test positive and negative value.
Power supply reverse protection.
SMT technology, consistency is very good.
The crystal of the meter is quartz crystal with high precision and high stability.
The LED digital tube display part, with all the limited current resistance, will be not appeared "the bright and dark inconsistency".
Package Include:
1 piece* LED Digital Voltage Meter
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
==========
Hign-concerned Chemical : None
Model Number : YB5145B
DIY Supplies : ELECTRICAL
Dimensions : 79*43*25mm
Operating Temperature : -10~50 degree
Accuracy Class : 0.1%+/-2 digits
Power Supply :
Display Type : Digital Only
Mounting holes : 76*39.5mm
Display : 0.56''LED(red/blue)
Working humidity : 10 ~ 80%
Working pressure : 80 ~ 106kPa
Power supply : DC5V/12V/24V
Test voltage : DC200mV/2V/20V/200V/600V
Feature : Test positive and negative voltage
