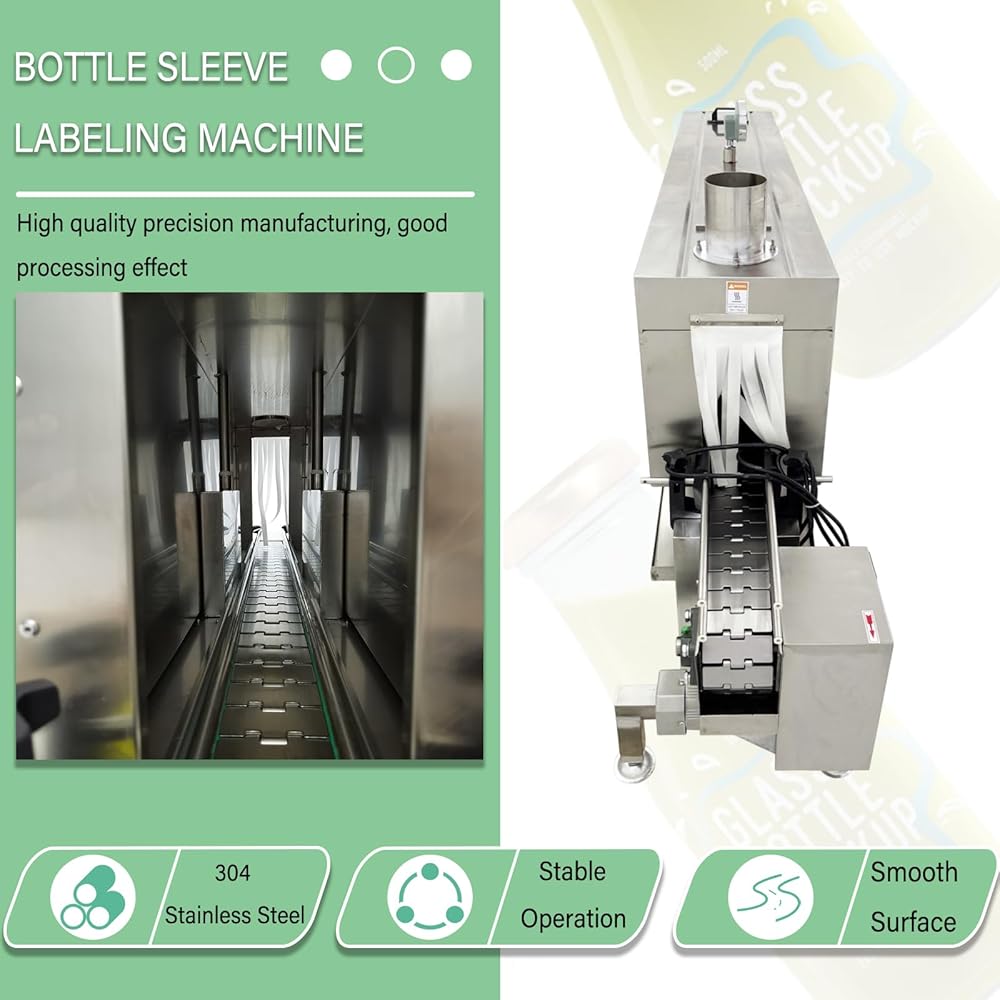

Chain Plank Coveyor Belt: Composed of metal materials, the conveyor is suitable for trial use and exhibits excellent resistance to deformation. The chain plate structure features high rigidity, ensuring smooth operation during the conveying process due to the tight interlocking of the chain plates. This minimizes the risk of bottle oscillation or overturning
Stainless Steel Shell: The high hardness and tensile strength of stainless steel enable it to effectively withstand external impacts, collisions, and prolonged vibrations, ensuring that the shell remains resistant to deformation or damage
High-power Steam Generator: The 24 KW high-power steam generator provides rapid and efficient steam generation. Advanced intelligent temperature control enables stable and precise steam output, with adjustable temperatures ranging from 0°C to 150°C, ensuring consistent performance in demanding shrink-wrapping application
Multiple Safety Designs: Precision pressure gauge gives real-time steam pressure readings (0–1 MPa). Paired with a responsive safety valve for automatic overpressure venting. Together, they ensure safe, stable operation by avoiding overpressure risks

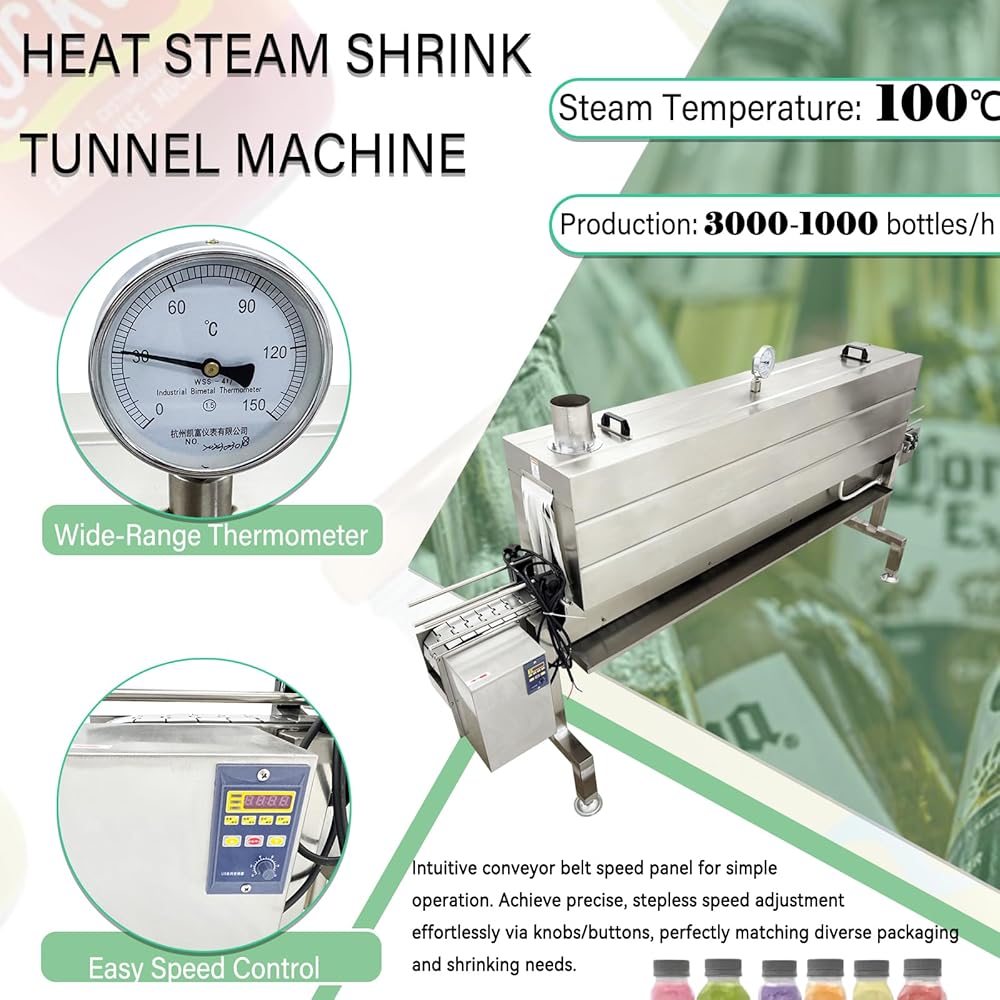

Control Panel: Simple, intuitive conveyor speed control. Adjust precisely with knobs/buttons for any packaging or shrinking task. Reliable performance prevents jams, improves efficiency, and ensures high-quality output
وصف

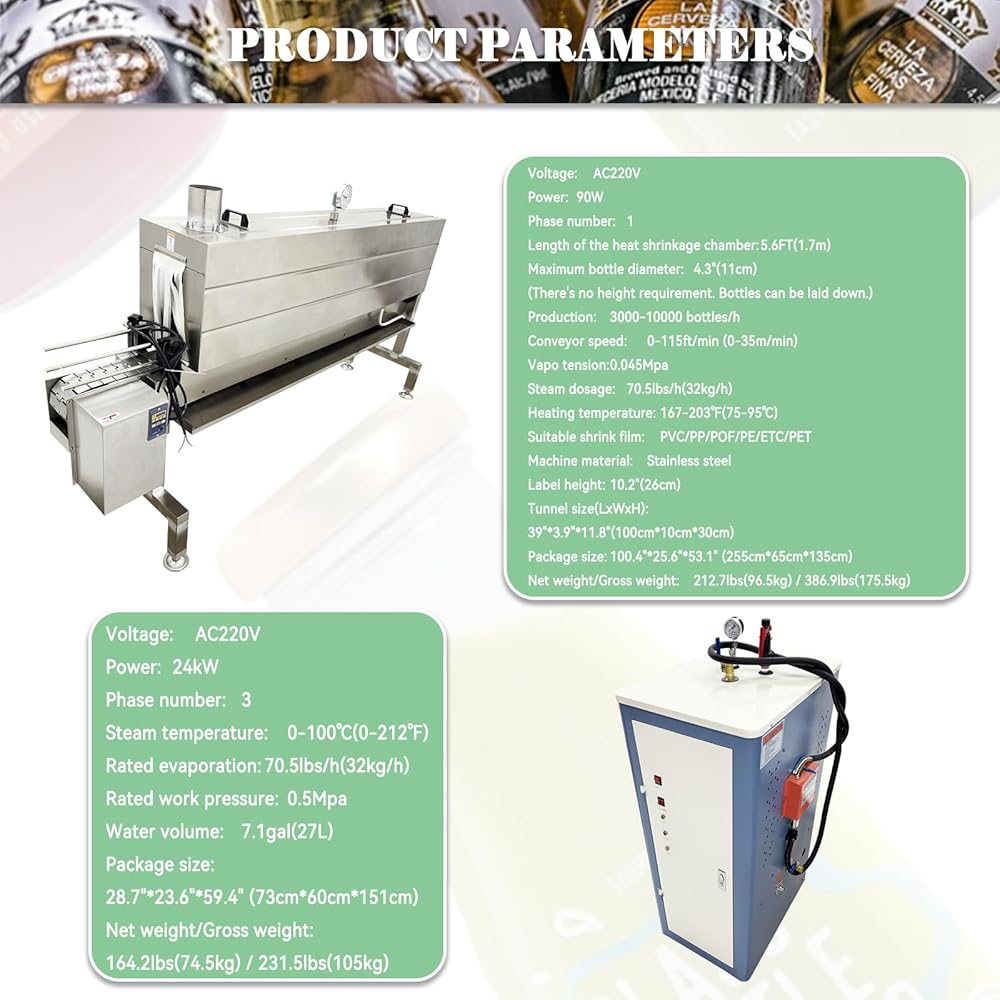

Product Parameters (Steam Generator):
Voltage: AC220V
Power: 24kW
Phase number: 3
Steam temperature: 0-100℃(0-212℉)
Rated evaporation: 70.5lbs/h(32kg/h)
Rated work pressure: 0.5Mpa
Water volume: 7.1gal(27L)

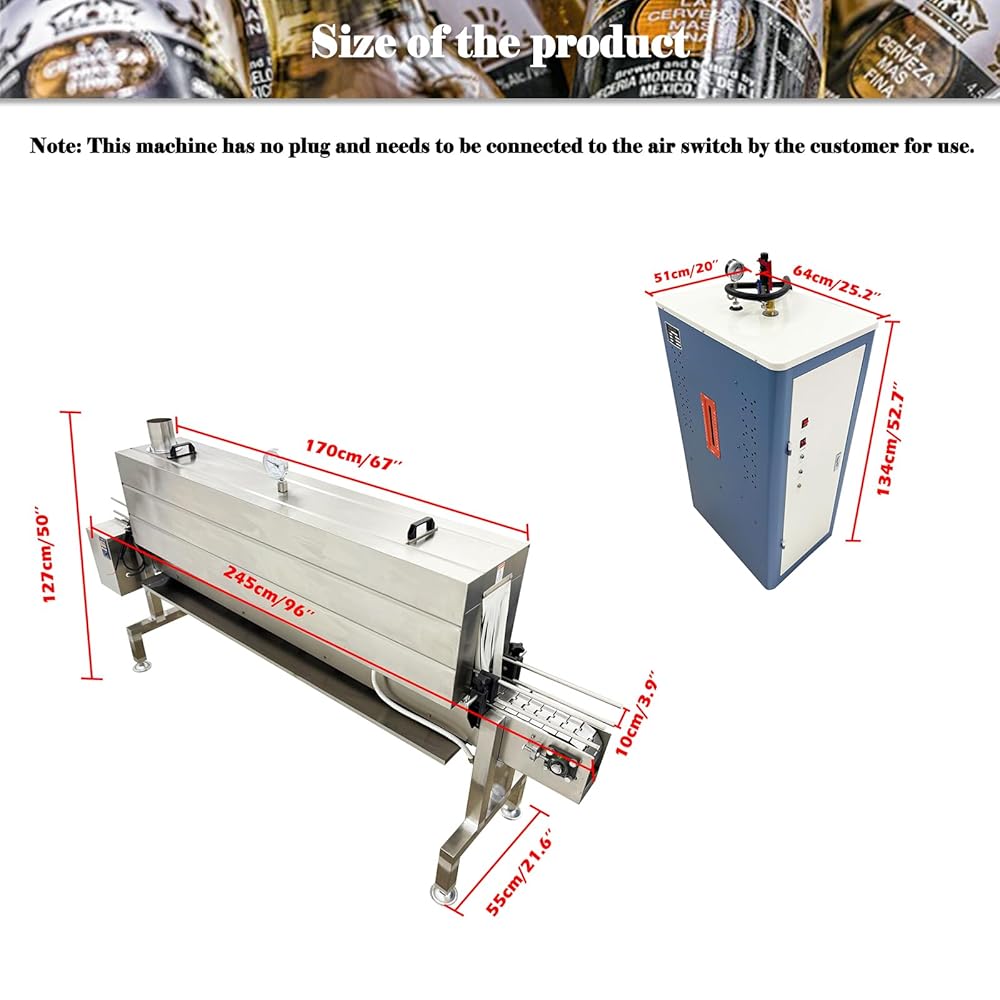

Package size: 28.7"*23.6"*59.4" (73cm*60cm*151cm)
Net weight/Gross weight: 164.2lbs(74.5kg) / 231.5lbs(105kg)
Product Parameters (Steam Shrink Machine)
Voltage: AC220V
Power: 90W
Phase number: 1
Length of the heat shrinkage chamber: 5.6FT(1.7m)

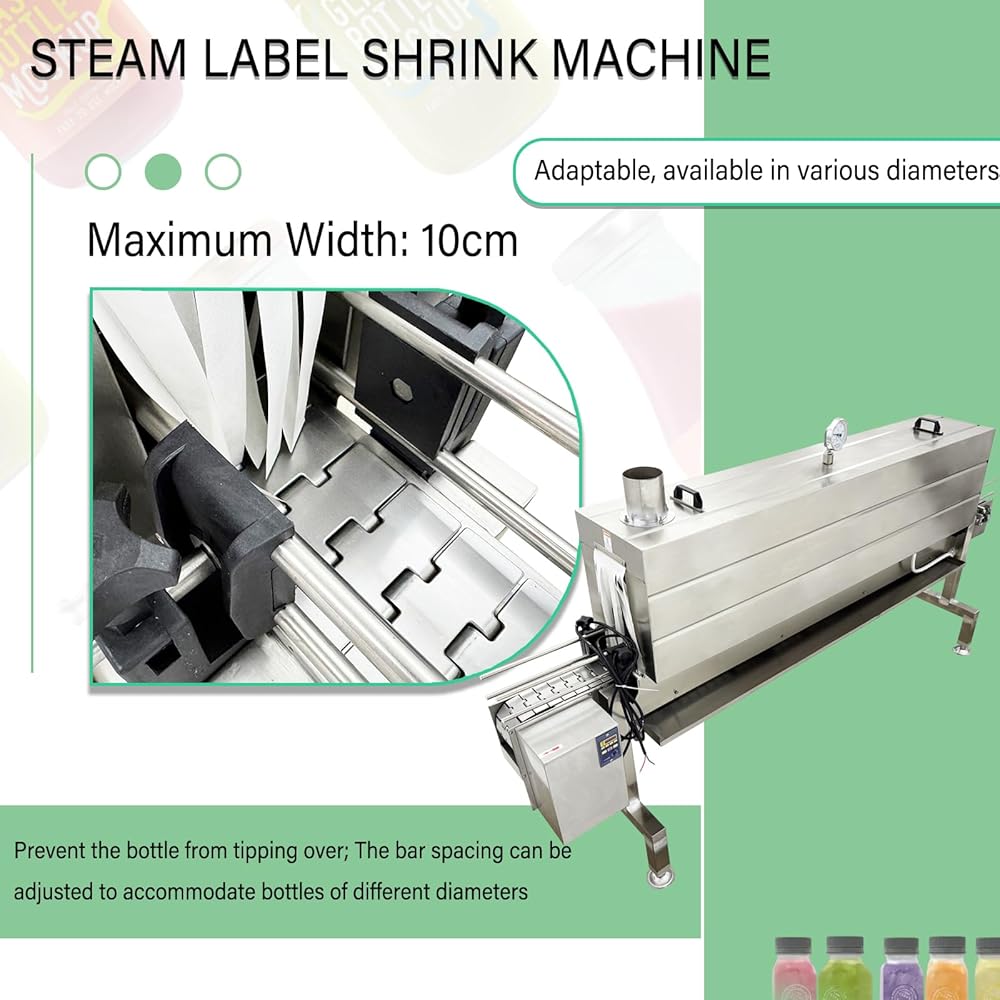

Maximum bottle diameter: 4.3"(11cm)
(There's no height requirement. Bottles can be laid down.)
Production: 3000-10000 bottles/h
Conveyor speed: 0-115ft/min (0-35m/min)
Vapo tension: 0.045Mpa
Steam dosage: 70.5lbs/h(32kg/h)
Heating temperature: 167-203℉(75-95℃)
Suitable shrink film: PVC/PP/POF/PE/ETC/PET
Machine material: Stainless steel
Label height: 10.2"(26cm)
Tunnel size(LxWxH): 39"*3.9"*11.8"(100cm*10cm*30cm)
Package size: 100.4"*25.6"*53.1" (255cm*65cm*135cm)
Net weight/Gross weight:212.7lbs(96.5kg) / 386.9lbs(175.5kg)
Item Included
Steam Label Shrink Machine *1
Steam Generator *1
Accessory Kit *1
