مميزات خاصة

Precision measurement: For accurate dimensional inspection of mechanical and industrial components
Application areas: Machining, industrial processes and laboratory tools

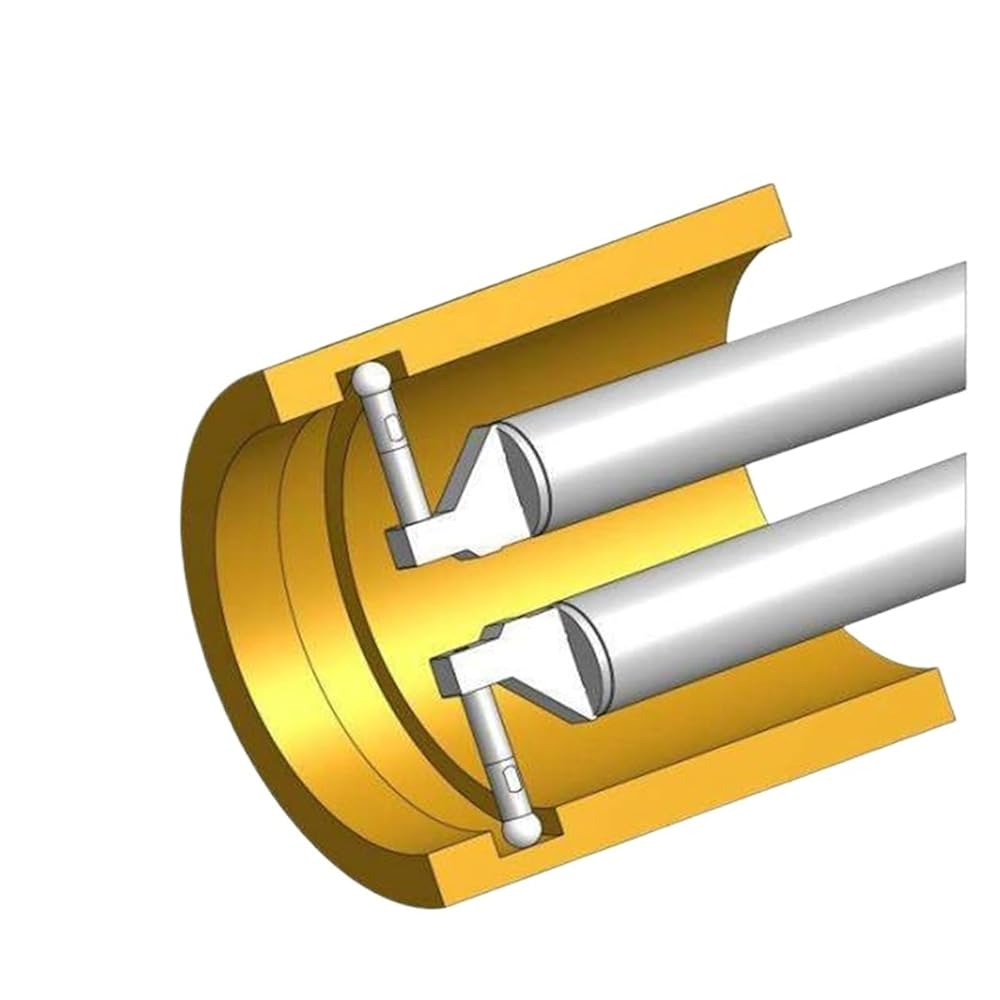

Thickness measurement: Measures internal and external diameters, deep bore groove diameters, and other dimensions along with their deviations

وصف

Model: H870
Measuring range: 70.00mm to 170.00mm
stroke: 100.00mm
Indicating range: 70.00mm to 170.00mm
Indicating accuracy: 0.1mm
Permissible error: 0.15mm
Repeatability: 0.1mm
Force: 0.8(Min)-2N
Test Point Type: Spherical 05
Fixed Test Point: 14mm
Movable Test Point: 14mm
Groove Depth AMaX: 13.00mm
Groove Width BMin: 5.50mm
Measuring Depth LMax: 395mm
Indicator Type: Dial/Mechanical

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

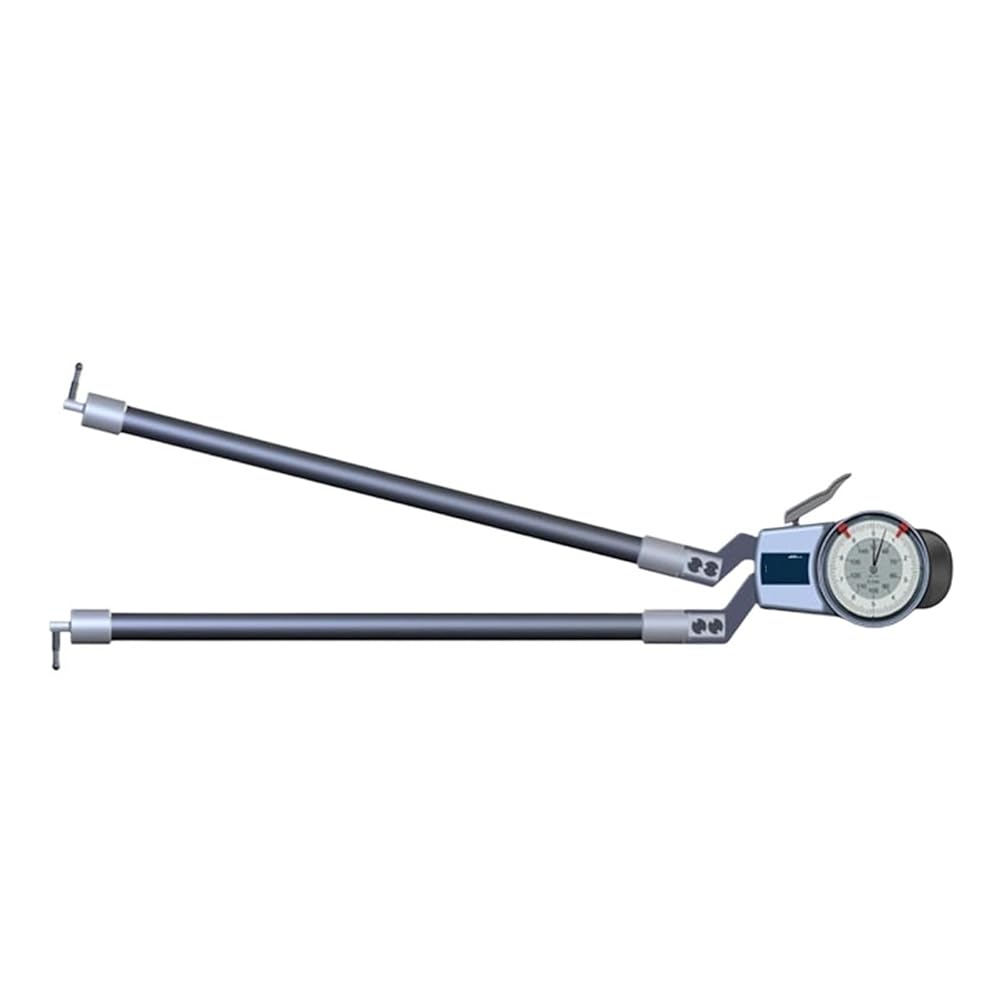

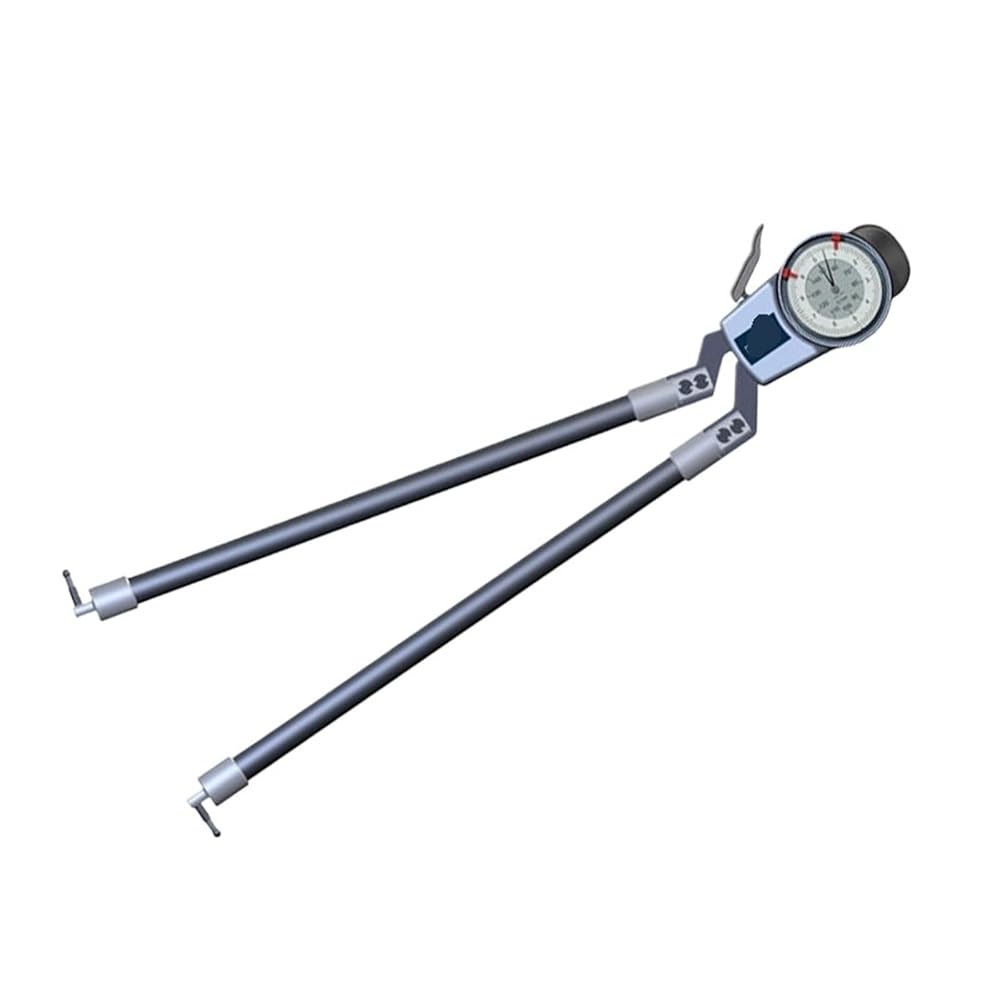

H870 مقياس الاختبار الداخلي الميكانيكي مقياس قياس الثقب الداخلي
