Name: تيار مستمر 12 فولت - 24 فولت مفتاح مضمن مقاوم للماء IP65 DPST ثنائي الجانب 10AWG مفاتيح الأسلاك 25A مفتاح الطاقة المضمن للدراجات النارية والسيارات والأجهزة الكهربائية الخارجية وتشغيل/إيقاف التشغيل
Brand: JAMHER
Availability: InStock

مميزات خاصة

Line length: 30CM at both ends, rated current: 25A, rated voltage: 10V~250VAC, operating temperature: -40 ° C~120 ° C, contact resistance:<20MQ, insulation resistance:>100MQ, dielectric strength:>180MVAC/3S

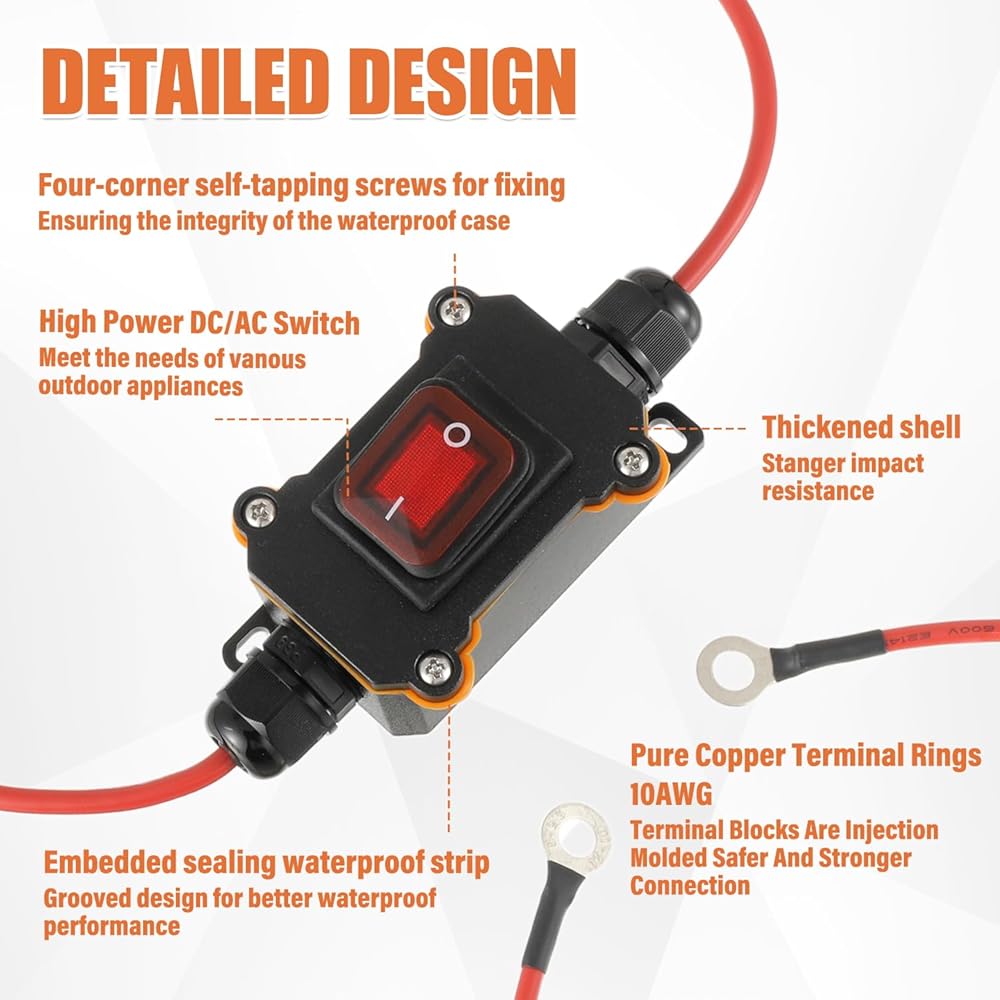

The shell is made of high-strength PA66 material, and the cable is made of 10AWG silicone cable with a thick wire diameter, which has good flexibility, high temperature resistance, corrosion resistance, and oxidation resistance. The two ends are equipped with copper terminal rings, which use high flexibility

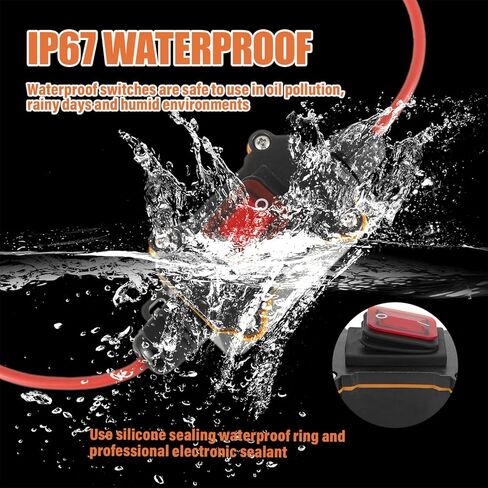

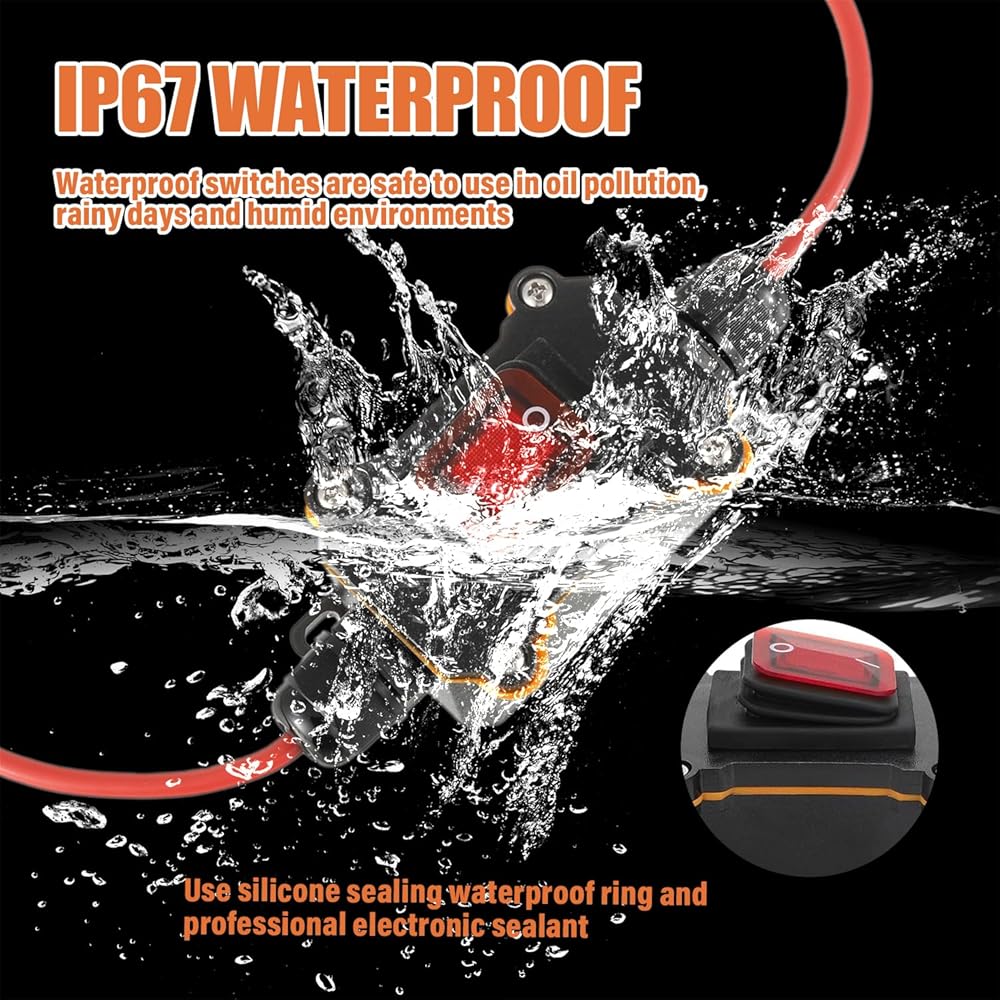

IP65 Waterproof: Made of silicone sealing waterproof ring and coated with waterproof sealant at the switch connection, it can be safely used in oil contaminated, rainy and humid environments. Caution: Do not disassemble the switch, as it will reduce the waterproof performance after disassembly

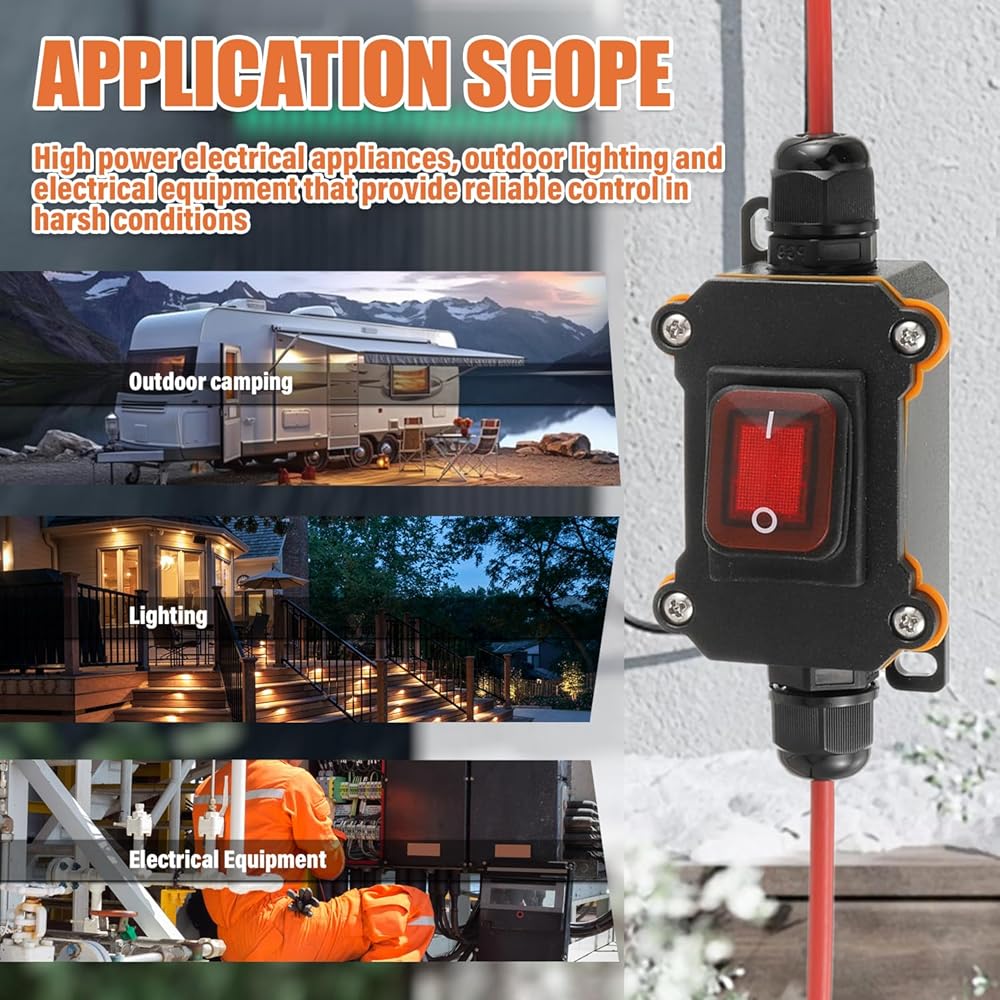

Widely applicable: Suitable for various high-power electrical appliances, outdoor lighting and equipment, can be used to control various high current DC electrical equipment, such as cars, motorcycles, trucks, RVs, chargers, inverters, agricultural machinery, etc

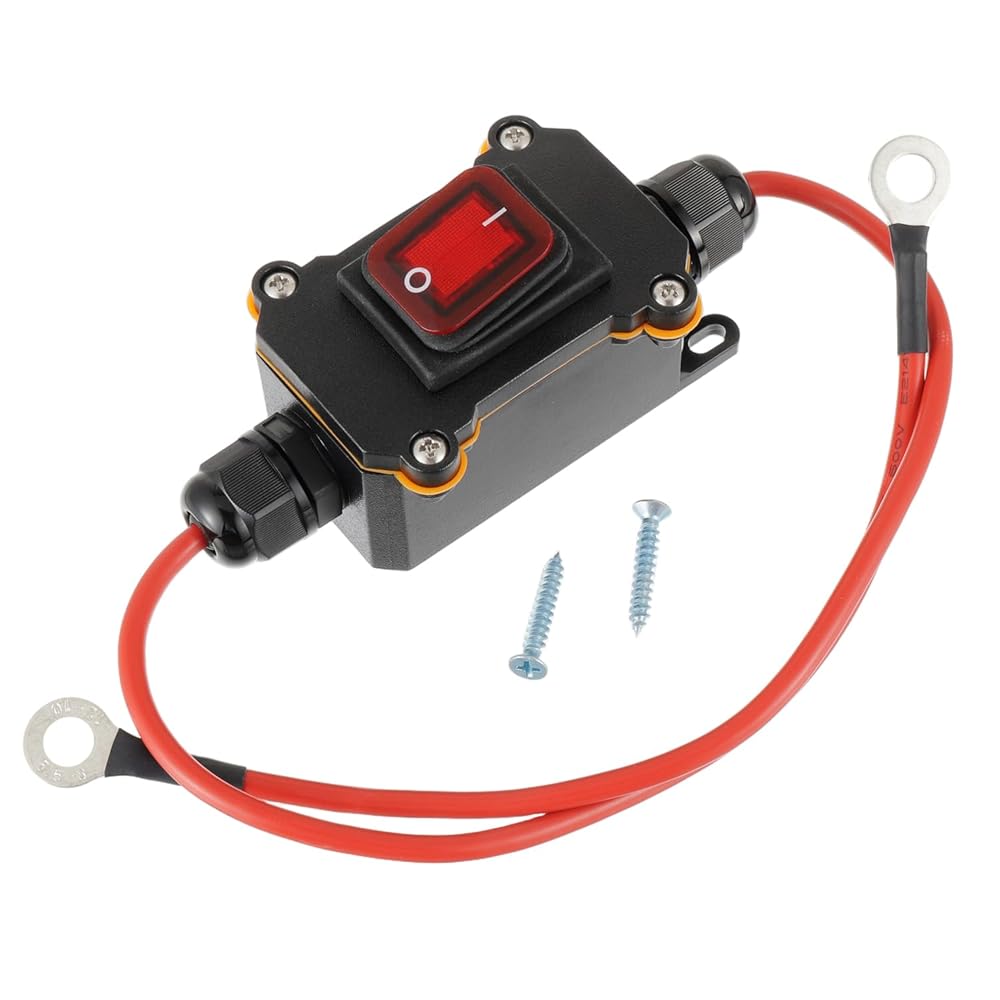

Product packaging: 1 DC inline waterproof power switch box (with copper rings at both ends, 30cm 10AWG cable each)+2 installation screws

وصف

JAMHER DC 12V-24V Waterproof Inline Switch

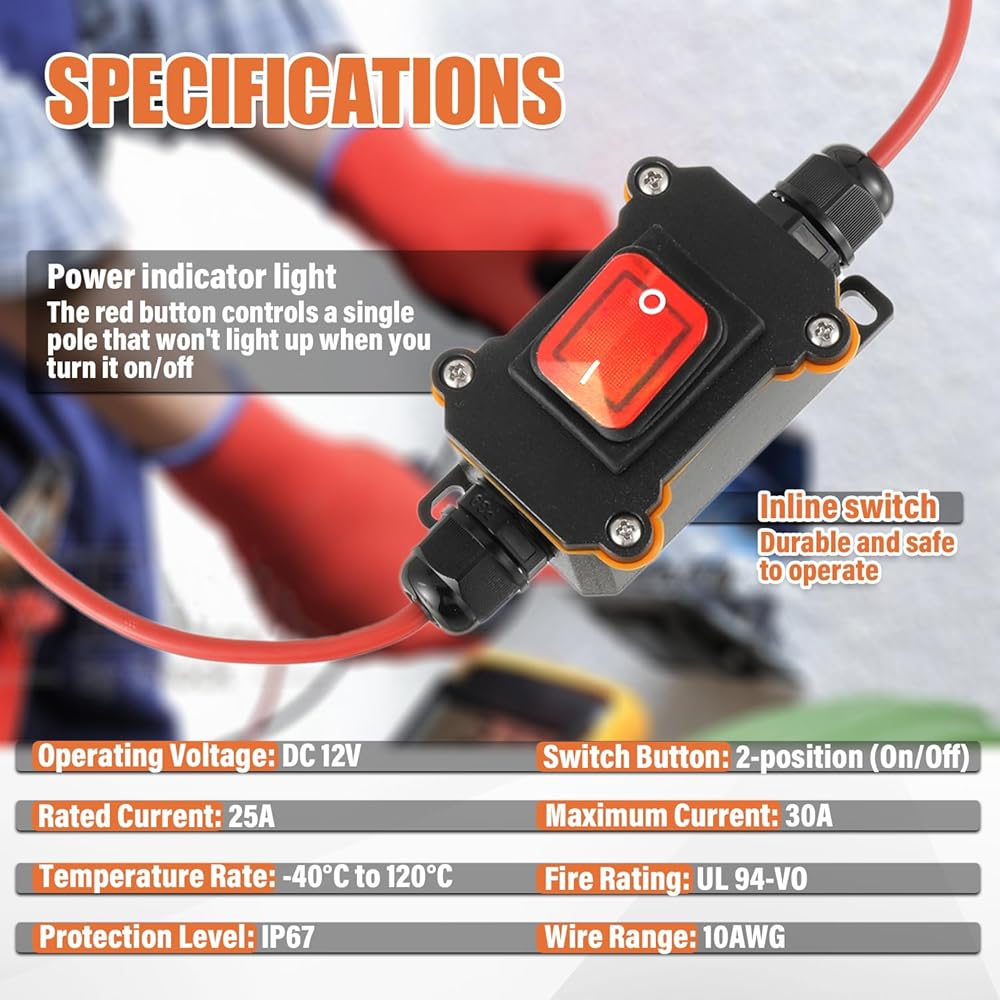

Specifications:

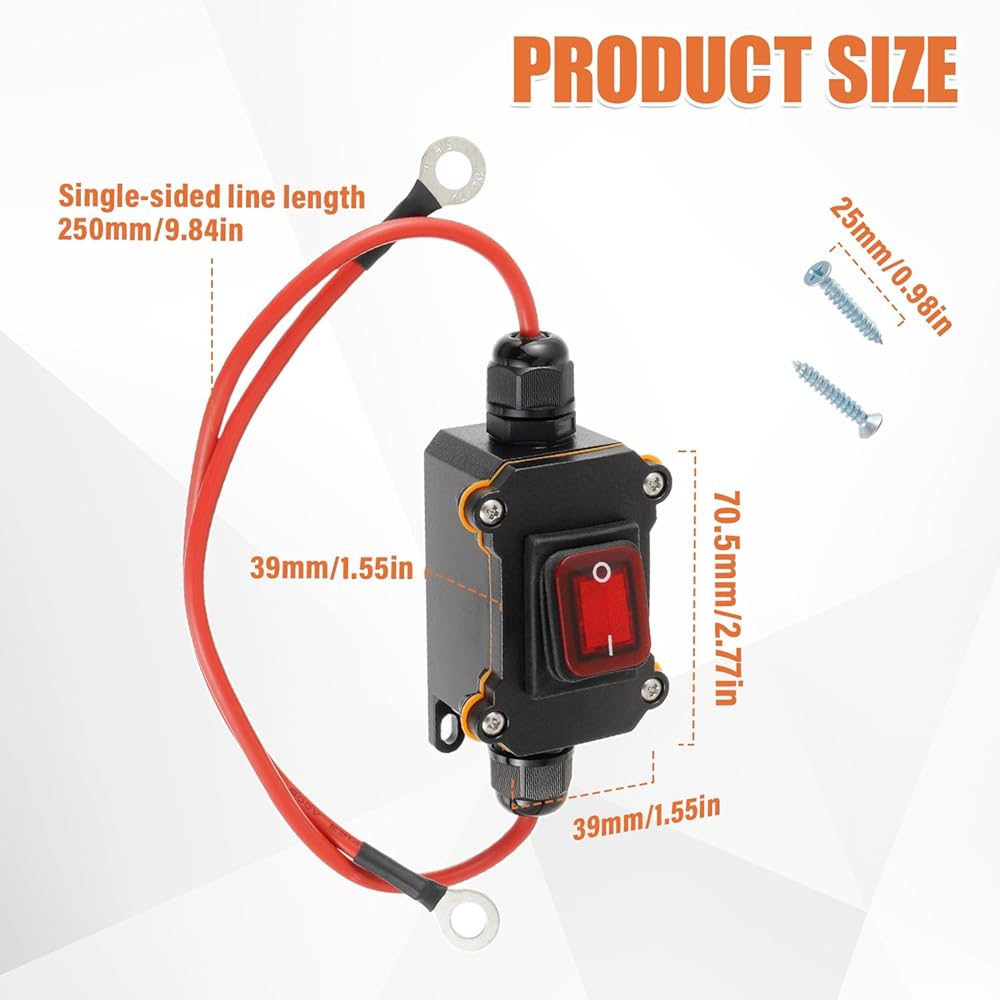

Connecting wire length: 30cm/11.8inch at each end
Terminals: O-ring terminals
Interface: Injection-molded
Terminal Hole Size: 0.31 inches (5/16)
Rated current: 25A
Maximum: 30A
Switch Color: Red
Switch Button: 2-position (On/Off)
Wire gauge: 10AWG
Temperature range: -40°~120°
Material：PA66
Waterproof Class：IP65

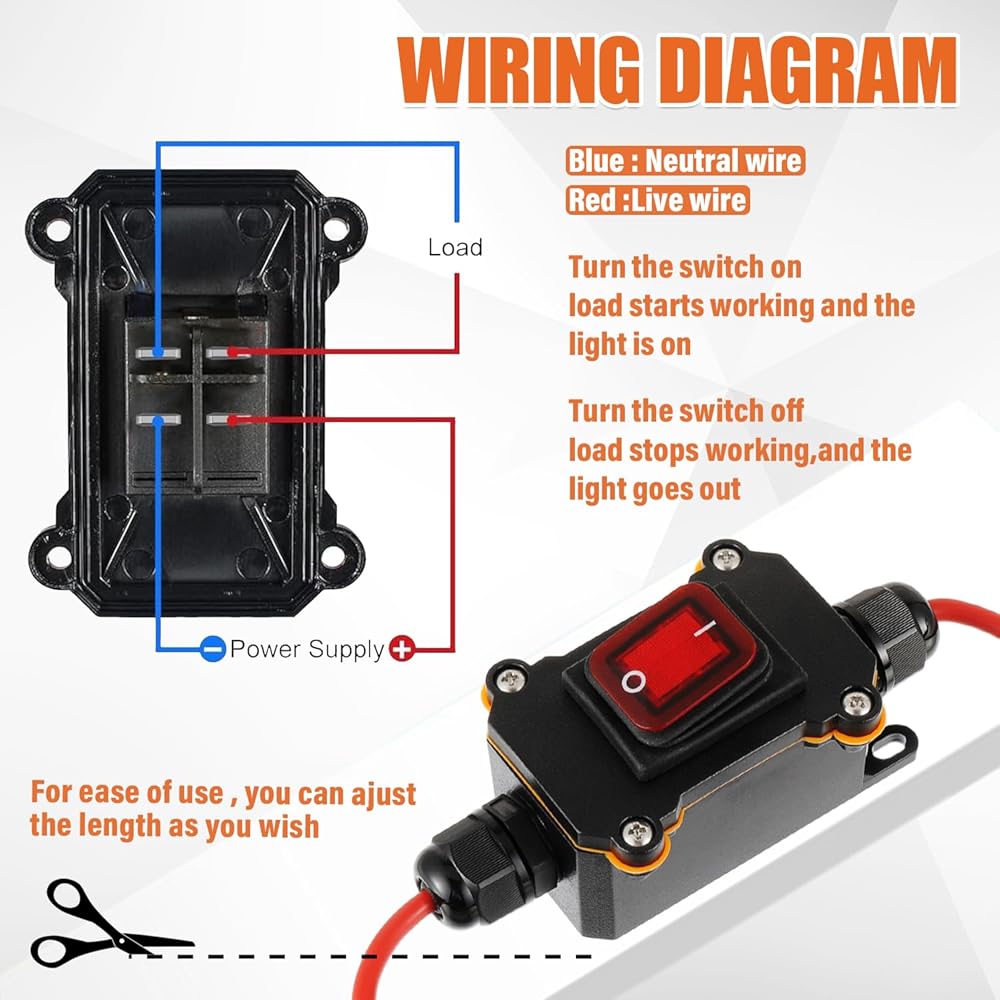

Easy to install：
Step1:Connect the positive pole of the switch to the positive pole of the power supply
Step2:Connect the negative pole of the switch to the negative pole of the power supply
Step3:Tighten the waterproof bolts
Step4:Finally, use screws to fix the switch in place
