Features:
*Engineered for effective suppression in industrial electrical setups
*Constructed with dependable components for consistent operation
*Type: Single-phase double-section power filter
*Nominal frequency coverage: 0-30(MHz) with fine-tuned adjustment (difference: 0.5 MHz)
*Temperature and frequency variance: 1(MHz); overall frequency stability: 1 (MHz)
*Compatible with power line frequencies: 50/60Hz
*Rated voltage options: 115/250VAC
*Operational current: 115VAC 60Hz 0.25mA / 250VAC 50Hz 0.45mA
*Load capacitance: 3300 (pF) for robust performance at various loads
*Load resonance resistance: 0.68 (Ω)
*Excitation level: 0.6 () for efficient filtering
*Stable functionality in temperatures: -25~85 (℃)
*Insertion loss: 60 (dB) ensures significant interference reduction
*Stop attenuation: 80 (dB) for high-level noise suppression
*Input Impedance: 0.2 (kΩ); Output Impedance: 0.2 (kΩ)

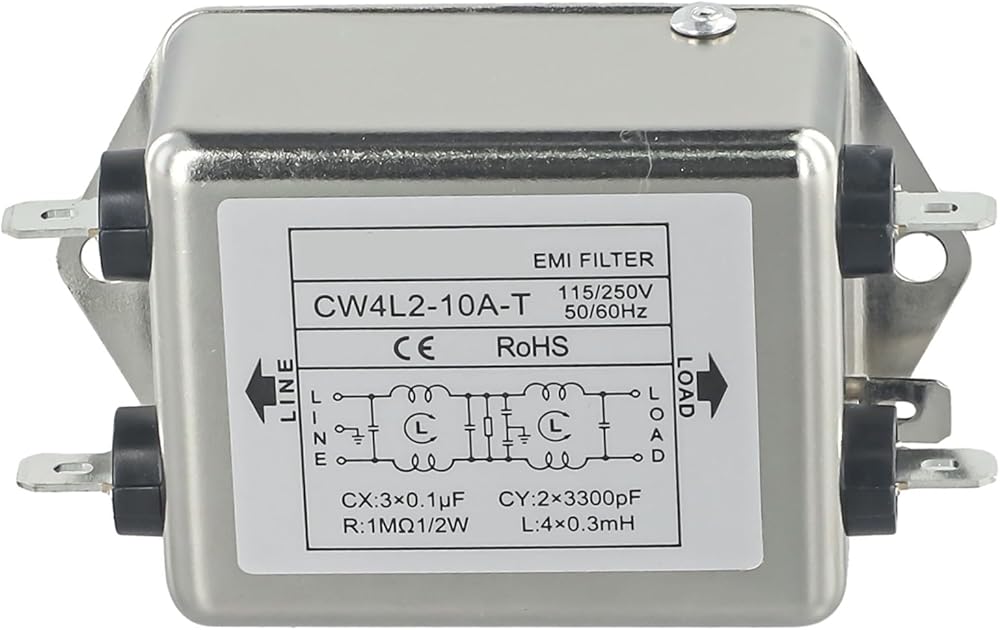

*Available models: CW4L2-3A-T, CW4L2-6A-T, CW4L2-10A-T, CW4L2-20A-T (choose according to electrical requirement)

Package Contents:
1X Single-phase double-section power filter (model optional)
