Reservoir elliminates the need for a pressure vessel
Filter small batches of liquid
Use for sterilizing, ultracleaning, and flow decay testing for pilot studies
Suitable for hazardous toxicity testing and TCLP
When using for intermittent fill operations, a back pressure support is recommended
وصف

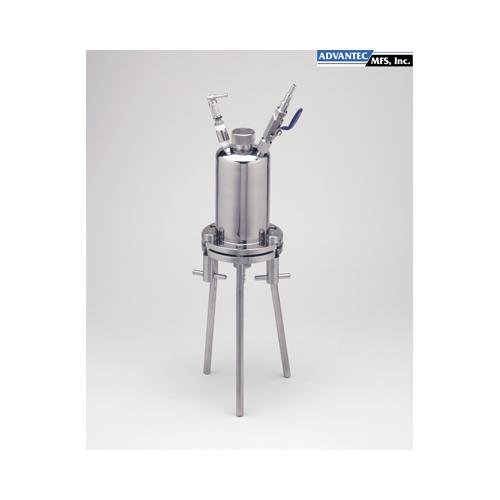

These quality stainless steel holders are designed for filtering small batches of liquid without having to use a separate pressure vessel. There are separate ports for pressurizing the reservoir and for adding additional sample. Available in either type 304 or 316 stainless steel. A silicone o-ring seals the membrane internally by hand-tightening locking wing nuts. Model KST47 has a photoetched 304ss screen. Inlet is 1/4"NPTM to 11mm hose barb. Outlet is 1/4"NPTM to 10mm hose barb adaptor; Models KST90/142 has a PTFE coated support screen. Inlet is 1/4"NPTM to ball valve with 7-13mm stepped hose barb adaptor. Outlet is 3/4"NPTM to 11mm hose barb. Replacement parts and alternate o-ring materials are available. KST293 models are also available. Assemblies can be PTFE coated by special order.
