The working pressure range is 0-10/kg/cm2, different flow capacity needs different filter screen
Flow capacity range is 1.5-1.7 L/h, needs a 45um oil filter screen
Flow capacity range is 1.89-3.78 L/h, needs a 75um oil filter screen
Flow capacity range is 4.76-5.10 L/h, needs a 125um oil filter screen
Flow capacity range is 5.68-41.64 L/h, needs a 140um oil filter screen
Flow capacity over 45.42L/h, no need for oil filter screen
Working pressure is 3 bar:
0.5mm diameter, the liquid water flow is 4 L/H;
0.8mm diameter, the liquid water flow is 6 L/H;
1.0mm diameter, the liquid water flow is 8 L/H;
1.5mm diameter, the liquid water flow is 11L/H;
2.0mm diameter, the liquid water flow is 14L/H;
2.5mm diameter, the liquid water flow is 17L/H;
3.0mm diameter, the liquid water flow is 20L/H;
3.5mm diameter, the liquid water flow is 23L/H;
4.0mm diameter, the liquid water flow is 26L/H;
The siphon height is 30cm, and the spray angle is 15-45 degree.
Kindly be noted above data is base on water for reference.

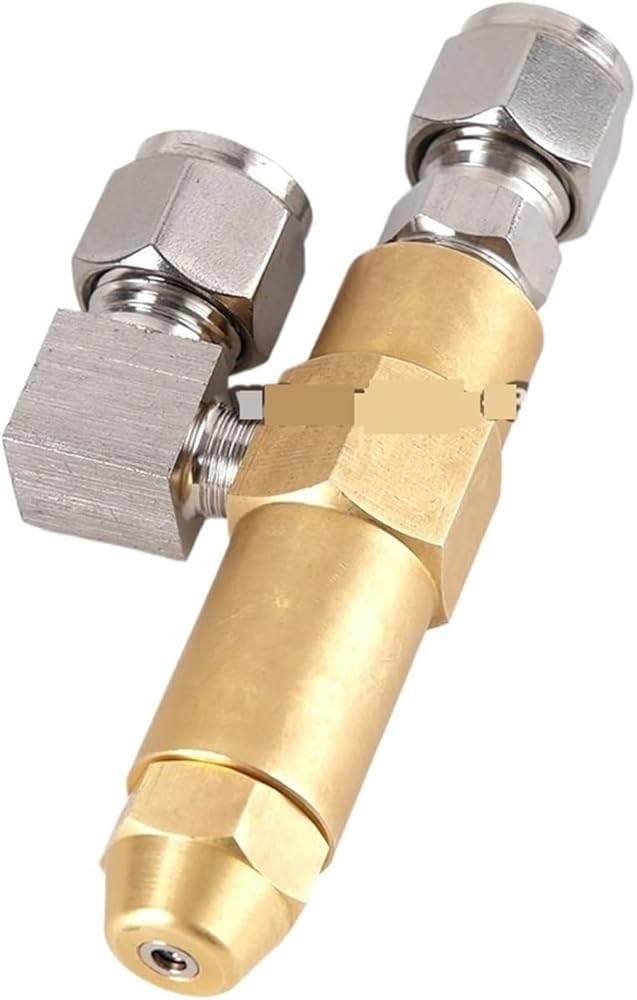

Thread Size : 9/16
Air Inlet : 1/4 inch
Oil Inlet : 1/8 inch
Spray Angle : 30-40 degree
Medium : Oil (or water) and air
Application : oil burning, furnace, boiler burner, etc
Material : Brass
Sprayer Type : Pump
Type : Sprayers
Spray pattern : full cone
Working Pressure : 0.5-2Bar
