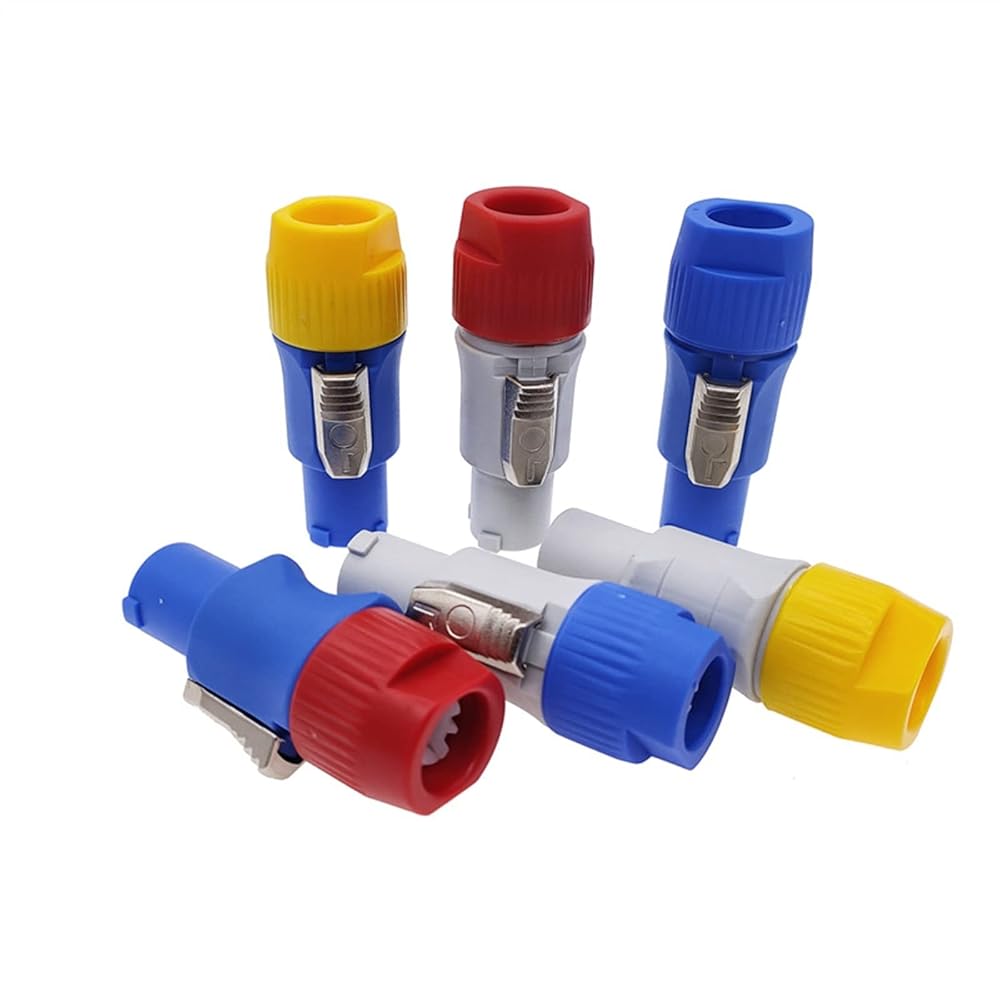

Powercon Connector 3 Pins 20A 250V, Power Speaker Cable Connector Male Plug For LED Screen Stage Lighting 10Pcs
Fireproof, flame retardant. Power plug,
*Name: Power Connector Male Plug
*Material:pure copper + ABS materials
*PA66 grade, environmentally friendly
* Color: Power-in( Blue) / Power-out( Light Grey) Available
* With CE/RoHS Certificate
----------------------------------------
Electrical parameters:
*Dielectric strength (external): 4/2.8 Kvac
*Insulation resistance: >0.1G ohm
*Electronic contact: 2P+E
*Rated current: 20A
*Rated voltage: 250V
-----------------------------------------
Mechanical parameters:
*Cable diameter: 5-12 (mm)
*Service life: >1000 (based on the number of connections)
------------------------------------------
Product advantages:
Its locking system is superior to the standard non-lockable MAIN connector
------------------------------------------
Features and characteristics:
*Lockable 20A/250V AC device coupler
*Linear, uncharged and pre-grounded three contacts
*Power input (blue) and power output (white) have different lock keys to avoid short circuit
*Fast and convenient rotary locking system
