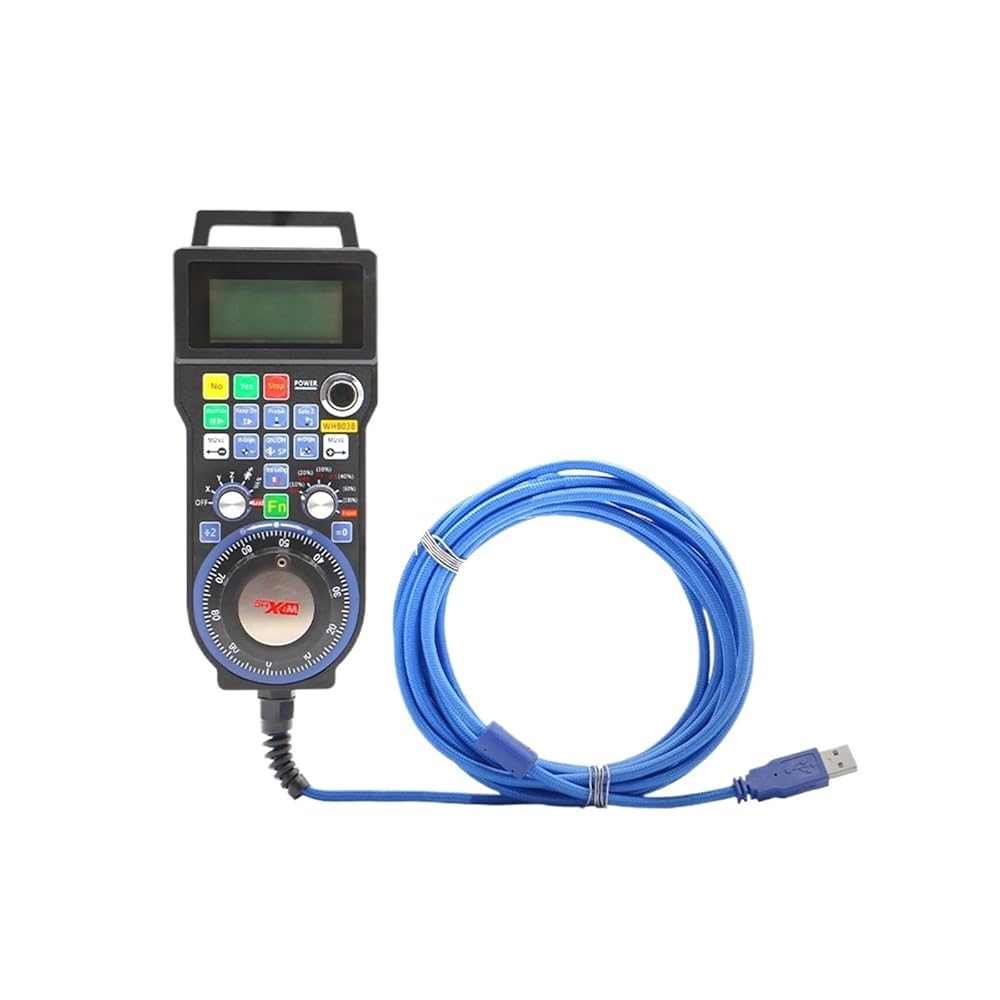

1 & NC Studio MPG Handwheel 3 Axis

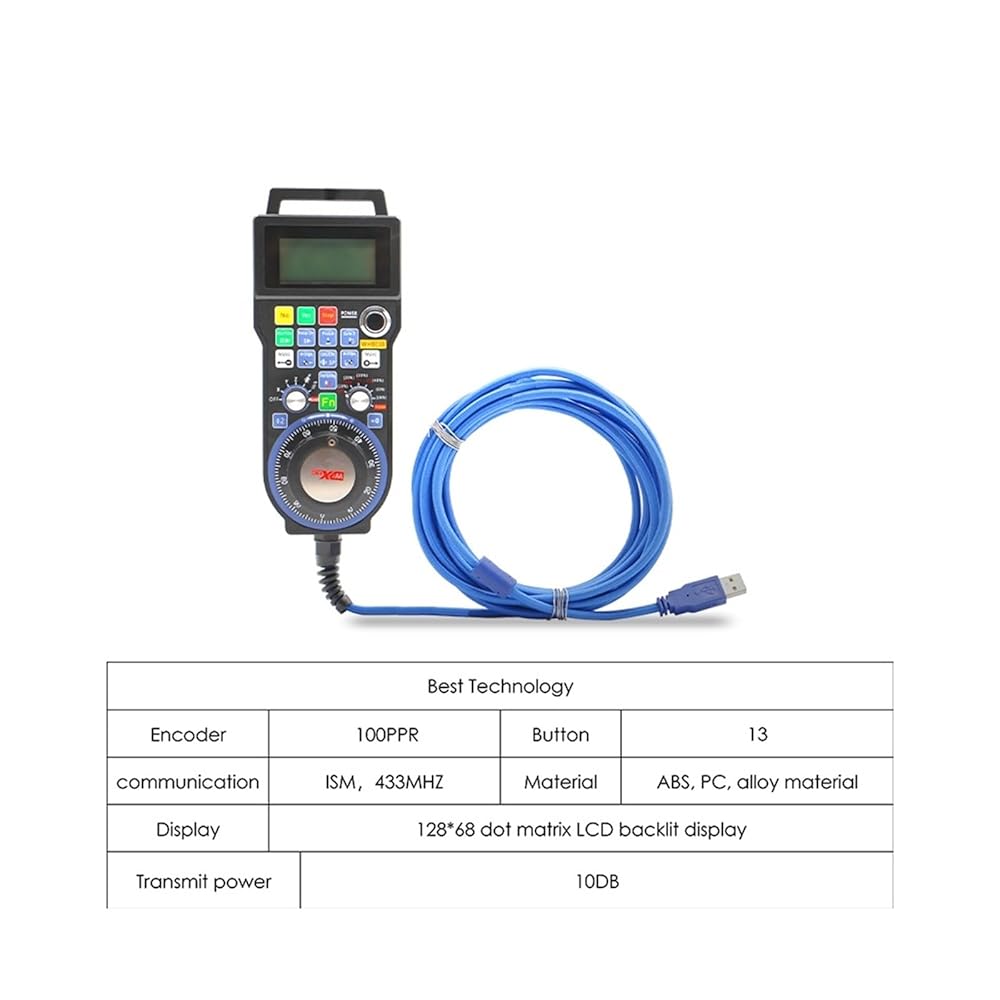

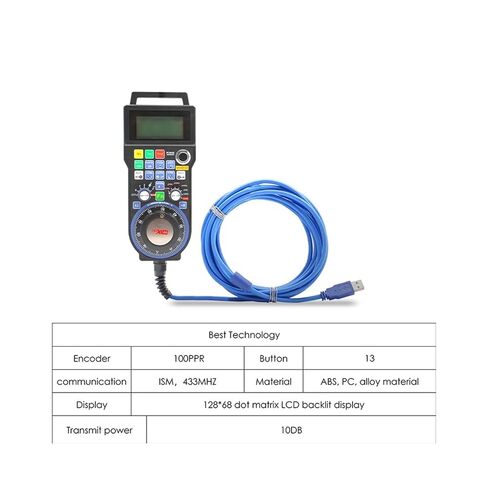

Parameter Description
Control axis 3
Encoder 100PPR
USB cable 5 Meters
Button:16
Display: Dot matrix backlit display
Material: ABS and PC materials, good resistance to drop and heat resistance
1 Adopt frequency hopping transmission, strong anti-interference abilityAdopt 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, accept sensitivity -98DB.With 32 frequency hopping channels, each channel is spaced 1MHZ.Data encryption transmission, automatic frequency hopping, automatic ID code learning.Frequency hopping transmission technology, the same room, can support 32 sets of equipment at the same time, do not affect each other.

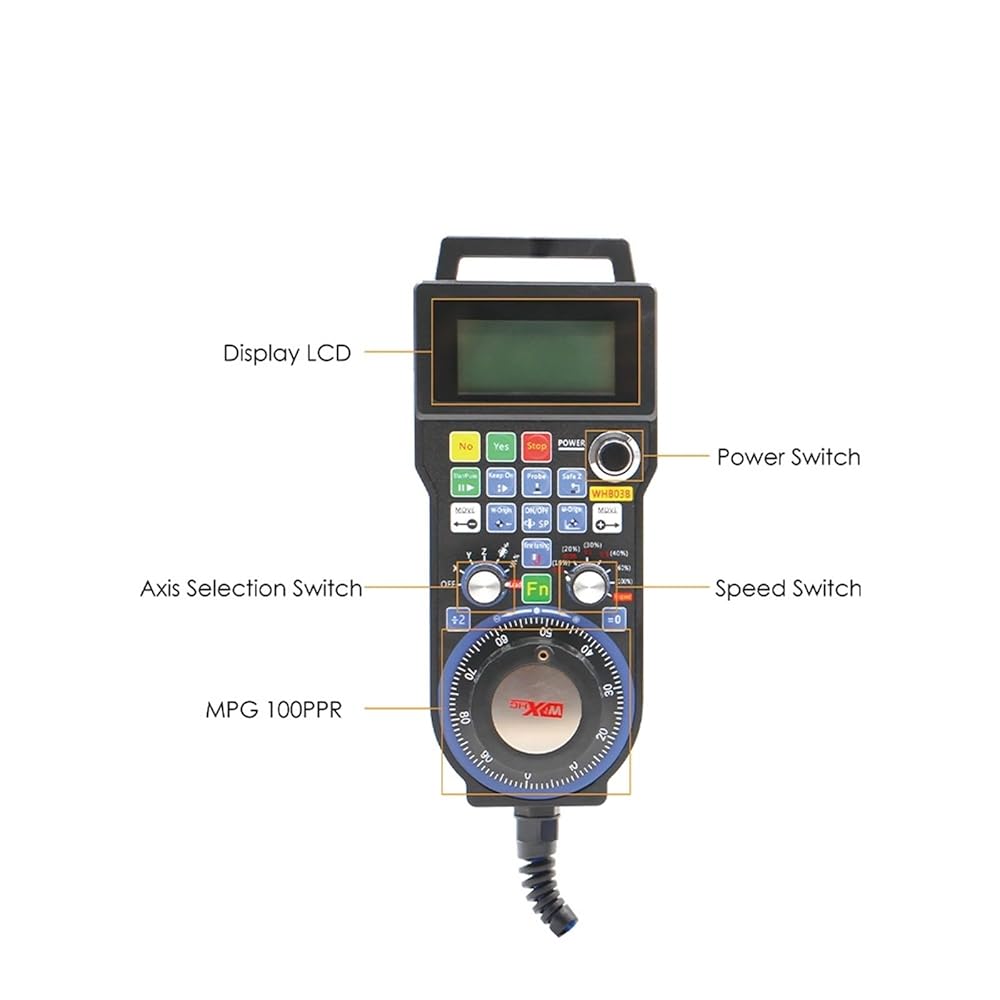

2 axis selection / rate band switch controlThe axis selection band switch realizes the closing of the electronic handwheel and the corresponding X Y Z function selection control.The magnification selects the band switch step selection.
3 stable and reliable performanceWith alloy encoder, the tooth position is clear and the positioning is accurate.ABS and PC materials, good resistance to tear and heat resistance.
4 displayThe dot matrix backlight display frequency is used to grasp the current working state in real time.
Product Features:
1, using frequency hopping transmission, anti-interference ability
Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, to accept the sensitivity-98DB.With 32 frequency hopping channels, each channel spacing 1MHZ.
Intelligent wireless technology, to achieve automatic frequency hopping, automatic power savings, automatic ID code learning.
Frequency hopping transmission technology, the same room, can support 32 sets of equipment used at the same time,without affecting each other.
2, display
Displays the mechanical and workpiece coordinates of the X Y Z axis.
Displays the speed value and the machining feedrate value.
Dot matrix with backlight.
3, axis selection, the rate of band switching control
Axis selection band switch to achieve the electronic handwheel off and the corresponding X Y Z A axis function of the selection controlMagnification Select the band switch to achieve the choice of step value, simple and convenient.
The version cancels the electrode piece in the battery slot, and the hand wheel can be directly used after being connected through the USB interface.
==========
Encoder : 100PPR
Key : 16
Transmissionn Power : 10DB
Maximum number of axis : 4
Display : Screen
