مميزات خاصة

ADJUSTABLE ANGLE: This rotary table is designed for versatile use and can be mounted horizontally or vertically. It suits a wide range of applications, including indexing boring, arc cutting, and point-to-point machining, significantly expanding the capabilities of milling machines.
CLEAR GRADUATION: The table surface features clear 360° graduations for extremely precise positioning and indexing. This enables confident drilling or cutting of workpieces at exact time intervals.
COMPACT CONSTRUCTION: Our indexing head is constructed from cast iron, offering outstanding wear resistance. Its high-hardness surface resists scratches, ensuring extended service life. It maintains integrity and durability even under heavy loads, high pressures, and high-speed rotation.
VERSATILE APPLICATIONS: Specifically engineered for precise positioning, rotation, indexing, and clamping of wood and metal workpieces during curved surface machining, long hole drilling, and precision boring operations. Widely utilized in automotive, mold manufacturing, and general machinery industries, playing a vital role in mechanical processing.
AFTER-SALES SERVICE: Thank you for choosing our product. For any inquiries, please contact us.

وصف

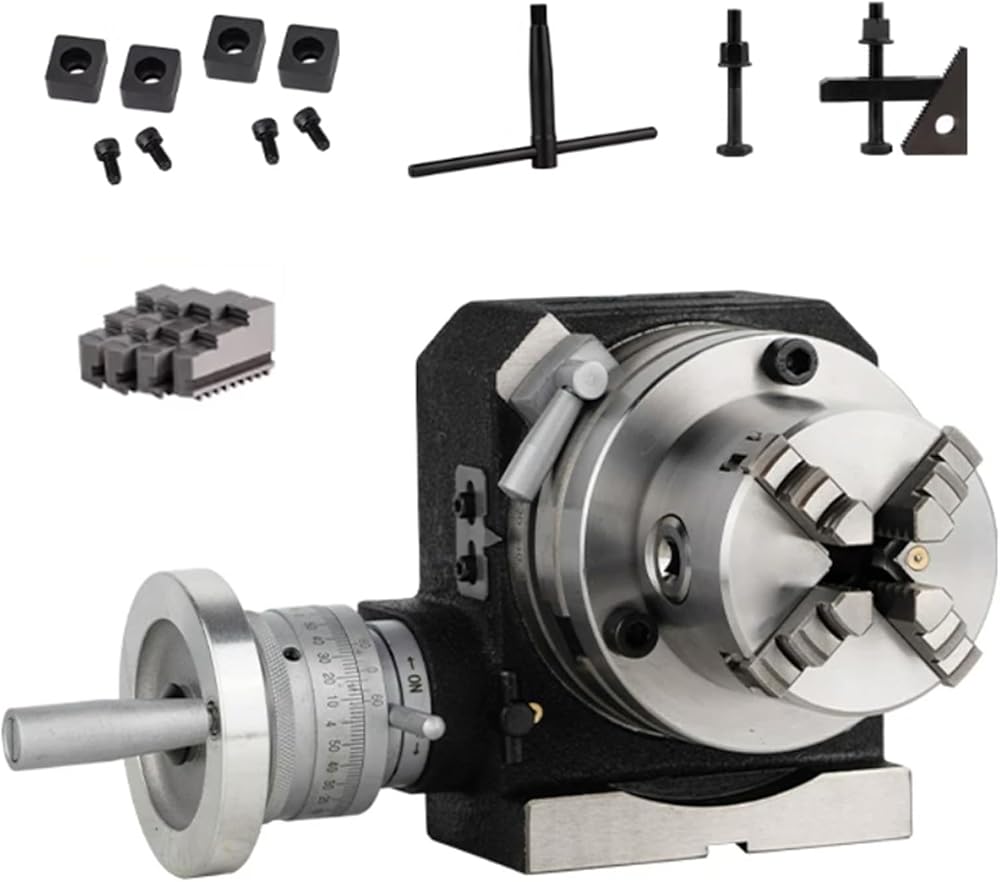

Product Name: Four-Jaw Indexing Head
Material: Cast Iron
Color: Black + Silver
Dimensions: Size + Chuck Diameter
4in-80mm, 5in-100mm, 6in-125mm, 8in-160mm, 10in-200mm, 12in-250mm
Package Contents:
1× Four-Jaw Indexing Head (includes accessories)

Technical Specifications:
1. Constructed from high-strength cast iron
2. Suitable for dividing cuts on milling machines or other specialized machinery
3. Innovative spindle locking system provides superior clamping strength compared to traditional dual-side clamp designs
4. Capable of 360° over-rotation; handle rotates 4 degrees per full turn; minimum scale division of 10 seconds with 0.02 precision
5. Dual-purpose indexing plate for horizontal and vertical applications

Notes:
1. All dimensions are manually measured and may contain slight discrepancies. Actual measurements prevail.
2. Reasonable color variations may occur due to screen display differences. Actual product color is final.
3. For any questions or concerns regarding this product, please contact us at any time.
