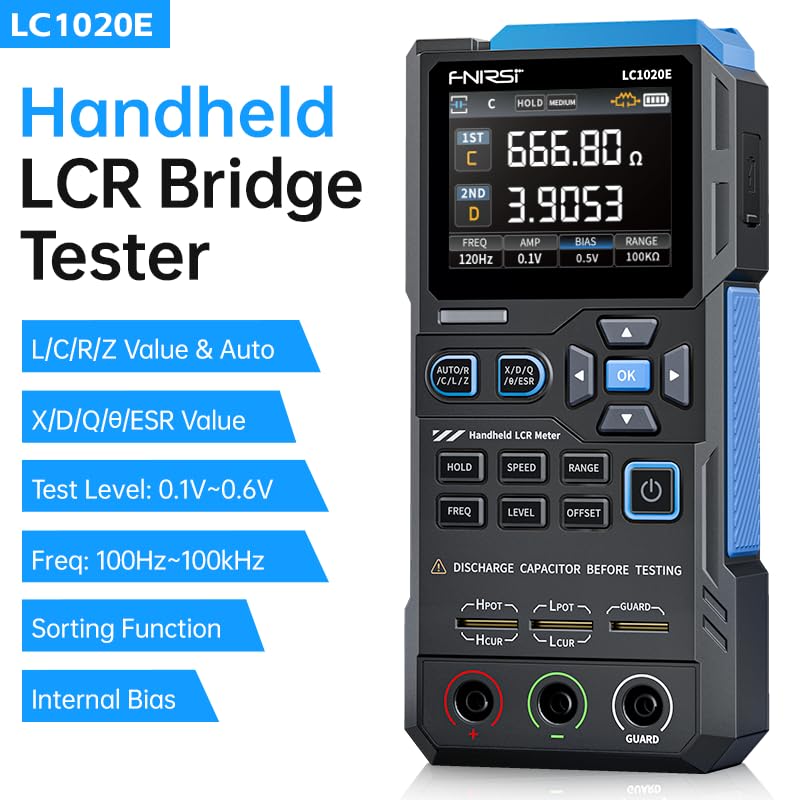

The is High-Precision Handheld LCR Meter is an electronic component testing tool that integrates high precision, portability, and intelligence, It is designed for engineers, technicians, and electronics enthusiasts, meeting the precision measurement needs in various scenarios such as laboratories, production lines, and on-site maintenance.

Specification
Model:LC1020E
Display: 2.8-inch TFT LCD display
Basic Accuracy: 0.3%
Display Digits: Main Parameter: 4.5 digits; Secondary Parameter: 4.5 digits

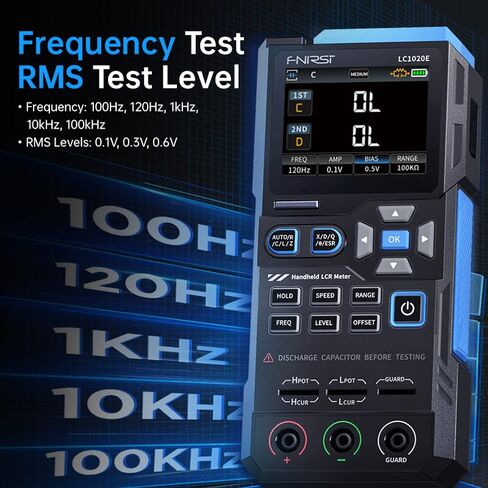

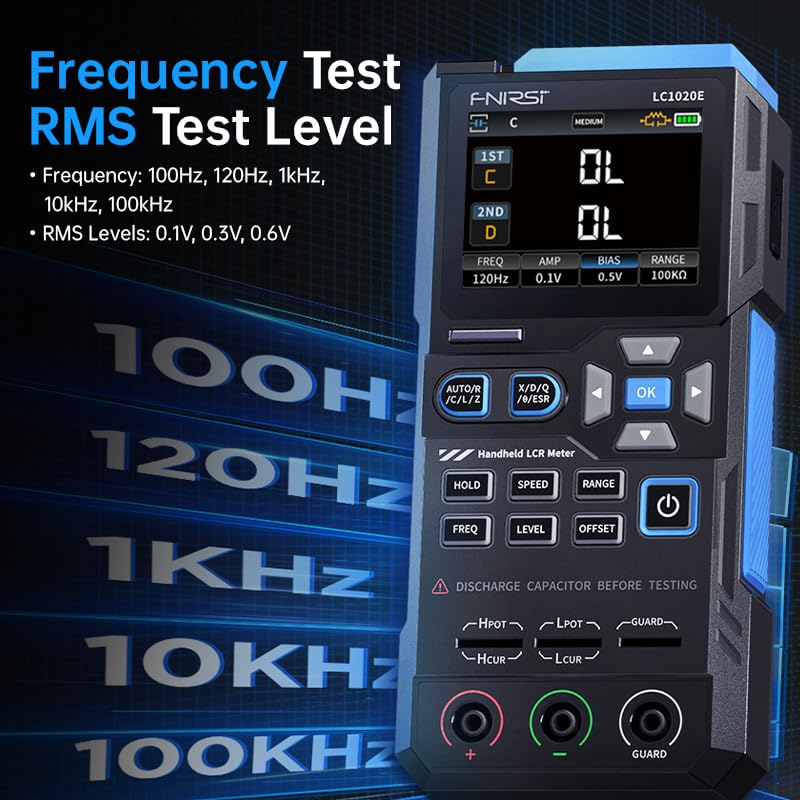

Test Frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz
Test Level: 0.1V, 0.3V, 0.6V

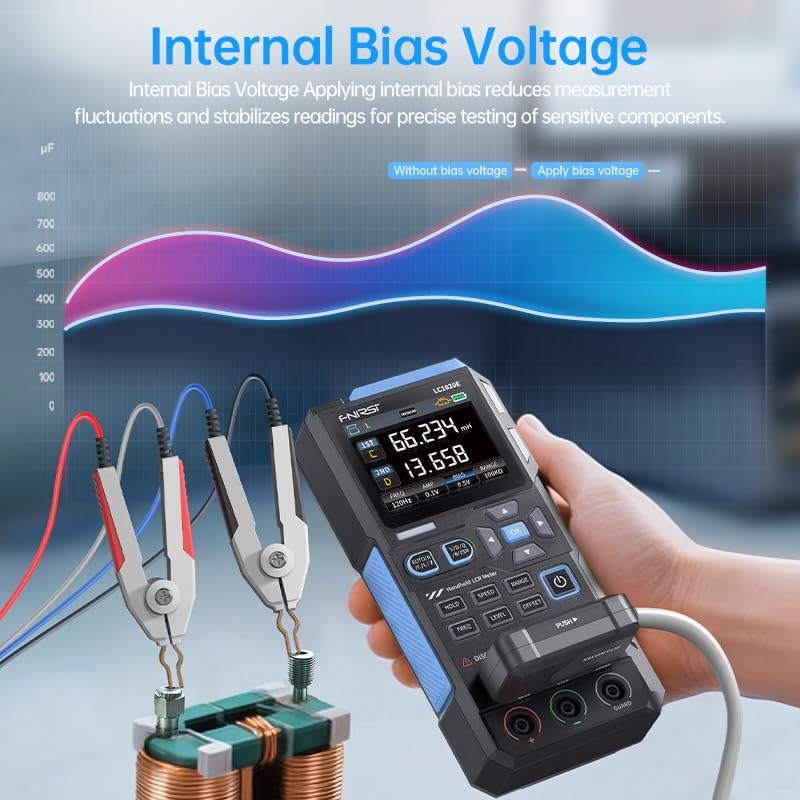

Internal Bias: 0.0V, 0.5V

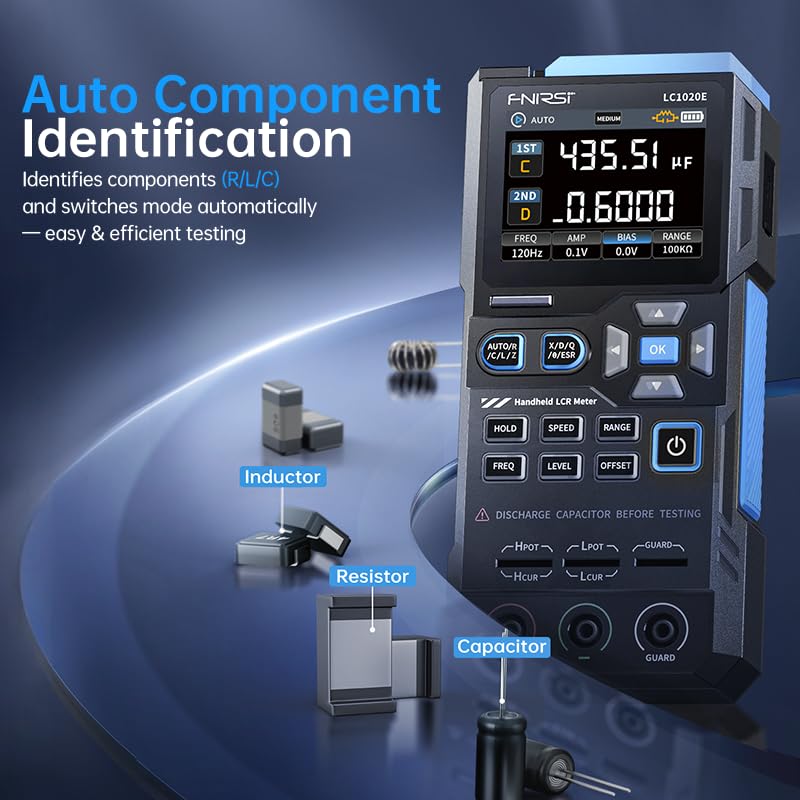

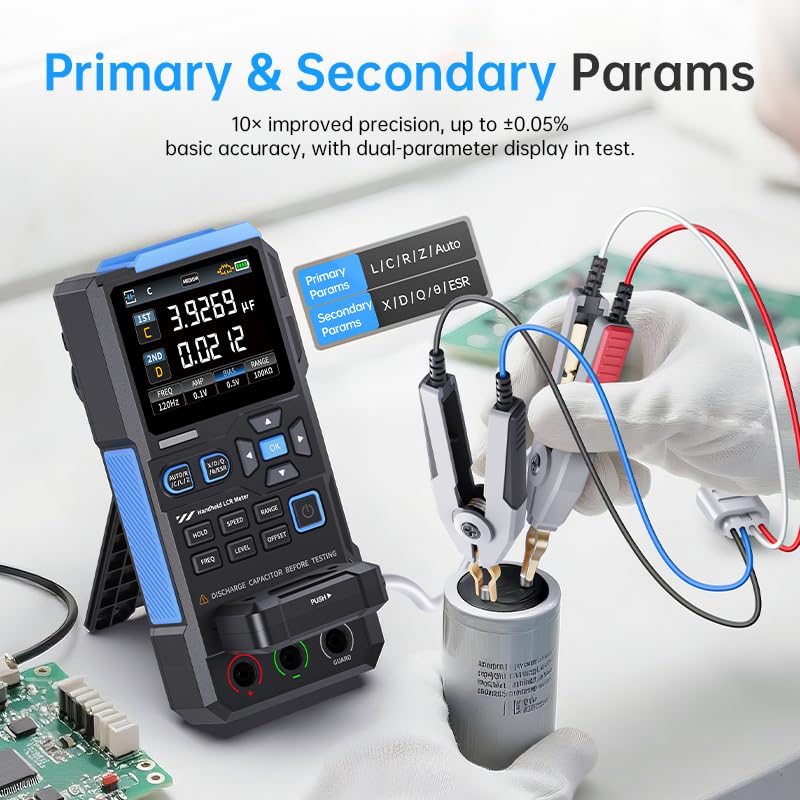

Measurement Parameters: Main Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESR
Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ
Measurement Speed: Fast (4 times/s), Medium (2 times/s), Slow (1 time/s)
Calibration Functions: Open circuit calibration, Short circuit calibration

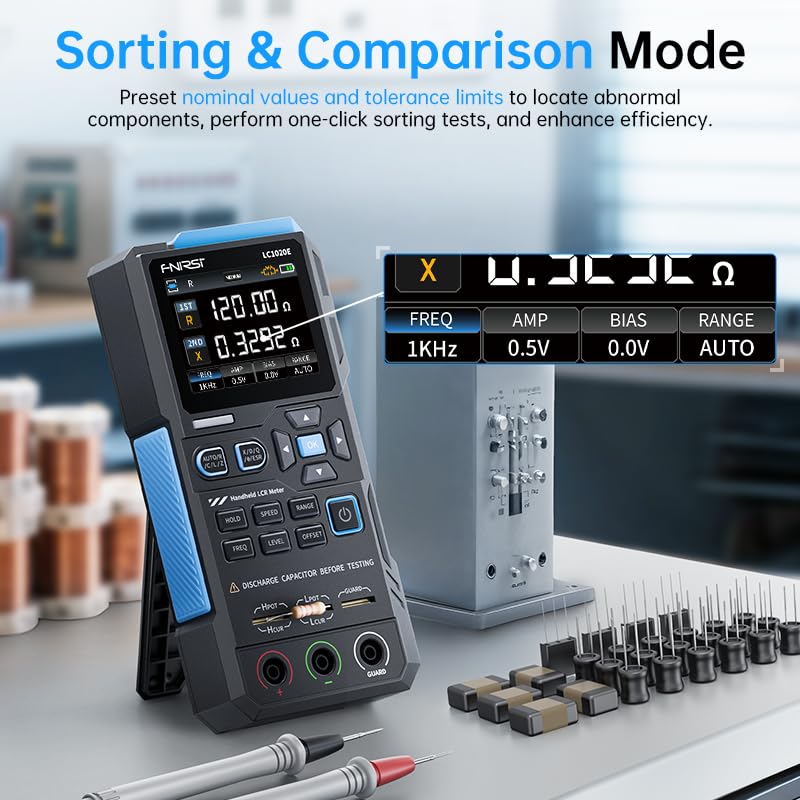

Comparison Function: Used to calculate the relative error between the component measurement value and the nominal value, displayed as a percentage, and provides filtering results. Nominal values and tolerance can be set, with a tolerance range adjustable from 0.1% to 99.9%.
Record Function: Checks if the measured component data meets the set nominal value and tolerance, recording the number of successful and failed measurements.
Test Terminal Configuration: Three-terminal, Five-terminal
Output Impedance: 100Ω
Communication Interface: USB-TypeC (Virtual serial port)
Other Features: Language settings, Screen brightness, Sound settings, Auto power-off, Calibration settings, System information.
