Magnetic Bolt Status Switch SPDT 0.25 Amp @ 30VDC Indicates bolt locked and bolt unlocked. D Mechanical Door Position Switch SPDT 5 Amps @ 30VDC Integral to the auto relock ball switch assembly. Indicates, door closed and door open. Recommended for minimum security applications only AC Operation BR64XL Rectifier for AC operation Face Plate: 10"H x 1-1/2"W x 1/8"D (254 x 38.1 x 3.175mm) Frame I.D. Requirements: 1.5"H x 1.5"W (38.1mm x 38.1mm) Bolt: Beveled Stainless Steel Voltage: 24VDC only
وصف

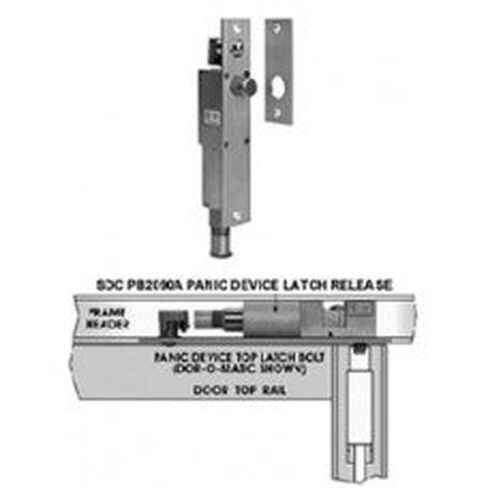

The PBD2090A PanicLok permits access control and remote timer control of narrow stile glass doors equipped with Dor-O-Matic or Kawneer concealed vertical rod exit devices. While the PanicLok is used to control entry from the outside only, the exit device is always operable from the inside for uninhibited egress.
