مميزات خاصة

【Main Parameter】Coupler interface:Simplex SC to FC converter with zinc alloy shell, Fiber type: single-mode, Operating temperature: -20~70℃.
【Convenient Deployment】The SC to FC coupler provides a simple and convenient solution for converting between SC and FC connectors, this coupler effectively streamlines the connection process of fiber deployment.
【Effective Isolation】The Coupler can effectively isolate the signal field from the main control end, prevent accidental damage of the main control system, and effectively inhibit the noise of the ground circuit.
【High Reliability】The shell of converter is made of high quality zinc alloy wtih longrer service life and internal adopts high-precision zirconium ceramic core (low insertion loss ≤0.2db, high echo loss≥25db)
【High Interchangeability】The Coupler has good interchangeability (≤0.25db) and repeatability (≤0.15db), which can be plugged more than 1000 times.

وصف

【Product Description】

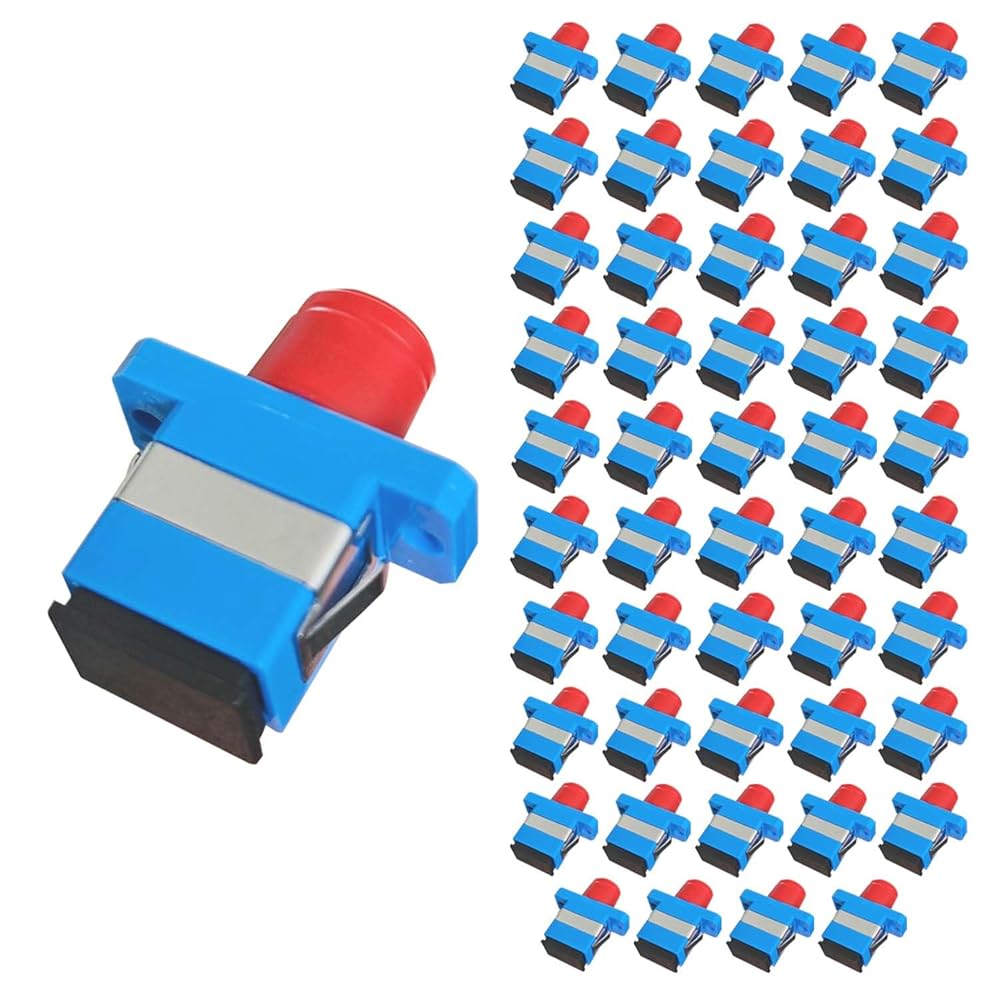

-The SC to FC Coupler is a small device designed to mount in standard rectangular cut out style panels, and It can be used to link Optical Fiber cables or fiber connectors between two Optical Fiber Lines.
-The SC to FC Coupler features a dust cap to protect the fiber installation from debris and other contaminants that can ensure the optimal functionality.

【Coupler Specifications】
Product Type: Zinc Alloy Simplex SC to FC with screw mounting wing
Fiber Type: Single mode
Coupler Type: Female to Female
Insertion Loss: ≤0.2dB
High Interchangeability: ≤0.25db
High Repeatability: ≤0.15db
Operating Temperature: -20~70℃
