This kit makes it easy to order premium components for wiring your SG®, or similar thin-solidbody 4-control / 2-pickup guitar with a 3-way switch.
Complete with wiring diagram, this kit features trusted components used for decades in Gibson® and other iconic American instruments, such as Switchcraft toggle switch and jack, CTS potentiometers, Orange Drop capacitors and cloth-covered push-back wire.
Be sure your control knobs will fit: CTS pots in this kit have fine-knurled (24-spline) split shafts. Coarse-knurled knobs for imported Alpha pots won't fit.

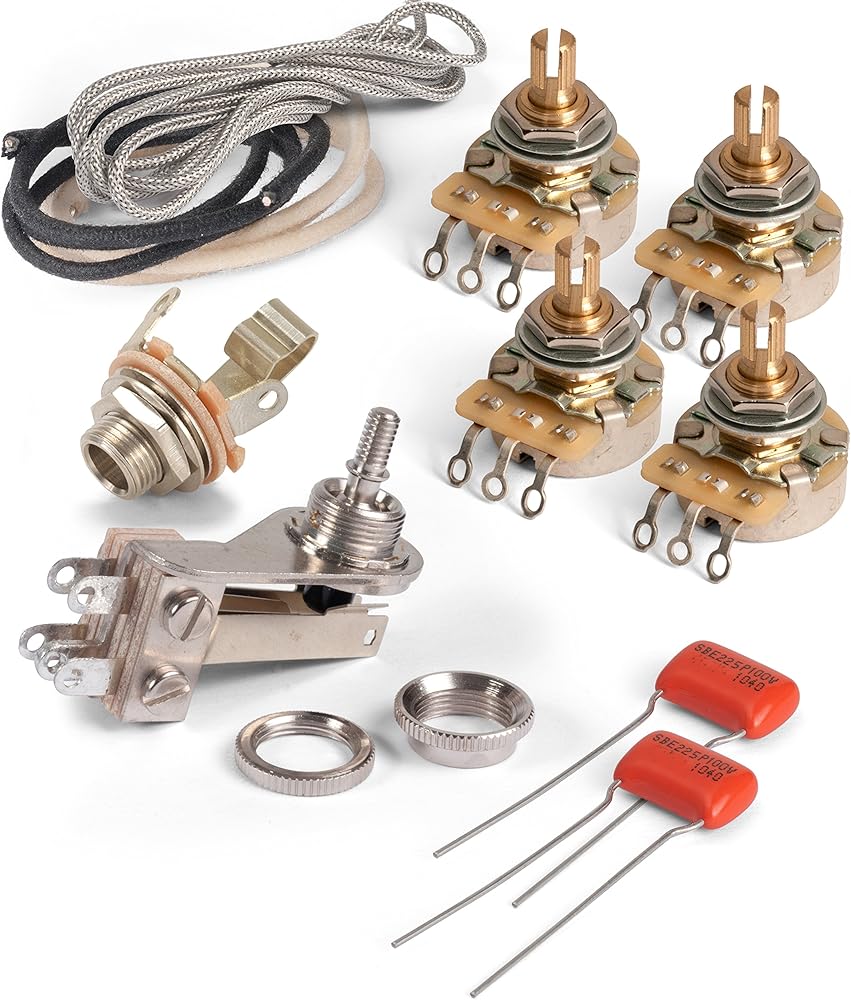

Premium Wiring Kit for Gibson SG includes:
1/4" Switchcraft long-thread output jack (1)
500K-ohm CTS control pots (4)
.022uF Orange Drop capacitors (2)
Switchcraft 3-way right-angle switch (1)
Amber switch knob (1)

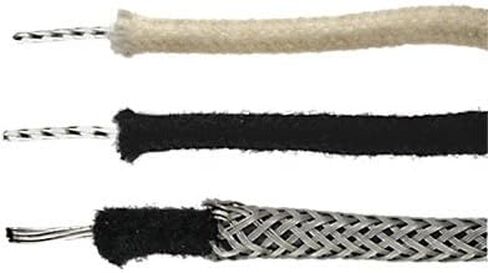

Non-shielded cloth-insulated push-back circuit wire: 22 AWG, white, 12" long
Non-shielded cloth-insulated push-back circuit wire: 22 AWG, black, 24" long
Shielded braided push-back circuit wire: 22 AWG, 12" long
Wiring diagram
CTS control pot specifications:
– Shaft diameter: 0.235" (5.95mm) split shaft, fine knurling
– Thread: 3/8" x 32
– Thread height: 3/8" (9.52mm)
– Required mounting hole diameter: 3/8" (9.52mm)
Switchcraft 3-way right-angle switch specifications:
– Switch length: 2" (50.80mm)
– Body cavity depth required: 13/16" (20.64mm)
– Mounting hole diameter: 1/2" (12.70mm)
– Thread height: 3/16" (4.76mm)
– NOTE: Requires at least 1-3/4" (44.45mm) from the center of the mounting hole to the edge of the control cavity for wiring clearance
