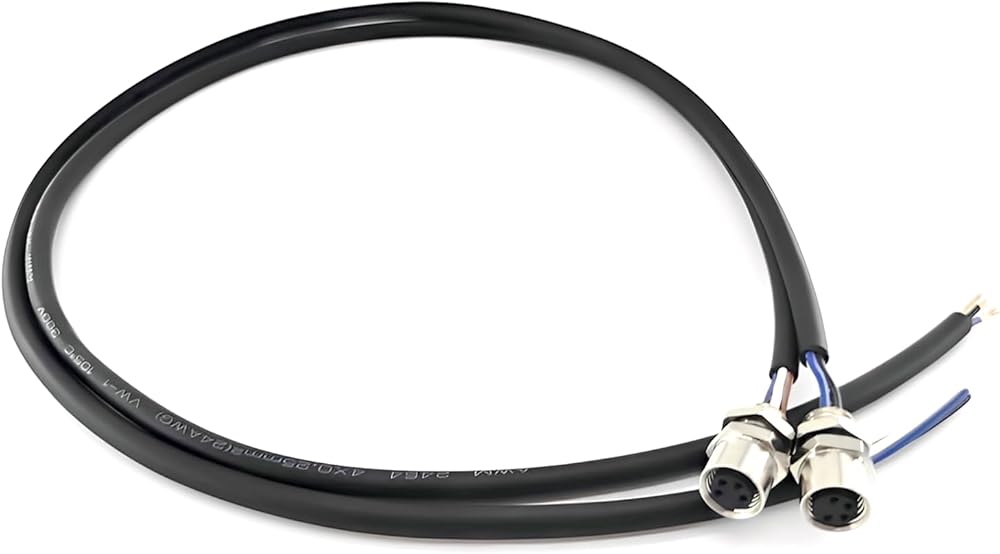

M8 Connector Cable: M8 single ended connector, 4-pin, A-code interface, back mount panel receptacles, IP67 waterproof rating, solder type, Unshiled, 1.64ft/0.5m, used for panels/cable
Materials: M8 aviation socket electrical cable is made of high-quality PVC, which has insulation and flame retardancy. The shell material is nickel plated brass, and the pure copper gold-plated contacts have good contact and conductivity properties
Stable Connection: Threaded locking mechanism, anti vibration locking design, 12mm threaded joint, convenient for providing efficient and stable connection between on-site equipment and terminal connections
Application Scope: M8 male connector cables are widely used in sensors, industrial automation, industrial network transmission, ships, security and other fields, easily connected to proximity switches, flow monitoring equipment, etc
Easy to Use: The M8 4 pin aviation sensor connector cable can be installed and removed without tools, plug and play, and can quickly and easily connect field devices and terminal connections
وصف
Specifications:
Series: M8 4Pin Connector Cable
Shield: Unshielded
Coding: A Coding
Termination Style: Screw-Joint
Rated voltage: 30V
Rated current: 4A
Temperature range: -25°C to 85°C
Protection Class: IP67
Connector contacts: Brass with gold plated
Plug and unplug times: Greater than 500 times
