Filter, Regulator & Lubricator Combos
Material: Die-cast Aluminum
Protective Cover Material: Alloy
Filtration: Double
Cup Material: Polycarbonate
Filter Model: AW4000-04
Oil Mist Filter Type: AL4000-04
Filter Material: Copper/Fiber
Rated Flow Rate: 4000L/min
Operating Pressure: 0.05-0.85mpa
Filtration Precision: 40um
Working Temperature: 5 to 60°C
Working Media: Compressed Air
Interface Port Size: 1/2" NPT
Packing Size: 30*17*10cm/11.81*6.69*3.93in

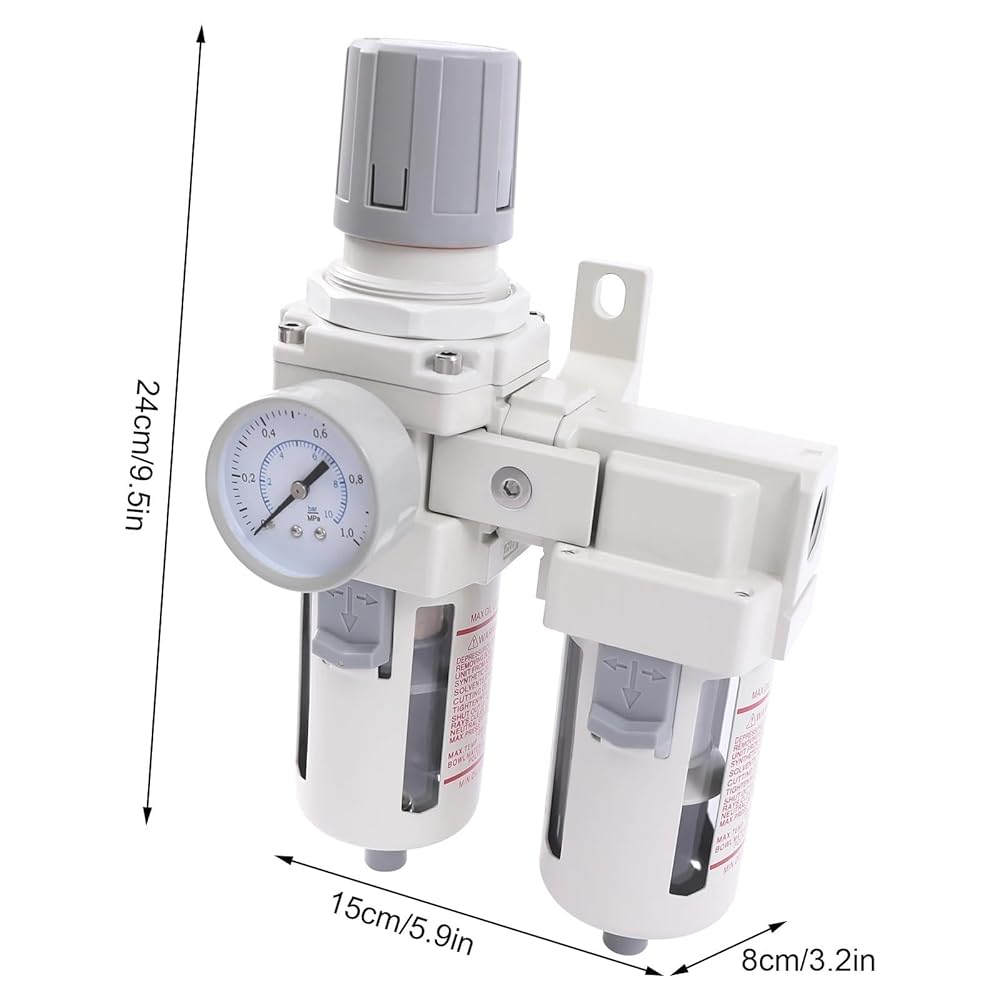

Product Size: 15*8*24cm/5.9*3.2*9.5in
Gross Weight: 2.1kg/4.63lbs
Net Weight: 1.94kg/4.27lbs
How to Adjust the Pressure
1. Pull out the cap in the upward direction.
2. Rotate to adjust the pressure. If you turn clockwise, the pressure will increase steadily; if you turn counterclockwise, the pressure will decrease.
3. Press to lock after adjusting.
Package Included
1* 1/2" NPT Air Pressure Regulator
==========
Hign-concerned Chemical : None
Type : Pipe
