هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD in Kuwait هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD in Kuwait هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD in Kuwait هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD in Kuwait هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD in Kuwait هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD in Kuwait هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD in Kuwait هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD in Kuwait

هيدروليك توب لينك كات. 2-2 | 25 بوصة - 38 3/8 بوصة | مع قفل + 2 خرطوم HYD

KWD 121

1 +

مميزات خاصة

  • Key Features For Category 2 tractors (1" pin) Hydraulic adjustment directly from the cab – saves time and effort Integrated locking unit with check valve – reliably holds position Rotatable piston rod for easy installation Compatible with 1/2" ISO 5675 (Series A) quick couplers

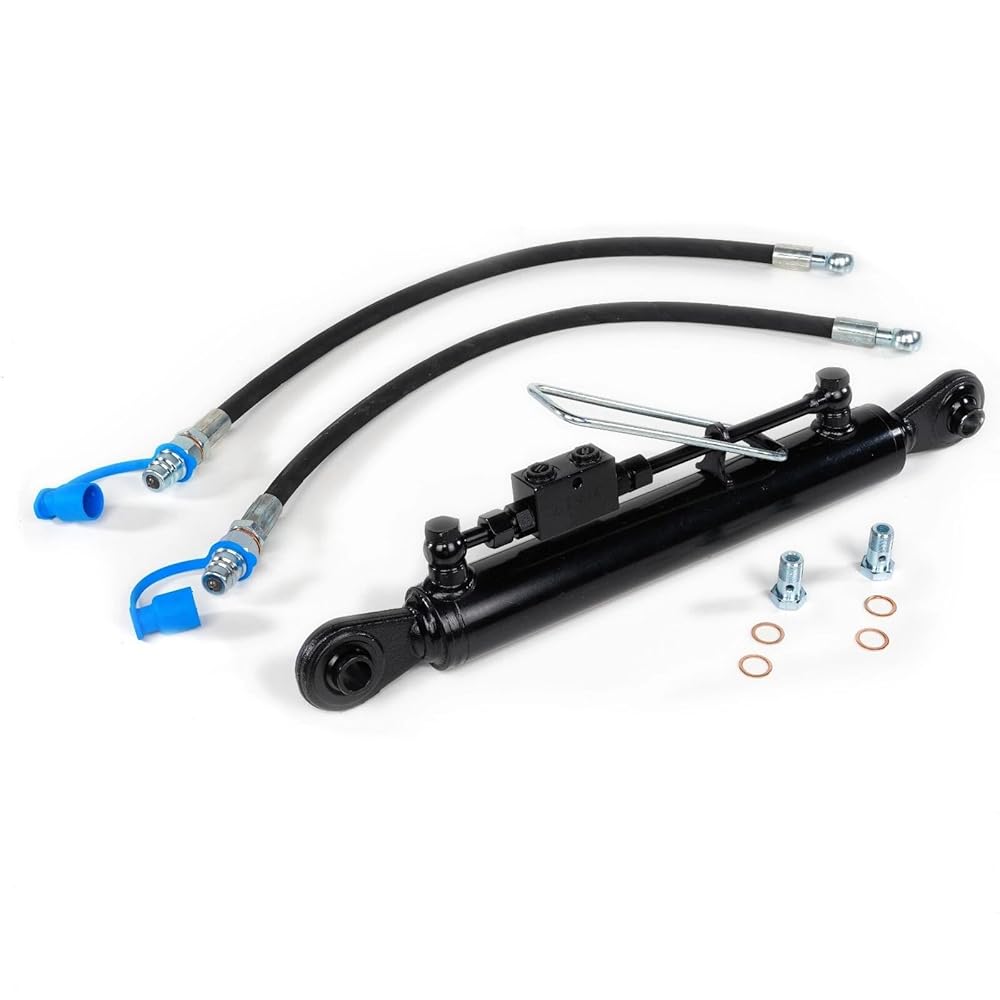

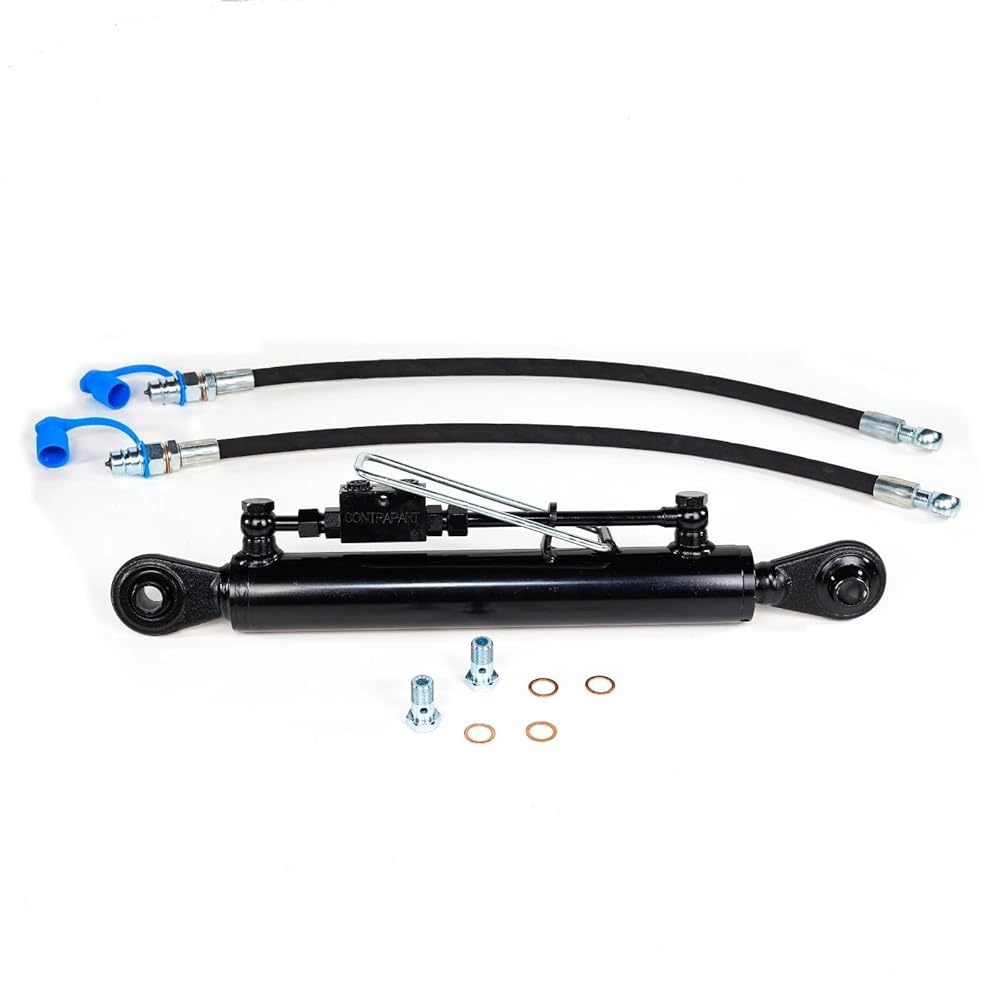

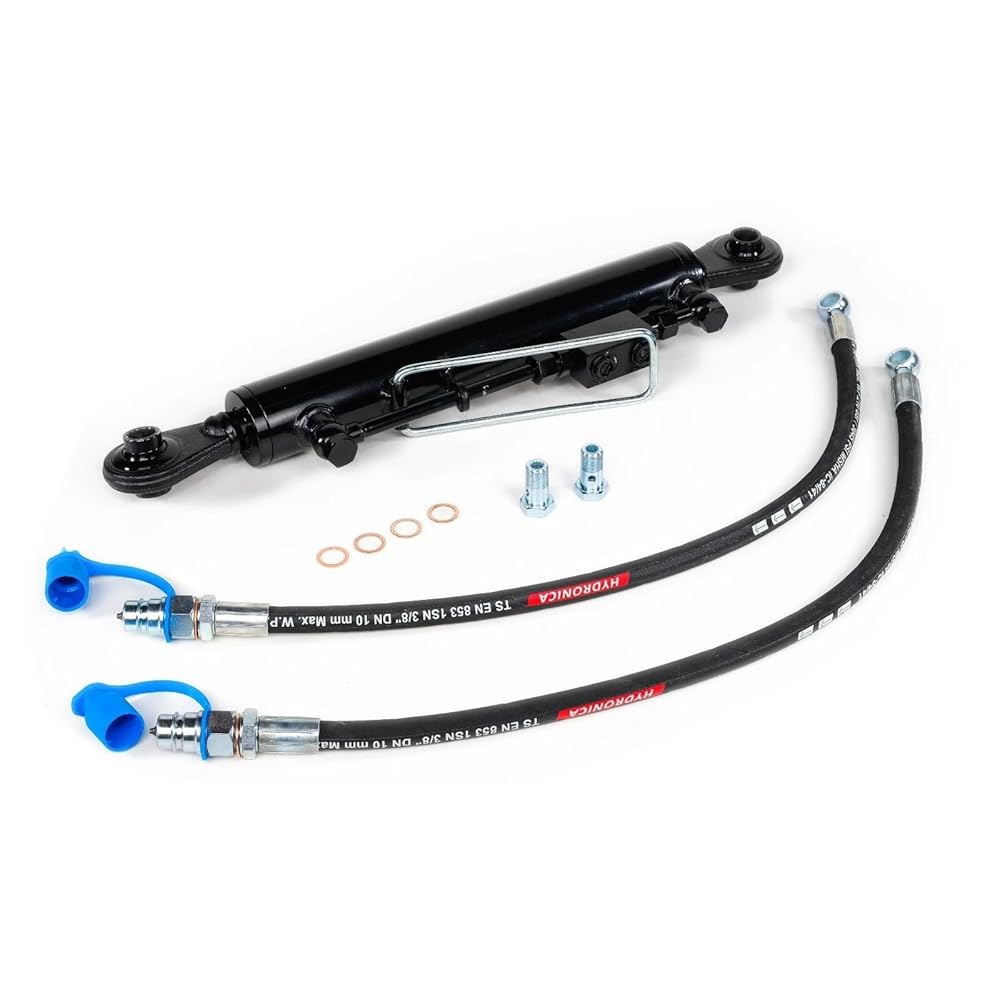

  • Scope of Delivery 1 × Hydraulic Top Link (black powder-coated) 2 × Hydraulic hoses (27.5") 2 × 1/2" BSP quick couplers (poppet type, ISO 5675 – Series A)

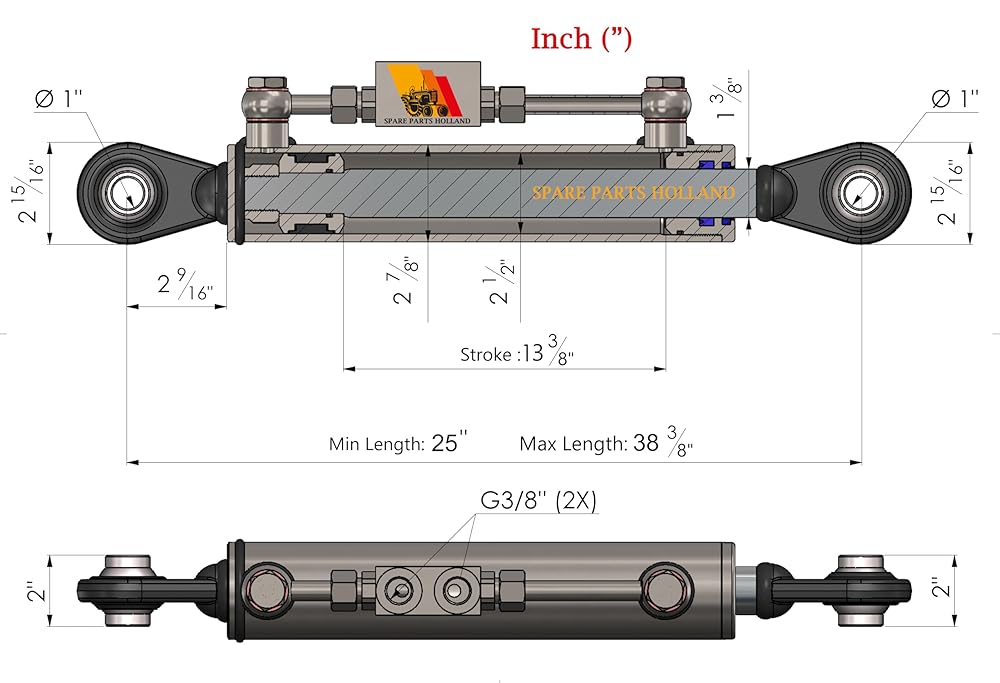

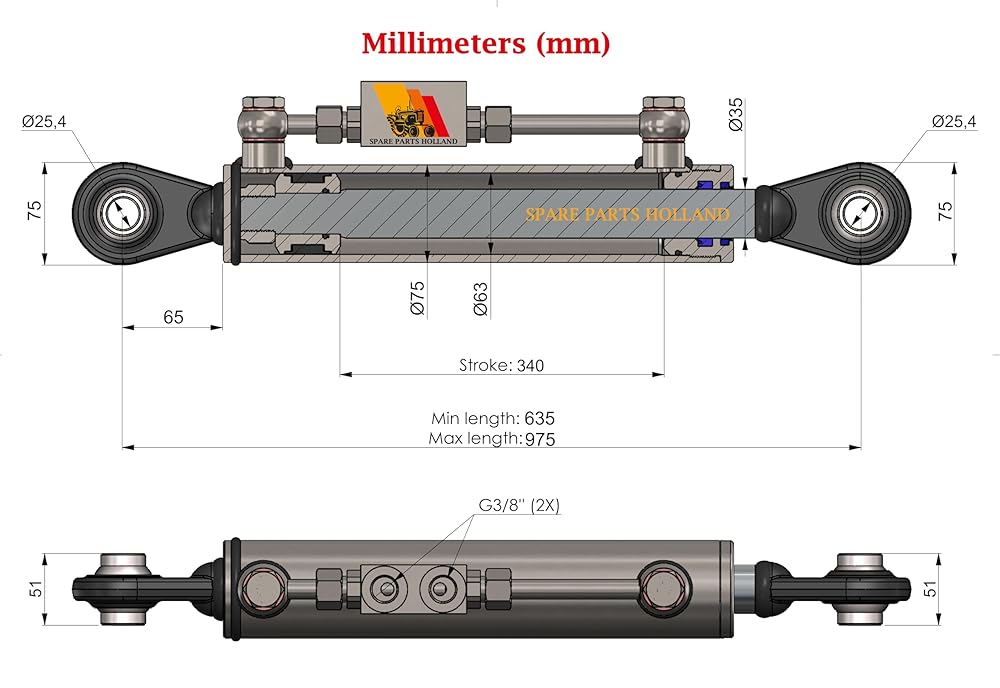

  • Technical Data Pushing force: 12,600 lbs @ 2,610 psi Pulling force: 8,600 lbs @ 2,610 psi Recommended tractor power: 40–120 HP Requires double-acting control unit Technical drawing available in the product listing
  • How to Choose the Right Top Link Check category: o Category 1 → 0.75" pin (20–45 HP) o Category 2 → 1" pin (40–120 HP) o Category 3 → 1.25" pin (80–225+ HP) Measure length range: o Measure your existing top link (retracted & extended) o Select a hydraulic model with a suitable stroke Check hydraulic system: o Pressure range: 2,320–2,900 psi o 1/2" ISO 5675 quick couplers (Poppet Type)? ✔️ Male Couplers already included
  • This top link replaces the manual version and makes adjusting the working angle much easier – directly from the driver's seat. The integrated check valve reliably holds the position and only opens when hydraulic pressure is applied again – ensuring you stay in full control.

وصف

Hydraulic Top Link with Hook – Category 2 – For Tractors with 40–120 HP Upgrade the three-point hitch system of your tractor with this high-quality hydraulic top link. It replaces the traditional mechanical top link and allows convenient adjustment of the working angle directly from the cab. Ideal for implements such as mowers, scrapers, box graders, or bale forks. Product Overview This top link replaces the manual version and makes adjusting the working angle much easier – directly from the driver's seat. The integrated check valve reliably holds the position and only opens when hydraulic pressure is applied again – ensuring you stay in full control. A must-have for professionals who want to work more efficiently and safely.
