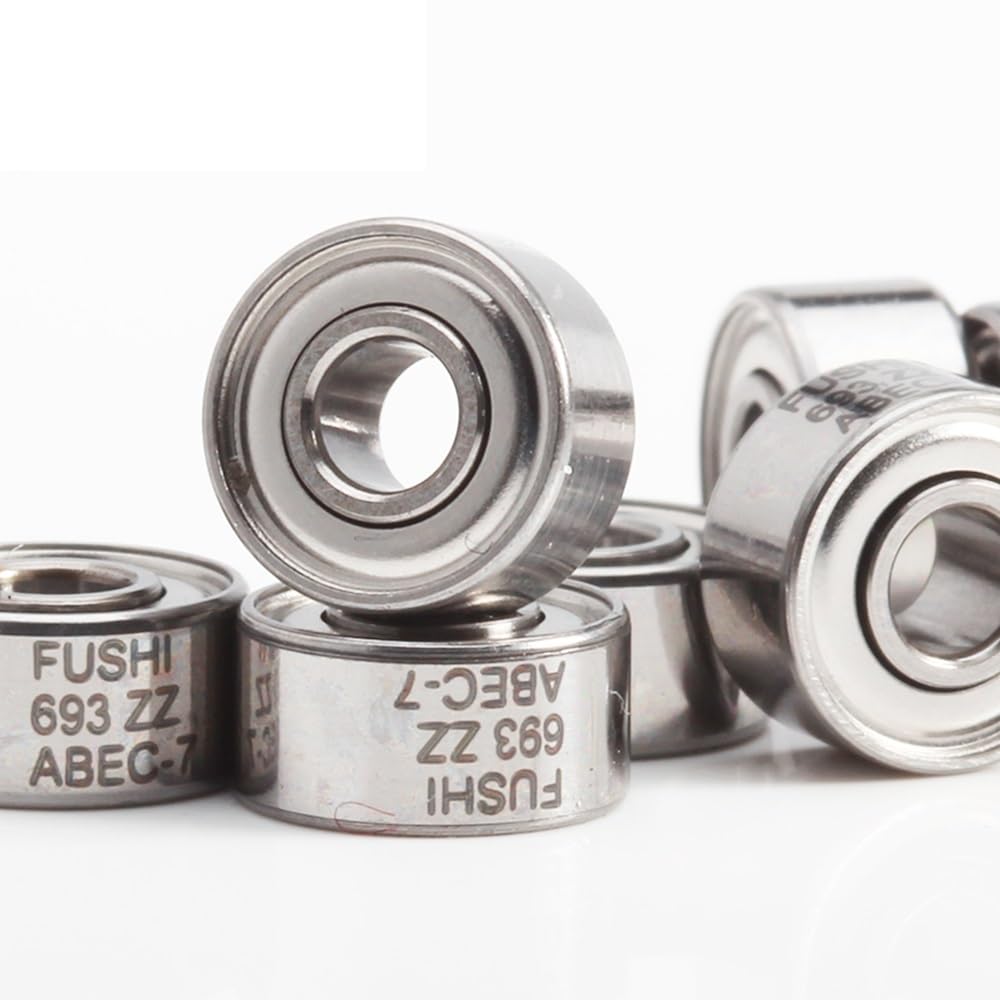

693ZZ محمل 3 * 8 * 4 مم (10 قطع) ABEC-7 محرك مصغر 693 ZZ محمل كروي 619/3ZZ R-830ZZ EMQ مراوح المحركات 693Z 693 محامل in Kuwait

693ZZ محمل 3 * 8 * 4 مم (10 قطع) ABEC-7 محرك مصغر 693 ZZ محمل كروي 619/3ZZ R-830ZZ EMQ مراوح المحركات 693Z 693 محامل

KWD 17
ماركة
NKOZBTHFN
فئة
مفصلات
– 1 +

مميزات خاصة

  • Bearing
  • 693ZZ Bearing 3*8*4 Mm ( 10 Pcs ) ABEC-7 Miniature Engine 693 ZZ Ball Bearing 619/3ZZ R-830ZZ EMQ Motors Fans 693Z 693 Bearings

وصف

Bearing
693-ZZ Bearing Specifications (Metric)
Bearing Type: Shielded
Bore Dia (d): 3.000 mm
Outer Dia (D): 8.000 mm
Width (B): 4.000 mm
Radius (min) (rs): 0.15 mm
Dynamic Load Rating (Cr): 474 N
Static Load Rating (Cor): 144 N
Max Speed (Grease): 50,000 rpm
Max Speed (Oil): 57,000 rpm
Max. Shaft Shoulder Dia. Inner (Ui): 4.4 mm
Min. Housing Shoulder Dia., Outer (Uo): 7.25 mm
Ball Qty: 6
Ball Dia (Dw): 1.588 mm
Weight (g): 0.8 grams
Precision: ABEC-7
Standard Clearance: C0/(K25)
Material: 52100 Chrome Steel
Surface Roughness : Ra 0.05
Torque Capacity : 3x8x4 mm fmm engine bearing 202
Structure : Deep Groove Ball
Model Number : 693ZZ ABEC-7 High Speed Motors Fans
Coatings : Chrome Steel
Material : Steel
