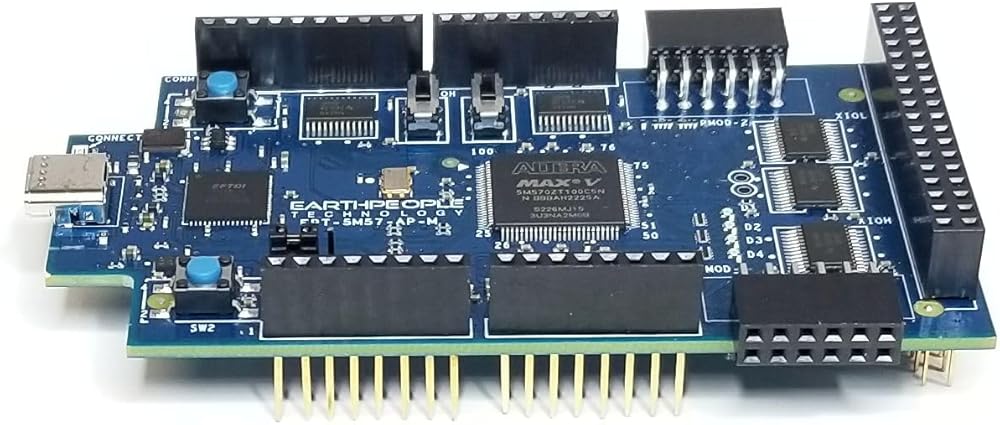

نظام تطوير Altera MAX V CPLD - MegaProLogic

KWD 14.500
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

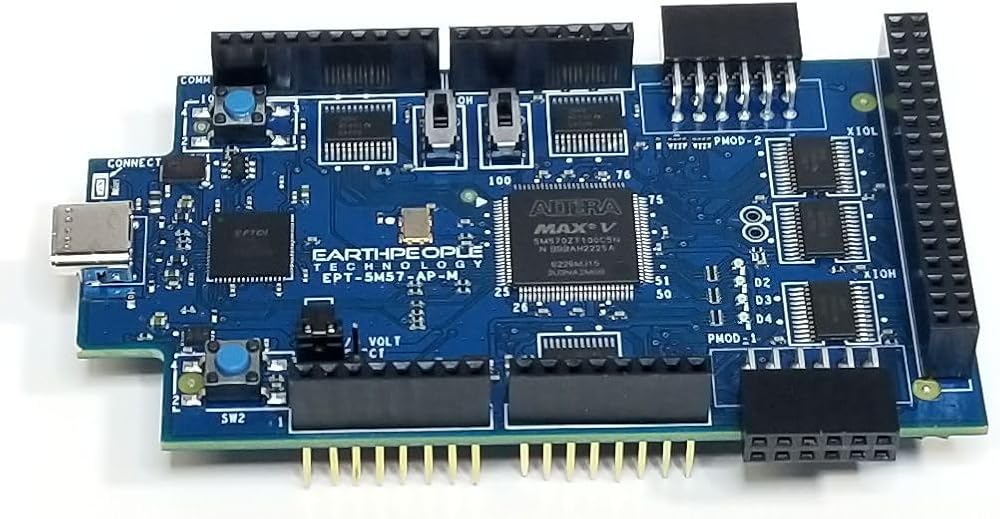

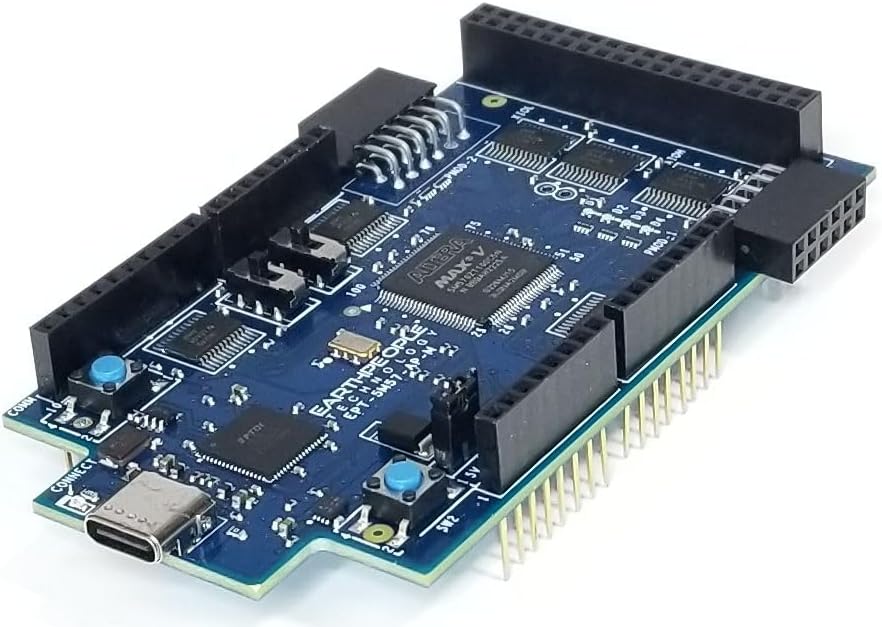

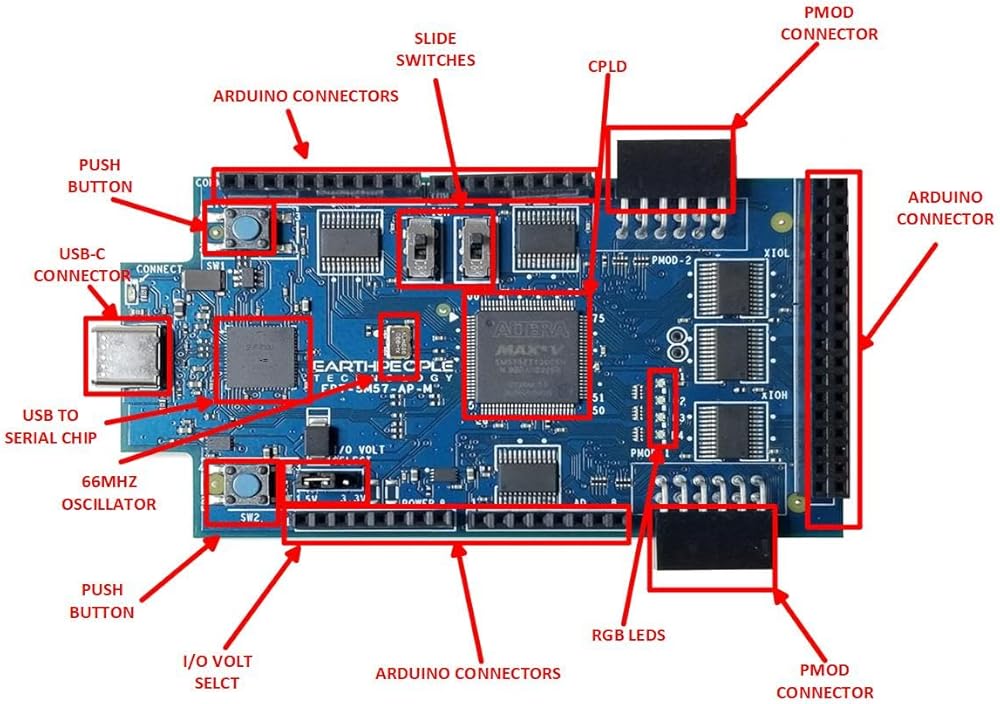

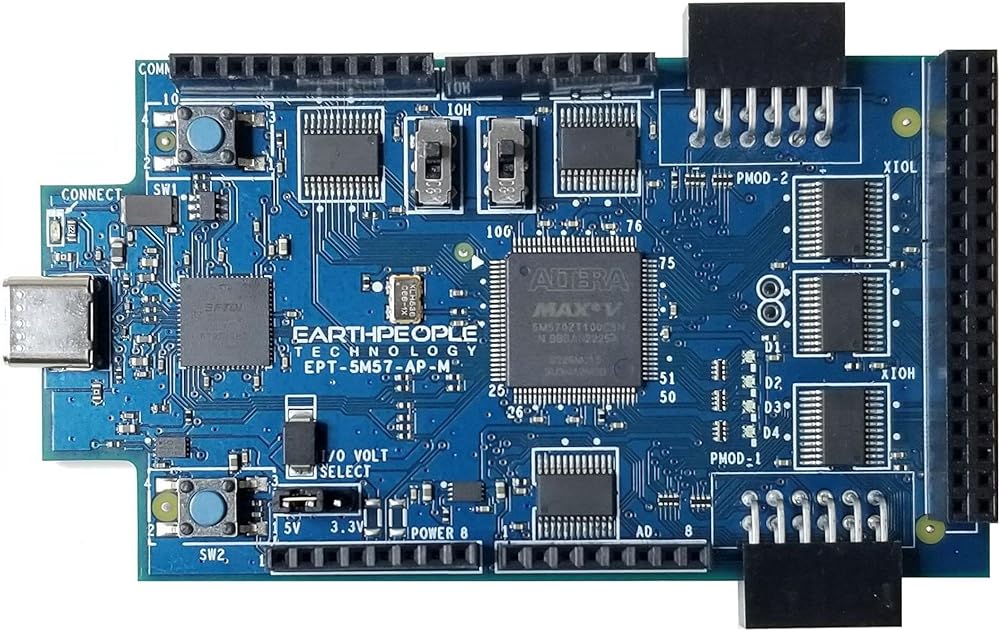

  • Altera 5M570T100C5 CPLD chip with 440 MacroCells. The MegaProLogic is a complete CPLD Development Kit. All source files are provided along with a detailed user manual and datasheet to allow the user to create unique projects.
  • Inputs/Outputs: 32 -- Selectable between 3.3Volts and 5 Volts. I/O's are protected with 74LVCH4245 8-Bit Bus transceivers. USB Interface: Eight bit data transfers. User code will transparently connect with the ActiveHost API running on the Windows PC. All software is Open Source

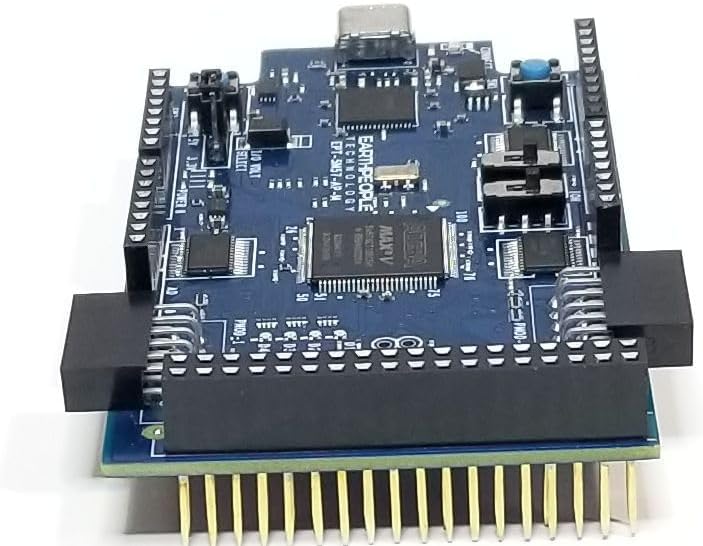

  • Board Footprint Compatible with the Arduino Mega. Stackable headers connect the MegaProLogic directly to the Mega and Shields. Includes two PMOD connectors to connect directly with PMOD accessories.
  • JTAG Programmer Built In: The CPLD is programmed on board. A single USB-C Cable is all that is needed. The MegaProLogic is 100% compatible with Quartus Prime Lite software. The software is a free download from Altera.
  • Complete Development Kit with tutorials and source code. Please visit the MegaProLogic product page under the earthpeopletechnology website to access all schematics, user manual, data sheets and project files.

وصف

Designed, Manufactured and Distributed in the USA.

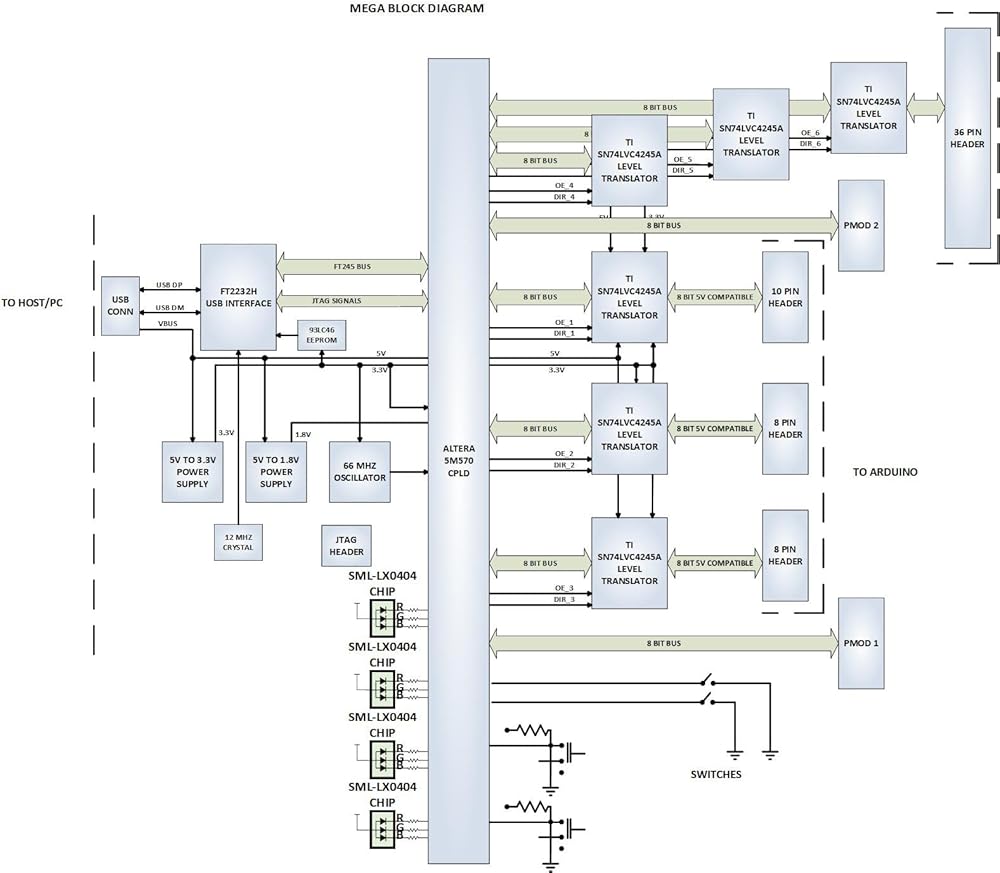

The EPT USB-CPLD development system provides a
flexible learning platform by combining a powerful
Complex Programmable Logic Device with High Speed
USB. It is designed to provide an innovative method of
developing and debugging programmable logic code. It
provides a serial data transfer mechanism between any
microcontroller (or any digital device) and a host PC. The
EPT USB-CPLD development system provides a convenient,
user-friendly work flow by connecting seamlessly with Altera's

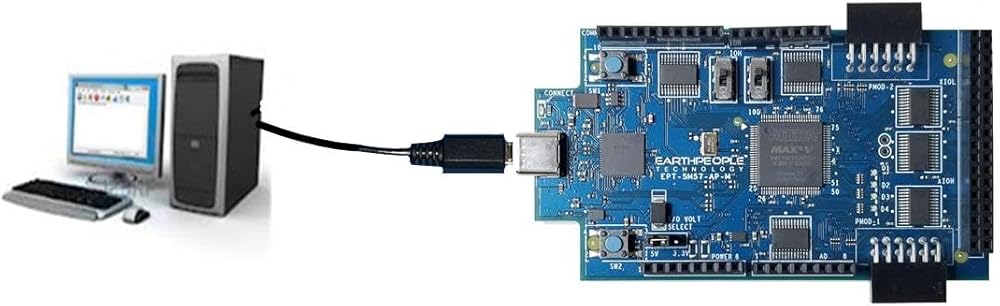

Quartus Prime Lite software. The user will develop the code in the
Quartus environment on a Windows Personal Computer. The
programmable logic code is then loaded into the CPLD using
only the Quartus Programmer software and a standard USB-C
cable. The programmer hardware is built in to the EPT-5M570-AP.
The ActiveHost API provides a highly configurable communications
interface between CPLD and host PC. It connects transparently
to the Active Transfer Library running inthe CPLD code.
