مميزات خاصة

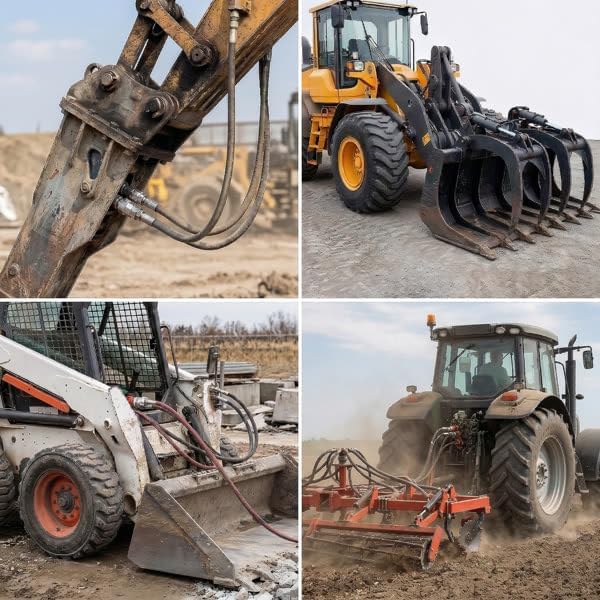

Flat Face High Flow Skid Steer Hydraulic Quick Connect Coupler: These high-flow couplers feature a quick push-to-connect operation and prevent hydraulic fluid spillage.Despite their simple push-fit design, users can trust their safety and performance, as tjeu are certified by the Hydraulic Tool Manufacturers Association(HTMA)

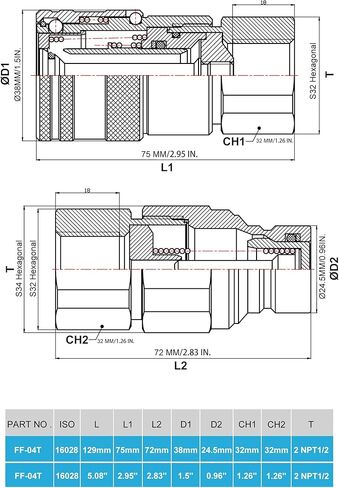

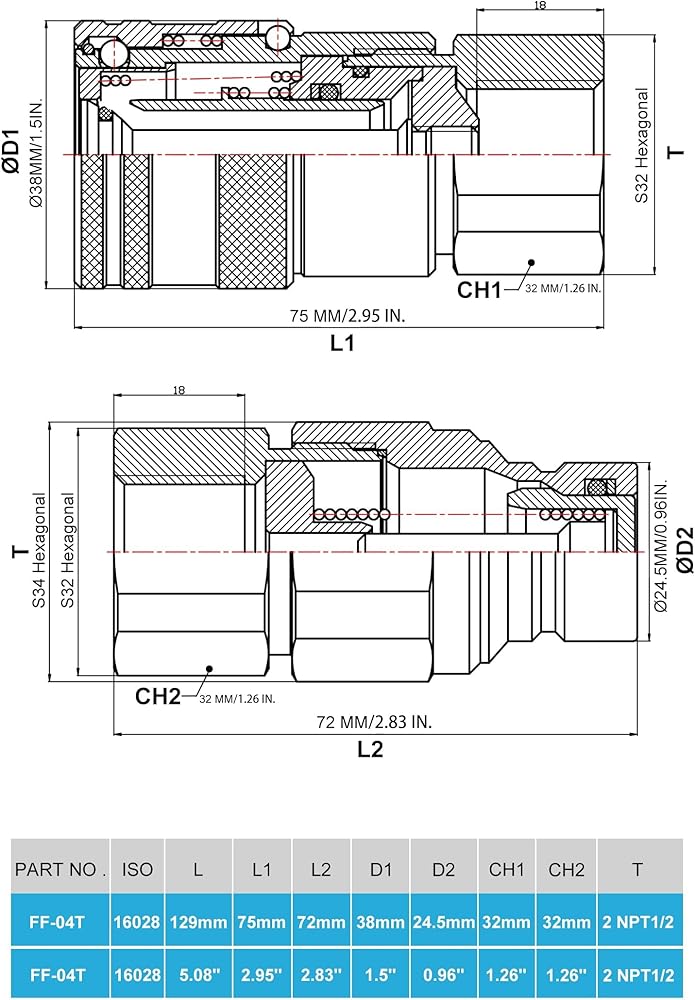

Hydraulic Coupling Quick Disconnect Couplers Set: Pressure Rating is 5,000 PSI rating(350Bar), Nominal Flow Rate is 12 GPM, Maximum Flow Rate is 23.78 GPM, Male Face Diameter is 0.94” (24.5mm), Male Hex Diameter is 1.26” (32mm) and Female Hex Diameter: 1.26” (32mm), Thread is M14.

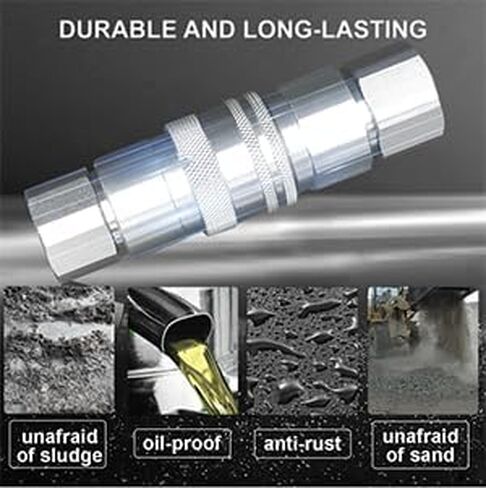

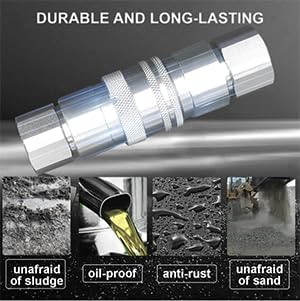

Quick Disconnect Coupler with Dust Caps: The included dust caps prevent dirt from entering the system, which could cause coupler failure or premature wear of internal components. The couplers feature advanced anti-rust perfomance thanks to a new chrome plating treatment, ensuring optimal condition even in harsh environments.
Flat Face Hydraulic Quick Connect Coupling: The durable locking sleeve design provides added strength and stability during operation, minimizing the risk of accidental disconnection.
CAUTION: These ISO 16028 hydraulic couplings are not suitable for use with Hydraulic Breaking Hammers.

وصف

Flact Face Hydraulic Quick Coupling, a high-quality coupling designed to meet the demands of heavy-duty hydraulic applications. With its new valve design, this coupling offers resistance to damage from high flow and pressure of impulse, ensuring a reliable and long-lasting performance.The sleeve locking mechanism of this quick coupling is engaged by rotating the sleeve after connection, providing a secure and leak-free connection every time. The new chrome plating treatment adds an advanced anti-rust performance, making this coupling suitable for use in a wide range of environments. Features:

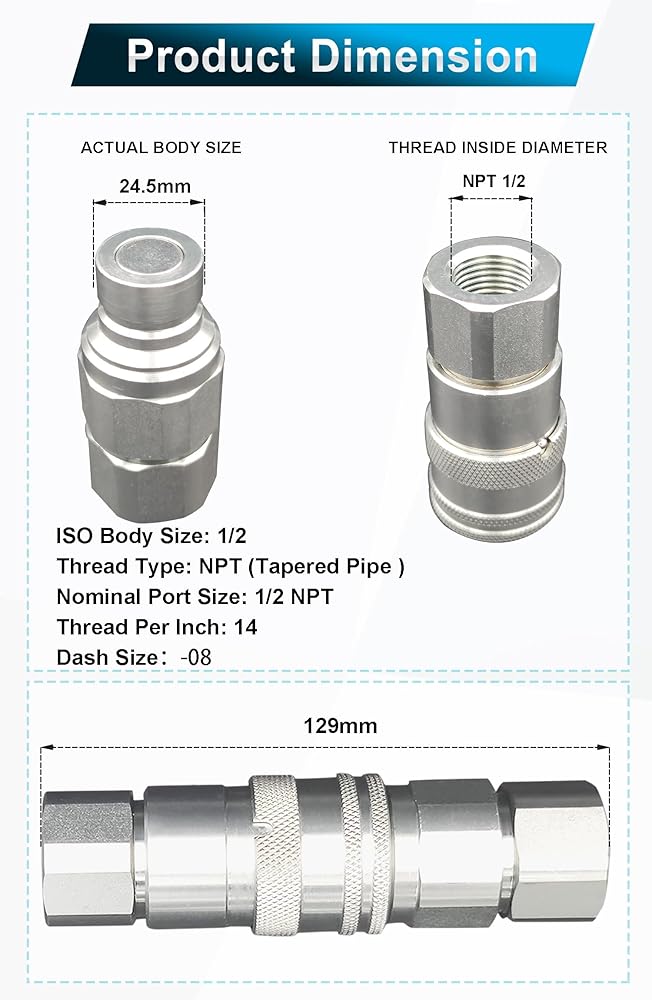

Body Size: 1/2″ Body

Thread Size: 1/2” NPT

Interchangeable with:

Parker FE Series: FEM-502-8FP, FEM-501-8FP
Faster FFH Series:FFH08 12NPT M, FFH08 12NPT F
Snap Tite 74 Series:74N8-8F, 74C8-8F
Stucchi FIRG Series:800801007, 800801006
Dixon HT Series:HT4F4, 4HTF4
DNP PLT4 Series:HT4F4, 4HTF4
DNP PLT4 Series:HT4F4, 4HTF4
Safeway FFE49 Series:FFE491-4, FFE495-4
Eaton Aeroquip FD89:FD89-1002-08-08, FD89-1001-08-08
Tomco FE Series:EP4-26, EC4-26

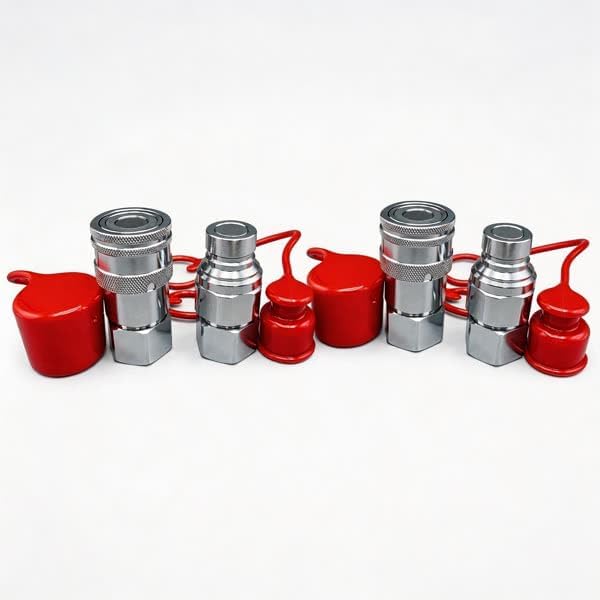

Package including:

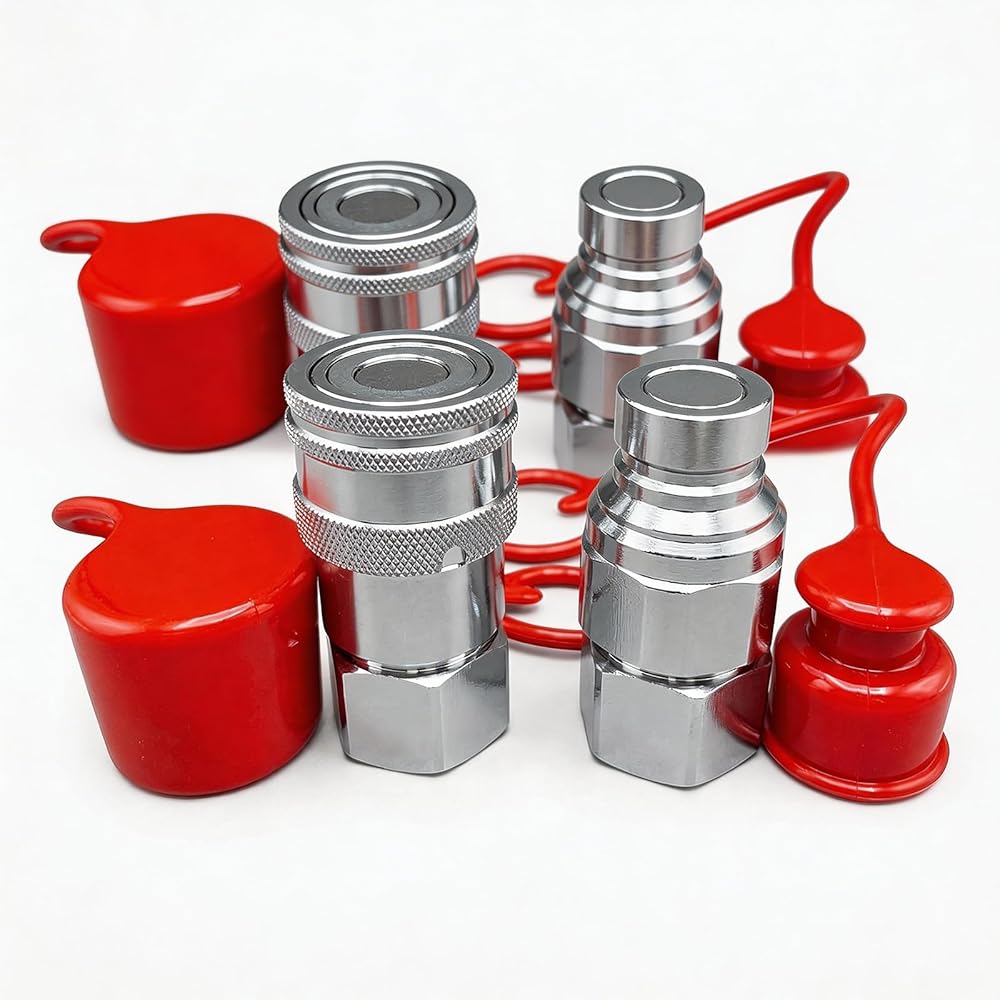

2* male hydraulic quick coupler
2* female hydraulic quick couplerr
2* male hydraulic dust cap
2* female hydraulic dust cap

مرحبًا،

بحث

مجموعة قارنات التوصيل/الوصلات الهيدروليكية ذات الوجه المسطح 1/2 بوصة NPT مع أغطية غبار ISO 16028 Standard، Skid Steer Bobcat 1/2 Body Disconnect 2 Sets, DecoHongDi
