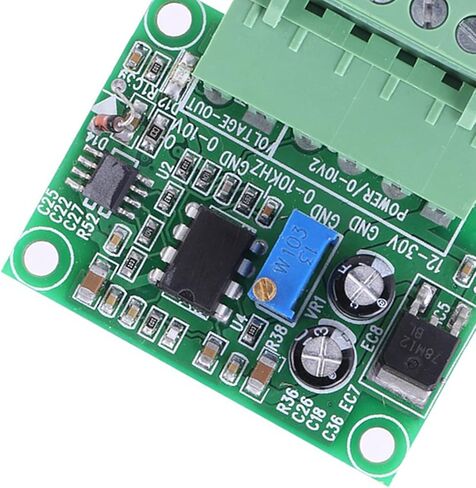

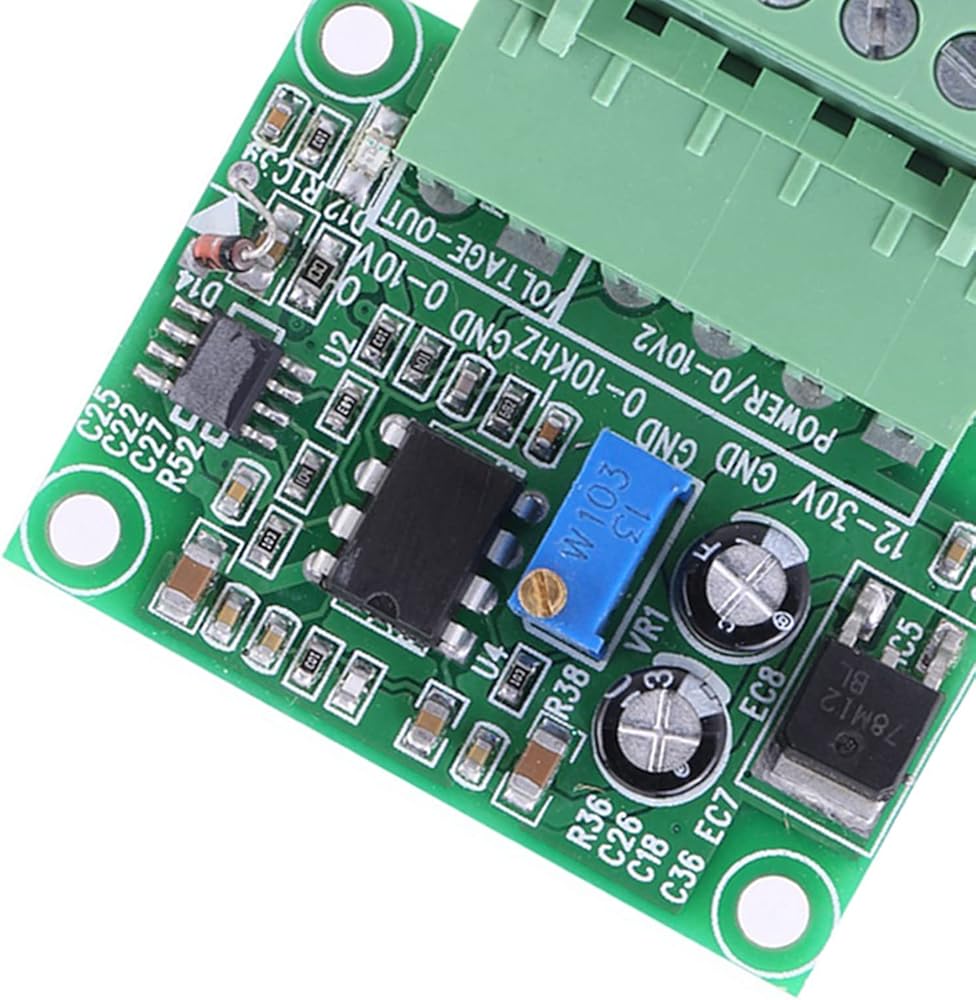

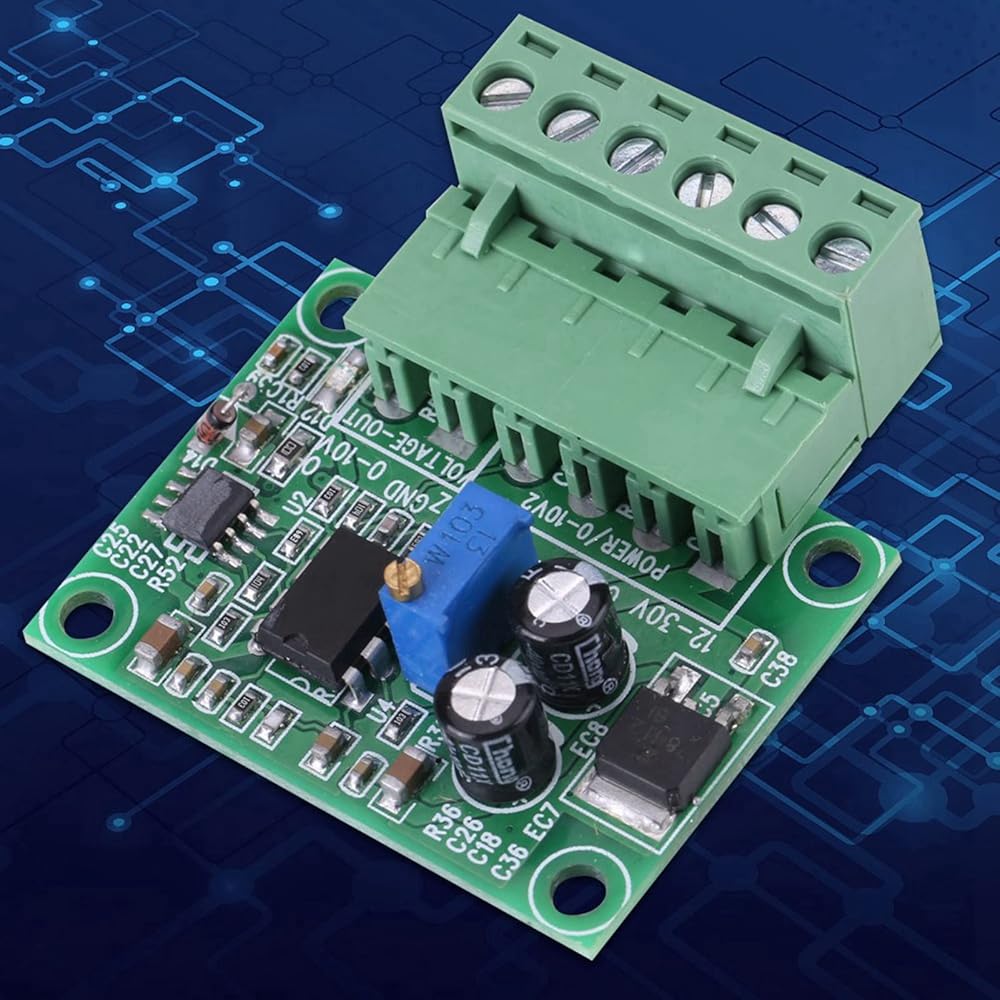

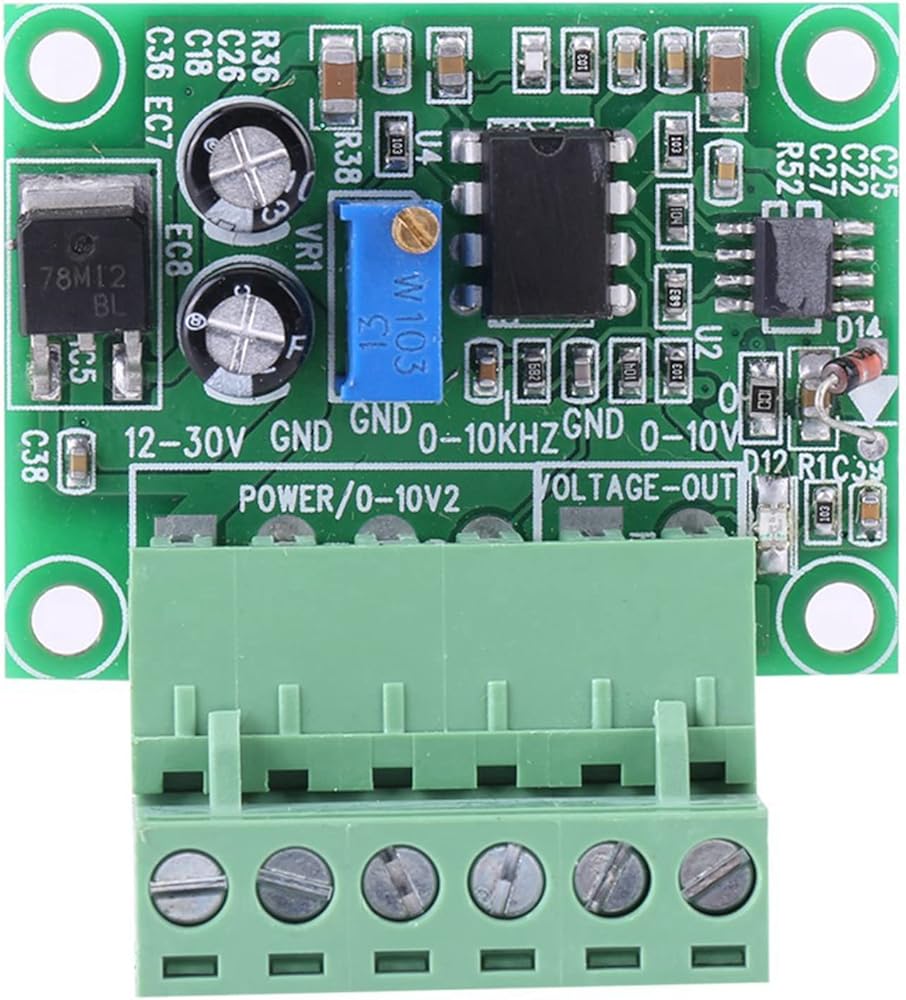

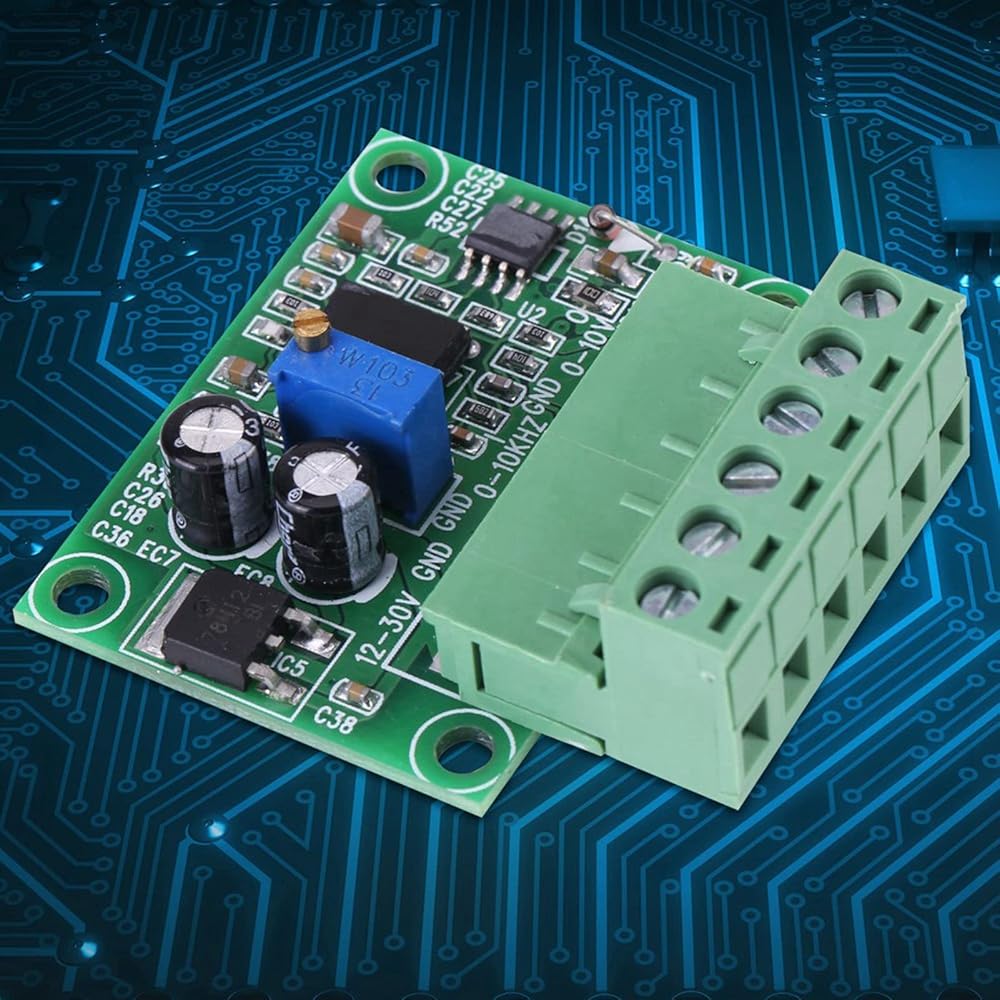

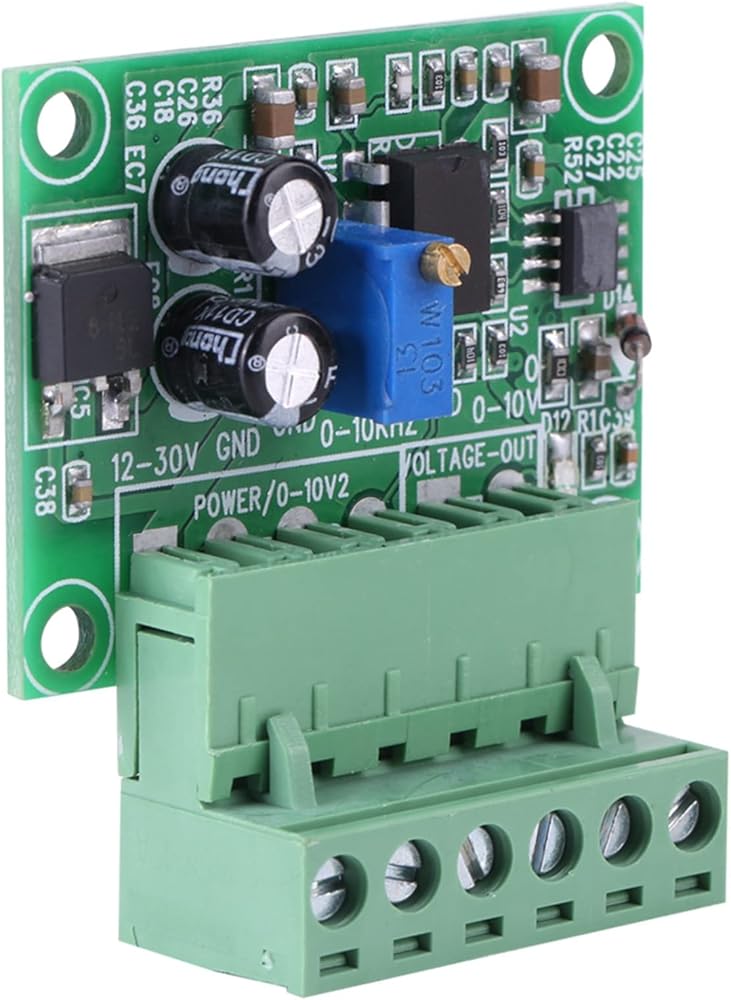

Specification:
Output current: 5MA
Voltage: 0-10V
Input pulse level: 5V 12V 24V
Frequency: 0 to 10KHZ

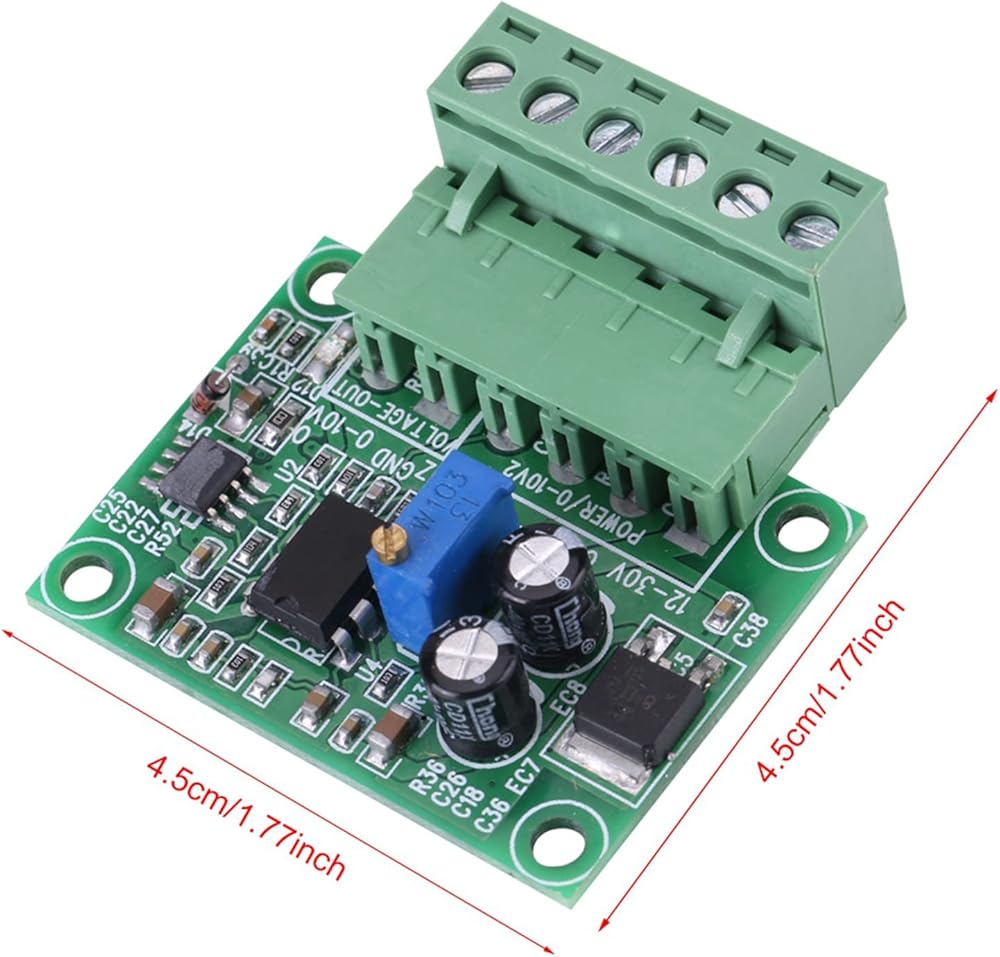

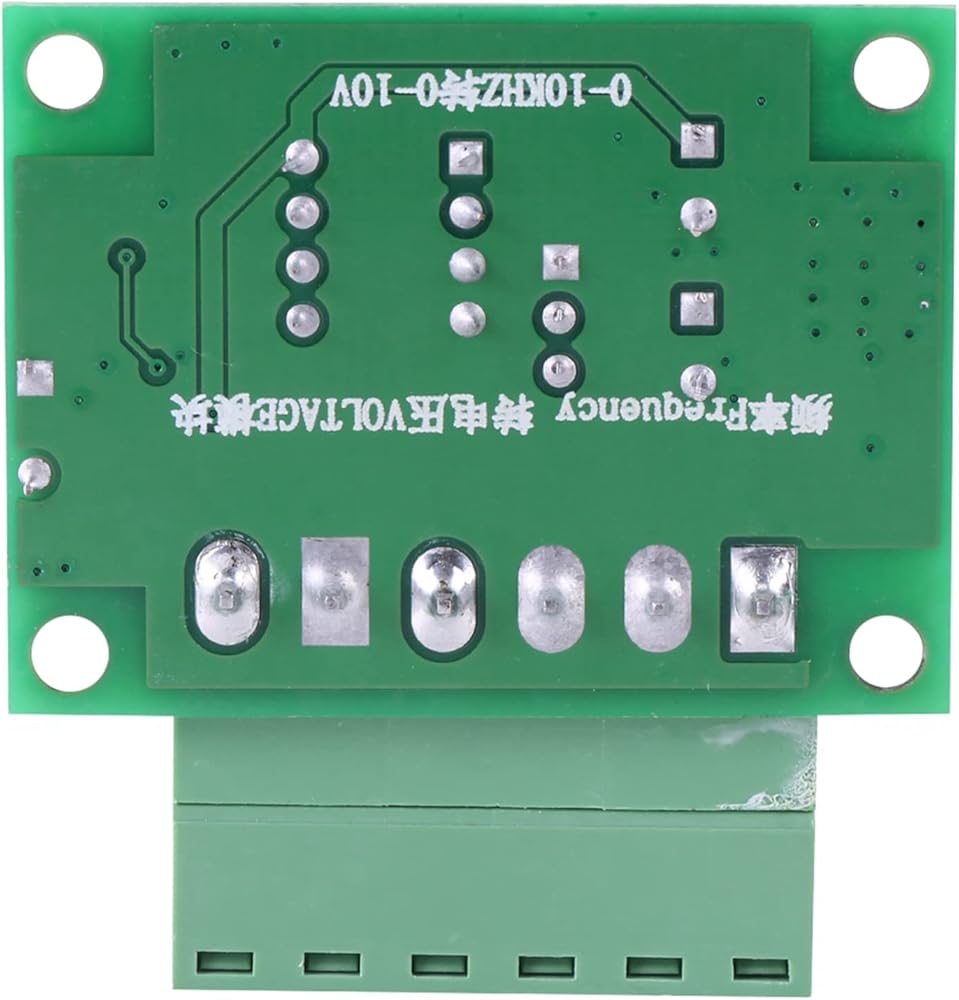

Size: Approx. 4.5 x 4.5cm / 1.77 x 1.77inch
Weight: 18g
Quantity: 1pc

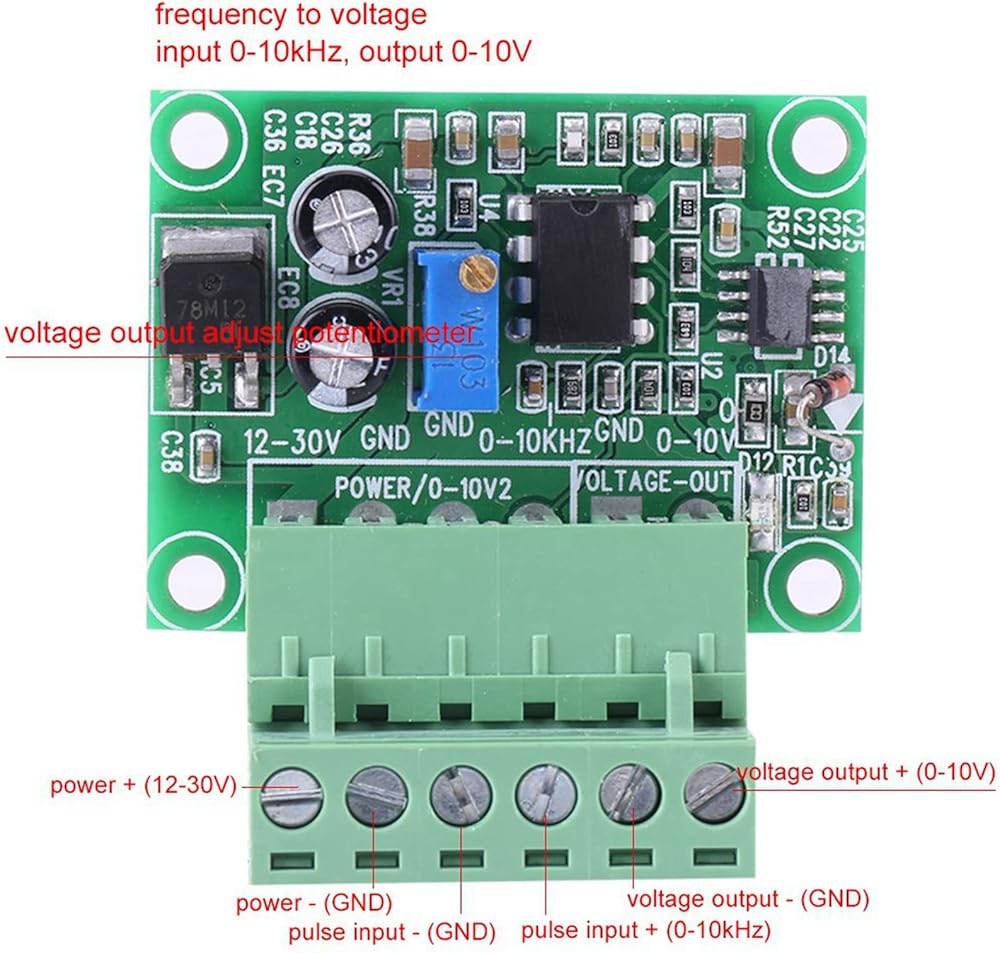

Use:
Multi-circle potentiometer board is used to calibrate the correspondence of the frequency and voltage.
Input supply voltage range of 12-30V DC.(The voltage of 15-24V is recommended)
When the electricity level is 12V, the power supply voltage can NOT be 12V. It's better more than 15V. When the electricity level is 24V, the power supply voltage can be 24V.
Signal inputs with optical coupling isolation. To ensure that the capability of anti-interfence.
For use with PLC supported NPN type. Must have a ground wire.
For with encoder requires constant speed of the encoder continuously rotate more than 0.5 seconds.
Frequency/ Voltage converter module, the response time is about 0.3-0.5 seconds.
If the signal input is turbine flow and so on, an 817 optical coupler and a resistor were needed to match the flow meter normally because of the signal match.

Corresponding relationship:
When the F / V with the resistance transferred to an intermediate value, F / v corresponding to the following relationship, 100HZ = 0.1V, accuracy is 1%. It can not reach to 2 digits after the decimal point if relatively high precision of the occasion is not enough.

0.1V = 100HZ
500HZ = 0.5V
1KHZ = 1V
2KHZ = 2V
3KHZ = 3V
4KHZ = 4V
5KHZ = 5V
6KHZ = 6V
7KHZ = 7V
8KHZ = 8V
9KHZ = 9V
10KHZ = 10V
Each 0.1V DC of correspondence between the frequency 100HZ. When the correspondence if allowed, can be corrected to adjust to the board potentiometer.

Package List:
1 x Frequency to Voltage Converter
