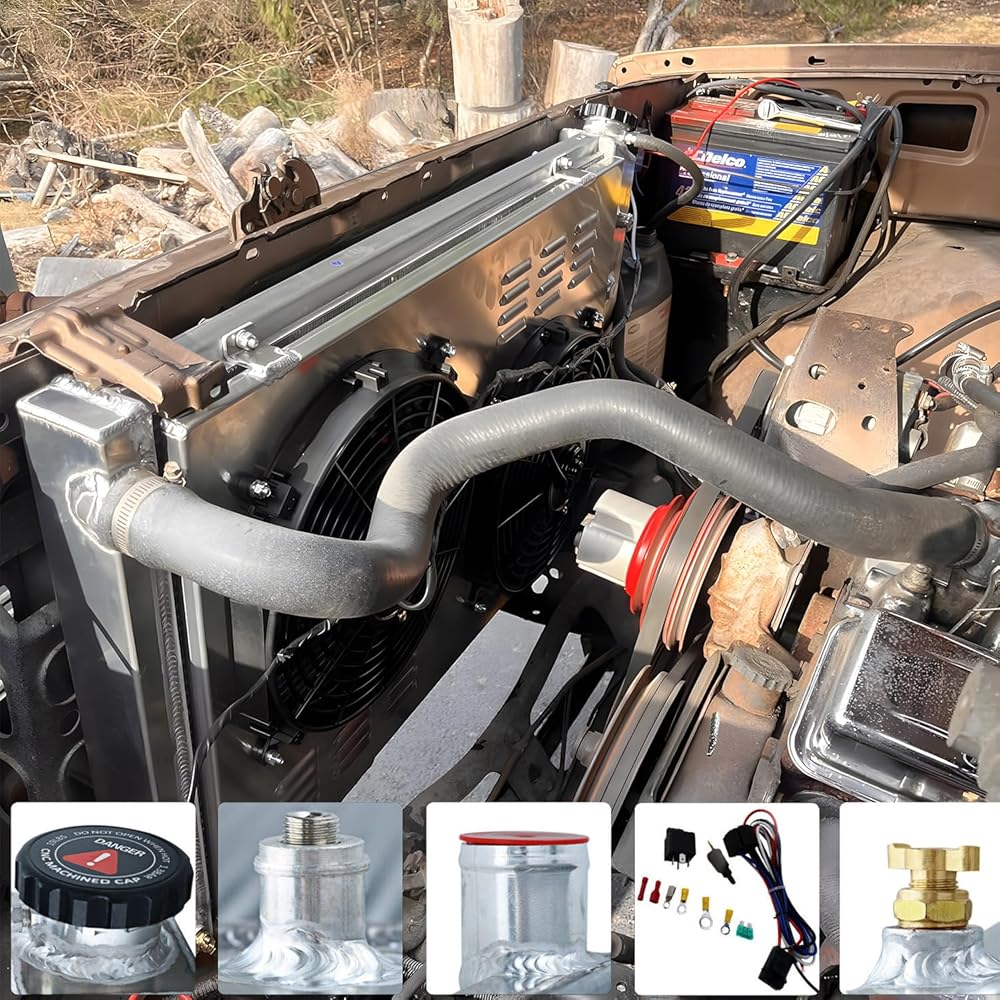

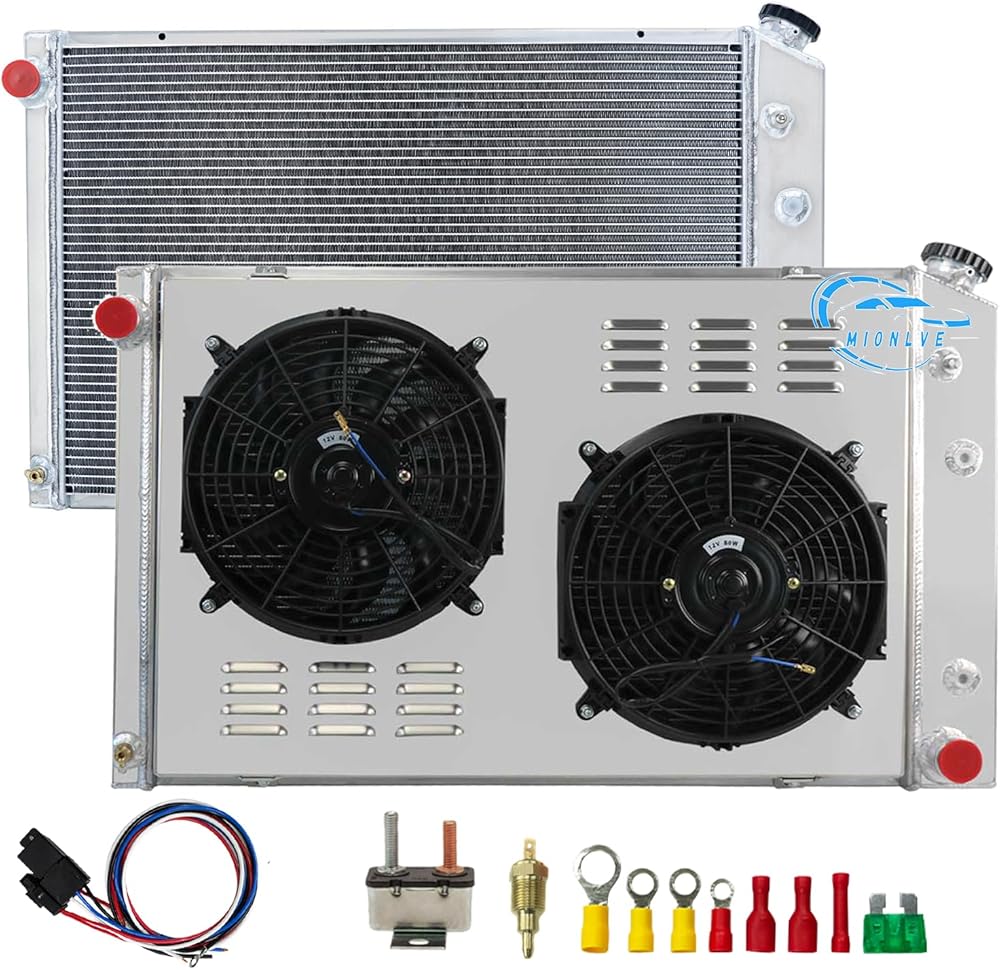

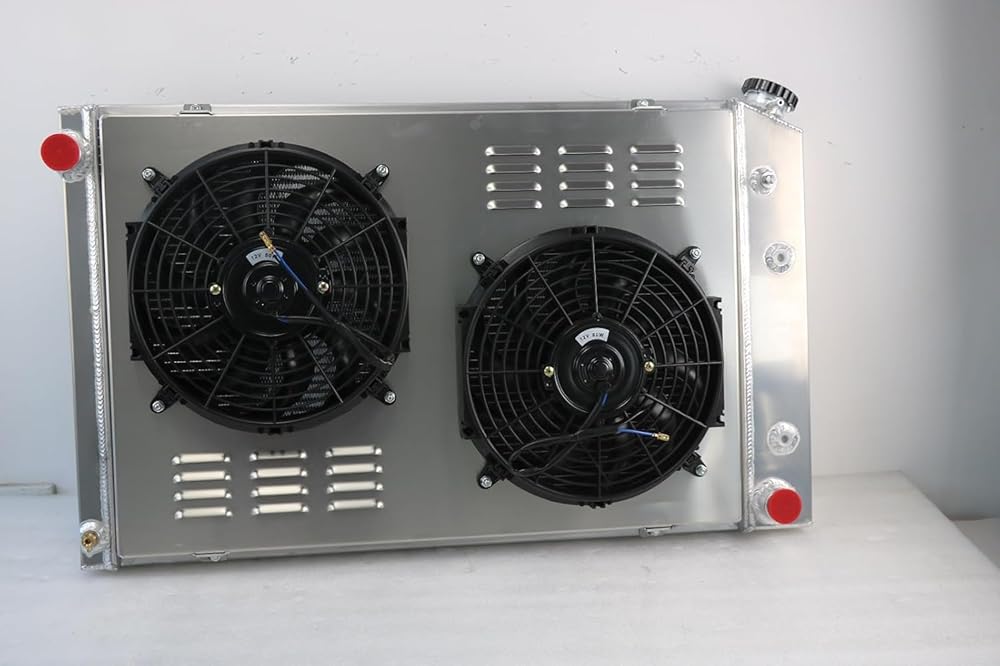

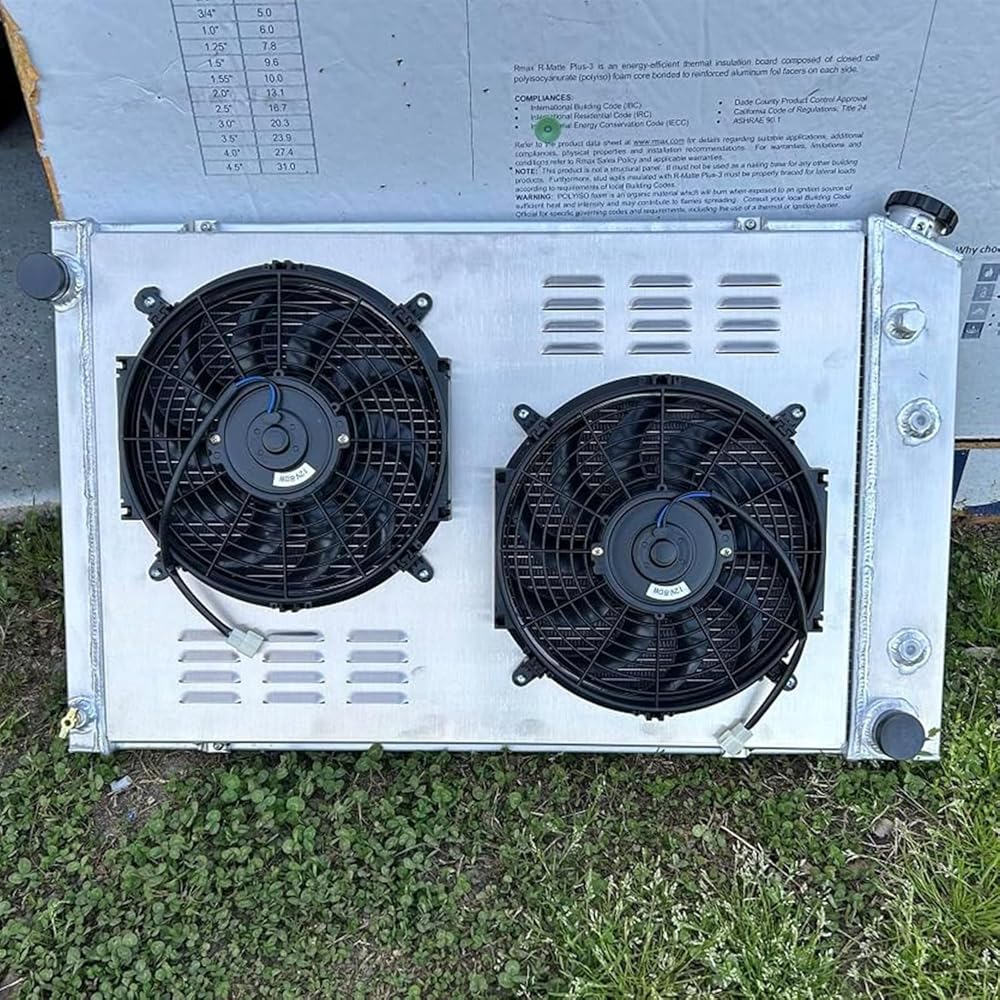

Package Include:

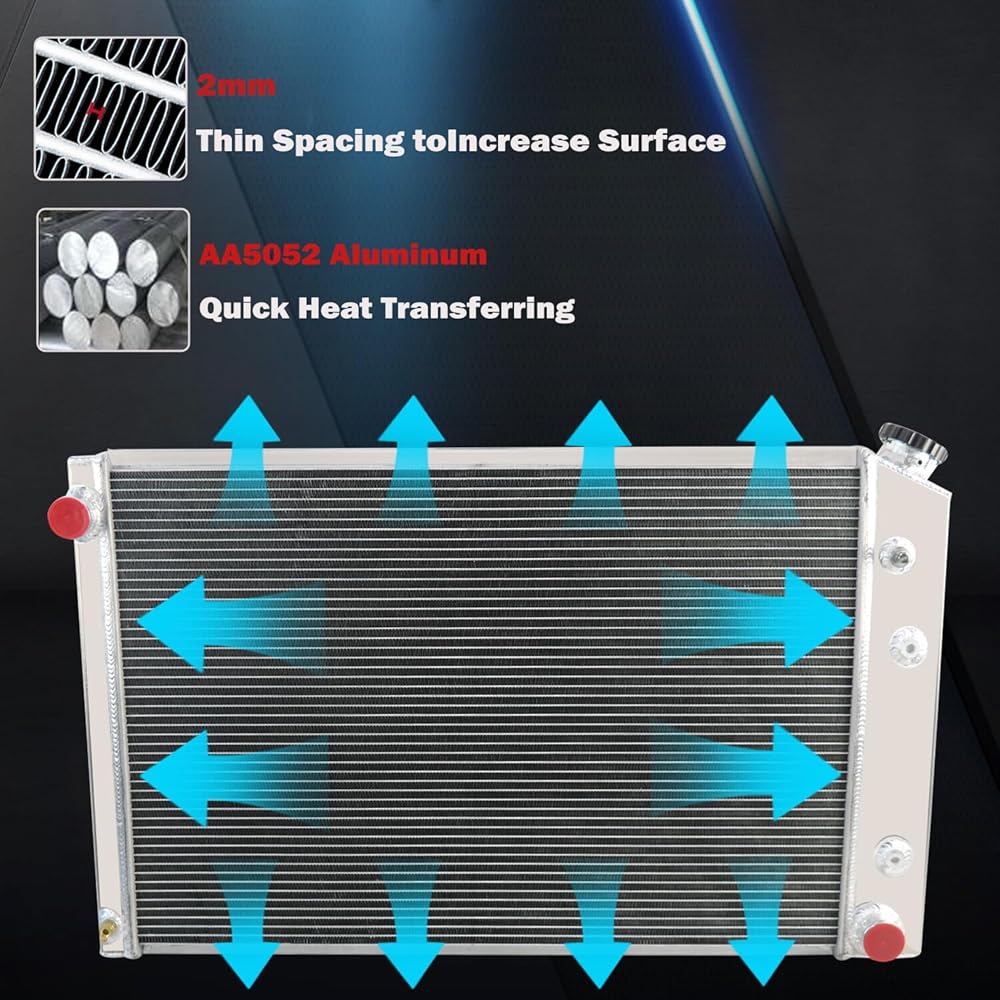

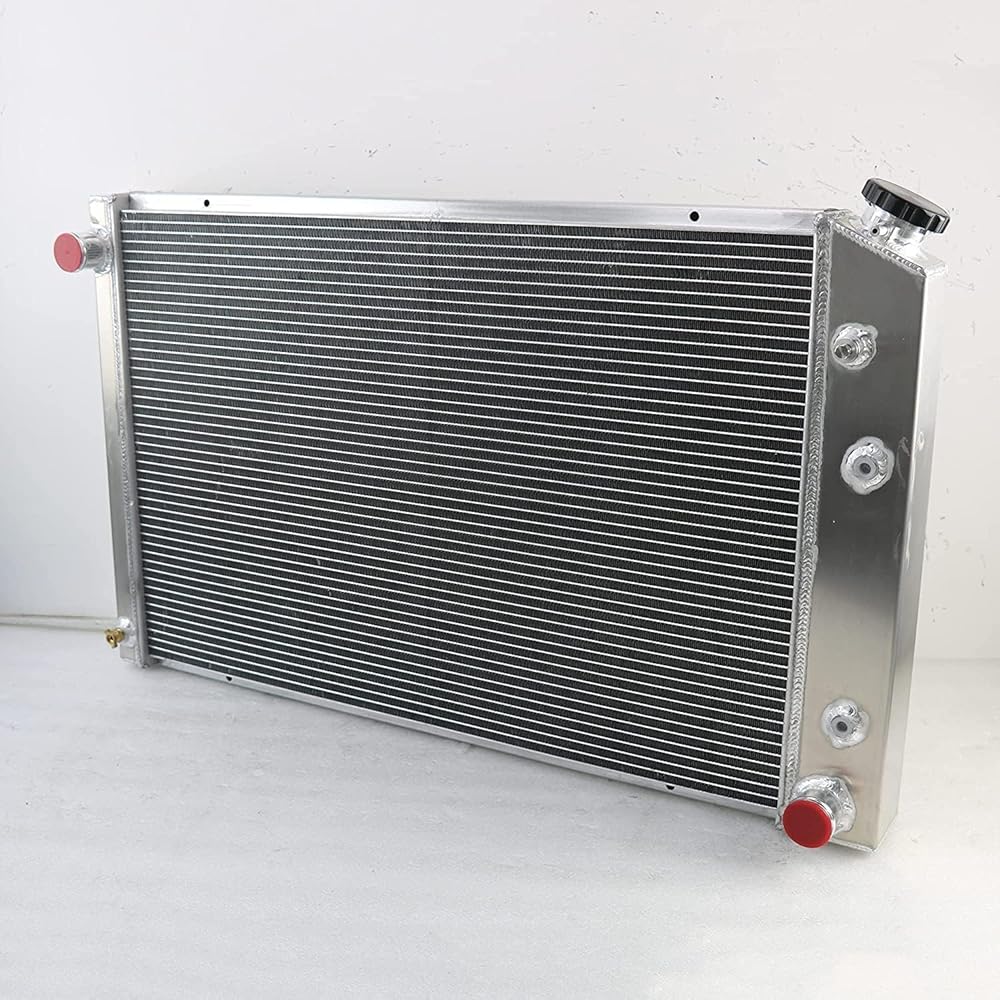

1 X 3-Row AA5052 Aluminum Radiator

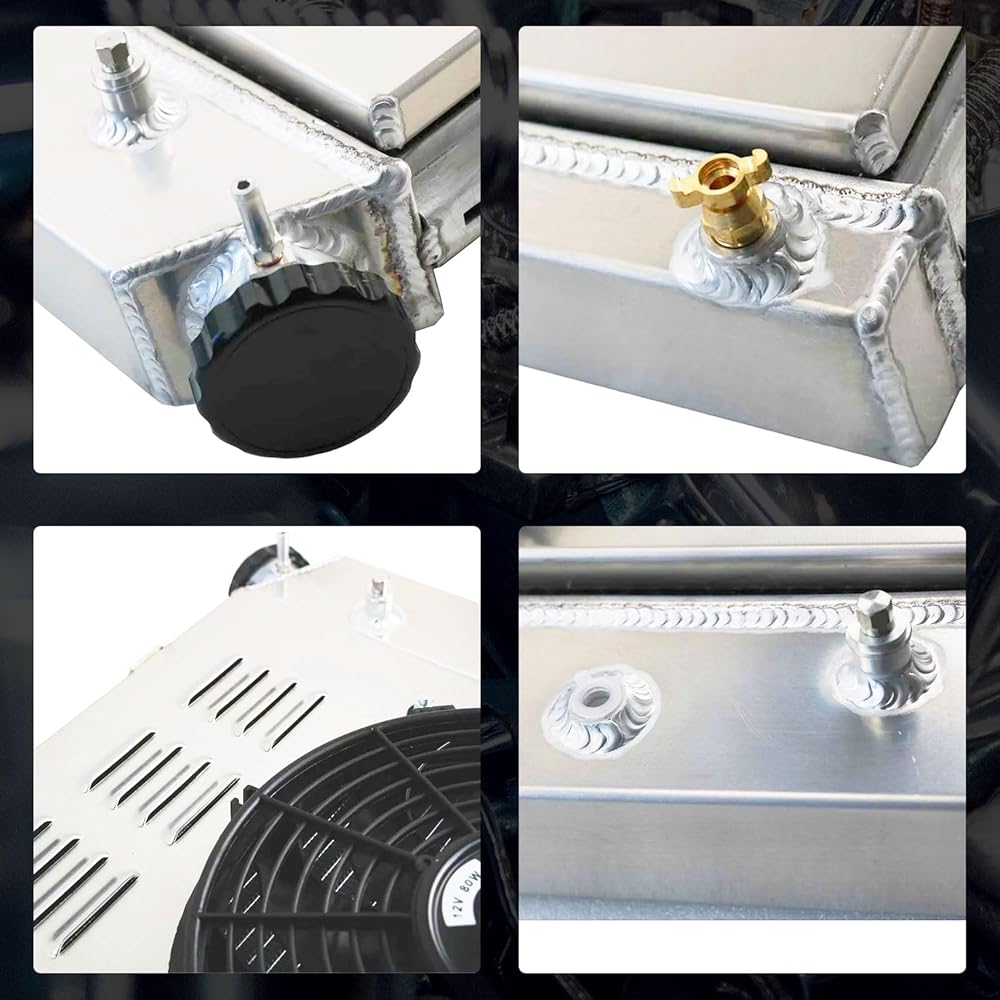

1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
Condition:New
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Petock Drain:OEM style brass petcock drain

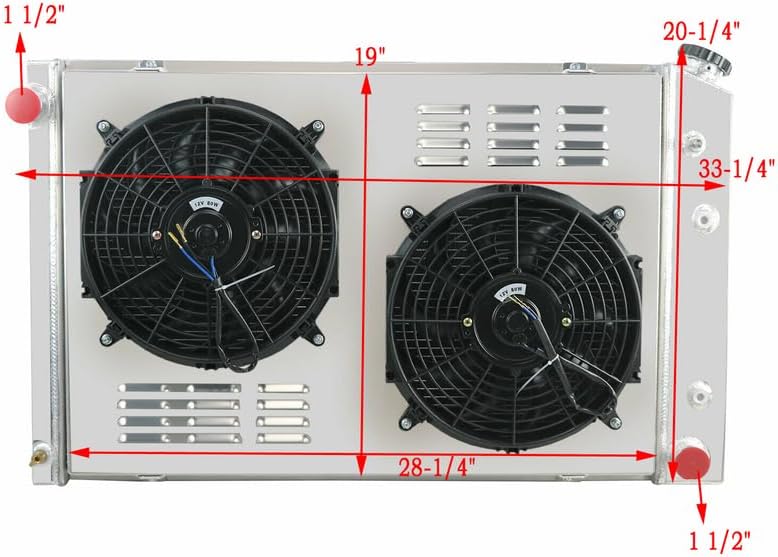

Core Size: 19" high x 28-1/2" wide
Overall Size: 20-1/4" high x 33-1/4" wide
Upper inlets: 1 1/2" located on the driver side
Lower outlets: 1 1/2" located on the passenger side
Transmission: Automatic and Manual.
Vehicle Fitment:
FOR 1990 Chevy Blazer / GMC V3500
FOR 1975-1983 Chevy C10 4.1L 4.8L 5.0L 5.7L 6.2L 6.6L 7.4L
FOR 1974 -1985 Chevy C10 Suburban
FOR 1976 -1986 Chevy C20 4.1L 4.3L 4.8L 5.0L 5.7L 6.2L 7.4L
FOR 1974 -1983 Chevy C20 Suburban
FOR 1977 1982 1986 Chevy C30
FOR 1974 Chevy C30 Pickup
FOR 1978 1979 1982 1986 Chevy K10
FOR 1973 Chevy K10 Pickup / GMC P35/P3500 Van
FOR 1979 1984 Chevy K10 Suburban
FOR 1975 -1985 Chevy K20
FOR 1974 -1986 Chevy K20 Suburban
FOR 1978 1984 Chevy K30
FOR 1974 Chevy K30 Pickup
FOR 1979 Chevy K5 Blazer 4.1L 5.0L 5.7L 6.6L
FOR 1973 Chevy P10 Van 4.1L 5.0L 5.7L 7.4L
FOR 1979 1983 1988 Chevy P20
FOR 1977 1981 1985 1993 Chevy P30
FOR 1974 Chevy P30 Van
FOR 1987 Chevy R10 / V30 GMC R1500 Suburban / R2500 Suburban / V1500 FOR 1990 Chevy R1500 Suburban
FOR 1988 Chevy R20 Suburban/ V20 Suburban GMC R3500
FOR 1990 Chevy R2500 Suburban 5.7L 6.2L 7.4L
FOR 1989 Chevy V1500 Suburban /GMC V2500 Suburban
FOR 1973 1975 GMC C15 / C1500 Pickup 4.1L 4.8L 5.0L 5.7L 7.4L
FOR 1976 GMC C15 Suburban / C35
FOR 1981 1985 GMC C1500
FOR 1983 GMC C1500 Suburban
FOR 1977-1978 GMC C25 / K35
FOR 1977 GMC C25 Suburban
FOR 1973 GMC C25 /C2500 Pickup / K25 /K2500 Suburban
FOR 1981 1982 1986 GMC C2500
FOR 1981 1985 GMC C2500 Suburban
FOR 1979 1982 1986 GMC C3500
FOR 1979 GMC G2500
FOR 1976 1980 1986 1990 GMC Jimmy
FOR 1975 GMC K15 / K15 Suburban / K25 / K25 Suburban
FOR 1974 GMC K15 /K1500 Pickup
FOR 1979 1982 1983 GMC K1500
FOR 1979 1983 GMC K1500 Suburban/ K2500 / K2500 Suburban
FOR 1982 1986 GMC K3500
FOR 1980 GMC P1500 4.8L
FOR 1982 1989 GMC P2500
FOR 1975 GMC P35 4.8L 5.7L 7.4L
FOR 1983 1989 1993 GMC P3500
FOR 1988 1989 GMC V1500 Suburban
Interchange Part Number: 716, CC716, CU716, DPI716, CU1599, EC716, AE716, MC716
Other Part Number:438716 433716 1605-370200 0716-2AA CR1599
Part Number: 1599 8011599 3687 2308 REA411599A SPTCU1599

Fan Specifications：
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Description:
1.We are specialized in Cooling&Radiator.
2.All our products are 100% fully tested to ensure top quality.
3.Full set in box and 100% brand new.
4.We warranty that all our products are made of the best materials and advanced manufacture technique.
5.Customer service and high-quality products.
6.Easy to Install.

About MIONLVE:
If you have any questions, please feel free to contact us, we will solve it for you.
