مميزات خاصة

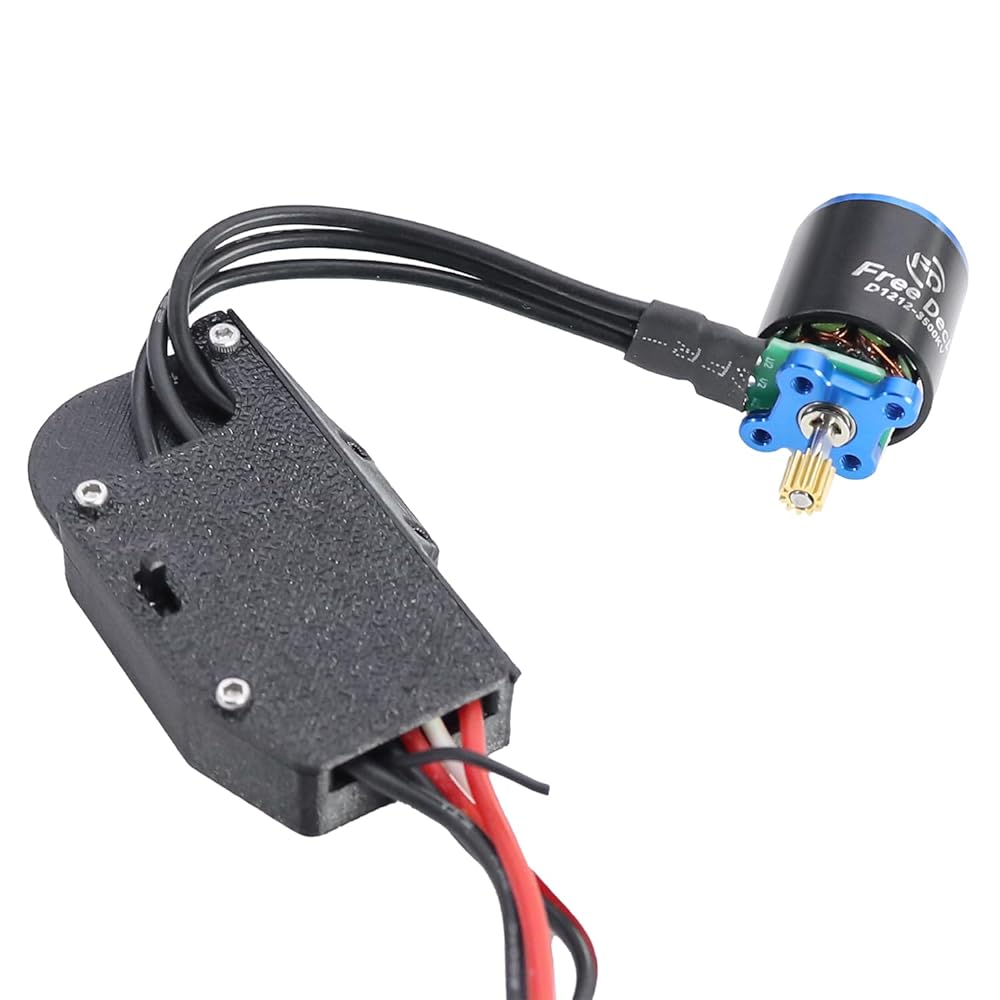

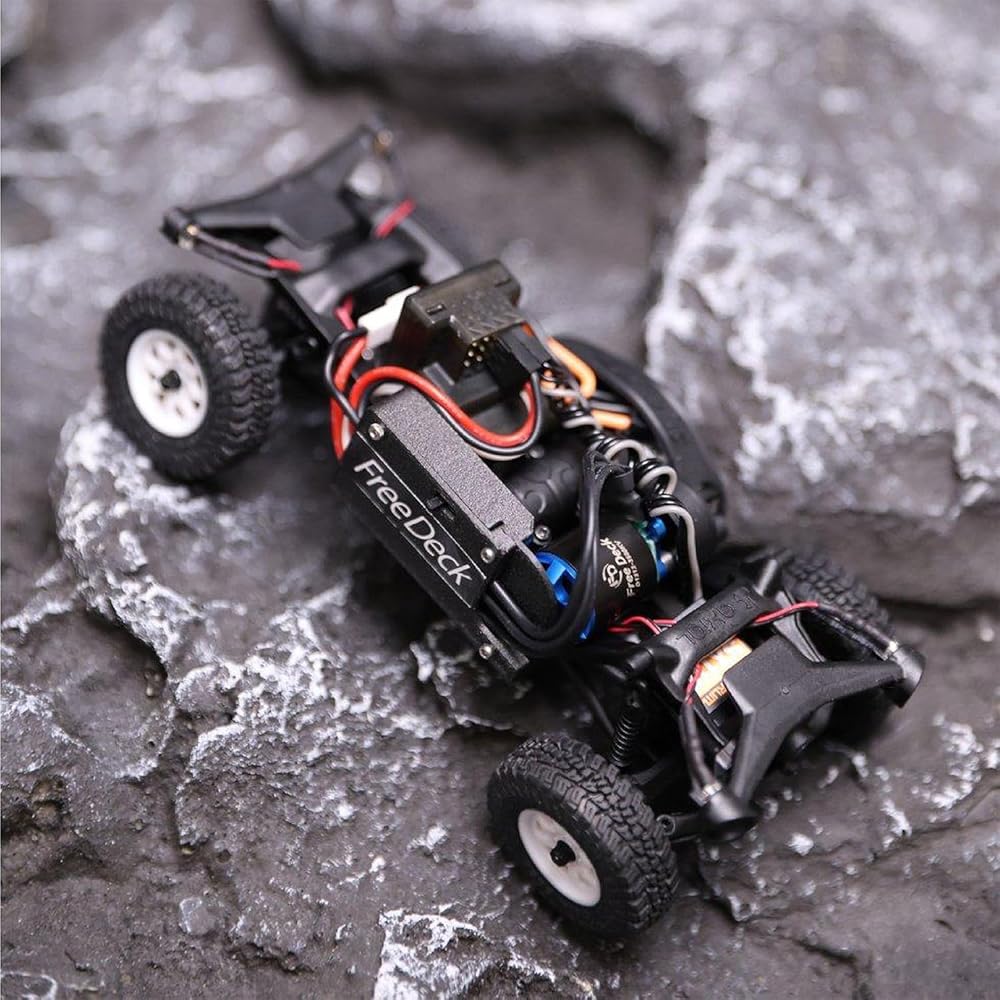

Designed for SCX30 – Fits directly into the stock ESC location, plugs into the original battery, and features an ultra-compact size for seamless integration.
Built-in Bluetooth – Parameter settings, firmware upgrades, and other operations can be performed using a mobile phone, with simple and fast operation. (Note: Bluetooth range is limited to about 5 meters.)
Intelligent Torque Control – Smart algorithms automatically adjust torque and drag brake based on driving conditions (climbing/descending), delivering strong linearity and high burst power in both crawl and speed modes.
Smooth Silent Operation – Optimized sinusoidal and square wave transition eliminates cogging and jitter, providing seamless throttle response and quiet running.
Excellent Low-Speed Control High-Speed Power – Precision balanced rotor and optimized magnetic structure reduce vibration, improve efficiency, and deliver strong torque at low speed with explosive power at high speed.

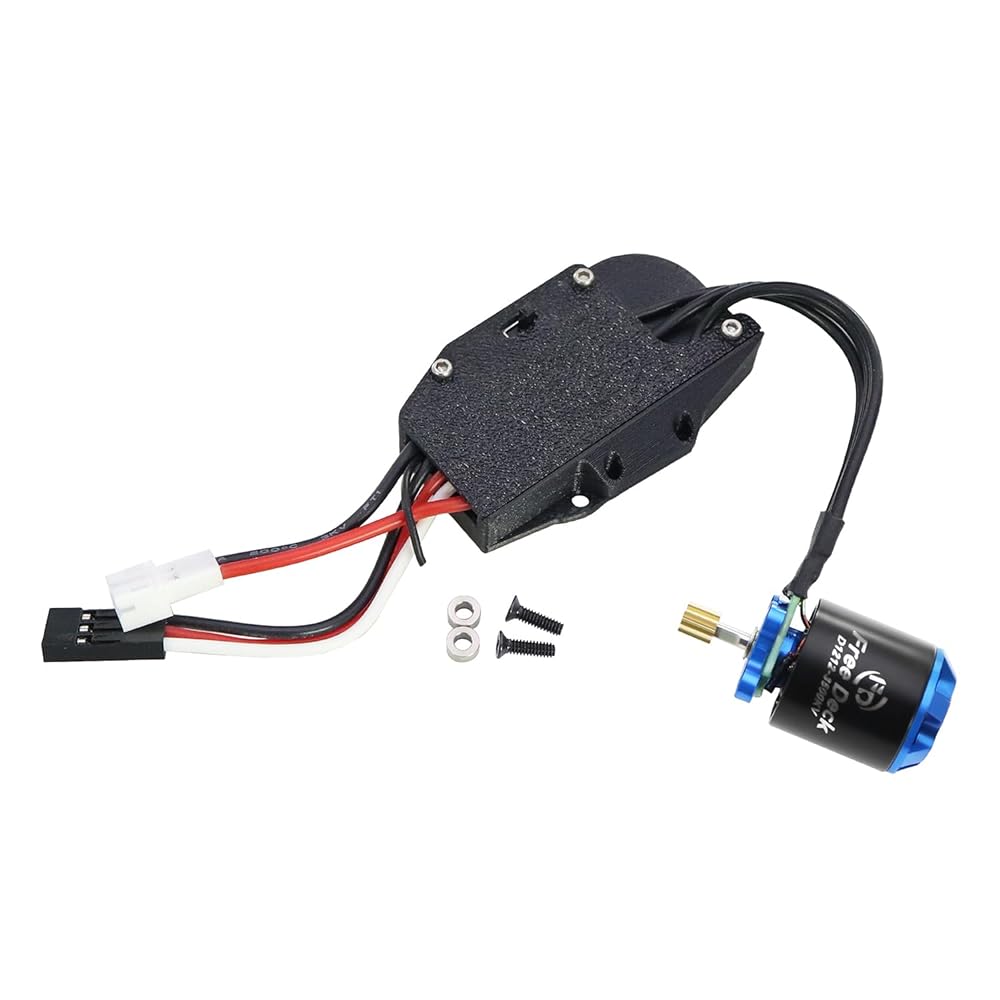

Wide Compatibility – Motor includes 9mm and 12.5mm mounting holes, a 2mm shaft, and comes with metal shims to fit most small-scale crawlers and drift cars.
Plug-and-Play – Uses PH2.0-3P connectors (no soldering needed) with flexible silicone wires for easy installation in tight spaces.

وصف

Specifications:

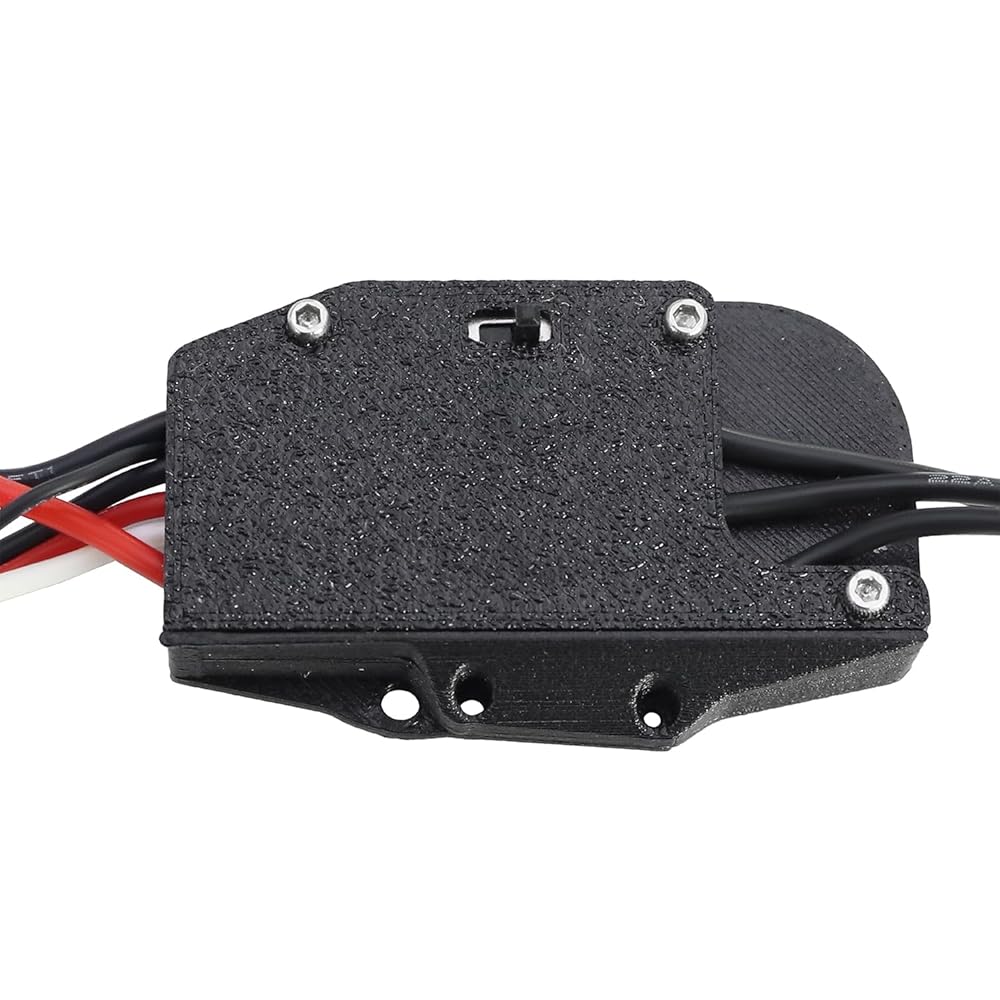

ESC (Model FD24):
Continuous Current: 25A
Battery Cells: 1S-2S
BEC Output: 5V/3A
Wire: 22AWG silicone
Connectors: MX2.0 (power), PH2.0-3P (motor)

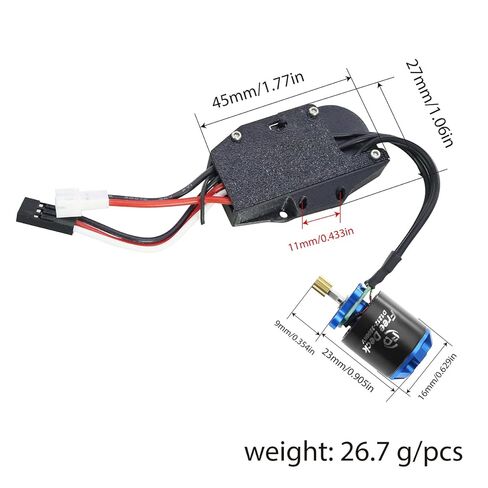

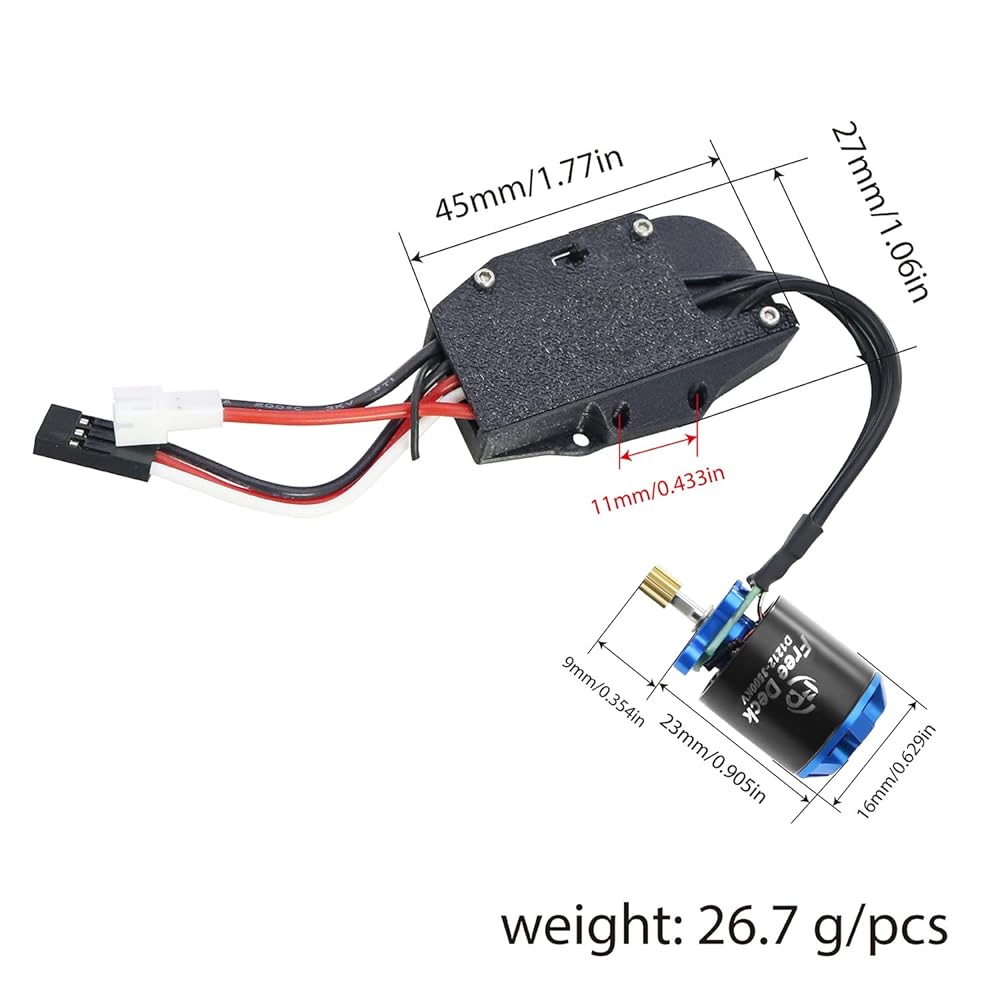

Dimensions: 33×22×12.2mm (without screws)
Weight: 16g (with wires)
Tuning: Mobile APP / WeChat Mini Program
Online Updates: Supported

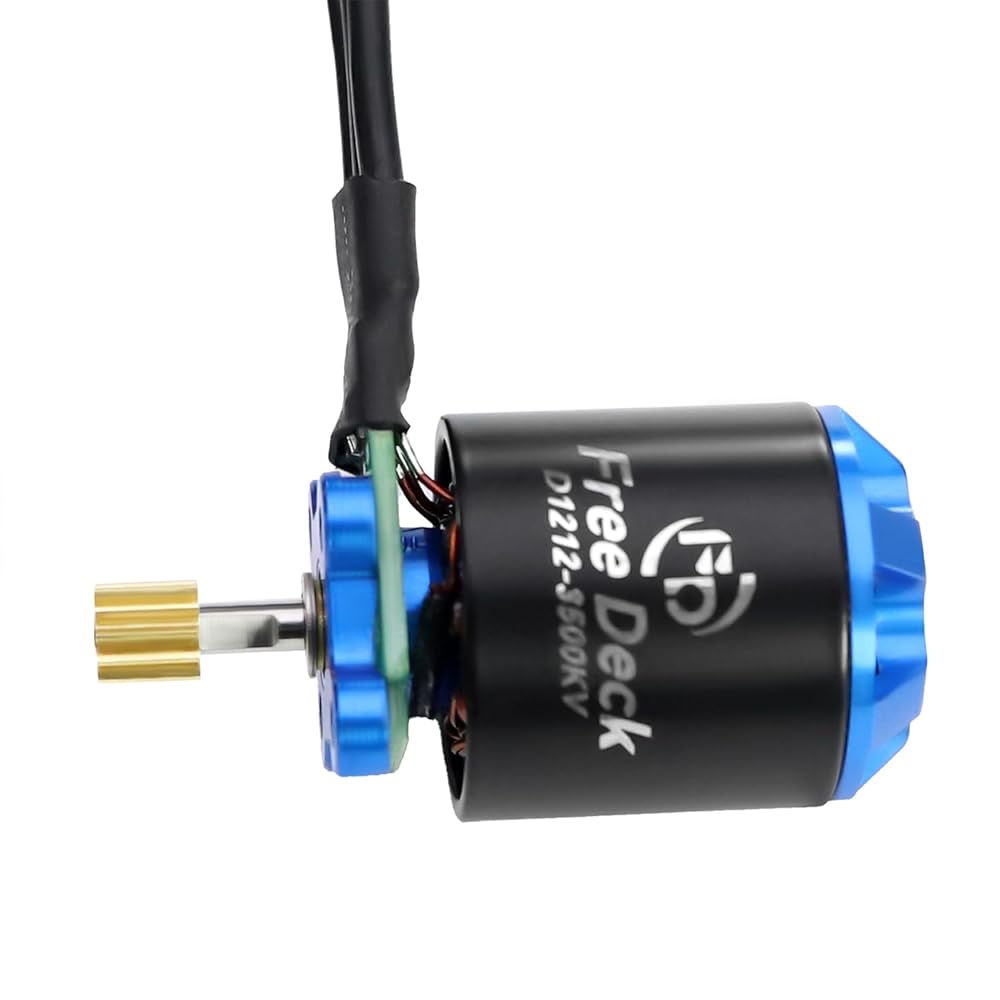

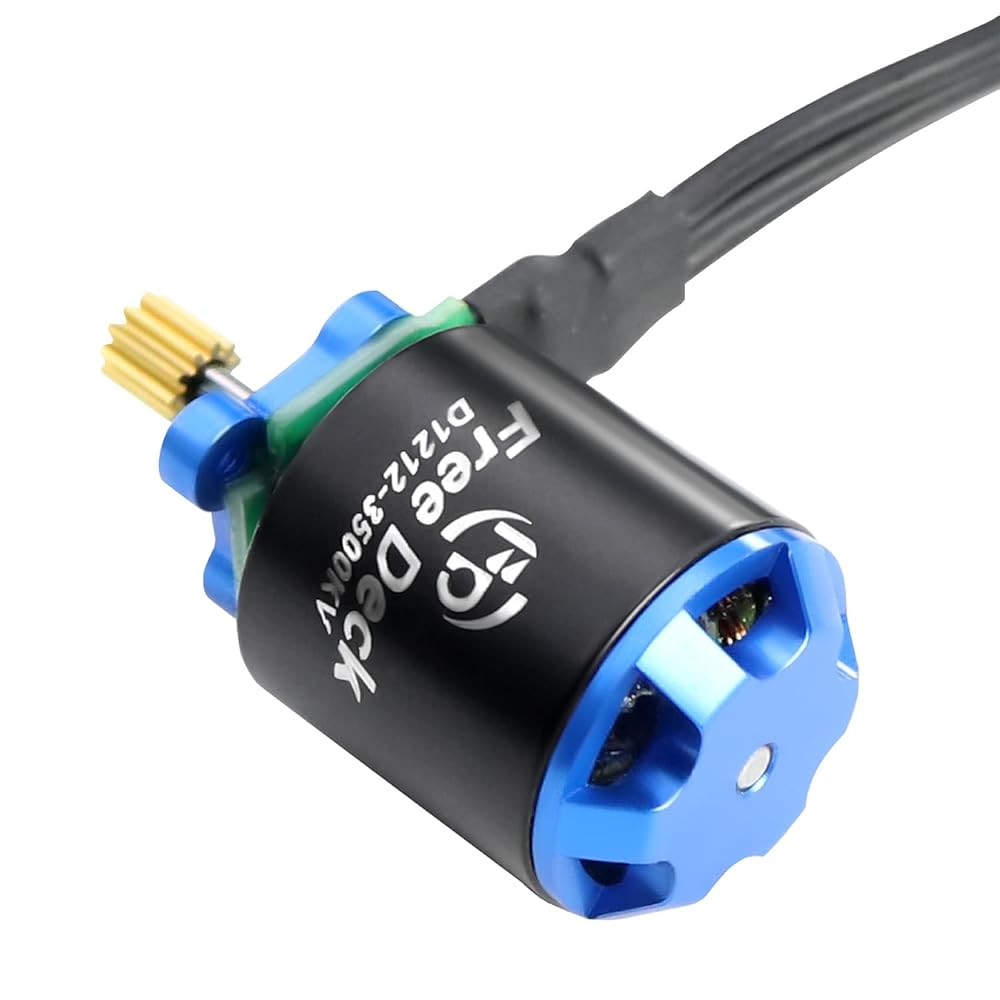

Motor (Model D1212):
KV Rating: 3500KV
Battery Cells: 2S-3S
Shaft Diameter: 1.98mm (press fit)
Exposed Shaft Length: 9mm
Dimensions: 31mm length, 15.8mm diameter
Mounting Holes: 9mm / 12.5mm spacing
Weight: 17g
Wire Length: 130mm
Connector: PH2.0-3P

Note:
This ESC does not include a receiver. The original SCX30 receiver is integrated with the stock ESC.To use this combo, you will need to provide your own compatible transmitter and receiver.
Bluetooth tuning requires a smartphone and works within ~5 meters.
