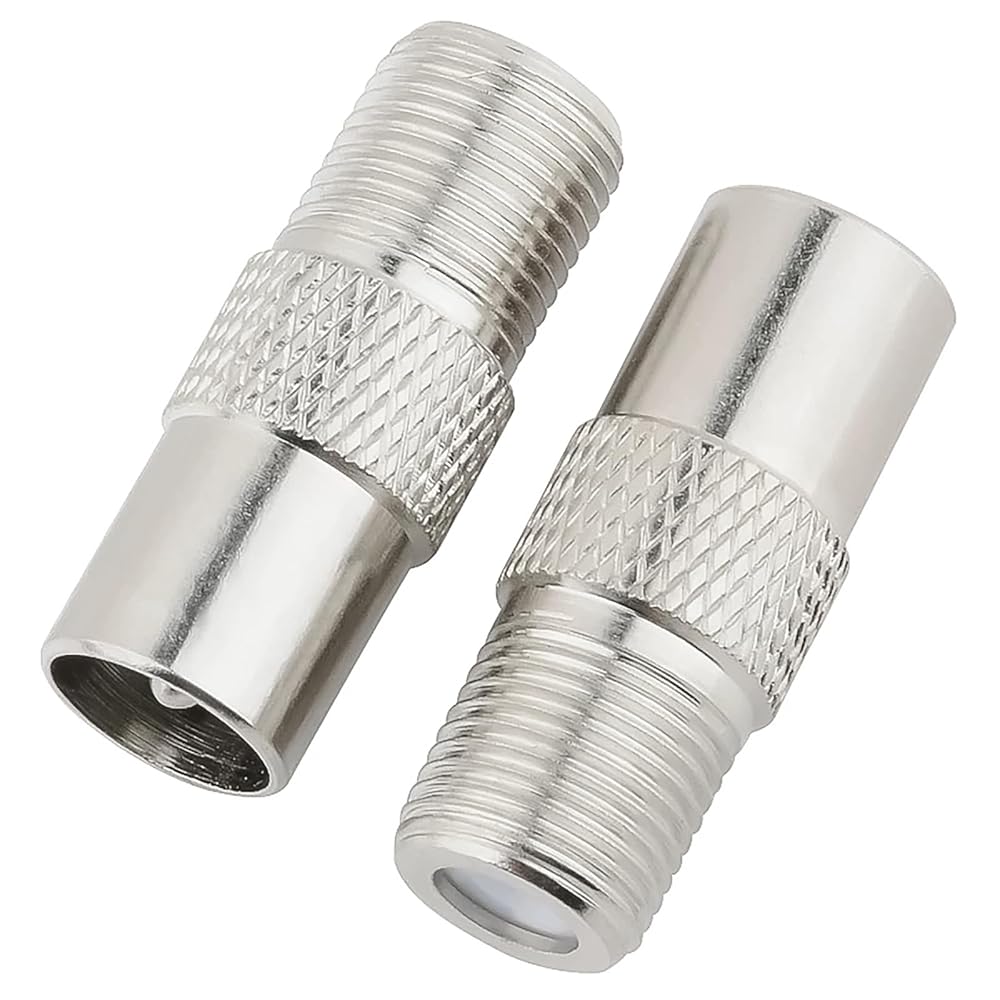

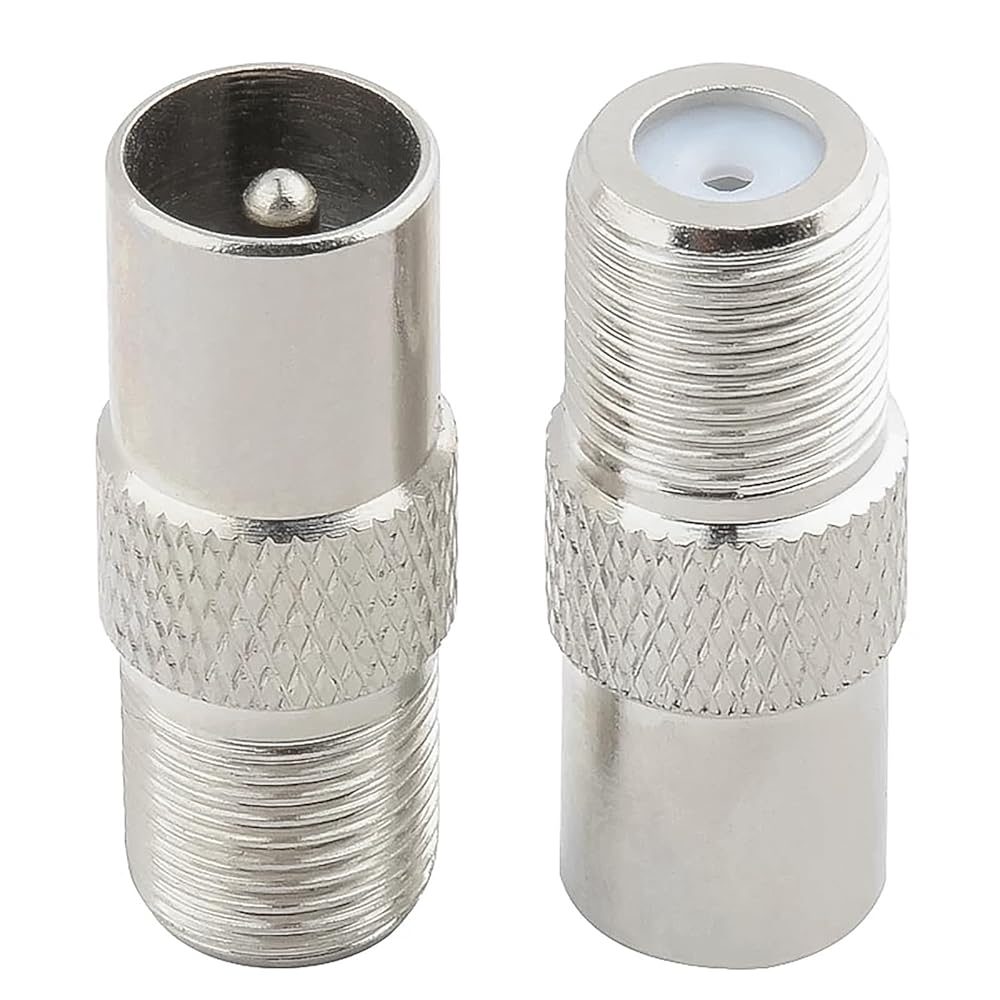

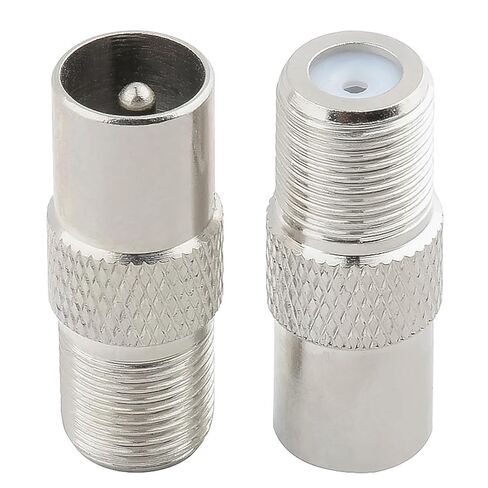

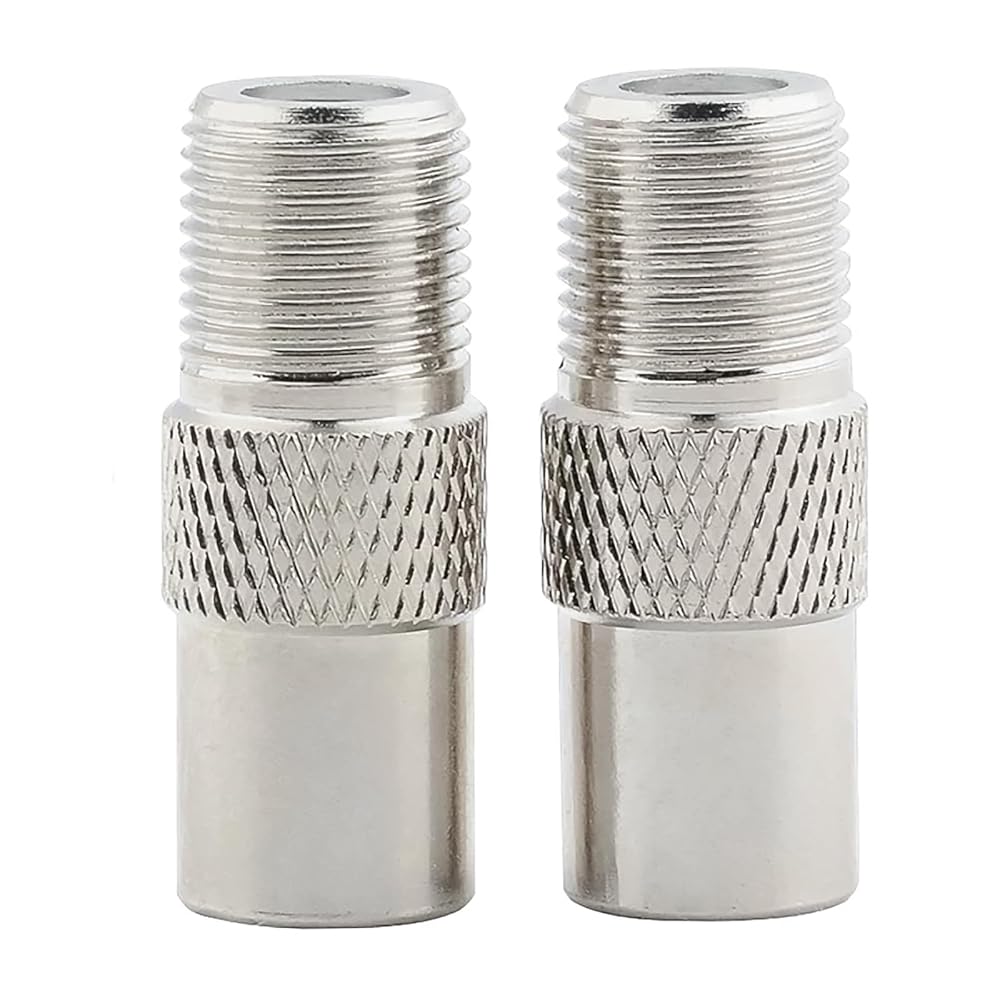

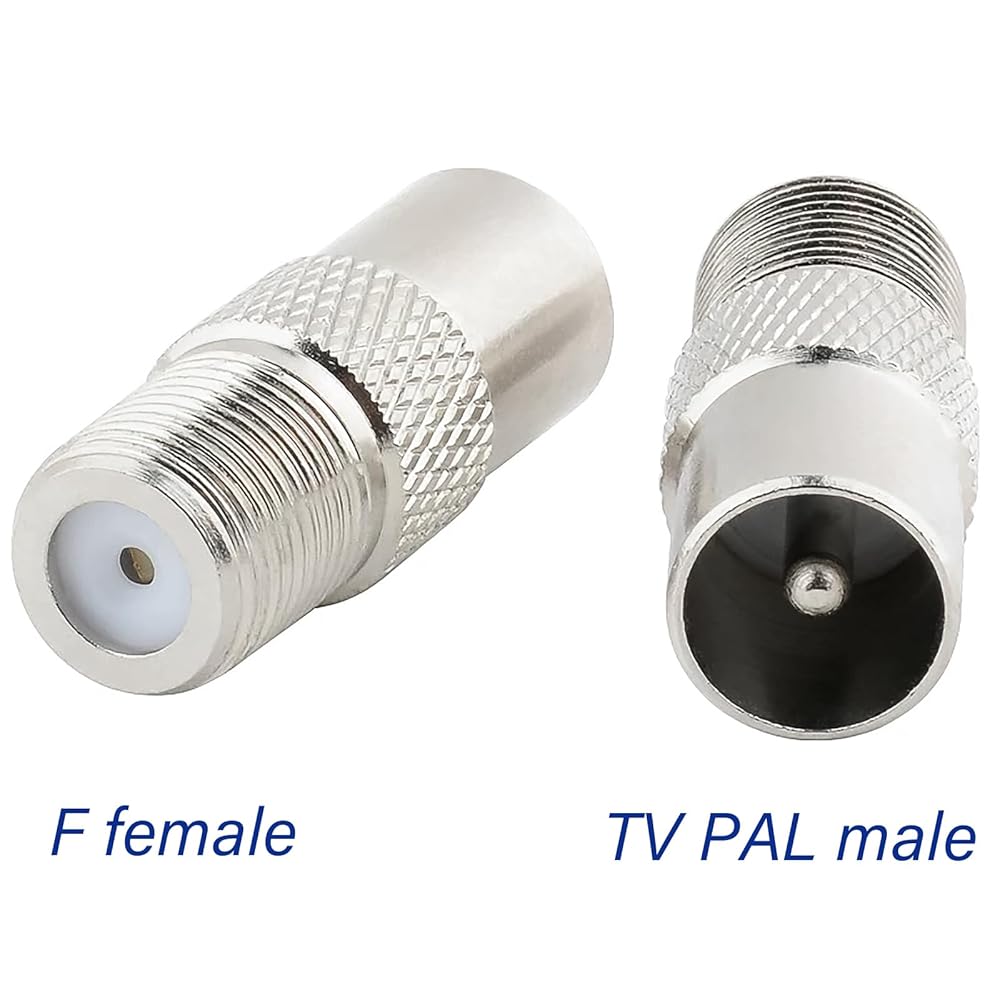

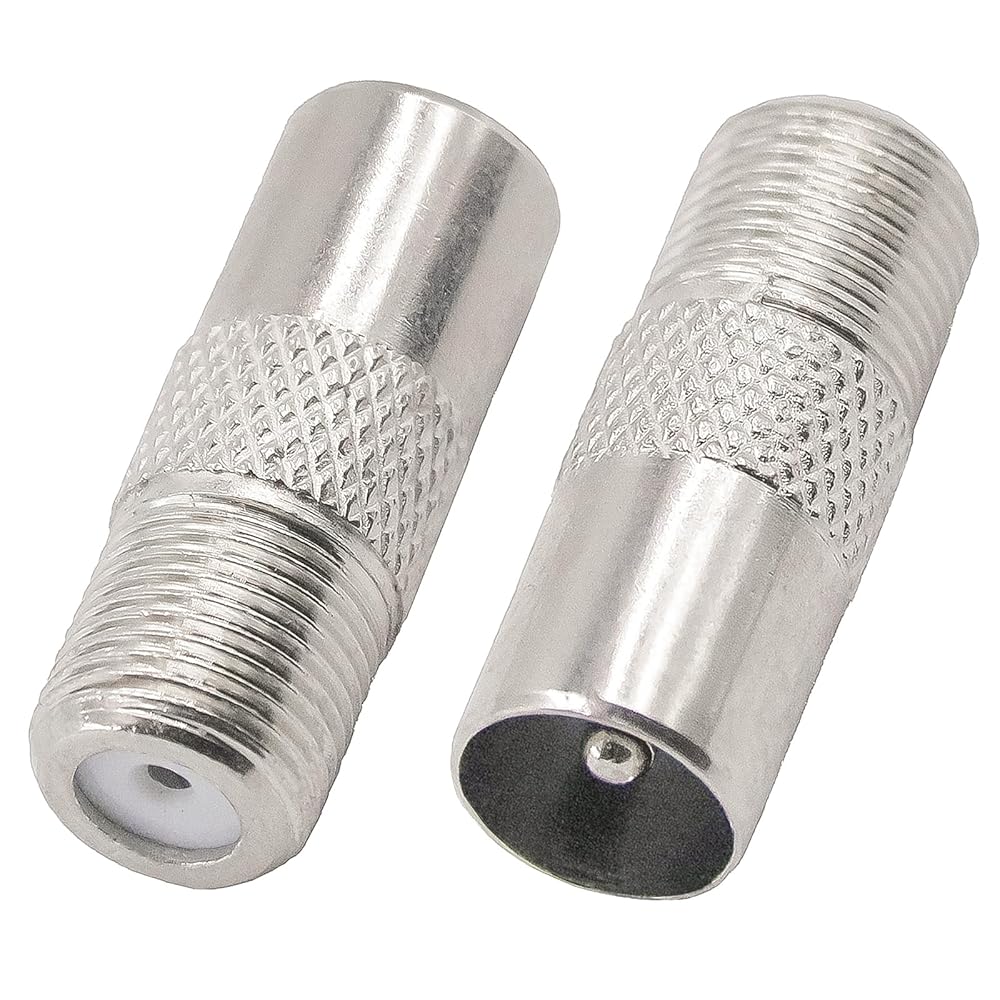

Product type: F female to TV PAL male RF coaxial adapter
Adapter type: F female to TV PAL male; Material: Copper; Body style: Straight
Parameters: Impedance: 50 ohm; Insulator: PTFE; Frequency Range: 0~3GHZ; Withstand voltage: 1000V rms; Working Voltage: ≤ 335V; Center contact resistance: ≤ 3 mΩ; Outer contact resistance: ≤ 2 mΩ; Insulation resistance: ≥ 5000 MΩ; Insertion loss: ≤0.15 dB/6GHz; Temperature range: -45～125°C
Applications: Used for TV satellite receiver antenna tuner coaxial cable and devices with F/TV PAL connector and so on.
Package: 2 x F female to TV PAL male adapters (Weight: 8g)

وصف

Product Details：
Product name: F female to TV PAL male RF coax adapter 50 ohm
Adapter type: F female to TV PAL male
Material: Copper
Body style: Straight
Impedance: 50 ohm
Insulator: PTFE
Frequency Range: 0~3GHZ
Withstand voltage: 1000V rms
Working Voltage: ≤ 335V
Center contact resistance: ≤ 3 mΩ
Outer contact resistance: ≤ 2 mΩ
Insulation resistance: ≥ 5000 MΩ
Insertion loss: ≤0.15 dB/6GHz
Temperature range: -45～125°C
Applications: Used for TV satellite receiver antenna tuner coaxial cable and devices with F/TV PAL connector and so on.
Package: 2 x F female to TV PAL male adapters
Weight: 8g
