Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x, 1600x; Microscope Head: - Trinocular viewing head: 45degrees;Inclined 360degrees; swiveling, compensation free - Sliding interpupillary adjustment, range 2-3/16inch - 3.0inch (55 mm-75 mm) - Nosepiece: revolving, quadruple - Adjustable diopter ring on both ocular tubes - Photo tube: Inner diameter 23.2mm, height adjustment range: 3/4inch (18 mm); Eyepieces - 2 pairs of eyepieces: WF10X (18 mm field of view) and P16X
Digital camera: - true color 2592x1944 pixels (5M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
Condenser: - NA1.25 Abbe condenser - Built-in iris aperture diaphragm - Built-in swing-out filter holder - Rack and pinion adjustment; Focusing: - Coaxial coarse and fine focus knobs on both sides - Tension adjustable - Focusing stroke: 1-3/16inch (30mm) - Division of fine focusing: 0.002 mm; Stages - Mechanical double layer stage - Stain resistance - Large size, can hold two slides

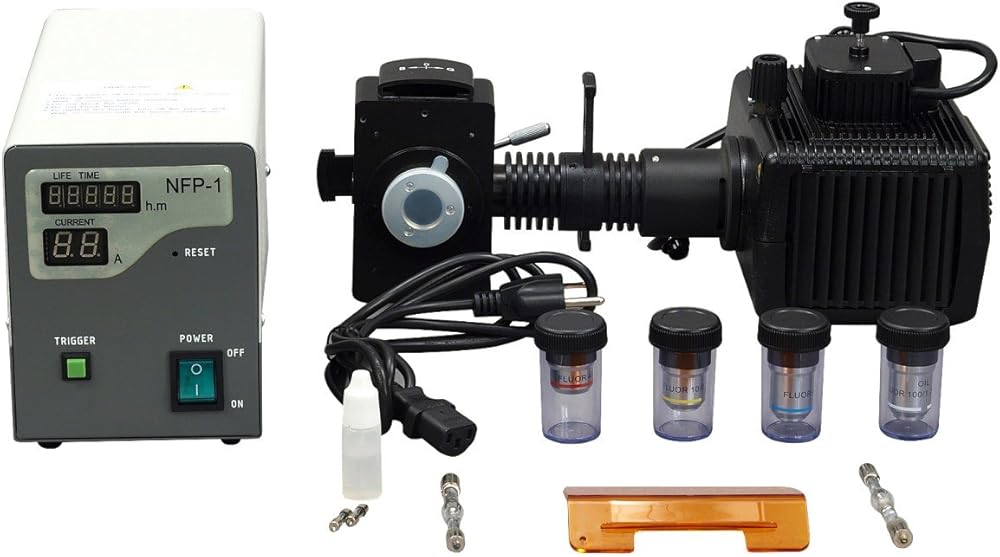

Objectives: high quality fluorescence objectives - FLUOR 4x (0.1 NA) - FLUOR 10x (0.25 NA), - FLUOR 40x (0.65 NA, Spring), - FLUOR 100x (1.25 NA, Spring,Oil); EPI-Fluorescent illumination: - digital displays for Life Time (h.m) and Current (A) - 100 W HBO ultra Hi-pressure spherical Mercury bulb, center adjustable in lighthouse - Built-in condenser, position adjustable - Fluorescence blue and green filter cubes in a sliding assembly - Epi-Fluorescence light path control: block/open
Three-position sliding filter assembly: blue filter, green filter, and transmitted brightfield illumination - Blue exciting filter: 410 - 490 nm, barrier (emission) filter: 515 nm - Green exciting filter: 490 - 540 nm, barrier (emission) filter: 590 nm - Protection barrier (suppression filter or front light baffle to resist the ultraviolet light - Fluorescence free immersion oil; Transmitted illumination: - 6V/20W halogen bulb - Intensity adjustable
وصف

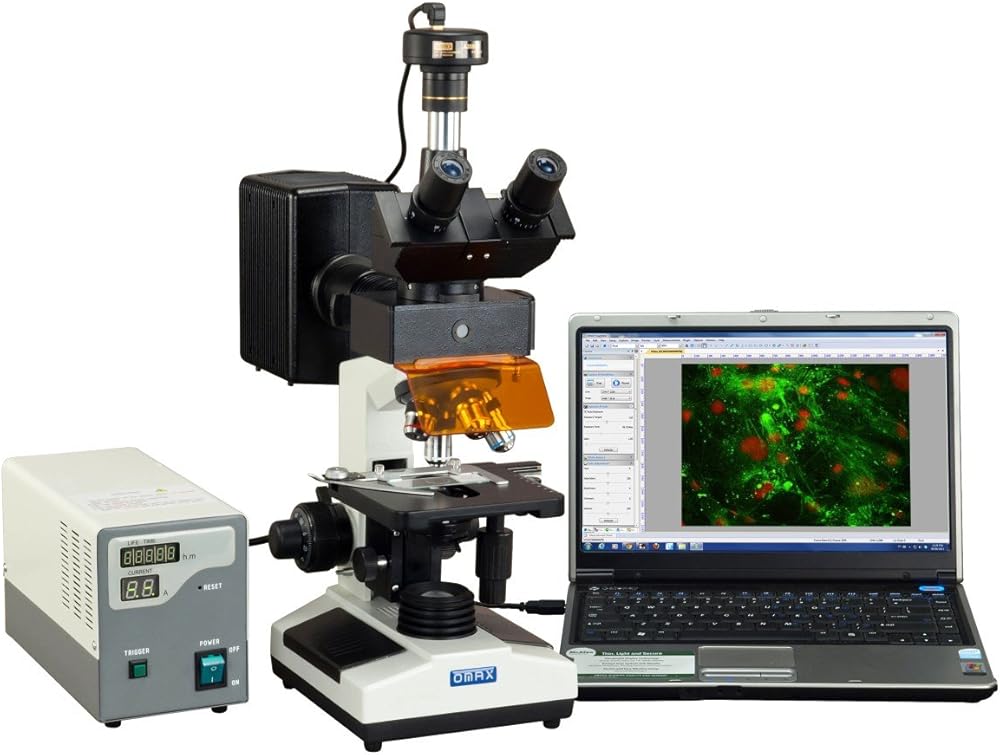

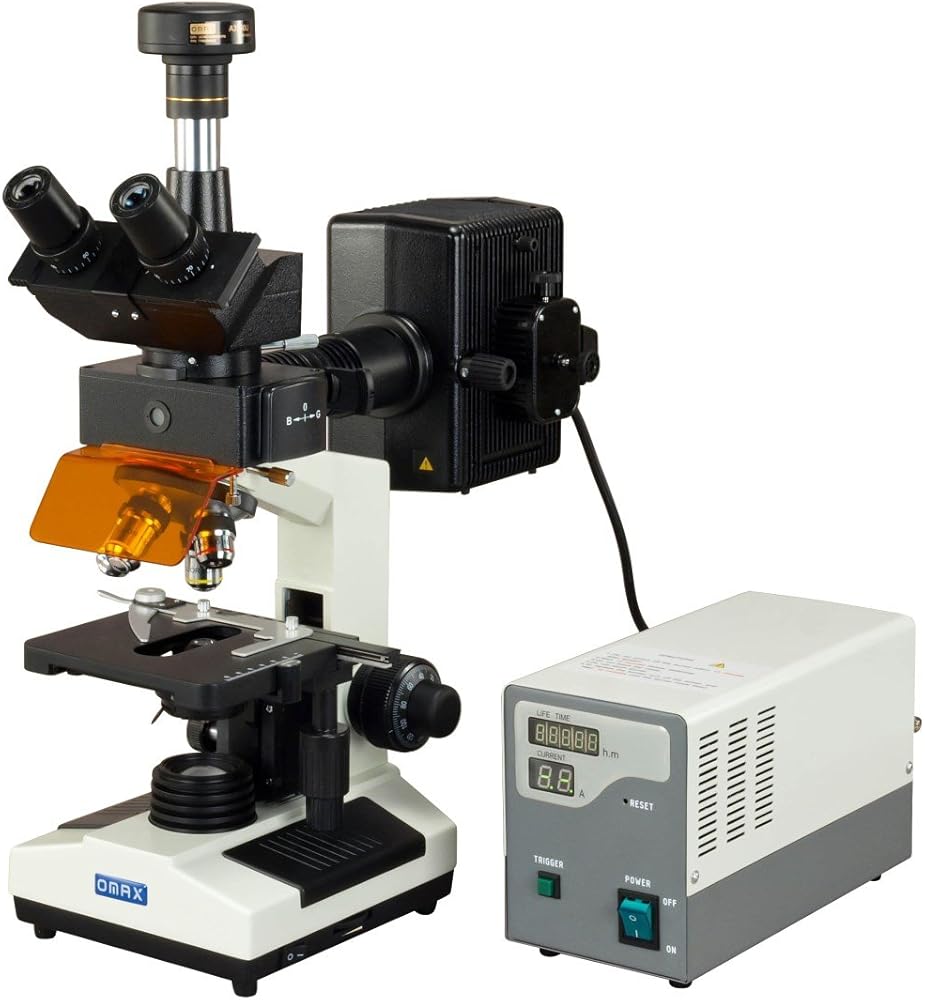

This is a brand new professional EPI-fluorescent trinocular compound microscope that offers quality performance and advanced features. It comes equipped with four high quality fluorescence objectives, an EPI-fluorescent assembly, a 100W HBO power supply for mercury lamp, a 5MP USB digital microscope camera (CMOS), and double-layer mechanical stage. The microscope can also be used in standard brightfield operation without necessitating the teardown of the microscope. It is an ideal instrument for advanced research in biology, cytology, oncology, hematology, genetics, immunology, microchemistry and environmental protection. The digital camera captures still microscope images, streams live video preview to your computer, and is compatible with Windows XP/Vista/7/8/10, Mac OS X, and Linux (2.6 and later). The 0.5X reduction lens included gives your computer screen a wider field of view. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously.
